How to manually set up the OKI MB451-471w Wireless

option

Contents:

Recommendations before you start Page 2

Obtaining an IP address Page 3

Setting up wireless connection page 4

Configuring wireless connection using WPA Page 5-6

Configuring wireless connection using WEP Page 7-8

Re-enabling wired connection page 9

2

Recommendations before you start

You will need to make sure you know the SSID (what the name of your network is),

The Pre-shared key or password (this is the login password for your wireless connection),

What type of security you are using WEP, WPA-PSK or WPA2-PSK.

For WEP you will need to know the WEP KEY,

For WPA-PSK or WPA2-PSK you will need to know the encryption type TKIP or AES

Note:

The above information is for the user to obtain Oki cannot supply you with this

information as this information can only be obtained from the user’s network .If you do

not know how to obtain this information then please contact your service provider or your

network administrator.

3

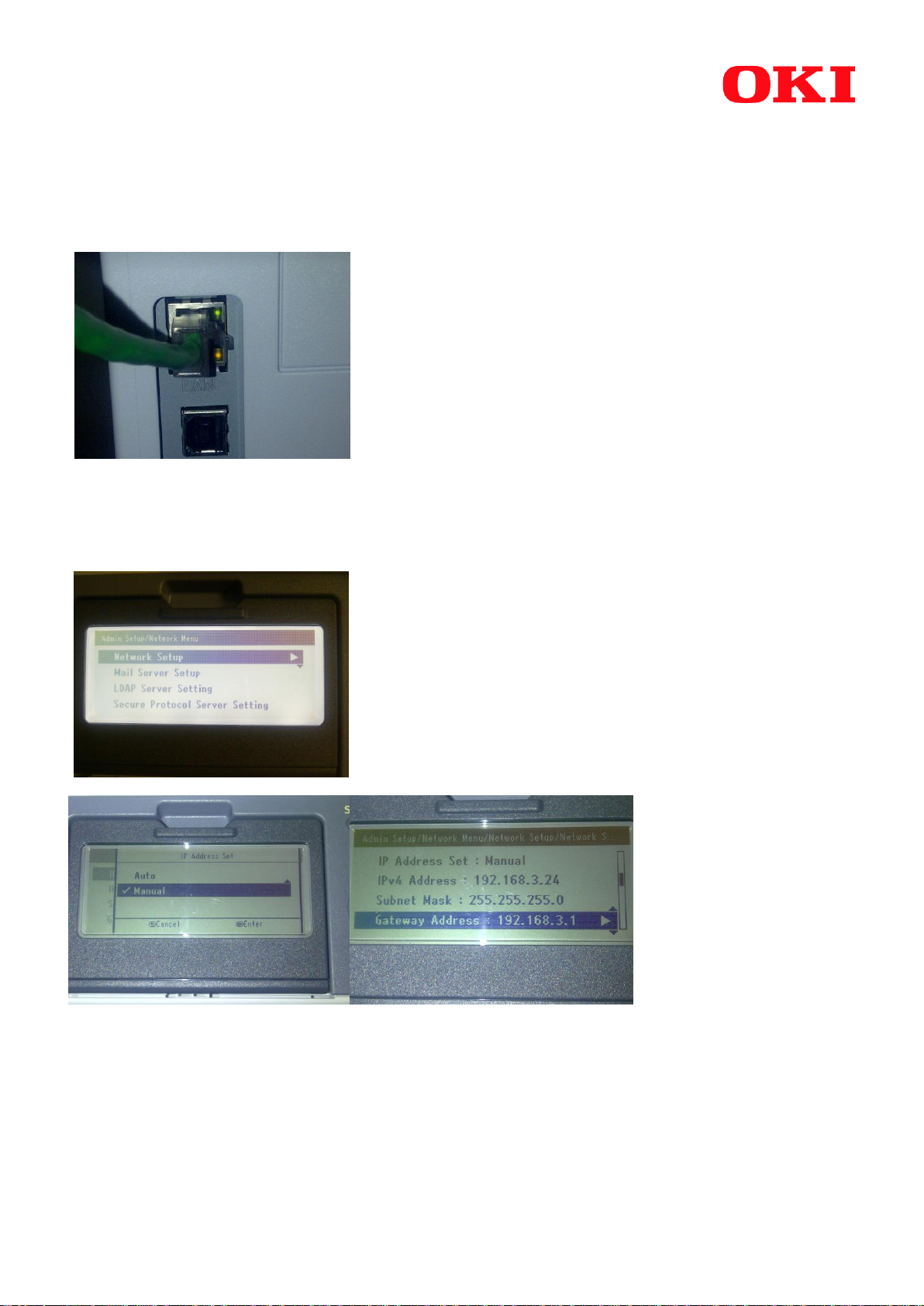

Obtaining an IP address

The machine will need an IP address the easiest way to obtain this is to plug a network cable in the

back of your machine so one can be given to your machine automatically by your network.(make

sure you see two leds one will flash which is a good sign you have a good network connection .

In order for the ip address to remain the same on your machine you must change a setting called ip

address set from auto to manual,to this on the machine press the settings button,press the

down arrow until you see admin setp-up,press enter (you will be asked for a password which is

6 lower case a’s )press the down arrow until you see network menu, press enter

Press enter on network setup

Scroll down to ip address set press enter, change it from auto to manual press enter

4

Setting up wireless connection

Press the back button until you get to network set-up,press enter press the down arrow until

you see Wireless Setting,press enter and you will see the below screen pop up for a short while.

Press enter on manual setup

Press the right arrow to input your SSID

Input your SSID and press enter on done (scroll down if caps are required for SSID)

5

Configuring wireless connection using WPA

Select your security type in this case WPA-PSK press enter

Select your encryption type TKIP or AES,press enter

Press the right arrow in order to input your pre shared key (wireless password) input your

password and press enter on Done

6

You will see the below screen press enter on yes

The below screens will appear

Your machine will now be ready for use

7

Configuring wireless connection using WEP

If you want to connect via WEP follow steps on page 2-4 first . Press enter on WEP

Press the right arrow key to enter your WEP key

Enter your WEP key and press enter on Done

8

You will see the below screen press enter on yes

The below screens will appear

Your machine will now be ready for use

9

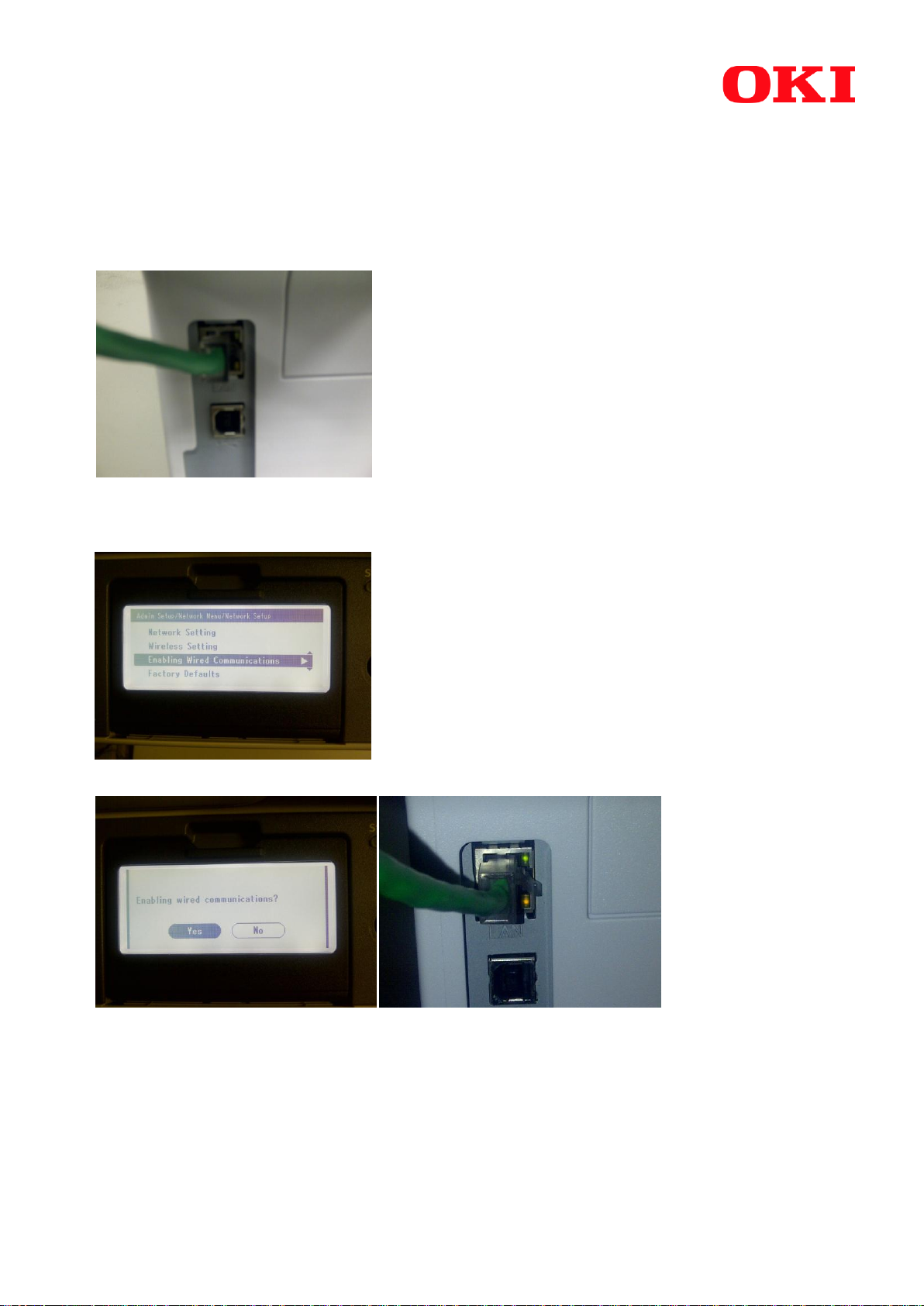

Re-enabling wired connection

Plug the network cable back in the LAN port ,the two led’s will not be on as currently the wireless

connection is enabled .

Press the settings button, press the down arrow until you see admin set-up, press enter

(you will be asked for a password which is 6 lower case a’s ) press the down arrow until you

see network menu, press enter, press enter on network setup, press the down arrow

until you see Enabling Wired Communications, press enter .

Press enter on yes and your wired connection will be re-enabled and your led’s will be

on again next to you LAN cable connection .
