Oki MB461MFP Kurzanleitung
Clearing Paper Jams
MB461 / MB471 / MB491
Rev. 1.1
April 19, 2012
Error Messages and Clearing Paper Jams

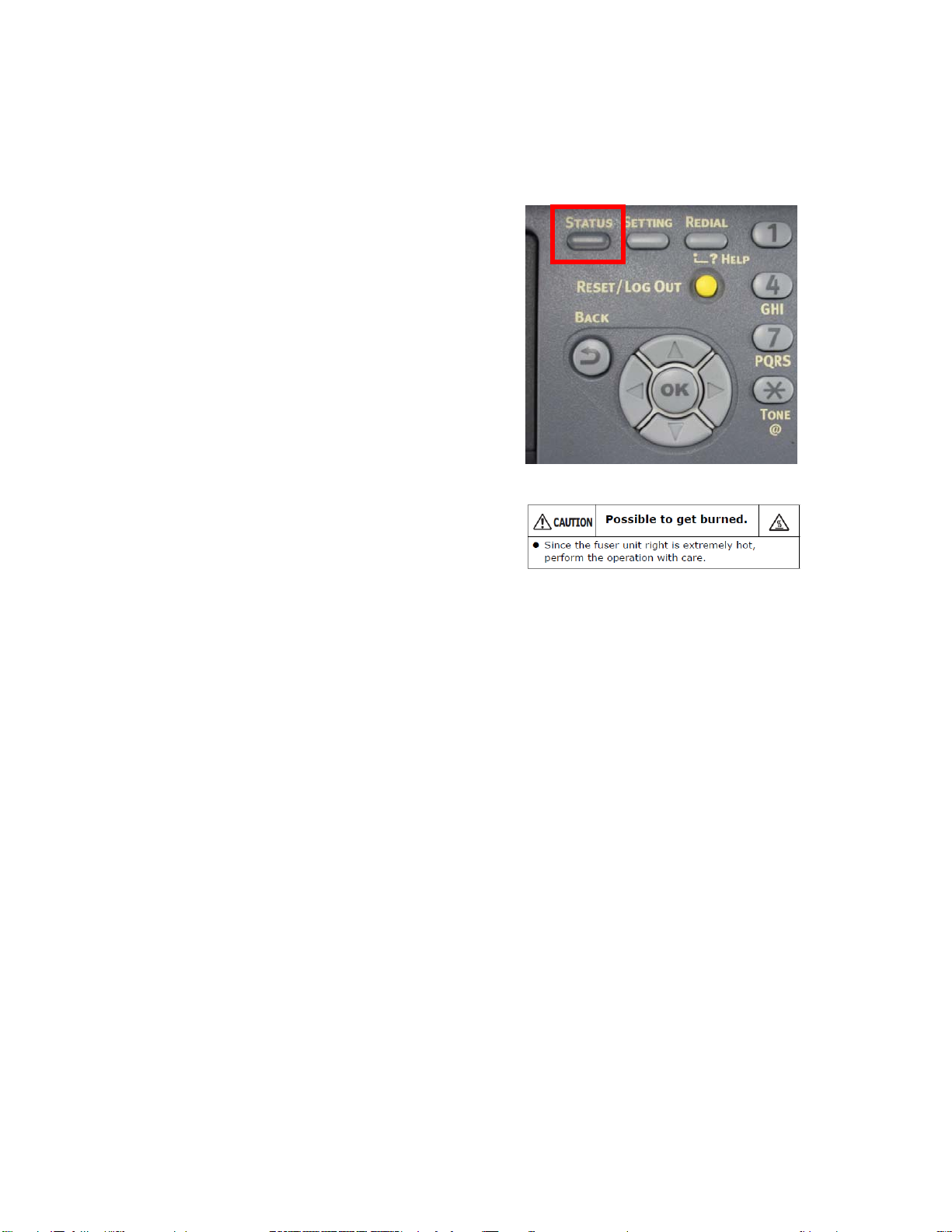

When a paper jam occurs, the [Paper jam] or
[Document jam] message appears on the
display screen and the <STATUS> key in the
operator panel blinks.
The error code and description differ according to
where the paper jam occurs.
NOTES & CAUTIONS:
• Whenever you have a paper jam in the
printer unit, ALWAYS Turn the Unit Off
and let it sit for several minutes as the
fuser stays hot for several minutes after
the machine is powered off. Be very
careful when working around the fuser.
• Remove the paper carefully so that it
does not tear.
• Check that there is no paper remaining
inside the machine.
• The image drum is very delicate. Handle
it carefully.
• Do not expose the image drum to direct
sunlight or very bright interior light. Do
not leave it exposed for more than 5
minutes.
MB 461 - 471 - 491
Page 2
Clearing Paper Jams
Error Code 370, 371, 372 (Duplex paper jam)
1 Remove any documents from the scanner’s document tray.
2 Lift the scanner unit.
3 Press the top cover open button (1) and
completely open the top cover.
4 Carefully lift out the image drum and toner
cartridge as an assembly. Be careful not to
touch or scratch the green drum surface.
5
Remove the Duplex unit by raising the colored
handles on each side, and holding the handles
and gently lifting it out.
NOTES & CAUTIONS:
• Do not touch the sponge roller on top
of the Duplex unit.
1
MB 461 - 471 - 491
Page 3
Clearing Paper Jams
6 Carefully remove any paper and replace the
duplex unit.
NOTES & CAUTIONS:
• Remove the paper carefully so that
it does not tear. If the paper tears,
be sure to remove all of the pieces.
• Check that there is no paper
remaining inside the machine.
7 Replace the duplex unit.
When replacing the Duplex unit into the printer,
insert the 2 legs on the front sides of Duplex
unit into holders of the printer.
8 Secure the Duplex unit to the printer by rotating
both handles towards the rear of the unit.
NOTES & CAUTIONS:
• Do not touch the sponge roller on the
Duplex unit.
MB 461 - 471 - 491
Page 4
Clearing Paper Jams
9 Reinstall the image drum and toner cartridge
as an assembly.
NOTE:
Make sure that the drum grounding pegs on
each side of the drum slide into the slots on
each side of the printer frame.
10 Close the top cover.
Close the scanner unit
11 Power the unit on.
MB 461 - 471 - 491
Page 5
Clearing Paper Jams
Error Code 380, 381, 382, 389 (Paper feed jam)
Error Code 390 (Paper feed jam (Multipurpose tray)
1 Follow Steps 1 through 5 in the section above to remove any paper from the document tray, lift the
scanner, open the printer cover and remove the drum and toner assembly.
2 If the top end of paper is visible at the
rear side of transparent resist guide,
rotate the resist guide toward the fuser
unit and hold the paper top end and
carefully pull out the paper.
3 If neither the top or bottom end of paper
is visible, move the jammed paper in the
arrow direction as shown. Hold the top
end of paper with both hands and
carefully gently pull out the paper.
4 If the bottom end of paper is visible, hold
the paper and carefully pull out the
paper, using both hands to prevent
tearing the paper.
NOTE:
• Remove the paper carefully so
that it does not tear. If the paper
tears, be sure to remove all of
the pieces.
• Check that there is no paper
remaining inside the machine.
MB 461 - 471 - 491
Page 6
Clearing Paper Jams
Paper discharge unit (Paper jammed)
5 If the bottom end of paper is visible in
the printer, hold and pull out the paper
carefully.
6 If the bottom end of paper is not visible
but the leading edge is visible at the
paper discharge unit, hold the top end of
paper and pull out the paper carefully.
If you cannot remove the paper by
following Steps (A)1 and (A)2, pull out
the paper by following Steps (B) 1 and
(B)2.
If you have failed to remove jammed
paper, follow the steps below.
7 Reinstall the image drum cartridge and
toner cartridge assembly into the printer,
(Step 9 in the previous section) and
close the top cover.
Turn the printer Power switch ON.
When the motor starts to rotate, hold the
top end of paper and gently pull out the
paper.
NOTE:
• If paper jams when you load it,
check to see that no paper has
been left in the paper feed path.
Remember that you can clear the
alarm display only after you have
opened the top cover first and then
closed it again.
(A) 2
(A) 1
(B) 1 (B) 2
MB 461 - 471 - 491
Page 7
Clearing Paper Jams
Error Code 391, 392 (Paper feed jam)
1 Pull out and remove the paper cassette
of the indicated tray.
2 Remove the jammed paper from the
unit.
Insure that there are no pieces of paper
left in the unit.
3 Reinstall the paper tray into the machine.
4 Remove any documents from the scanner’s document tray and lift the scanner unit.
5 Press the top cover open button (1) and
open the top cover.
Close the top cover.
Close the scanner unit
Turn the power on.
1
MB 461 - 471 - 491
Page 8
Clearing Paper Jams
Scanner Document Jams
When you can see the document In the ADF Paper Path
1 Open the ADF cover, and gently pull the
document up and out.
When you can see the document Inside the ADF
1 Remove any documents from the document
tray.
Open the ADF cover.
Hold the jammed document by the top edge,
and gently pull it out.
MB 461 - 471 - 491
Page 9
Clearing Paper Jams
2 If the edge of the document can been seen
under the paper guide, lift the paper guide
and then pull out the document.
Close the paper guide.
3 If the edge of the document cannot be seen
in the ADF, lift the document tray and then
pull out the document.
Close the document tray.
4 Close the ADF cover.
MB 461 - 471 - 491
Page 10
