Oki B930 Series Bedienungsanleitung

Setup Guide. . . . . . . . . . . . . . . 2

Guide d’installation . . . . . . . . 14

Guía de Instalación . . . . . . . . 27

Guia de Configuração . . . . . . 40

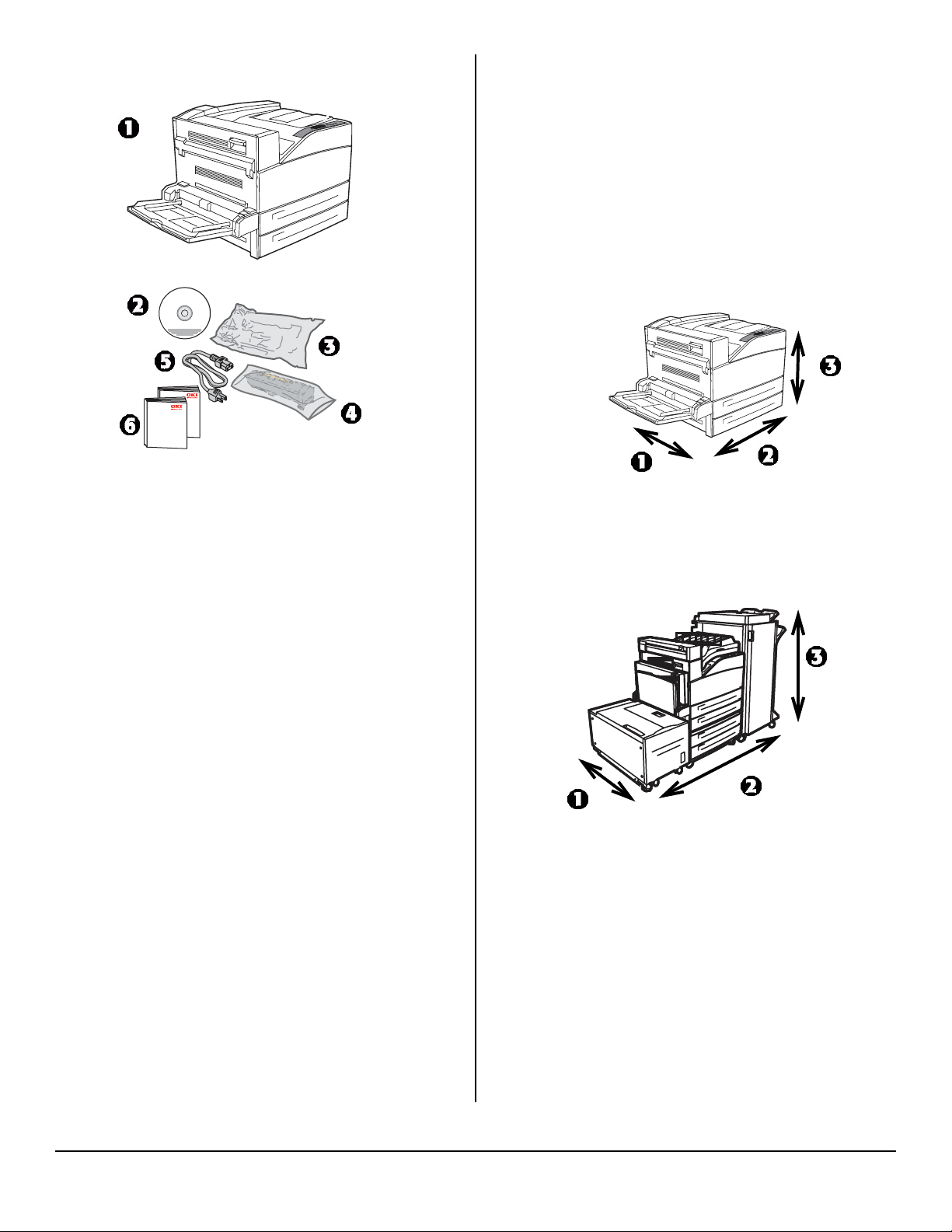

Check components_______

1Printer

2CD

3Image Drum Cartridge

4Toner Cartridge

5Power cable

6Documentation: (this Setup Guide, Handy

Reference Guide, Safety, Warranty, and

Regulatory Information booklet)

Installation Overview ____

• Space Requirements (see page 2)

• Set up the printer:

- Unpack the printer (see page 3

- If applicable, install the printer on one of the

optional trays (see page 3)

- Install the image drum and the toner

cartridge (see page 3)

- Load paper (see page 4)

• Install the options you purchased:

- Memory Modules (see page 5)

- Compact Flash (see page 5)

- Hard Disk Drive,(see page 5

- Tabloid Tray (see page 6)

- Tandem Tray (see page 6)

- Duplexer (see page 6)

- finisher (see page 8)

- High Capacity Feeder (see page 10)

• Make Computer Connections (see

page 11)

•Powerup(see page 12)

• Print the Demo page (see page 12)

•Loadsoftware(see page 12 [Windows] or

13 [Macintosh])

Space Requirements _____

Note: Space requirements are approximate.

Basic Printer

• Depth (1) = 46 inches (118 cm)

• Width (2) = 47 inches (120 cm)

• Height (3) = 27 inches (69 cm)

Printer with Options

• Depth (1): 46 inches (118 cm)

•Width(2):

- with High Capacity Feeder (HCF) = 47 inches

(118 cm)

- with finisher = 60 inches (153 cm)

- with HCF and finisher = 86 inches (218 cm)

• Height (3):

- with optional tray = 35 inches (89 cm)

- with finisher = 47 inches (119 cm)

Set Up the Printer _______

Unpack the Printer

1.Place the printer and any optional components

at your selected location.

Place the Printer on the Optional

Tray

1.If you purchased the optional Tabloid Tray (1)

or Tandem Tray (2), unpack the tray and

remove the cushioning materials.

2. Lock the casters on the tray.

3. Align the holes on the bottom of the printer

with the positioning guides on the tray, and

place the printer on the tray.

4. Remove the printer packing materials and

shipping tape.

Install the Image Drum and the

Toner Cartridge

1.Open the printer’s front cover and side cover.

2. Remove the image drum cartridge from the

package, then remove the protective sheet.

CAUTION! Avoid contact with internal

surfaces. Do not let the drum sit in room

light for more than 5 minutes.

3. Fold the handle (3) down and slide the image

drum Cartridge into the printer. Press the

cartridge firmly into the printer.

4. Remove and discard the protective strip.

5. Remove the toner cartridge from its packing

and shake it from side to side 8 to 10 times to

distribute the toner.

6. Slide the toner cartridge into the printer and

press it firmly in place.

7. Close the printer covers.

Load Paper

Trays 1 and 2

1.Pull out the tray(s).

2. Adjust the paper guides for the paper you are

using.

3. Fan the paper and add it to the tray, print side

. Do not exceed the maximum level.

Caution!

Align the right width guide with the

paper width correctly. If the right width guide is

not in place, the paper will not be properly fed

and may cause a paper jam.

4. Close the tray(s).

MP Tray (Tray 5)

1.Lower the MPT tray and adjust the paper

guides.

2. Fan the paper and add it to the tray, print side

down

. Do not exceed the maximum level.

Install the Options You

Purchased

Install the Optional Memory,

Compact Flash, and/or Hard

Disk Drive (HDD)

1.Make sure the printer is turned off.

2. On the back of the printer, loosen the two

screws on the controller assembly cover, then

remove the cover.

3. Memory Modules: Carefully insert the

module in the slot at the lower left, then

gently push down on the module until the side

braces close to the ends of the RAM module.

4. Compact Flash: In a similar manner to the

memory module above, carefully insert the

Compact Flash module in the slot on the upper

right.

5. Hard Disk Drive: Insert the HDD into the

socket, being careful not to damage the fragile

pins.Seat the Hard Drive over the locating

pins and push firmly to secure the unit

6. Reinstall the cover, securing it with the

screws.

Finish the Optional Tabloid Tray

or Tandem Tray Installation

If you purchased the optional tabloid tray or

tandem tray and mounted the printer on it earlier

in the installation, you now need to complete the

installation.

1.Make sure the printer is turned off.

1.Open each drawer, remove the packing

materials, and close the drawer.

-Tabloid Tray

-Tandem, Tray

2. Remove drawer 3 from the printer. Insert the

two locking screws and turn them clockwise to

secure the tray to the printer.

3. Push the drawer back into the printer.

4. Remove the interface access cover (1) from

the back of the printer, connect the tray

interface connector (2) and replace the

interface access cover (3).

5. Level the unit.

Install the Optional Duplexer

1.Make sure the printer is turned off.

2. Unpack the duplexer (duplex unit [1] and exit

module [2]) and remove cushioning materials.

3. Pull the release button to open the front cover.

4. Remove the cover and save for possible reuse.

5. Slide the duplex exit module into position.

6. Close the front cover.

7. Insert the two hooks on the bottom of the

duplex unit into the printer’s receptors (1).

8. Lift the duplex Unit until the upper hooks are

latched in the printer.

9. Open the duplex unit cover by lifting the latch.

10.Twist the 2 locking screws clockwise to secure

the Duplex Unit to the printer.

11..Close the duplex unit cover

12.Remove the access cover from the back of the

printer (1), connect the duplex unit interface

cable (2) and replace the printer access cover

(3).

Install the Optional Finisher

1.Make sure the printer is turned off.

2. Unpack the finisher’s horizontal transport unit

and position it on top of the printer.

3. Insert the two mounting screws to secure the

horizontal transport unit.

4. If the duplexer is installed, the guides from

the printer itself must be moved to the

duplexer exit module.

The guides are two pieces of rubber and plastic

that assist in stacking to the top of the printer.

When installing the horizontal transport this

guide needs to be moved from the body of the

printer up to the exit module.

5. Place the mounting bracket in position and

insert the two mounting screws to secure it.

6. .Remove all the packing materials from the

finisher.

7. Slide the finisher into position engaging the

latching hardware.

8. Insert the Stacker Lower catch tray.

9. Remove the access cover and plug in the

finisher interface cable.

10.Remove the printer interface cover.

11.Connect the interface connector and replace

the cover.

12.Connect finisher power cord to the printer

accessory power connection.

13.Level the finisher making it parallel to the

printer.

14.Open the finisher door and remove the

internal tags and shipping brackets.

15.Move the catch to the right and insert the

staple module.

16.Unpack the paper punch waste container.

17.Insert the punch waste container and fully

seat it. Close the finisher door.

Install the Optional High

Capacity Feeder (HCF)

1.Make sure the printer is turned off,.

2. Unpack the HCF and remove the cushioning

materials.

3. Slide the drawer out and remove the packing

material, then close the drawer.

4. Install the mounting bracket.

5. Slide the HCF to the mounting plate guiding it

on the locating pin until it latches.

6. Remove the shipping hardware and discard.
