Oki MPS710c Service-Handbuch

Handy Reference

Guide de référence pratique

Referencia Rápida

Guia de referência rápida

59402301 my.okidata.com

MPS710c

Using the Printer Menu . . . . 4

Navigating. . . . . . . . . . . . . 4

Menu Summary . . . . . . . . . 5

Print Media Settings . . . . . . . 6

Tray 1 and Optional Trays 2

and 3. . . . . . . . . . . . . . . . . . 8

Usable Print Media . . . . . . . 8

Loading Paper . . . . . . . . . . 9

Multi-Purpose Tray. . . . . . . 10

Usable Print Media . . . . . . .10

Loading Print Media . . . . . .11

Exit Trays . . . . . . . . . . . . . . 12

Power Save Mode . . . . . . . . 13

Clearing Media Jams. . . . . . 14

Troubleshooting . . . . . . . . . 22

Ordering Replacement

Supplies . . . . . . . . . . . . . . 23

Service & Support. . . . . . . . 24

Utilisation des menus

de l'imprimante . . . . . . . 25

Déplacement. . . . . . . . . . . 25

Sommaire des menus. . . . . 26

Paramètres de support

d’impression . . . . . . . . . . . 27

Bacs 1, 2 et 3 optionnel . . .29

Supports d'impression

utilisables . . . . . . . . . . . . 29

Chargement des supports

d'impression . . . . . . . . . . 30

Bac multifonction . . . . . . . . 31

Supports d'impression

utilisables . . . . . . . . . . . . 31

Chargement des supports

d'impression . . . . . . . . . . 32

Bacs de sortie . . . . . . . . . . . 33

Mode d'économie

d'énergie. . . . . . . . . . . . . . 34

Dégagement des

bourrages . . . . . . . . . . . . .35

Dépannage . . . . . . . . . . . . .43

Commande de fournitures . 44

Service et support . . . . . . . 45

Contents Table des matières

59402301

Uso el menú de la

impresora . . . . . . . . . . . 46

Navegar . . . . . . . . . . . . . .46

Resumen de la menú . . . . .47

Configuración de los

Medios de Impresión . . . . 48

Bandeja 1, Bandejas 2

y 3 Opcional . . . . . . . . . . . 50

Medios de Impresión

utilizable . . . . . . . . . . . . . .50

Carga del papel . . . . . . . . .51

Bandeja Multi-Uso . . . . . . . 52

Medios de Impresión

utilizable . . . . . . . . . . . . .52

Carga del medios de

impresión . . . . . . . . . . . .53

Bandejas de salida . . . . . . . 54

Ahorro de energía . . . . . . . 55

Solución de atascos . . . . . . 56

Resolución de problemas . . 64

Cómo hacer sus pedidos

de suministros . . . . . . . . . 65

Servicio y Soporte . . . . . . . 66

Contenido

•

English

Using the Printer Menu

Navigating

Note

Settings made in the printer

driver will override the printer

menu settings.

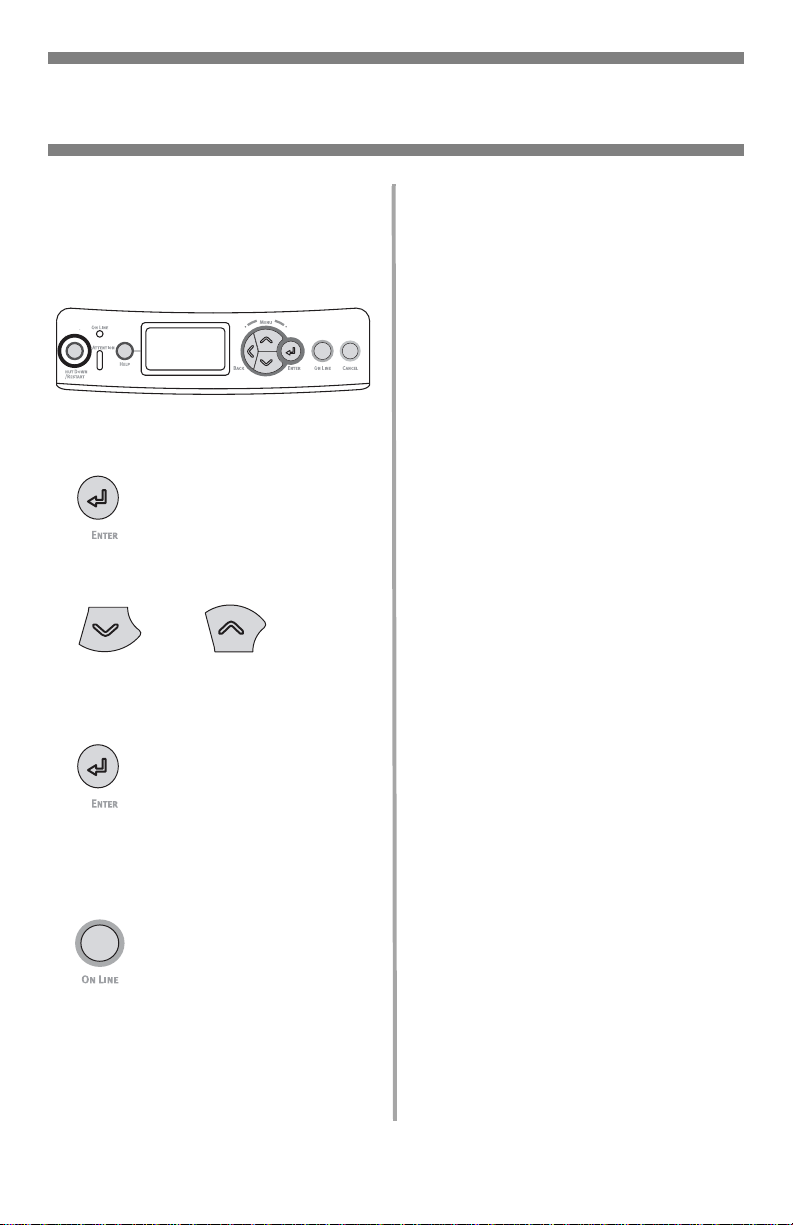

Navigating the Menu

1. Press

to enter the Menu mode.

2. Press

repeatedly to scroll through the

Categories, Items and Values.

3. Press

to select a Category, Item or

Value to change, or to engage

the new setting for a Value.

4. Press

to exit the Menu mode.

For Example

If the MP Tray will normally be

loaded with index cards, set the

printer menu as follows:

1. Press E

NTER

2. Press the down arrow key to

move down to

Menus

. Press

NTER

3. Press E

NTER

to select

Tray

Configuration

4. Press the down arrow key to

move down to

MPTray Config

Press E

NTER

5. Press the down arrow key to

move down to

Media Type

. Press

NTER

6. Press the down arrow key to

move down to

Card Stock

. Press

NTER

An asterisk appears next to

your selection. The setting is

engaged.

Press O

INE

•

English

Using the Printer Menu

Menu Summary

Summary of Menu

Categories



Configuration

•PageCount

• Supplies Life

•Network

•System



Print Information



Menus

• Tray Configuration

•MPTrayConfig



System Adjust



Admin Setup

For use by the System

Administrator. To access this

menu you must enter the

password. If you have no

administrator, the default

password is aaaaaa.



Calibration

Printing the

Configuration Report

The Configuration report provides

a listing of the current printer

menu settings.

1. Press

NTER

2. Press the down arrow key to

select

Print Information

3. Press

NTER

4. Press E

NTER

to select

Configuration

5. Press E

NTER

. to select

Execute

The Configuration report prints

and the printer goes back on

line.

•

English

Print Media Settings

Always make sure the media setting

matches the print media you are

using.

Improper media settings:

• cause poor quality printing

• cause flaking

• can damage the printer

Note

Printer driver settings override

printer menu settings.

Default Settings

The default media weight setting

for Tray1 is Light.

The default setting for the MP

(Multi Purpose) Tray is Medium.

Resetting to the Defaults

Note

A password is required to

access this area of the printer

menu. If you have a System

Administrator, only they can

reset the defaults.

1. Press E

NTER

2. Press the down arrow key to

move down to

Admin Setup

Press E

NTER

3. Enter the administrative

password (the default

password is aaaaaa).

a. Press the up arrow key (a to

z, 0 to 9) or the down arrow

key (9 to 0, z to a) to scan

through the various

numbers and letters of the

alphabet.

b. Press Enter.

c. Repeat a and b above for

each digit of the password.

4. Press E

NTER

5. Press the down arrow key to

move down to

Settings

. Press

NTER

6. Press E

NTER

to select

Reset

Settings

7. Press E

NTER

to select

Execute

The printer resets and returns

to the on-line state.

•

English

Print Media Settings

Temporarily Changing the

Media Weight for an

Individual Print Job

If you are printing a job on

special media, you can

temporarily load the media in a

tray and change the media

settings for that tray in the driver

as you print the job.

Media Weight Settings

Media weight settings can be

made in the printer menu or the

printer driver.

• Light: 17-19 lb. US Bond

(64-74 g/m²)

• Medium Light: 20-21 lb. US

Bond (75-82 g/m

)

• Medium: 22-30 lb. US Bond

(83-104 g/m

)

• Heavy: 28-32 lb. US Bond

(105-120 g/m

)

• Ultra Heavy1 (Tray 1): 32-50

lb. US Bond (121-188 g/m

)

•UltraHeavy2

-Trays 2 and 3: 3

2-54 lb. US

Bond (121-203 g/m

-MP Tray: 32-58 lb. US Bond

(189-220 g/m2)

•

English

Tray 1 and Optional Trays 2 and 3

Usable Print Media

Media Specifications

Weight Range

Tray 1: 17-50 lb. US Bond (64-188 g/m

)

Optional Trays 2 and 3: 17-54 l

b. US Bond

4-203 g/m

)

Standard Sizes:

Tray 1: Letter, Legal-14, Legal-13.5, Legal-13,

Executive, A4, A5, A6, B5.

Optional Trays 2 and 3: Letter , Legal-14,

Legal-13.5, Legal-13, Executive, A4, A5, B5.

Custom Sizes:

•Min.: 5.5 x 8.3'' (140 x 211 mm)

• Max.: 8.5 x 14'' (216 x 356 mm)

Must be defined in driver before printing: see your

on-line User’s Guide.

Capacity:

530 sheets of 20-lb. (75 g/m

) paper

•

English

Tray 1 and Optional Trays 2 and 3 (cont.)

Loading Paper

4 Important! Adjust the paper

size dial to the size of the

paper being used.

•

English

Multi-Purpose Tray

Usable Print Media

Media Specifications

Weight Range

32-58 lb. US Bond (189-220 g/m

)

Standard Sizes:

Letter, Legal-14, Legal-13.5, Legal-13, Executive, A4, A5,

A6, B5, Com-10 envelopes.

Custom Sizes:

Min. 3 x 11.7" (76 x 297 mm)

Max. 5" x 14" (127 x 356 mm)

Banners: 8.25 to 11.7" (216 to 297 mm) wide by up to

47.25"'' (1220 mm) long. Must be fed one sheet at a time.

Must be defined in driver before printing: see your on-

line User’s Guide.

Takes:

• 100 sheets 20-lb. (75 g/m

) paper

•10 envelopes

• 20 sheets of labels

• 50 transparencies

• Banners, one at a time
