Oki Teriostar LP-2060 Series Bedienungsanleitung

Wide Format Printer

Teriostar LP-2060 Series

Multifunction Model

LP-2060-MF

Quick Reference Guide

U10000088500 December, 2017 Rev. 2

Your Printer is a Teriostar LP-2060 Series Wide Format Printer.

This manual describes the basic operation methods for this model.

For more detailed information, see the User's Manuals on the supplied CD-ROM.

Keep this guide in a place where you can easily read it when required.

Preface

Turning the Power On/O …………………… 3

Power On……………………………………………… 3

Power O……………………………………………… 3

Mode Buttons ………………………………… 3

Replacing the Paper …………………………… 4

Replacing the Toner Cartridge………………… 6

Replacing the Waste Toner Bottle …………… 8

Replacing the Charger Unit …………………… 10

Replacing the Process Cartridge ……………… 12

Part Names……………………………………… 14

Paper Jams……………………………………… 16

Copying ………………………………………… 20

Importing Images (Documents) to a Computer

… 21

Operating the Printer from a Computer ……… 23

Troubleshooting ……………………………… 24

When an Error Message Appears…………………… 24

Smears on a Printout ……………………………… 24

Changing the Time Until Power Save Mode ……… 24

Automatic Paper Cutting After a Certain Time …… 24

Automatic Paper Cutting After Opening

and Closing a Door ………………………………… 25

Changing the Print Density ………………………… 25

Wrinkles on Tracing Paper ………………………… 25

Selecting Paper to Match the Print Data …………… 25

Missing Print or Slow Data Reception ……………… 26

Service Representatives ……………………… 29

Disposal Method …………………………………… 29

Table of Contents

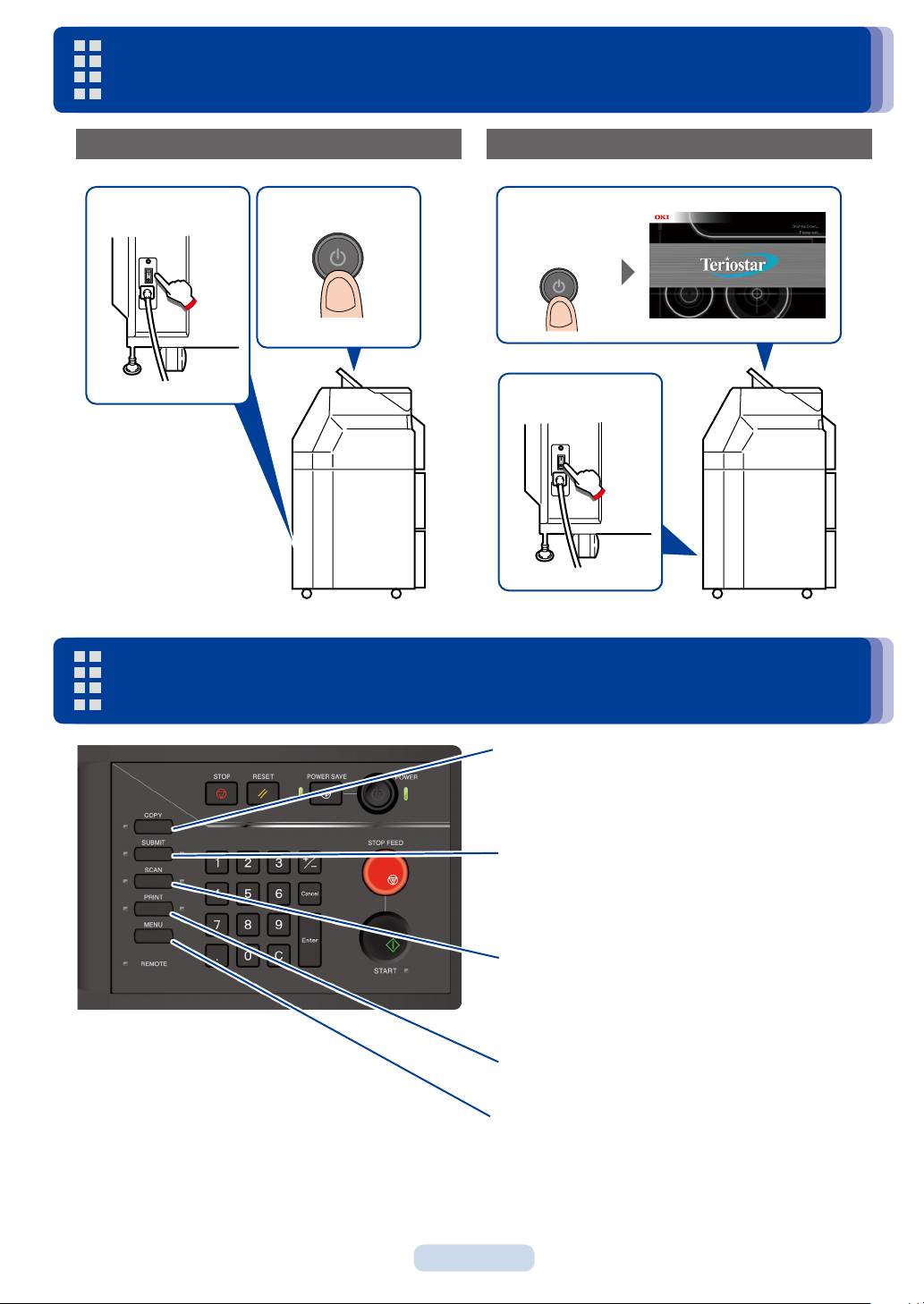

Turning the Power On/Off

Power On

Power O

Press down for

1 sec. or longer

zCOPY button

Changes to copy mode, and the lamp at the button's

left lights up. For more details, see the separate User's

Manual for Multifunction Printer Operation.

zSUBMIT button

Changes to submission mode, and the lamp at the

button's left lights up. For more details, see the separate

User's Manual for Multifunction Printer Operation.

zSCAN button

Changes to scan mode, and the lamp at the button's

left lights up. For more details, see the separate User's

Manual for Multifunction Printer Operation.

zPRINT button

Changes to print mode and enables printing.

zMENU button

Changes to menu mode, which enables the Printer

setting specication.

Mode Buttons

Replacing the Paper

OkNo

TReplacing the Paper

60 cm

(23.63 inches)

Approximately 90°Approximately 90°

Replacing the Toner Cartridge

x10

Disposing of Empty Toner Cartridges

Put the used toner cartridge into the bag provided in the box of the new toner cartridge, and dispose

of it according to the local regulations.

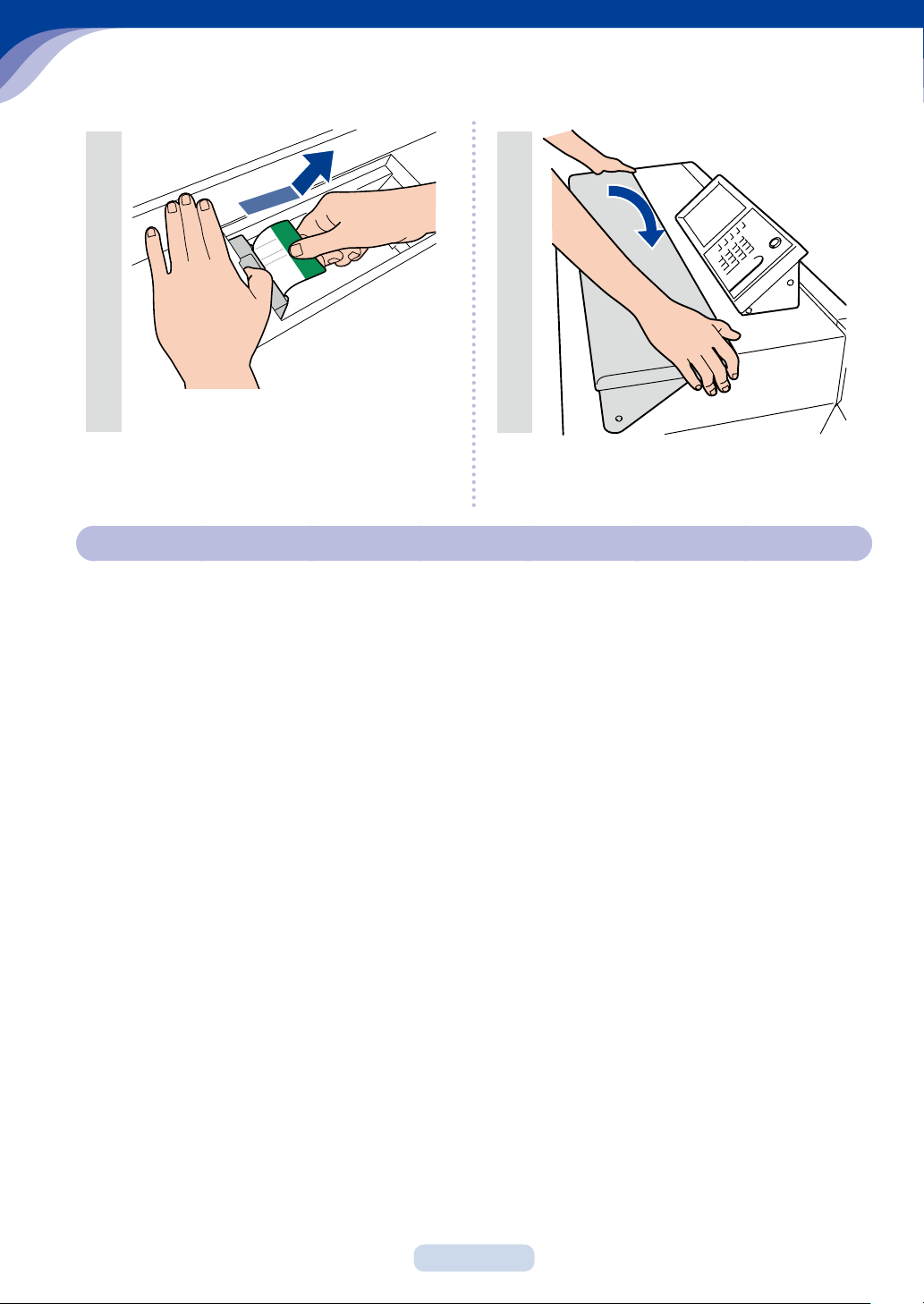

TReplacing the Toner Cartridge

7 8

Replacing the Waste Toner Bottle

1 2

x10

①

②

Disposing of Used Toner Bottles

Dispose of the waste toner bottle according to the local regulations.

TReplacing the Waste Toner Bottle

①

②

Replacing the Charger Unit

Press do

wn for

sec. or longer
