Please read these instructions for information about using

the product correctly and safely.

Keep the instructions handy for future reference.

To ensure successful recordings, we recommend that

you test the record function and volume before use.

For Safe And

Correct Usage

Thank you for purchasing the Olympus

Digital Voice Recorder DS-3000. Before

using your new recorder, read this manual

carefully to ensure that you know how to

operate it safely and correctly. Keep this

manual in an easily accessible location for

future reference.

• The warning symbols indicate important

safetyrelatedinformation.Toprotectyourself

and others from personal injury or damage

to property, it is essential that you always

heedthewarningsand information provided.

General Precautions

●Do not leave the recorder in hot, humid

locationssuchasinsideaclosedautomobile

under direct sunlight or on the beach in the

summer.

●Donotstore the recorderinplaces exposed

to excessive moisture or dust.

●Donotuseorganic solvents such asalcohol

and lacquer thinner to clean the unit.

●Do not place the recorder on top of or near

electric appliances such as TVs or

refrigerators.

●Avoid sand or dirt. These can cause

irreparable damage.

●Avoid strong vibrations or shocks.

●Donotdisassemble,repairormodifytheunit

yourself.

●Do not operate the unit while operating a

vehicle (such as a bicycle, motorcycle, or

go-cart).

●Keep the unit out of the reach of children.

IBM, PC/AT and ViaVoice are the trademarks or

registered trademarks of International Business

Machines Corporation.

Microsoft and Windows are registered trademarks

of Microsoft Corporation.

Intel and Pentium are registered trademarks of Intel

Corporation.

Macintosh and Apple are registered trademarks of

Apple Computer, Inc.

Other product and brand names mentioned herein

may be the trademarks or registered trademarks of

their respective owners.

Batteries

Warning

• Batteries should never be exposed to

flame, heated, short-circuited or

disassembled.

• Do not attempt to recharge alkaline,

lithium or any other non-rechargeable

batteries.

• Never use any battery with a torn or

cracked outer cover.

• Keep batteries out of the reach of

children.

• If you notice anything unusual when

using this product such as abnormal

noise, heat, smoke, or a burning odor:

1remove the batteries immediately while

being careful not to burn yourself, and;

2call your dealer or local Olympus

representative for servicing.

AC Adapter

Warning

• Do not attempt to disassemble, repair or

modify the AC adapter in any way.

• Keep objects including water, metal, or

flammable substances from getting

inside the product.

• Do not moisten the AC adapter or touch

it with a wet hand.

• Do not use theAC adapter in the vicinity

of flammable gas (including gasoline,

benzine and lacquer thinner).

In case

• ...the internal parts of the AC adapter are

exposed because it has been dropped or

otherwise damaged:

• ...theAC adapter is dropped in water, or if

water, metal flammable substances or

other foreign objects get inside it:

• ...you notice anything unusual when

using the AC adapter such as abnormal

noise, heat, smoke, or a burning odor:

1do not touch any of the exposed parts

2immediately disconnect the power

supply plug from the power outlet, and

3call your dealer or local Olympus

representative for servicing. Continued

use of the AC adapter under these

circumstances could result in electric

shock, fire or injury.

●The DS-3000 digital voice recorder stores

highly compressed DSS audio files on

SmartMedia cards.

●The DS-3000 supports two recording

modes: SP (Standard Playback) mode and

LP (Long Playback) mode (→P.22). The

supplied 16MB SmartMedia card can store

approximately 2 hours and 35 minutes of

recordings* in SP mode and approximately

5 hours and 30 minutes* in LP mode. A

64MB SmartMedia card (sold separately)

can hold up to 22 hours and 20 minutes* of

recordings.

●TheVariableControl VoiceActuator(VCVA)

saves memory space by pausing recording

when the recorder judges that there is no

sound (→P.30).

●Recorded audio files can be stored in three

separate folders for easier identification in

future use.

●Overwrite recording, insert recording,

additional recording and partial erasure

functions make it easy to correct and edit

recordings.

●Furthermore, the AS-3000 transcription kit

(sold separately) provides you with a PC-

footswitchand DSSPlayerProTranscription

Module for easy transcription of DSS

recordings.

* The recording time available may be shorter than

specified if a large number of short recordings are

made. (Use the remaining time and recorded time

only as references.)

Main Features

Table of Contents

Getting Started

SmartMedia................................................ 6 Identification of Parts .................................8

Preparing For Recording

Inserting Batteries ....................................10

Replacing Batteries .................................. 11

Using the ACAdapter............................... 11

Setting Time/Date ....................................12

Inserting and Ejecting

SmartMedia cards .............................14

Basic operations

Recording.................................................16

Microphone Sensitivity .............................21

Recording Modes ..................................... 22

Playing .....................................................23

Erasing .....................................................26

Other functions

Using the Variable Control Voice Actuator

(VCVA)...............................................30

Locking Files ............................................ 31

Index Marks .............................................32

System Sounds ........................................33

Alarm Playback Function .........................34

Moving Files Across

Folders...............................................36

Assigning Folder Names .......................... 38

Setting Priority Levels .............................. 40

Setting Job Data ......................................42

Formatting SmartMedia ...........................46

Transferring Data to a PC ........................ 47

Other Information

Dealer Option Items ................................. 48

Hold..........................................................48

Reset........................................................48

Training your PC for Voice Recognition ...49

Menu List .................................................50

Alarm Message List .................................51

Troubleshooting ....................................... 52

Specifications ...........................................53

Accessories (optional).............................. 54

Technical Assistance And Support ...........55

SmartMedia

What is SmartMedia?

SmartMediaisatypeof removable IC memory

card. With more memory than a floppy disk,

SmartMedia cards facilitate data exchange

with personal computers, and can be used to

store data. Optional SmartMedia cards are

available to add capacity as needed, in

addition to the included 16MB SmartMedia

card.

When purchasing SmartMedia cards of

various memory capacities, specify 3 V

(3.3 V) SmartMedia cards (in memory sizes

of 4, 8, 16, 32, and 64MB) for the Olympus

CAMEDIA digital camera series.

Notes

• Commercial5VSmartMediacards cannot be used.

• This product is compatible with SmartMedia cards

that have the copyright protection ID feature, and

with SmartMedia cards without the ID feature.

(Audio files recorded with this product are not

protected by copyright law.)

• Never use SmartMedia cards with products that

are not compliant with the SSFDC Forum*

(including certain models of MP3 players).

* The SSFDC Forum is a voluntary organization

committedtopromoting SmartMedia asadefacto

standard in the industry. The DS-3000 adheres

toa format recommendedby the SSFDC Forum.

Memory Sizes of SmartMedia Cards

and Approximate Recording Times*

Memory Size SP Mode LP Mode

4MB 35 min. 1 hr.20 min.

8MB 1 hr.15 min. 2 hr.45 min.

16MB 2 hr.35 min. 5 hr.30 min.

32MB 5 hr.10 min. 11 hr.10 min.

64MB 10 hr.25 min. 22 hr.20 min.

* Recording time is calculated using a single audio

filerecordedcontinuously.Ifaudio files arerecorded

intermittently, recording time may be shorter than

indicated.

Audio Recording Format

The DS-3000 stores highly compressed DSS

(Digital Speech Standard) audio files on

SmartMedia cards.

SmartMedia

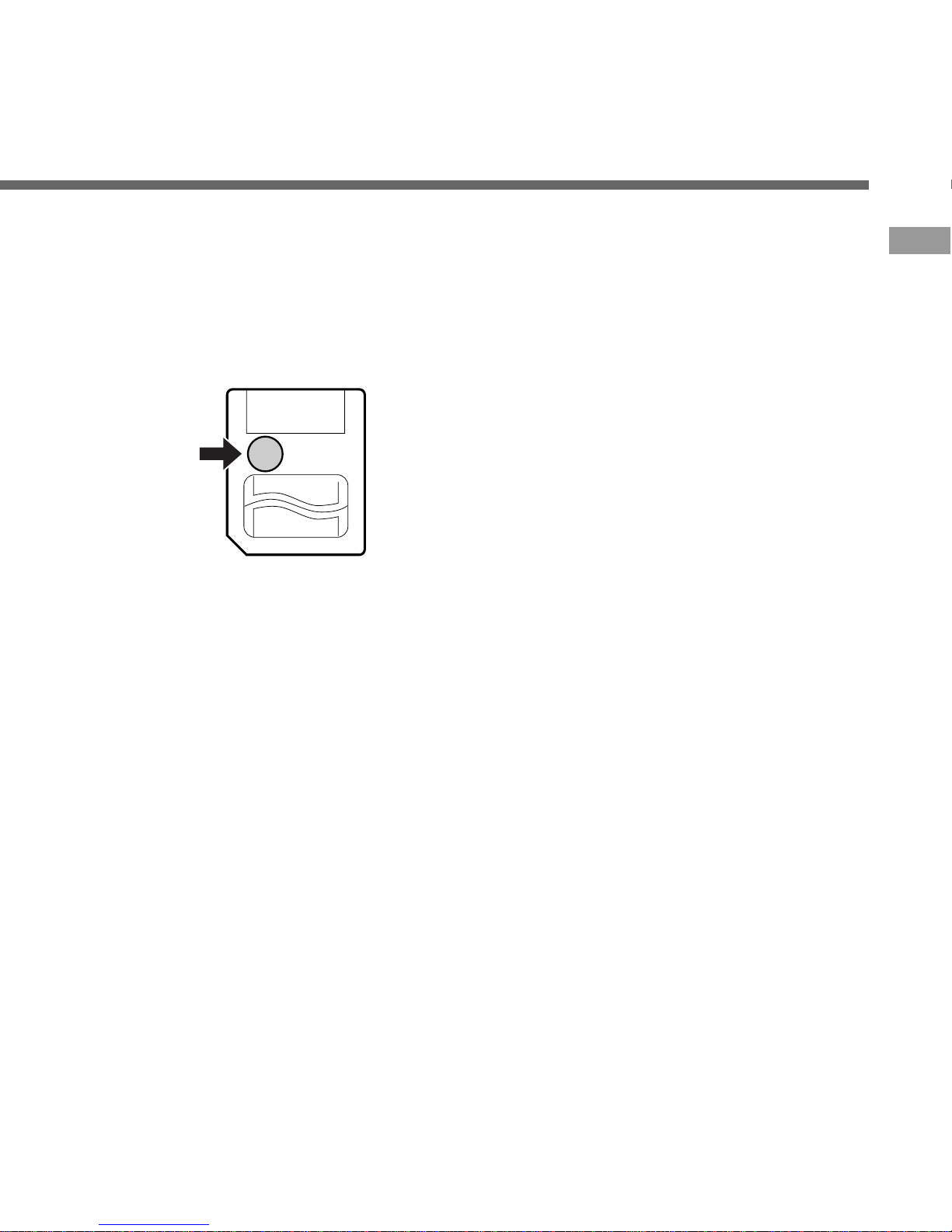

Write-protect SmartMedia

Awrite-protectseal(suppliedwithSmartMedia

card) can be attached to a SmartMedia card

toguardagainstaccidentalrecording, erasing,

and formatting.

Attach the write-protect seal to the write-

protect area to prevent valuable data from

being erased accidentally.

Remove the write-protect seal before

recording or erasing.

Notes

• Attach the write-protect seal to the write-protect

area carefully, without letting the seal stick out, lift,

or peel.

• Do not use commercial seals.

• Write-protect seals cannot be reused.

• A dirty write-protect seal may disable the write-

protect feature. Wipe it with a soft, dry cloth.

• A SmartMedia card with a write-protect seal

attached to it may not be write-protected when

using the card with other products.

SmartMedia

Write-protect

area

Identification of Parts

1Built-in microphone

2NEW button

3REC (Record) /SET button

4REW (Rewind) /– button

5FF (Fast Forward) /+ button

6INDEX button

7ERASE button

8Built-in speaker

9FOLDER/MENU button

0STOPbutton

!PLAY button

@Display (LCD panel)

#Record/Play indicator lamp

$VOLUME control

%Earphone jack

^SmartMedia slot

&Microphone jack

*SmartMedia ejection switch

(POWER/LOCK switch

)MICSENS (Microphone sensitivity)

switch

-VCVA switch

=HOLD switch

qPower jack

wPC (USB) terminal

eBattery cover

Identification of Parts

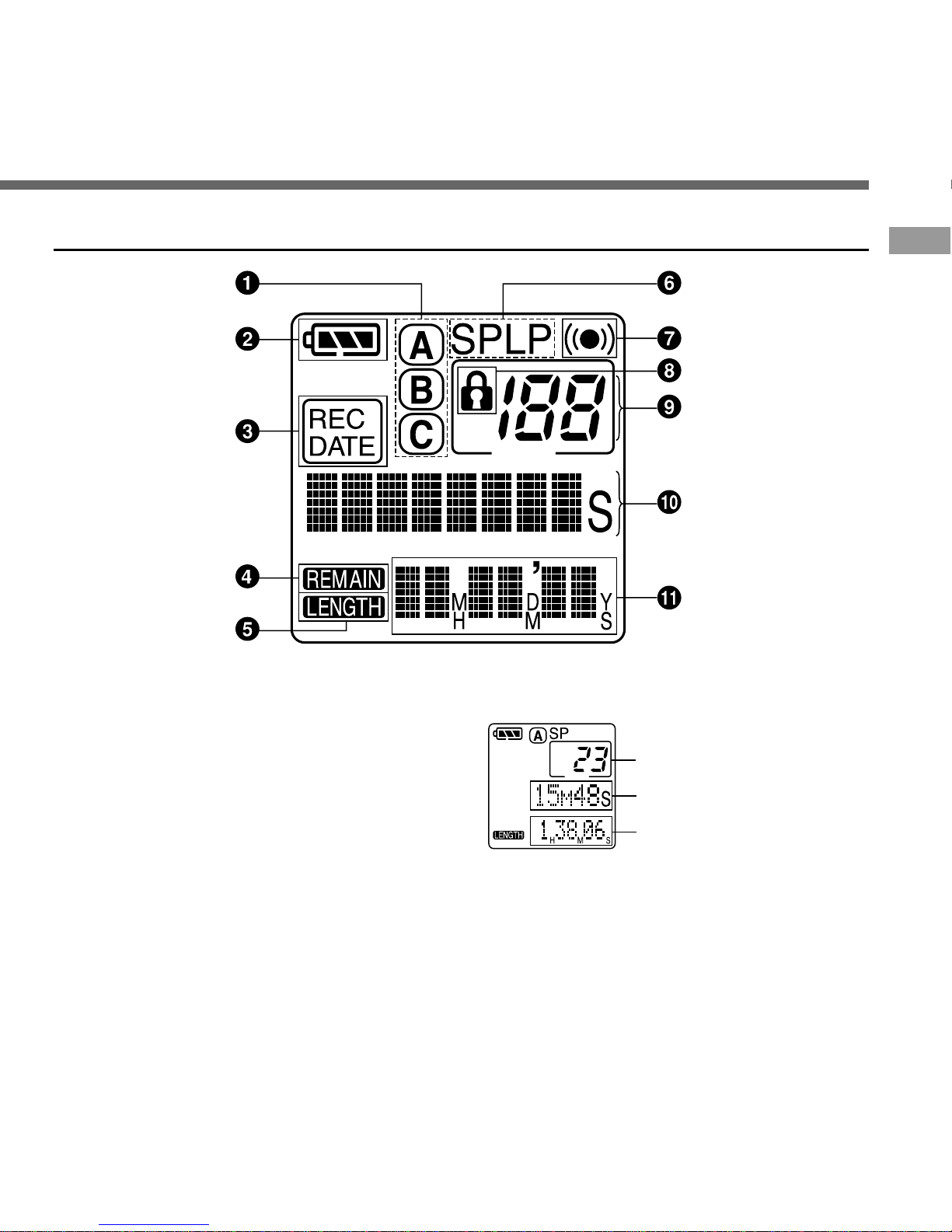

Display (LCD Panel)

1Folder

2Battery indicator

3Recording date/time mark

4Remaining memory mark

5Total file time mark

6Record mode

7Alarm mark

8Erase lock mark

9Current file

0Current time, elapsed time,

recording time, operation guides,

menu display, etc.

!Date, remaining memory, total

recording time of the playing file,

operation guides, etc.

Stopped State

The display appears as shown below when

recording or playback is stopped.

Identification of Parts

Current file number

Stop position

Total recording time

of the file

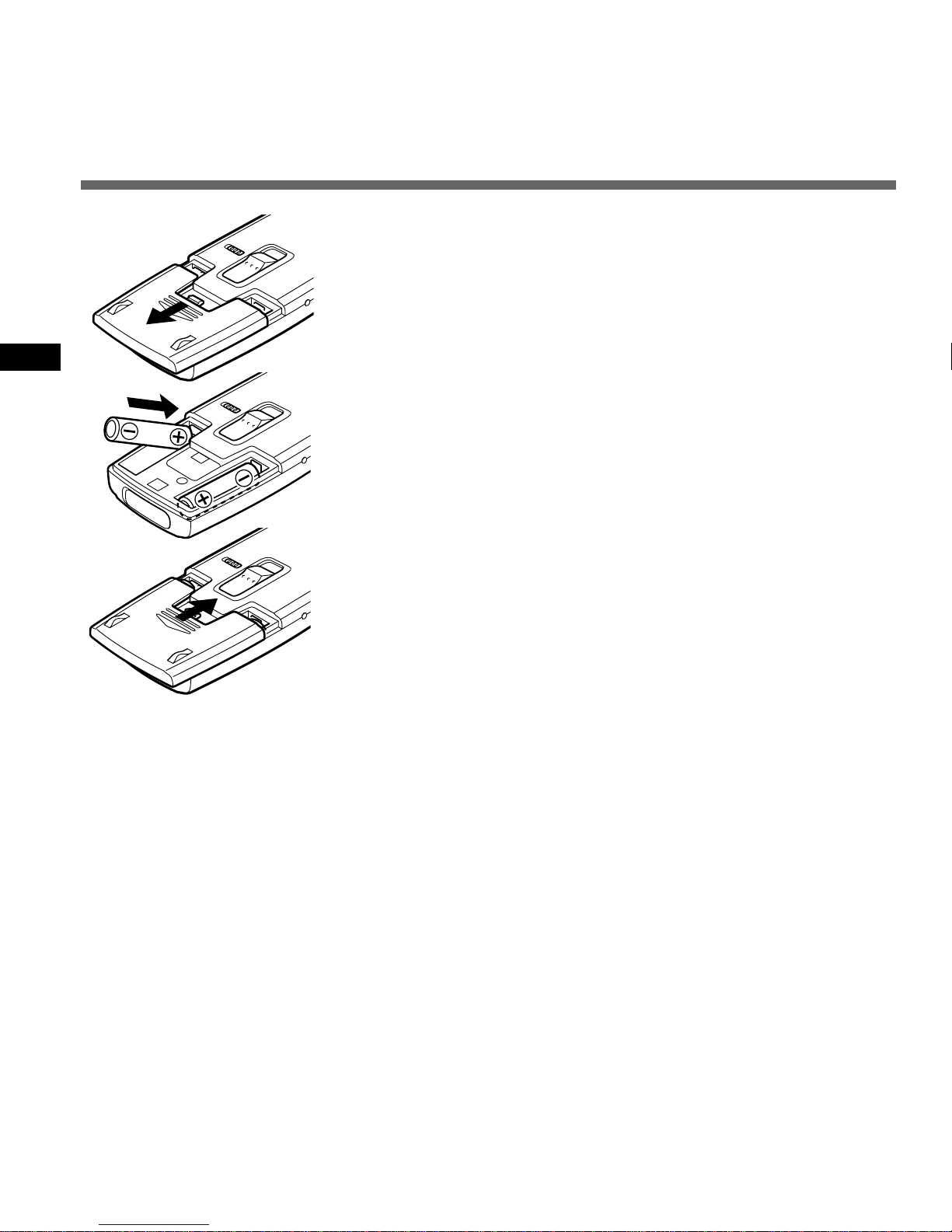

Inserting Batteries

Slide open the battery cover.

Insert two AAA alkaline batteries, observing the

correct polarity.

Close the battery cover completely.

································································································

Note

Thehourindicatorwill flash automaticallywhenyouinsertbatteriesbefore

using the recorder for the first time, or after the recorder hasn’t been

used for a long time.Adjust the time by following Steps 1 to 2 in “Setting

Time/Date” (→P.12, 13).

Inserting Batteries

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Olympus Diktiergerät Handbücher

Olympus

Olympus LS-10 - Linear PCM Recorder 2 GB Digital... Montageanleitung

Olympus

Olympus DM 520 - Ultimate Recording Combo Bedienungs- und Wartungshandbuch

Olympus

Olympus VN-8000PC Bedienungsanleitung

Olympus

Olympus VN-801PC Bedienungsanleitung

Olympus

Olympus DS-2800 Bedienungsanleitung

Olympus

Olympus VN-540PC Bedienungsanleitung

Olympus

Olympus VN-7600PC Bedienungsanleitung

Olympus

Olympus DM-720 Installationsanleitung

Olympus

Olympus DS-2600 Gebrauchsanweisung

Olympus

Olympus ls-11 - With RS30 Wireless Remote Samson CH700 LS11... Bedienungsanleitung

Olympus

Olympus VN-406PC Bedienungs- und Wartungshandbuch

Olympus

Olympus WS-760M Bedienungsanleitung

Olympus

Olympus VOICE & MUSIC DM-20 Bedienungsanleitung

Olympus

Olympus DR 1000 - Directrec Dictation Kit Bedienungsanleitung

Olympus

Olympus WS-823 Bedienungsanleitung

Olympus

Olympus DS-5000 Bedienungs- und Wartungshandbuch

Olympus

Olympus DS-61 Bedienungsanleitung

Olympus

Olympus DS-2000 Bedienungsanleitung

Olympus

Olympus VN-5000 Einrichtungshandbuch

Olympus

Olympus VN-7800 Bedienungsanleitung

Olympus

Olympus LS-3 Bedienungsanleitung

Olympus

Olympus Zoom 90 - Newpic Zoom 90 APS Camera Bedienungsanleitung

Olympus

Olympus DR 1000 - Directrec Dictation Kit Montageanleitung

Olympus

Olympus DS-75 Bedienungsanleitung

Beliebte Diktiergerät Handbücher anderer Marken

Sony

Sony ICD-UX533F Bedienungsanleitung

RCA

RCA VR5230 Bedienungsanleitung

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Benutzerhandbuch

Sony

Sony TCM-400DV Bedienungsanleitung

LogTag

LogTag TREL30-16 Bedienungsanleitung

SVAT

SVAT CVP800 Bedienungsanleitung

Marantz

Marantz PMD620 Bedienungsanleitung

Zoom

Zoom H4next Bedienungsanleitung

Roland

Roland BR-900CD Bedienungsanleitung

JVC

JVC ProHD GY-HMZ1U Bedienungs- und Wartungshandbuch

Panasonic

Panasonic PQT8531-P Bedienungsanleitung

Sanyo

Sanyo TRC-6400 Bedienungsanleitung

Tascam

Tascam DR-07 Bedienungsanleitung

Sanyo

Sanyo ICR-B150 Bedienungsanleitung

Korg

Korg D4 Bedienungsanleitung

Sony

Sony ICD-SX46 - Ic Recorder Bedienungsanleitung

Philips

Philips VOICE TRACER VTR5810 Bedienungsanleitung

DVS

DVS Pronto2K Montageanleitung
