Omcan CE-CN-0040 Bedienungsanleitung
Revised - 09/21/2020
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
Electric Fryer
Model CE-CN-0040
Item 44591
Instruction Manual
2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 5
------------------------------------------------------------------------ 6
----------------------------------------------------------------------------------------- 6
------------------------------------------------------------------------------- 7 - 8
------------------------------------------------------------------------------ 9
------------------------------------------------------------------------------------------------- 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation and Operation
Maintenance
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model CE-CN-0040
3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
4
General Information
Safety and Warranty
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
• This product should be put on a at and stable surface. Its two sides are recommended be put more than
10cm away from walls, and its back is to be 20cm away from walls.
• The voltage should be coordinated with the voltage in the data plate. When the machine is running the
voltage should not exceed ±10.
• Do not put anything in front of the switch. Install fuse and leak electricity protector.
• Use a wire at least 2.5mm² and make sure it is grounded.
• Before using this product, please inspect the unit, the power supply and the ground connection.
5
Safety and Warranty
• The connection and installation of this product should be done by a professional installer.
• The power cord draws with yellow and green two ground wires. Ensure the use of a copper bolt to link up
this ground wire and another safe one.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model CE-CN-0040
Power 12 kW
Current 50A
Oil Capacity 40 lbs. / 18.1 kgs.
Number of Fry Baskets 2
Fry Basket Dimensions 6.5” x 12.2” x 6” / 165 x 311 x 152mm
Electrical 240V / 60Hz / 3Ph
Dimensions 27.2” x 15.7” x 44” / 691 x 399 x 1118mm
Weight 123.5 lbs. / 56 kgs.
Packaging Dimensions 29.5” x 18.5” x 43.3” / 749 x 470 x 1100mm
Packaging Weight 150 lbs. / 68 kgs.
Item Number 44591
6
Installation and Operation
Maintenance
• Cut o all power and unplug the unit when cleaning and maintaining to prevent any hazards.
• Do not use a towel with any corrosive cleansers to clean the surface of the unit. Spraying the unit with
water will cause a short circuit and create an electrical hazard for the user.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
44591 CE-CN-0040 Fryer Electric 40 lbs. Capacity 12 Kw
240V/60Hz/3 cQPSus OV-20
TRANSPORTATION AND STORAGE
During transportation, the machine should be careful handled and prevent from shaking. The packaged
machine should not be stored in open air long. It should be put in a ventilated warehouse without caustic gas.
And it should not be put upside down. If it needs to be stored in open air temporarily, ensure measures against
moisture is in place.
OPERATION
• Inside the oil bowl there are two lines. The amount of oil can not lower than the low line and over the high
line.
• 1) The red light is on when power switch turns on. Turn the temperature controller clockwise to the degree
required. During this process, the yellow light turns on and red light turns o.
2) When the temperature is on the required degree, the automatic temperature controller will cut o
electricity. The yellow light will turn o and the red light will the turn on.
3) When the temperature gets too low, the automatic temperature controller will turn back on. The yellow
light will then turn on and red light will turn o.
4) These procedures will continue until the unit is shut o completely.
• Do not put water on the cover in order to prevent a hazardous situation.
• The enclosed baskets are to fry small pieces of food (such as frys, chips, ect). After frying please hang the
baskets.
• After use please turn the temperature controller counter-clockwise to the o position and unplug the fryer.
• Please clean dregs regularly.
• Please use good vegetable oil.
7
Parts Breakdown
Model CE-CN-0040 44591
8
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AD706 Rear Coaming Assembly for OV-20 1 AD719 Temperature Limiter for OV-20 14 AD732 Electrical Box Cover Plate for OV-20 27
AD707 Basket Hanger for OV-20 2 AD720 Fuse Base for OV-20 15 AD733 Drain Valve for OV-20 28
AD708 Back Plate for OV-20 3 AD721 Fuse for OV-20 16 AD734 Oil Tank Assembly for OV-20 29
AD709 Frame Assembly for OV-20 4 AD722 Control Knob for OV-20 17 AD735 Heater Supporting Plate for OV-20 30
AD710 Front Decoration Plate for OV-20 5 AD723 Dial Plate for OV-20 18 AD736 Heater Connecting Plate B for OV-20 31
AD711 Working Indicator for OV-20 6 AD724 Thermostat for OV-20 19 AD737 Heating Element for OV-20 32
AD712 Power Switch for OV-20 7 AD725 Thermostat Mounting Plate for OV-20 20 AD738 Heater Connecting Plate A for OV-20 33
AD713 Oil Drain Extension Pipe for OV-20 8 AD726 Electrical Box for OV-20 21 AD739 Heater Fixation Plate for OV-20 34
AD714 Omcan Logo for OV-20 9 AD727 AC Contactor for OV-20 22 AD740 Hi-Limit Sensor Fixation Plate for OV-20 35
AD715 Door Assembly for OV-20 10 AD728 Terminal Block for OV-20 23 AC986 Temperature Sensor Fixation Plate for
OV-20 36
AD716 Door Magnet for OV-20 11 AD729 Power Cord Bracket for OV-20 24 AC987 Basket Mesh for OV-20 37
AD717 Door Column for OV-20 12 AD730 Connector for OV-20 25 AC988 Basket for OV-20 38
AD718 Adjustable Leg for OV-20 13 AD731 Power Cord Sheath for OV-20 26
Model CE-CN-0040 44591
9
Model CE-CN-0040 44591

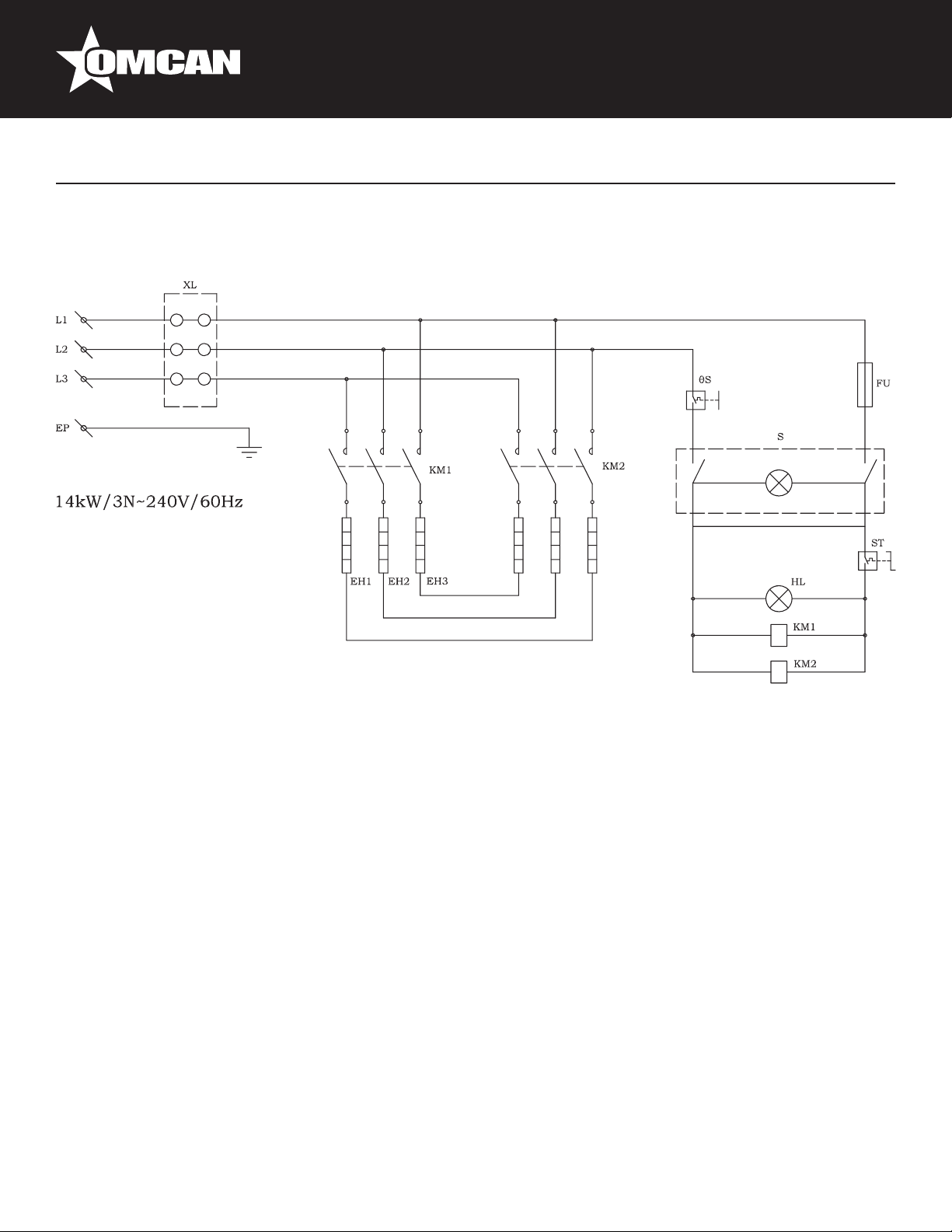

Electrical Schematics
10
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
