Introduction:

HH-127 is a hand held digital thermometer which uses a microprocessor.

The HH-127 has USB and RS232 ports.

Accessories:

DC-1.5V/4 AAA batteries

Rubber boot

K-type thermocouple x 2 pcs

Users manual

PC on-line accessories:

Temp Monitor software users manual

IrDA-USB and IrDA-RE232 transmission cable

Temp Monitor software CD

Warning

To avoid electrical shock or personal injury, follow these gui delines:

Before using the thermometer inspect the case. Do not use the thermometer if it appears damaged.

Look for cracks or missing plastic. Pay particular attention to the insulation around the connectors.

Disconnect the thermocouple from the thermometer before opening the case.

When the battery mark displays ( ), or you hear a short buzzing sound, please replace the battery

immediately.

Do not operate the thermometer around explosive gas, vapor, or dust.

Do not apply more than the rated voltage, as marked on the thermometer, either between the

thermocouple, or between any thermocouple and earth ground.

Caution

A Caution identifies conditions and actions that may damage the meter or the equipment under test.

Use the proper thermocouples, function, and range for your thermometer.

Do not attempt to recharge the batteries.

To prevent explosion, do not throw batteries into a fire.

Follow local laws or regulations when disposing of batteries.

Match the + and - polarities of the battery with the battery case.

•

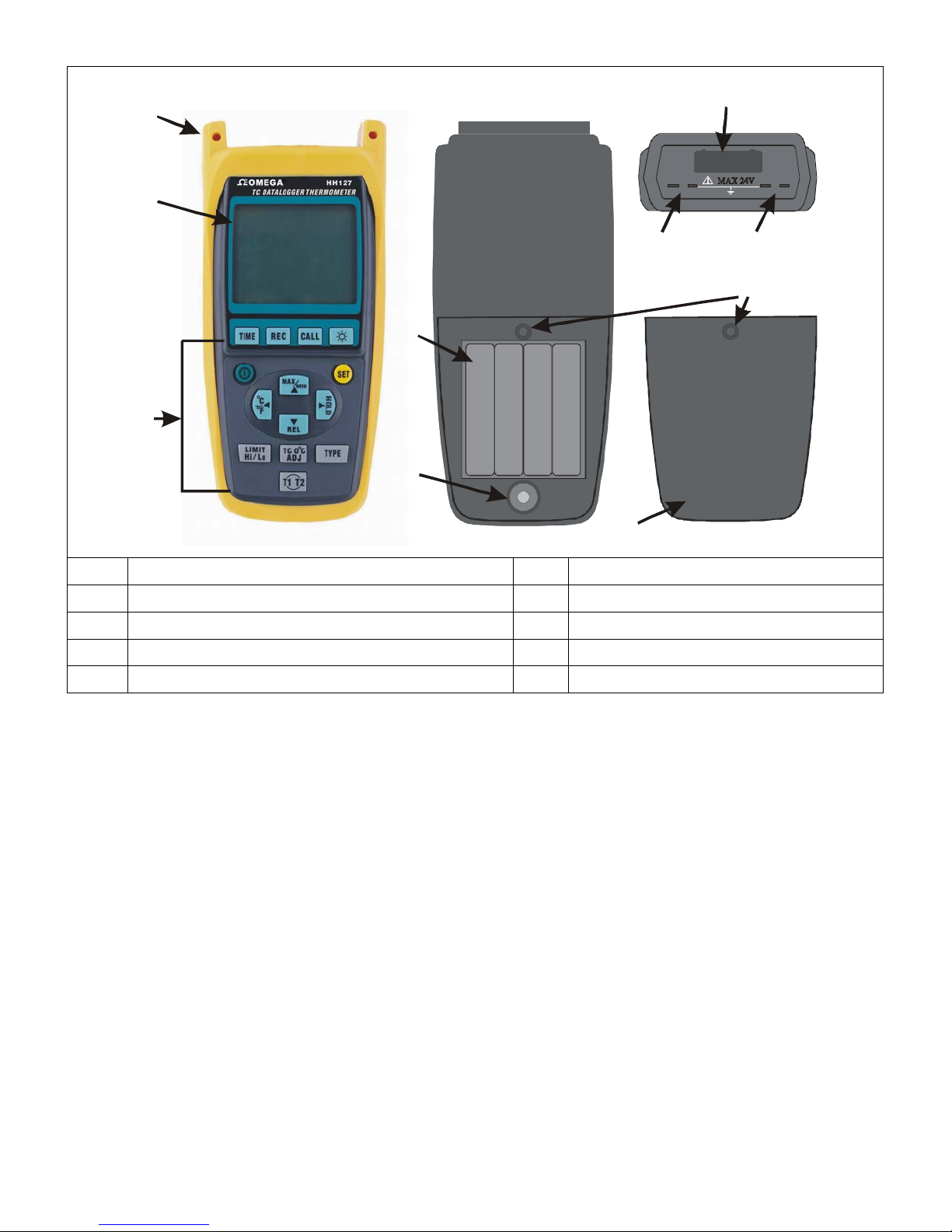

Names of parts:

①Housing ⑥IrDA output port

②LCD display ⑦T1- thermocouple input

③Function control keys ⑧T2- thermocouple input

④Battery seat ⑨Screw hole

⑤Reset key ⑩Battery cover

①

②

③

④

⑤

⑥

⑦ ⑧

⑨

⑩

Display Elements:

①

Choose T1.T2 thermocouple types ⑫

Carry out record function

②

Main display ⑬

20 minutes auto power off

③

Main, secondary display reading is T1 or T2 ⑭

Examine recorded reading

④

Secondary display ⑮

Five sections of battery power instruction

⑤

Carry out TC- 0°C calibration function ⑯

Temperature unit

⑥

Main, secondary display maximum reading ⑰

Main display shows time's "year"

⑦

Main, secondary display minimum reading ⑱

Third display shows time's "hour:minute", or

"minute:second"

⑧

Main display carry out alarm function ⑲

Third display

⑨

Main display carry out relative reading , third

display shows relative reference reading

⑳

Third display shows “T1-T2” reading

⑩

Carry out set function Secondary display shows time’s “day”, ”month”

⑪

Hold display reading

Battery power indicator and replacement:

The battery power is expressed by five sections of batteries marks. ( )

When the battery mark shows ( ) and you hear a short buzzing sound, this indicates the battery

power is weak, please immediately close the unit and replace with 4 AAA batteries to ensure the

measuring reading is accurate.

When battery power is lower than normal operation, this will automatically stop the thermometer

operation, and the main display will show BATT and the third display will show LO. Please immediately

turn off the unit and replace the 4 AAA batteries.

To replace the batteries please use a screwdriver to open battery cover.

T1-T2

d:m m s

h m

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑪

⑫

⑬

⑭

⑮

⑯

⑰

⑱

⑲

⑳

K J T E R S N

•

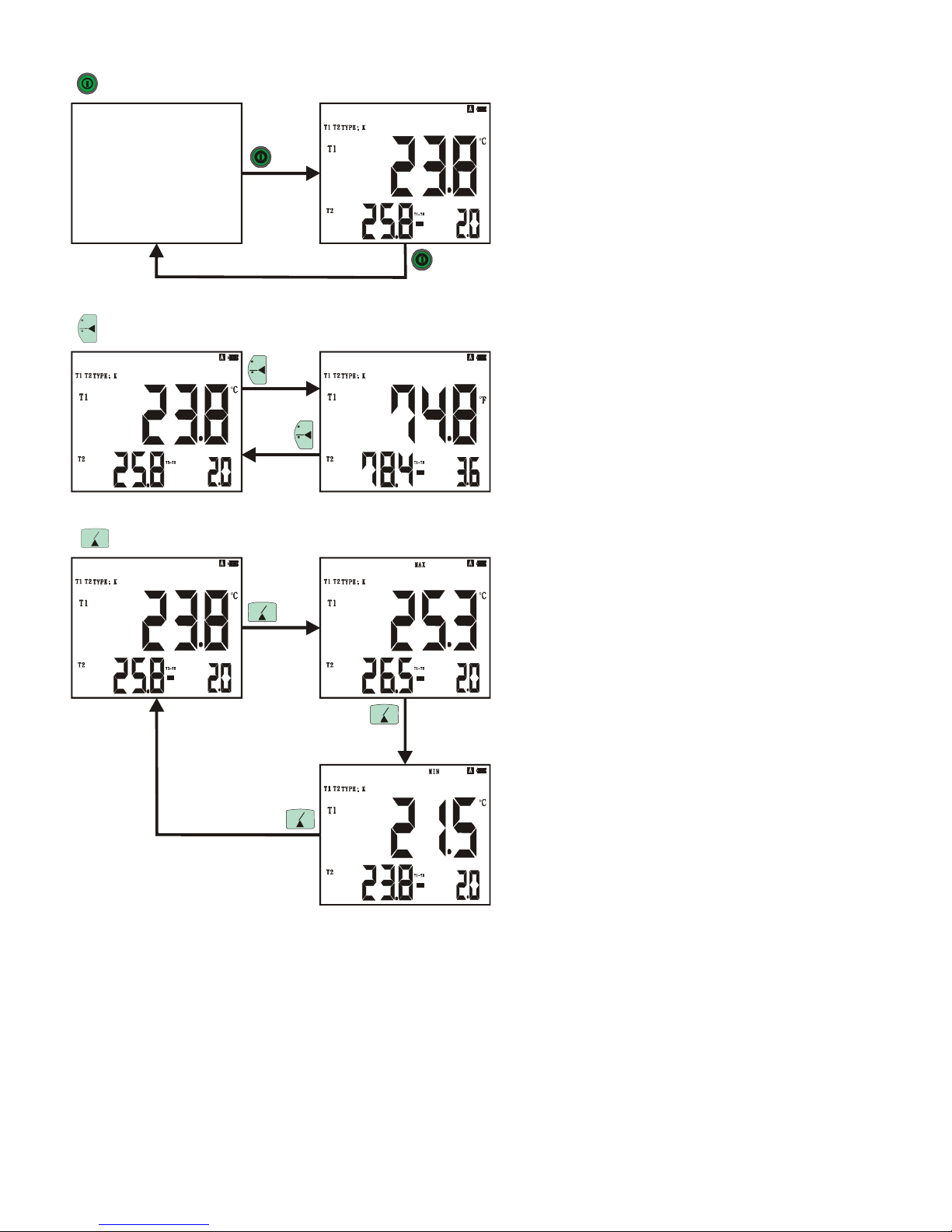

Keys:

Power key: turn on/off thermometer. When not canceling auto power off function, after 20 minutes the

meter will auto power off. Initial temperature unit

is (°C), when you power on meter next it will keep

the last power off state.

dual inputs: secondary display shows T2

measuring value and third display shows T1-T2

value.

Temperature unit key: Choose temperature unit to be Centigrade (°C) or Fahrenheit (°F).

Maximum/minimum key: Main, secondary display show (T1, T2) maximum/minimum value at same

time, third display shows (T1- T2) real time

readings.

MAXMIN

Hold readings key: Hold LCD display readings.

Press once: Cancels hold readings function.

Press for 2 seconds: Cancels hold readings

function and cancels auto power off function.

Relative readings key: Main display shows (T1 or T2 readings - relative readings), third display shows

relative readings.

When not setting up relative readings: When

pushing key the main display shows (T1 or

T2) readings as the relative readings. Third

display is the stored relative value.

When setting up relative readings: Pushing the

key, the third display shows set relative

reading.

Note: Set up operation for relative readings, please

consult the explanation for setting up relative

Alarm function key: Main display shows (T1 or T2) reading. If (T1 or T2) are greater than or

smaller than set up critical high value or low

value of alarm, the buzzer will send out alarm

sound continuously.

Note: Set up operation of alarm limit value,

please consult the explanation for setting up

alarm critical value on page 12.

readings on page 11.

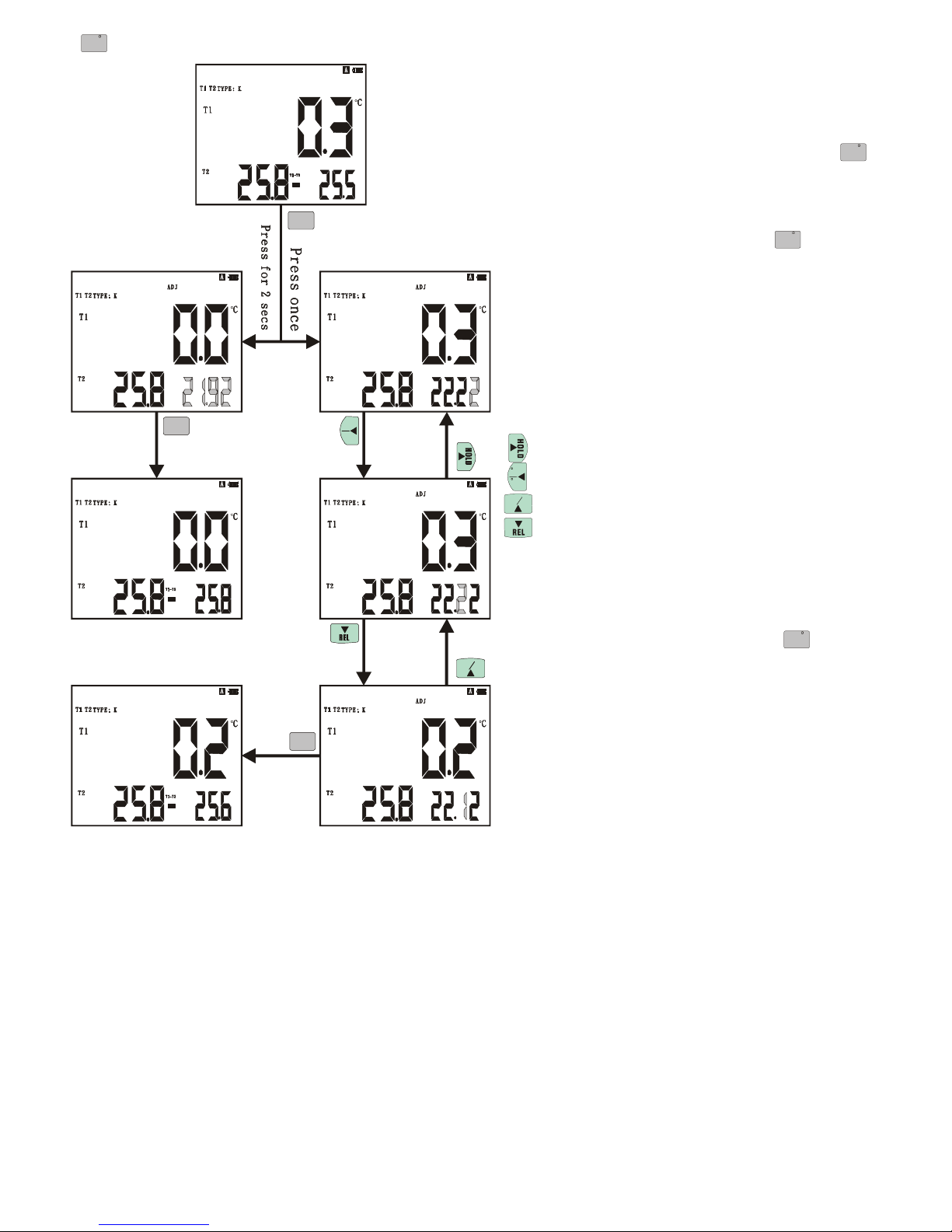

Adjustment key of thermocouple 0°C:Main display shows (T1 or T2) readings, use and main display

(T1 or T2) thermocouple of the same type,

imports input of main display 0°C (32°F) of

standard temperature value, adjust the cold

junction compensation of third display, enables

main display to show 0°C (32°F), then press

key finish adjusting. The adjusting range is about

0°C ~50°C (32°F~122°F) of third display cold

junction compensation, exceed range show Err

and unable to adjust, need to press key to

give up and left. The cold junction compensation

adjusting (cancelled) in power off, while starting

the meter again will recover the normal cold

junction compensation.

Press once: Enter adjust manually and third

display shows the cold junction compensation,

enable main display shows 0°C (32°F).

＞Press to move right one-figure that adjusted.

＞Press to move left one-figure that adjusted.

＞Press to add one-figure upward that adjusted.

＞Press to minus one downward that adjusted.

Press for 2 seconds: Adjust once automatically the

cold junction compensation of the third display,

Make main display shows 0°C (32°F). If need to

adjust again, enter again after press key to

leave.

ADJ

TC O C

MAX

ADJ

TC O C

ADJ

TC O C

ADJ

TC O C

TC O °C

ADJ

TC O °C

ADJ

TC O °C

ADJ

°C

°F

MAXMIN

Choose types key of thermocouple: To choose types of thermocouple.

−＞Press to move right one -figure that

Press button.

thermocouple types chosen.

−＞Press to move left one -figure that

thermocouple types chosen.

、

、、

、

T2 exchange key

：

：：

：

Main, secondary displays are exchanged (T1, T2) measurement readings.

Look over key of the perpetual calendar: Main display shows year, secondary display shows month, third

display shows hour: minute.

T1 T2

Press to enter.

T1 T2
