User’s Guide

OSXL685

and OSXL689

High Performance

Infrared Thermometer

Shop online at

WITH BUILT-IN

PATENTED

LASER CIRCLE

SIGHTING

Servicing North America:

U.S.A.:

One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Tel: (203) 359-1660

FAX: (203) 359-7700

e-mail: [email protected]

Canada:

976 Bergar

Laval (Quebec) H7L 5A1, Canada

Tel: (514) 856-6928

FAX: (514) 856-6886

e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and

Canada:

Sales Service: 1-800-826-6342/1-800-TC-OMEGA

Customer Service: 1-800-622-2378/1-800-622-BEST

Engineering Service: 1-800-872-9436/1-800-USA-WHEN

Mexico:

En Espa n˜ol: (001) 203-359-7803

FAX: (001) 203-359-7807

e-mail: [email protected]

[email protected]

Servicing Europe:

Czech

Republic:

Frystatska 184, 733 01 Karviná, Czech Republic

Tel: +420 (0)59 6311899

FAX: +420 (0)59 6311114

Toll Free: 0800-1-66342

e-mail: [email protected]

Germany

Austria

Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

Tel:+ 49 (0)7056 9398-0

FAX: +49 (0)7056 9398-29

Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

United

Kingdom:

One Omega Drive, River Bend Technology Centre

ISO 9002

Certified

Northbank, Irlam, Manchester

M44 5BD United Kingdom

Tel: +44 (0)161 777 6611

FAX: +44 (0)161 777 6622

Toll Free in United Kingdom: 0800-488-488

e-mail: [email protected]k

OMEGAnet

On-Line Service Internet e-mail

omega.com [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all

worldwide safety and EMC/EMI regulations that apply. OMEGA is

constantly pursuing certification of its products to the European New

Approach Directives. OMEGA will add the CE mark to every

appropriate device upon certification.

The information contained in this document is believed to be

correct, but OMEGA accepts no liability for any errors it contains,

and reserves the right to alter specifications without notice.

WARNING:

These products are not designed for use in, and

should not be u

sed for, human applications.

1-3 Warnings and Cautions

4-4 Advanced Functions

8.Emissivity Table

5.PC Interface (OSXL689)

Patented Laser Circle Sighting

Temperature Data Storage

High & Low Audible Alarms

50:1 Field of View - OSXL689

30:1 Field of View - OSXL685

K Type Thermocouple Input - OSXL689

USB PC Interface - OSXL689

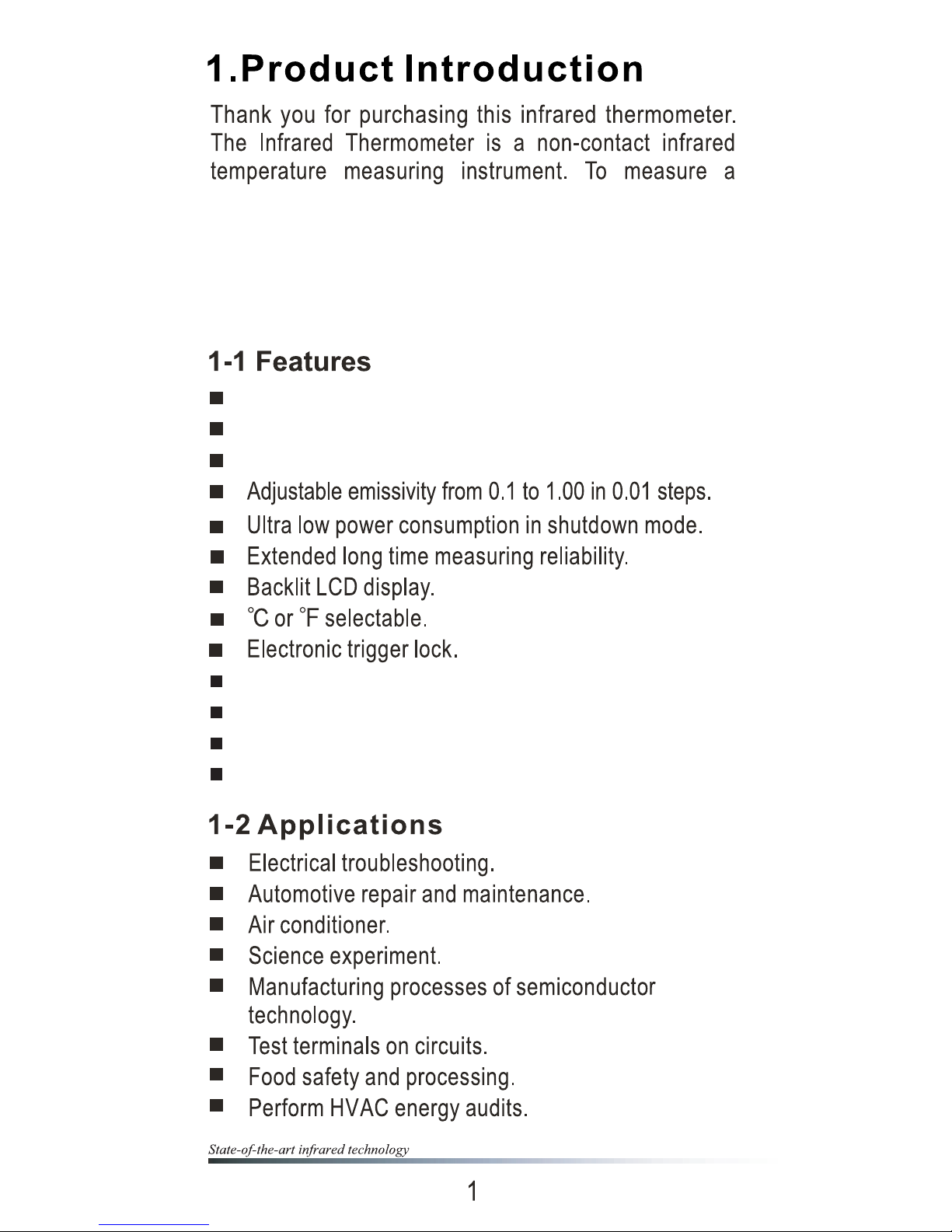

temperature, point the unit at the object, pull and hold the

measuring trigger until the temperature is read. Make

sure the target area is larger than the unit’s Field of View.

For large target objects make sure you are within target

distance.

You may receive harmful laser radiation exposure if you

do not adhere to the warnings listed below:

• Use of controls or adjustments or performance of

procedures other than those specified here may

result in hazardous radiation exposure.

• Do not look at the laser beam coming out of the

lens or view directly with optical instruments - eye

damage can result.

• Use extreme caution when operating the laser

sighting.

• Never point the laser beam at a person.

• Do not attempt to open the thermometer. There are

no user serviceable parts.

• Keep out of the reach of all children.

Refer to the inside back cover for product warning label.

1-3 Warnings and Cautions

CAUTION

Read the following instruction manual carefully before

attempting to operate the thermometer. Only qualified

personnel should perform repairs which are not covered

in this manual.

-50 to 1000°C (-58 to 1832°F)

OSXL685 OSXL689

From -50 to -20°C (-58 to -4°F)

From -20 to 100°C (-4 to 212°F)

100 to -1000°C (212 to 1832°F)

YES - Laser Circle

Data Storage

Alarms

K Type TC

USB Port

10 Points

High and Low

0 to 50°C, 10 to 90% RH

Adjustable 0.1 to 1.0

8 to 14 µm

30:1 50:1

––– -200/1300°C

TC Input Accuracy

–––

0.5% Rdg+1°C

––– YES

Wavelength (Color):

Operating Distance: Up to 10 ft.

Max. Output Optical <1mW at 75°F ambient

Power: temperature,

Class II Laser Product

European Classification: Class 2, EN60825-1

FDA Classification: Complies with 21 CFR Chapter 1,

Subchapter J

Beam Diameter: 5 mm

Beam Divergence: <2mrad

Laser Configuration: Dot and Circle

Power Switch: Slide switch, ON-OFF

Power Indicator: Laser icon on display

Power: Supplied by the thermometer

Identification Label: Located on the right side of the

thermometer

Warning and Located on the left side of the

Certification Label: thermometer

630 to 670 nanometers (red)

3.Specifications con’t.

Laser Sighting

Laser Aperture

Optical Lens

Laser

Circle

Sighting

Measuring Trigger

Thermocouple Input

(OSXL689)

Battery

Compartment

Display

Screen

ID Label

To measure a temperature, point the unit at the target,

pull the trigger and hold. Make sure the target area is

within the field of view of the instrument. The laser circle

sighting is used to indicate the perimeter of the

instrument’s field of view.

Laser

Warning &

Certification

Label and

Field of View

Label

Laser

Warning &

Certification

Label and

Field of View

Label

USB Port

(OSXL689)

4-3 °C/°F, Laser Switch and Battery

Replacement

There are two slide switches in front of the battery

compartment. One is for °F/°C display and the other is for

laser sighting. To change the battery, directly place the

battery in the battery compartment.
