Instructions for the Use and Care and Installation of

ORC97G

Glass Canopy Rangehoods

CONTENTS

1 Notice

2 Features

3 Installation

4 Notice of installation

5 Safety Warning

6 Use Instructions

7 Maintenance

8 Troubleshooting

9 Specification

It is important that you retain these instructions, proof of purchase as

well as other important documents about this product for future

reference.

Due to continual product development, Omega reserves the right to alter

specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are

available.

(1) NOTICE

1. Thank you for choosing our cooker hood. Please read the

instruction manual carefully before use.

2. The installation work must be undertaken by a qualified

electrician and competent installer.

3. The manufacturer disclaims all liability for any damage or

injury caused as a result of not following instructions for

installation contained in the following text.

The cooker hood is rated for use on 220/240V, 50Hz.

(2) FEATURES

1. The cooker hood uses high quality materials, and is made

with a streamlined design.

2. Equipped with a high power electric motor and centrifugal fan,

it produces strong suction with low noise, and features a non stick

grease filter which is easy to clean.

3. The isolated low voltage (12 volt) circuit board control, means

the halogen lights are brighter and safer than incandescent

alternatives.

4. Due to the special wind tunnel construction and filter design,

any odours and dust will be absorbed quickly.

(3) INSTALLATION

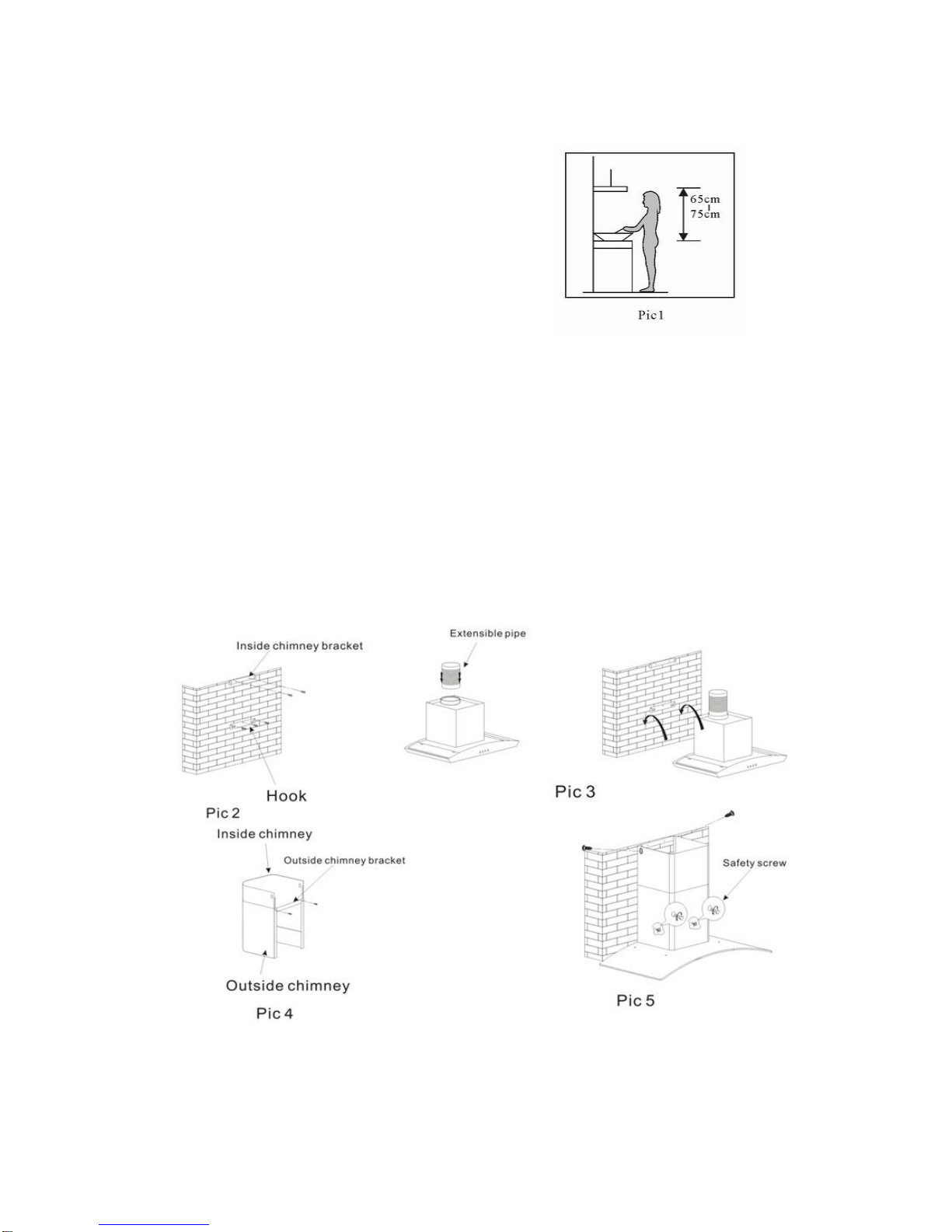

1）The cooker hood should be placed

at a distance of 65-75cm (26-30inch)

from the cooking surface for the best

effect. See Pic 1.

2）Install the hook on a suitable place

once the installation height is fixed, and

keep it in line. The fixed position of the

inside chimney bracket is the place of chimney.

3）Fix the extensible pipe according to the lead direction and

way, and then put the cooker hood on the hook. See pic 3.

4）Lead the extensible pipe outside of the room, meanwhile

adjust the height of the inside chimney to the position of the inside

chimney bracket and fix on it by screw , here should be sure the

inside chimney can be flexed freely. See Pic 4.

5）Put the two chimneys together onto the cooker hood body,

meanwhile adjust the height of the inside chimney into the suitable

height, and fix the inside chimney to the inside chimney bracket by

screw. Finally, fix the body with safety screw. See Pic 5.

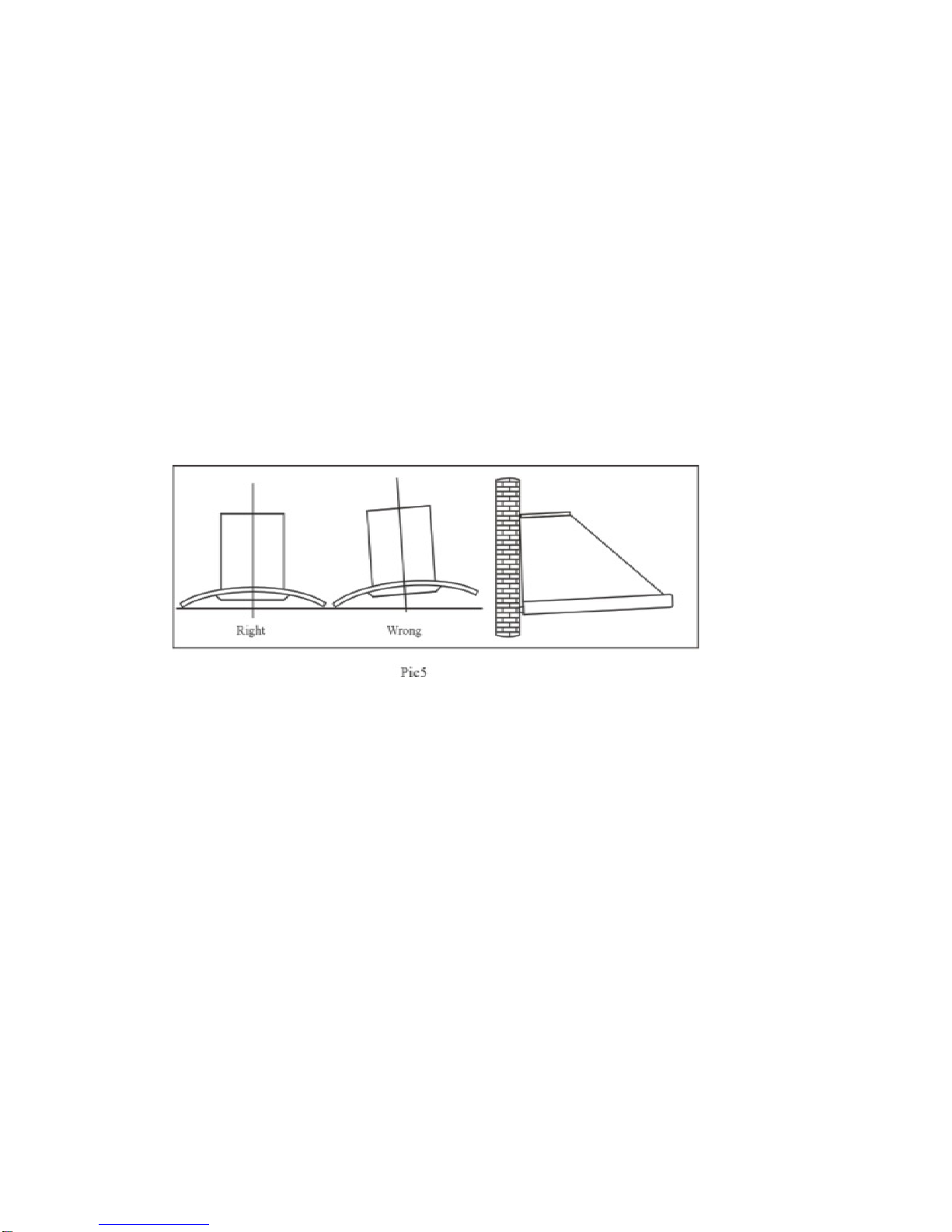

Note: Fix the Canopy with safety screws. See Pic 5. The two safety screw holes are

positioned on the back casing, with diameter of 6mm.

Warning: Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards.

(4) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean, to avoid

suction of the remaining bits of broken wood and dust.

2. The canopy hood cannot share the same air ventilation

ducting as other appliances, such as gas and electric

heaters.

3. The bending of the ventilation ducting should be ≥120°,

parallel or above the exit vent, and should be connected

through the external wall.

4. After installation, make sure that the extractor is level to

avoid grease collection at one end.

NOTE: Remove all protective plastic coatings from the stainless

steel surfaces before use.

(5) SAFETY WARNING

Young children should be supervised to ensure that they do not

play with the appliance.

The appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervised or instruction concerning use of the appliance

by a responsible person for their safely.

Your cooker hood is for domestic use only, not suitable for

barbecue, fast - food shops, and other commercial use.

Any installation work must be carried out by a qualified

electrician or competent person.

The cooker hood and its filter mesh should be cleaned regularly

in order to keep in good working order.

Before cleaning, always ensure that you have switched your

cooker hood off.

Do not flambé under the range hood.

Clean the cooker hood according to the instruction manual, and

keep the cooker hood away from the danger of flames.

If there is any fault with your cooker hood, please call the

customer service number in the Warranty Card.

Please keep the room adequately ventilated when your cooker

hood and gas hob are working.

Do not exhaust the gas from cooker hood through the same

heated flue which is for the gas from gas hob and other kitchen

appliances.

Before installation and usage, read all the instructions and

make sure that the voltage (V) and the frequency (Hz) indicated

on your cooker hood are exactly the same as the voltage (V)

and the frequency (Hz) in your home.

To ensure that you get the best Warranty experience for your

cooker hood, please provide copies of the Warranty Card and

purchase receipt, when booking warranty work with the

Customer Service department.

(6) USE INSTRUCTIONS

The re-usable aluminium grease filters supplied with this

rangehood should be cleaned every month or so to avoid grease

build-up.

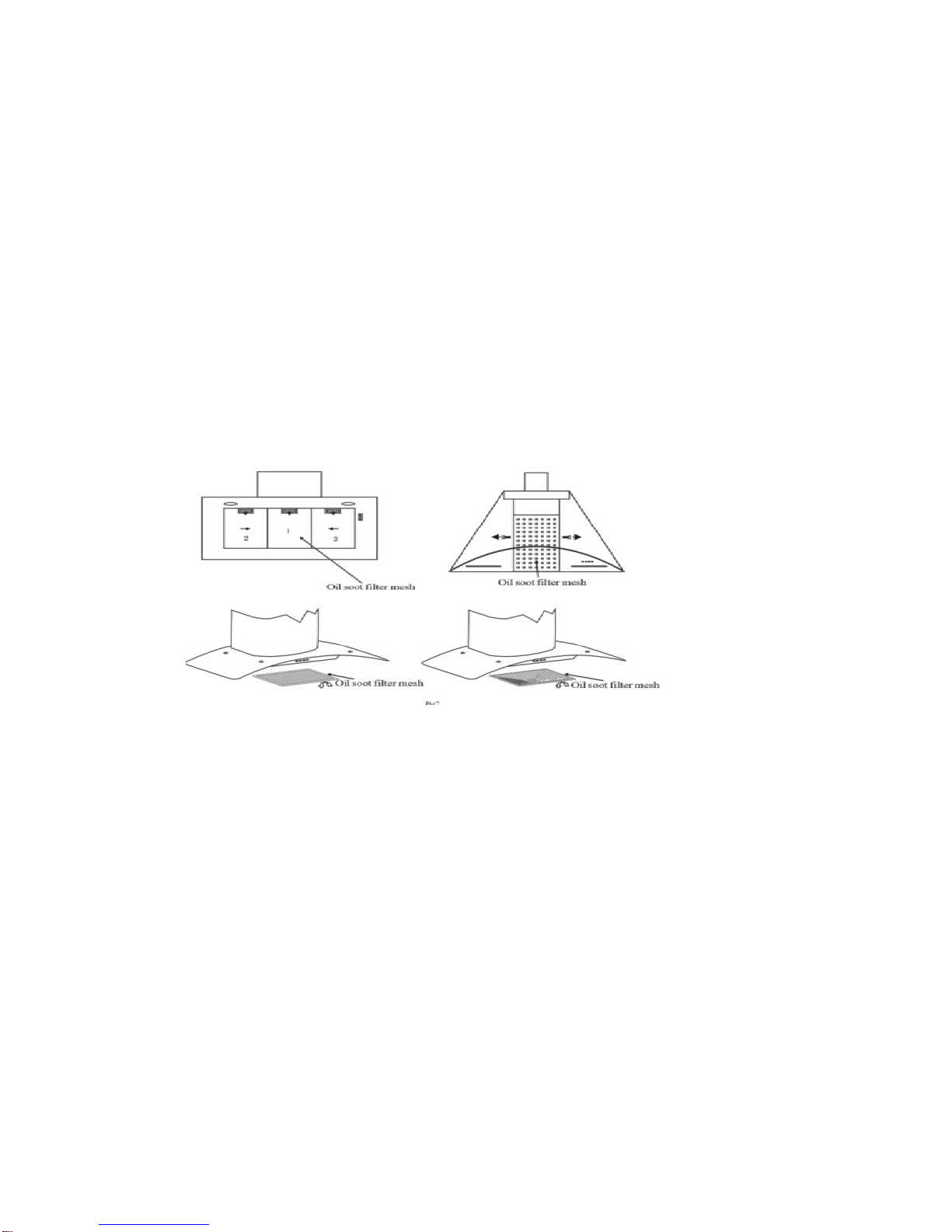

To remove the grease filter, release the locking mechanism at the

front of the filter, and lower the filter slightly to unhook it at the back.

Whilst the filter is removed, clean off any residual grease from the

housing to avoid fire risk.

When replacing the grease filters, ensure that the locking

mechanism is facing down.

If the rangehood is used in re-circulation mode, the activated

charcoal filter must be in place. These charcoal filters are designed

to absorb cooking odours and are located in the canopy above the

grease filters. Before fitting or replacing charcoal filters, the grease

filters must first be removed.

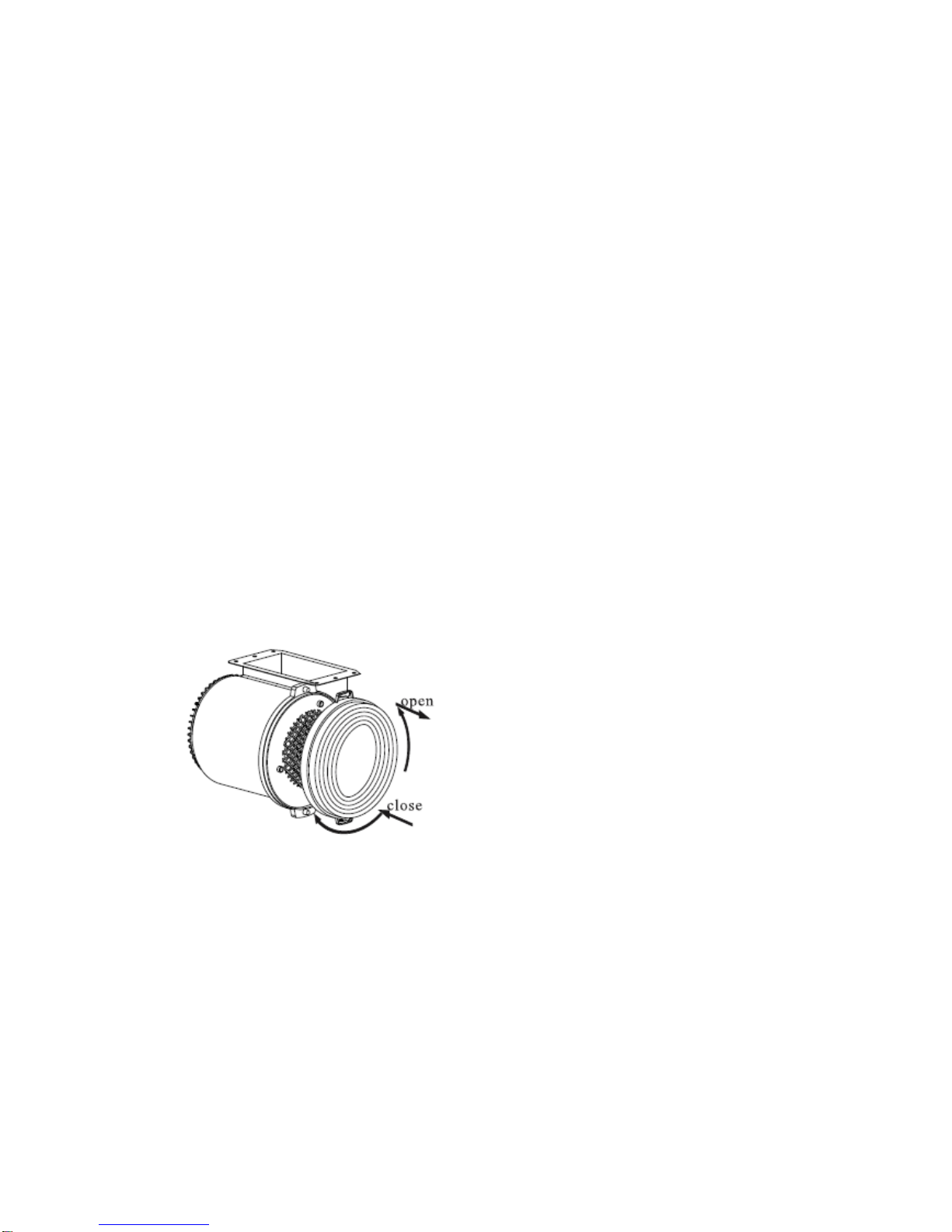

To remove, or install, the charcoal filter - twist the charcoal filter in

the direction shown below.

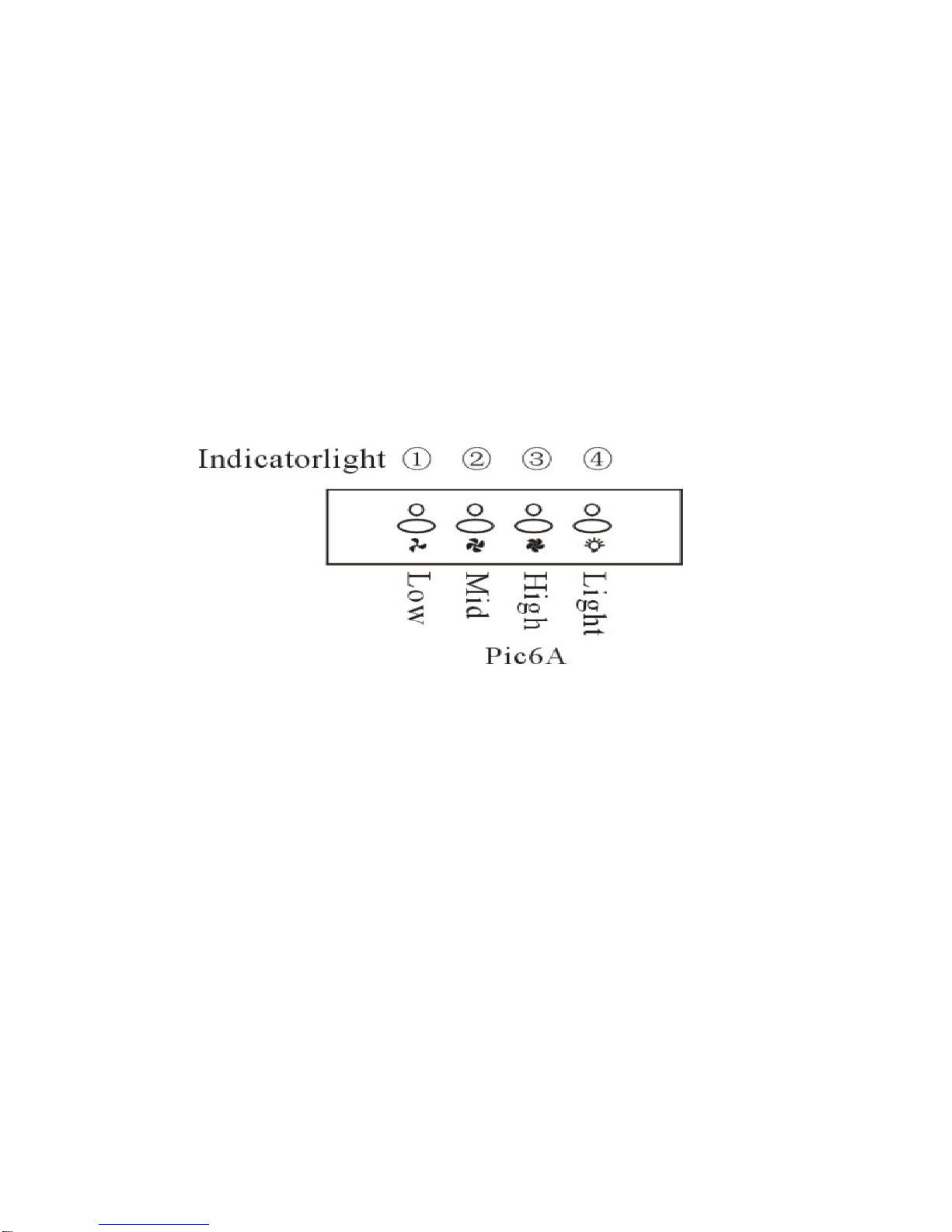

SPEED ADJUSTMENT - See pictures

1. Push the “Low” button, the indicating light 1 is on, and the motor

runs at low speed. Push it again and the motor will stop.

2. Push the “Mid” button, the indicating light 2 is on, and the motor

runs at mid speed. Push it again and the motor will stop.

3. Push the “High” button, the indicating light 3 on , and motor runs

at high speed. Push it again and the motor will stop

4. Push the light button; the indicating light 4 on, and the two

lighting lamps is on. Push it again and the lamps will be off.

(7) MAINTENANCE

7.1 Cleaning the grease filter mesh

The filter mesh is made of high-density stainless steel. Please do

not use corrosive detergent on it. Keeping this filter clean will keep

the appliance running correctly. Please strictly follow the guidelines

below.

Method 1: Place the mesh in 40 - 50 DegC clean water, add in a

small amount of detergent, and soak for 2 - 3 minutes. Wear

gloves, and clean with a soft brush. Do not apply too much

pressure, as the mesh is delicate and will damage easily.

Method 2: The grease filters can be put into a dishwasher. To do

so, set the temperature at around 60 degrees.

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period

of time, the cooker hood should be cleaned with hot water

plus non corrosive detergent every two months.

B. Please do not use abrasive detergent for it will damage the

body.

C. Keep the motor and other spare parts free from water, as

this will cause damage to the appliance.

D. Before cleaning the appliance please remember to turn off

power

E. If fitted with active charcoal filters, the charcoal filter should

not be exposed to heat.

F. Please do not tear open the fixed bar around the active

charcoal filter.
