Omlet Eglu Cube Bedienungsanleitung

Page1

Omlet Limited

Unit 4 Tuthill Park

Wardington

Oxon OX17 1RY

www.omlet.co.uk

[email protected]

Helpdesk: 0845 450 20 56

Ramp

Front Face

Right Side

Lid

Partition

Rear Panel

Dropping Trays

Base Left Side

Side hatch

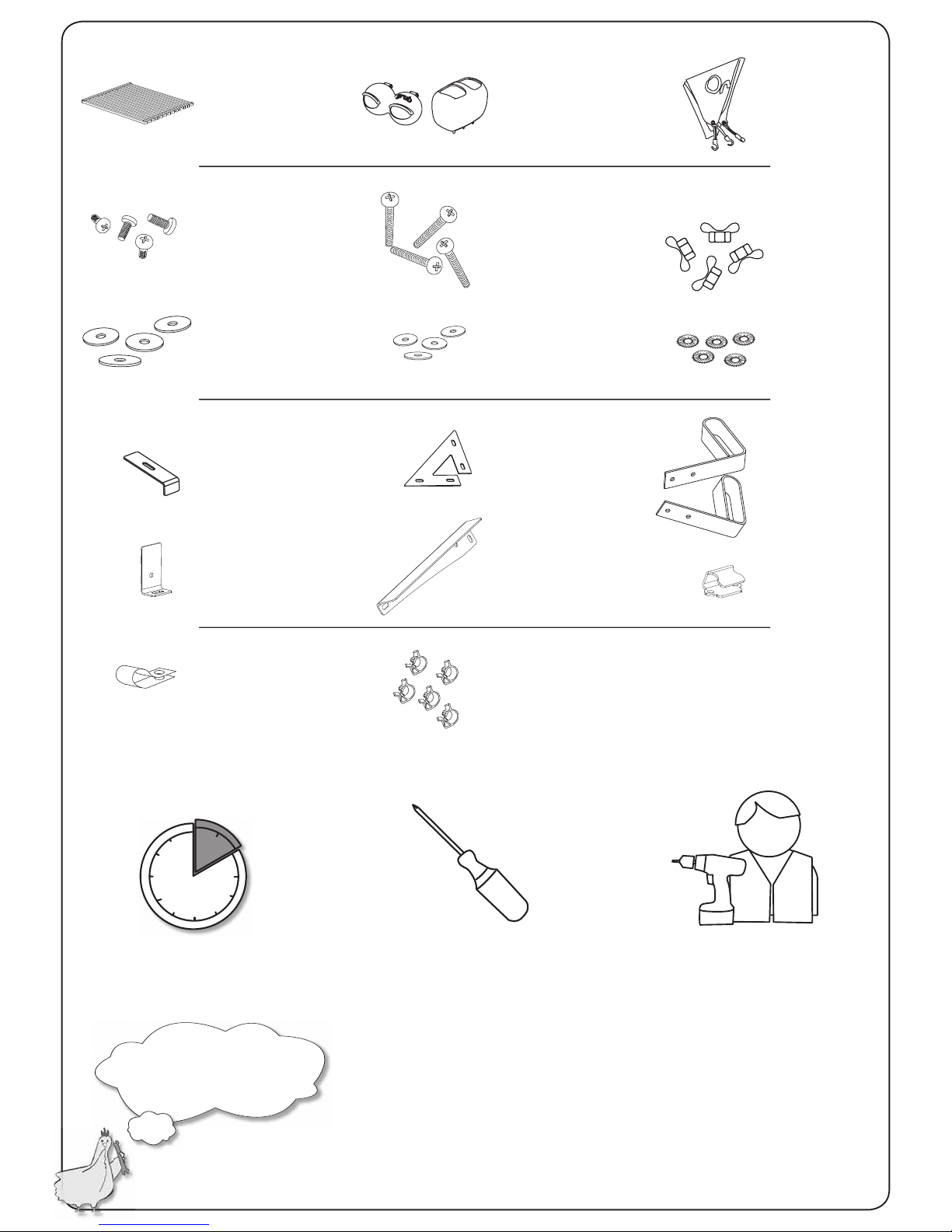

What you have received

Top

Front Upper

Front Lower

Rear

Side Small Left

Side Large

Side Small Right

Side Large

End Skirt

Instruction Manual

Wheel Assembly x 2

Page2

Roosting Rack Shade

Run Clips > 80

Small bolts x 46

Large bolts x 4

Flat Washers Large x 8

Accessories

Serrated Washers

Triangle Bracket x 2

Side to Front Bracket x 2 Foot Pedal x 2

Nut x 4

Flat Washers Small x 4

Lid Hook x 2

Lid Runner x 2

P-Clip x 4

Side to Base Bracket x 2

Other things you might need

A Phillips ScrewdriverAround 2 hours to

assemble your eglu cube

If your eglu arrived by courier, please remember to retain all the

packaging it arrived in. In the case that you wish to return the eglu or

any part of the eglu, it must be sent back in the original packaging and

have no more than normal wear and tear to receive the full product

refund.

A friend with a

cordless screwdriver could

also come in handy

What should I do

with the packaging?

Feeder & Drinker

Fixings

Brackets

Clips

Page3

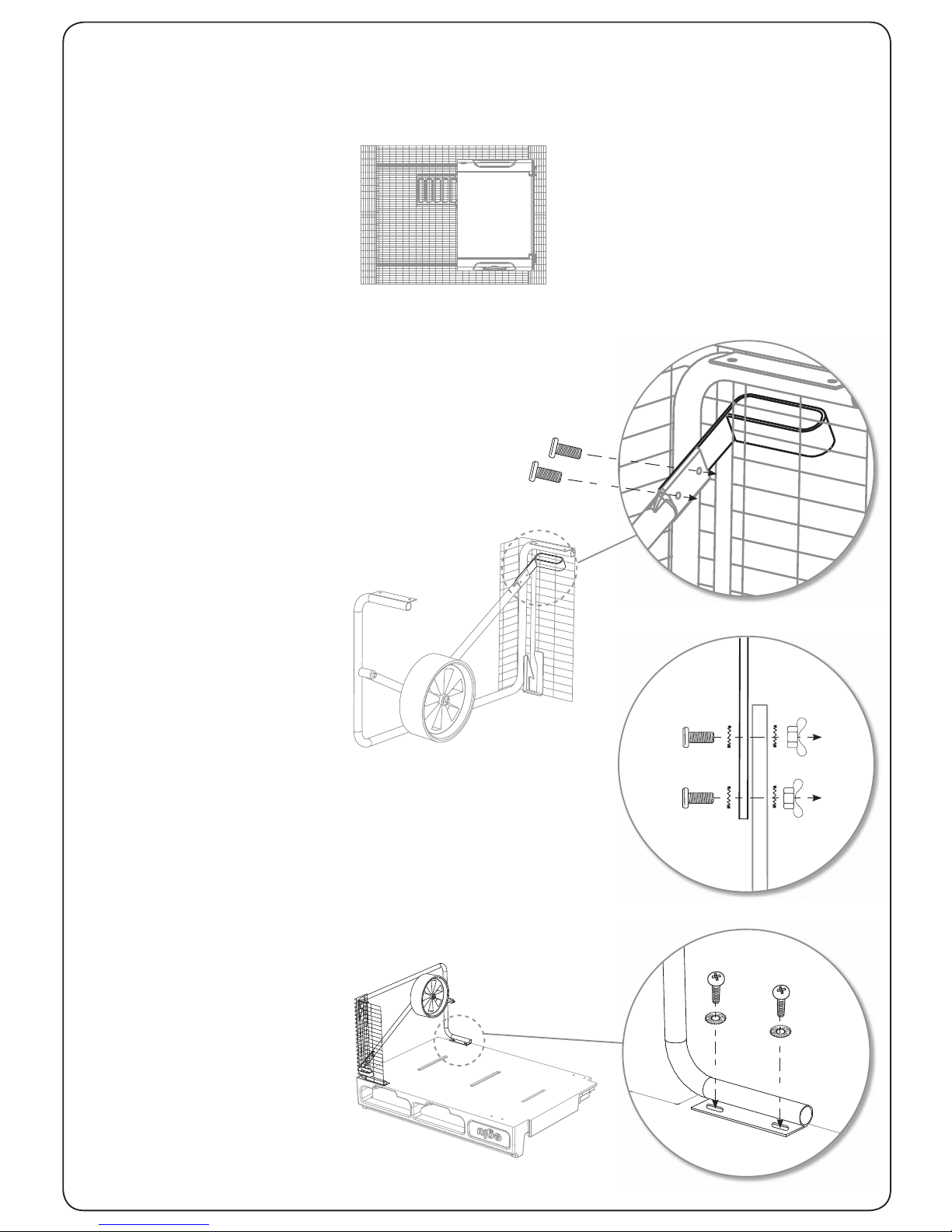

Place the base upside down on the

ground. Loosely bolt the wheel

assemblies to it using serrated

washers and Small Bolts. You will

need 4 Small Bolts to hold each

Wheel Assembly to the Base.

Assembling Your Eglu Cube

Shade

Serrated Washers

Foot Pedal x 2

Nut x 4

Take a Footpedal and line it up

with a wheel assembly arm by

threading it through the slot in the

mesh panel with the pedal pointing

inwards.

Bolt the footpedal to the wheel

assembly by threading one of the

Small Bolts through a serrated

washer then the pedal arm, the

wheel assembly arm, another

serrated washer and ﬁ nally a nut

on the end. Do this through both

holes, then tighten the nuts.

Lid Hook x 2

Make sure you assemble the eglu

on a spot that is reasonably even

and ﬂ at. The diagram shows

the eglu cube dimensions only.

Make sure you leave enough

space behind the eglu to allow

the dropping tray to be removed,

enough room infront to open

the run door and enough room

on the side to pull the door front

door handle out.

Step 2 - Attach the Footpedals to Wheel Assemblies

Step 3 - Attaching Wheel Assemblies to Base

Step 1 - Find a suitable surface and location in your garden

1.6m

Footpedal

Wheel

Arm

Page4

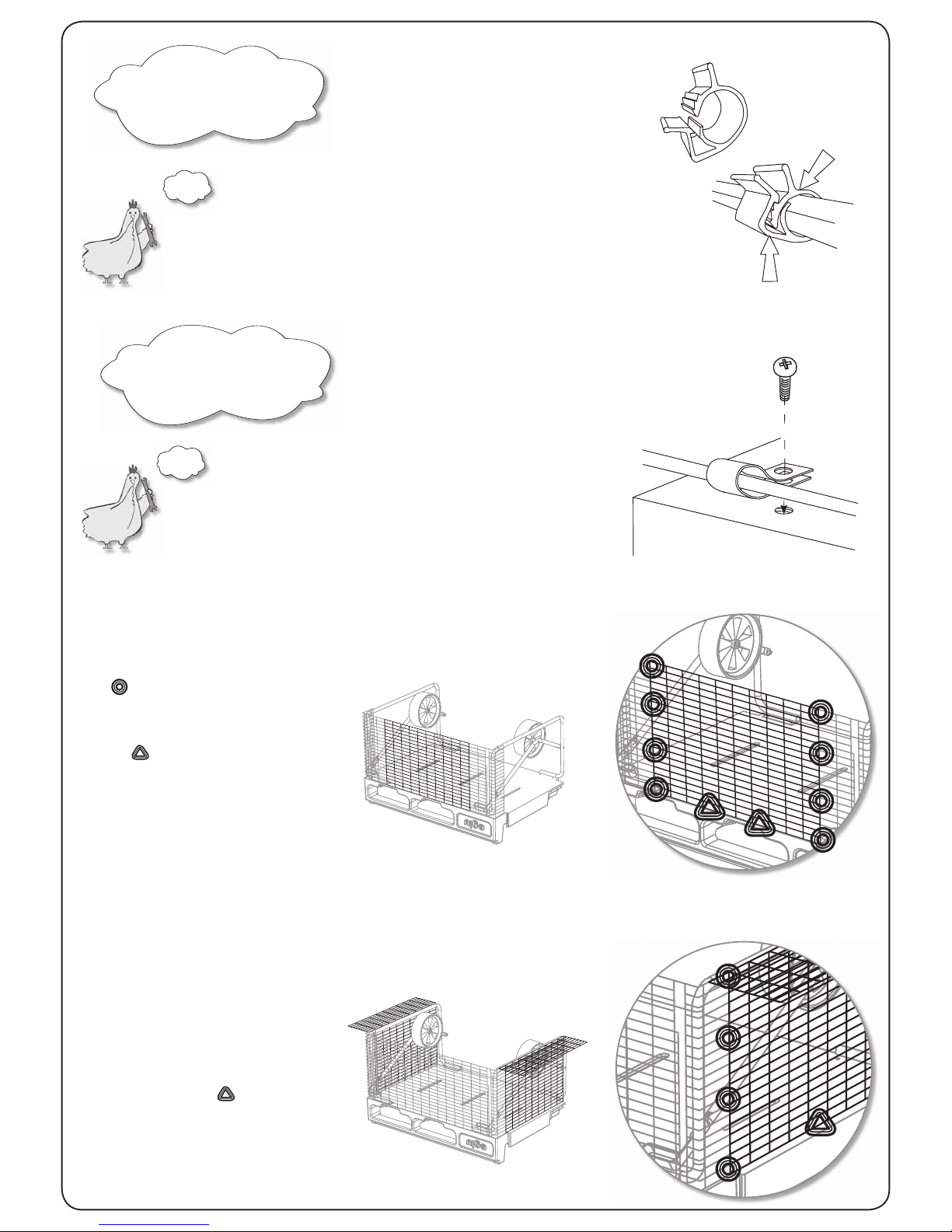

Using the clipping method described

above, clip the rear panel to the

frames in the positions shown by

the symbols in the diagram.

Bolt the Rear Panel to the base

using two P-Clips in the positions

shown

Now tighten up all 8 bolts that hold

the frames to the base, making

sure the frames are pushed as

near to the edge of the base as

they will go.

Clip the Small Side Panels to the

Frames. Ensure that you use the

correct Small panel on each side.

The edge that has a bit of skirt

sticking out should be towards the

back of the eglu.

Bolt each Small Side Panel to the

Base with a P-Clip.

To join a run panel to the base you

need to use a P-clip. Simply slide the

Clip over a wire of the Run panel and

using a Small Bolt, bolt the clip to the

Base.

Step 4 - Clip the Rear Panel to the Wheel Assemblies

Step 5 - Clip the Small Side Panels to the Wheel Assemblies

squeeze

To join two run panels together, you

need to use the Clips supplied. Simply

spread the arms and place around the

two wires to be joined. Squeeze the

clip and it will close up and join the

wires as shown in the diagram.

If you wish to undo a clip, spread the

‘arms’ apart. You may ﬁ nd it easier

to use a coin or knife to spread the

arms.

How do I use a

P-clip?

How do I use the

Run Clips?

Page5

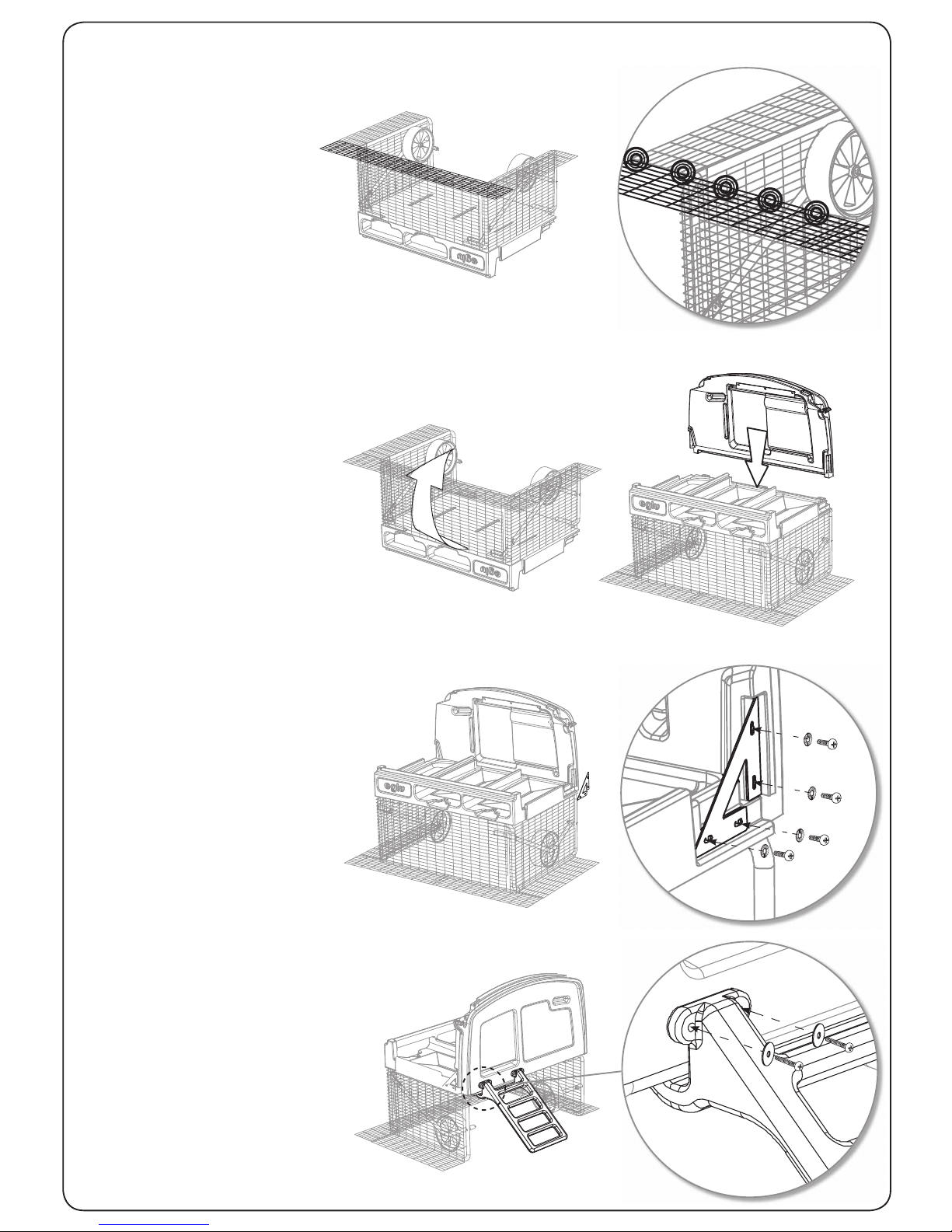

Turn the Base the right way up.

Take care to keep your hands away

from the area the footpedals travel

in, they can move quickly when

turning it over. Slide the Front Face

onto the Base.

Attach the Front Face to the Base

using the two Triangle Brackets,

(the image shows one side only.)

As shown in the diagram they are

held on with four Small Bolts and

Serrated Washers.

Put the bolts in loosely to begin

with. Make sure the Front Face is

as far down as it can go and lean-

ing as far back as it can before

tightening the bolts up.

The Ladder attaches with the four

Long Bolts and four Small Flat

Washers supplied. (The image

shows two of the ﬁ xing points, the

other two are on the other side.)

To line up the Ladder ﬁ rst screw

the outer Large Bolts in loosely

then add the inner Large Bolts.

Only tighten the bolts once all four

are in position.

The End Skirt panel should join the

edges of the Small Side Panels,

but overlap the rear panel by one

rectangle.

Step 6 - Clip the End Skirt to the Rear panel and Small Side Panels

Step 7 - Place the Front Face on to the Base

Step 8 - Attach the Triangular Brackets

Step 9 - Attach the Ladder

Page6

The Roof Panel is ﬁ tted in a similar

way to the Large Side Panels.

Firstly loosely bolt the panel to the

Front Face with four Small Bolts

and four Large Flat Washers.

Clip the Roof Panel to the Large

Side Panels in the positions shown,

(mirror these positions for the

other side.) Finally tighten up the

four Small Bolts.

Firstly clip the Skirt Panel to the

bottom of the Lower Front panel.

Clip it on such that it underlaps

the panel by one rectangle and

the largest part of the Skirt Panel

sticks out on the side that the door

opens.

You can now clip this whole

assembly to the end of the run.

Start by lining up and clipping

the bottom of each side and

work your way up to avoid any

misalignment.

First bolt the panel loosely to the

Front Face using two Small Bolts

and two Large Flat Washers. (The

top bolt goes through the second

mesh hole down as shown.)

Clip the Large Side Panel to the

Small Side Panel. This will be

easier if you raise this side of the

eglu using the wheel. Lower the

eglu back down and then tighten

the bolts.

The image shows the Right Large

Side Panel only. Now repeat the

process for the other side.

Step 10 - Attach the Large Side Panels

Step 11 - Attach the Roof Panel

If you have an extension

Now is the time to attach it. Go to

the next page for ﬁ tting instructions.

Step 12 - Attach the End of the Run and Skirt Panel

Page7

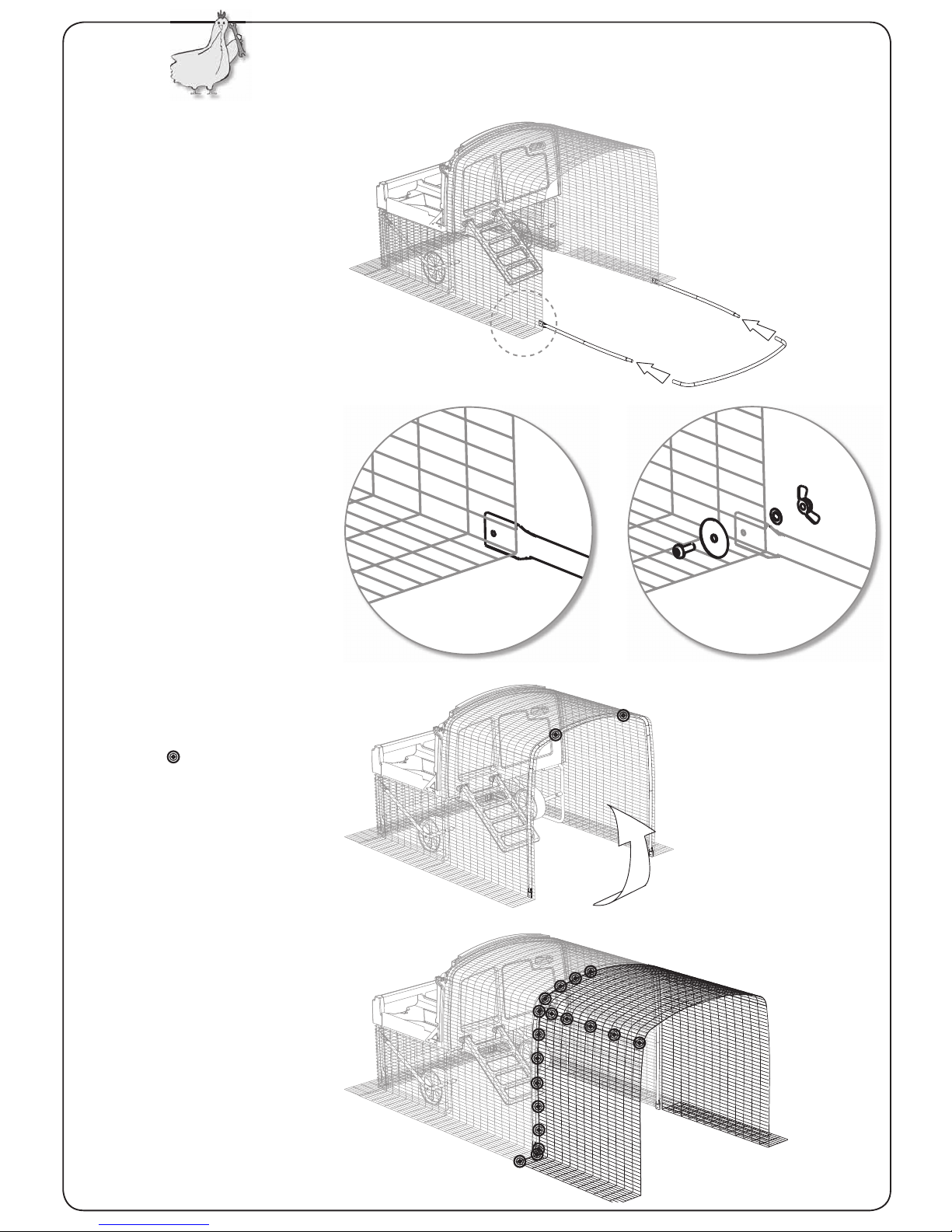

Lay the Frame sections on the

ground infront of the eglu. The

curved section of the Frame simply

slides onto the two side pieces.

Line up the frame with the run

making sure that the ﬂ at sides

of the tube ends are against the

inside of the run.

Also ensure that the hole in the

tube is half way along the ﬁ rst

recatangle in the mesh.

Swing the Frame into a vertical

position. Secure the Frame in place

using two zip ties in the positions

shown by a

To ensure the frame does not

change position ensure the

wingnuts are nice and tight.

Attach both ends of the frame

loosely to the run using the

following: Small Bolt, Large Washer,

Serrated Washer and Wingnut.

Special Steps - How to attach an Extension

If you do not have an extension goto step 12

Step A - Connect the Run Frame together

Step B - Attach the Frame to the Run

Step C - Swing the Frame into position

You can now clip the Large Side

Panels and Roof Panel sections of

your extension, putting the clips in

the positions shown.

Go to Step 12

Step D - Attach Extension Panels

Page8

Place the Side Panels over the tabs

on the Base. Note: The Side with

the Side Hatch must go on the

lefthand side - over the nest box.

Once this is complete, you can put

the Roosting Rack in place.

The Side Panels are attached using

two Brackets, Short Bolts and

Serrated Washers.

Top Front Bracket

Make sure that the side panel is

pushed as far down onto the Base

as possible before bolting it on.

Using the Side to Front Bracket

bolt the Side Panel to the Front

Face.

Bottom Back Bracket

Firstly bolt the Side to Base

Bracket to the Side Panel through

the circular hole.

Finally bolt the Bracket, holding

the Side Panel to the Base. You

will need to hold the Side Panel in

place to line the bolt up with the

hole.

The partition wall has no Bolts.

Push it into to the slot on the Front

Face and Base.

The Partition can be easily removed

when cleaning the eglu cube.

Step 13 - Place the Side Panels on the Base

Step 14 - Bolt the Side Panels to Base and Front Face

Step 15 - Inserting the Partition Wall

Page9

To put the Lid on, lift it to the top

of the eglu, with the bolts at the

back.

Lower the Lid down making sure

the Lid Tracks (highlighted in the

detailed image), drop down infront

of the Lid Hooks (again highlighted

in the detailed image), on the side

panels.

At this point you could slide the

lid backwards, but until the back

panel is on, leave it in the forward

position as in the next image.

Step 16 - Screw the Lid Tracks onto the Side Panels

Step 17 - Screw the Lid Hooks onto the Side Panels

Step 18 - Fitting the Lid

Step 19 - Adjusting the Lid Tracks

Attach the two Lid Tracks on using

two Small Bolts and Serrated

Washers.

Attach the two Lid Hooks on using

two Small Bolts and Serrated

Washers.

Note: make sure the open side of

the Hook is pointing outwards.

With the Lid in the position shown

- as far foward as it goes you may

need to adjust the Lid tracks.

By loosening the Small Bolt nearest

the front of the Lid Track you need

to make sure the front edge of the

Lid Track is half way up the Lid

Hook. Once in position, tighten up

the bolt.

Page10

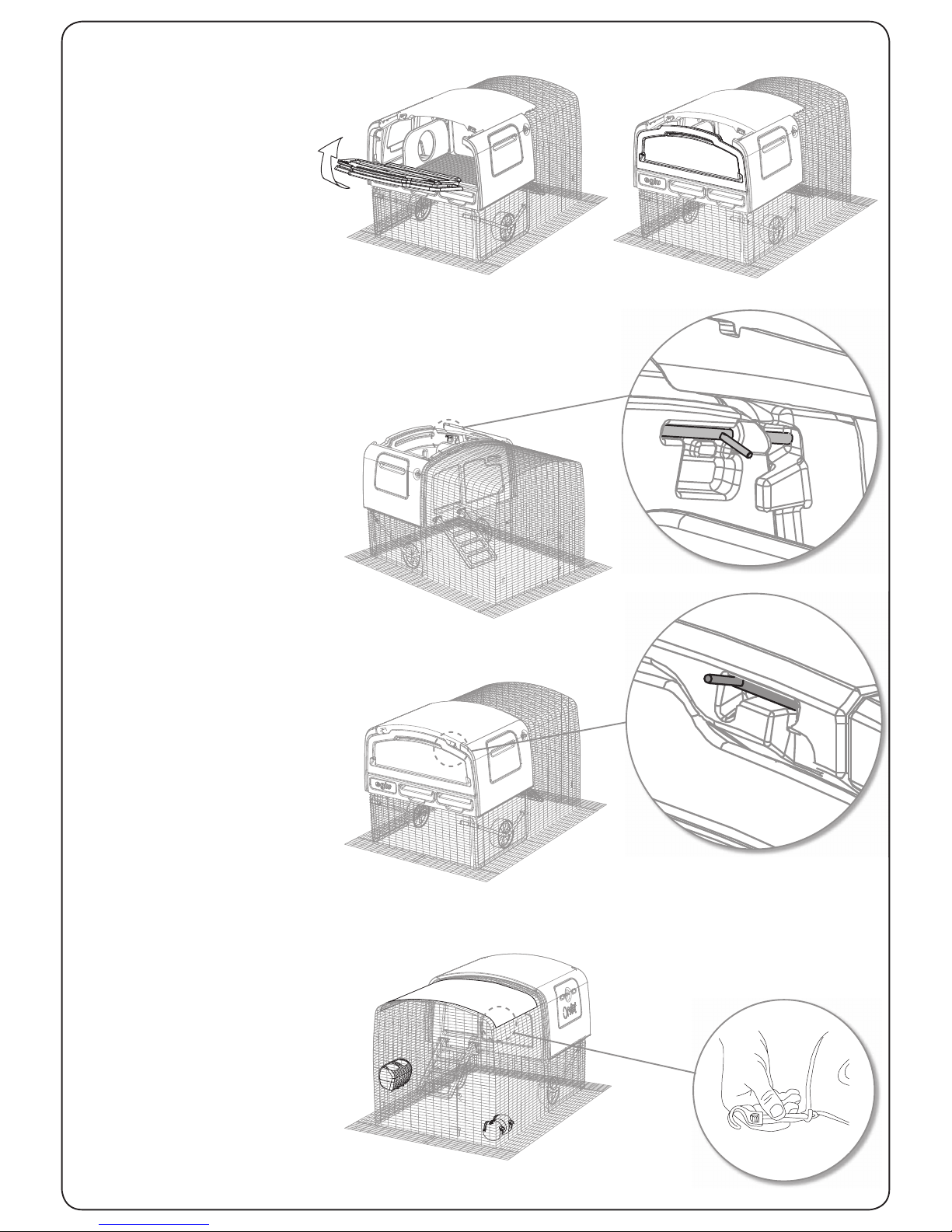

Shade - This is held on with

four hooks on bungee cords as

shown. Hook the corners onto

the run making sure that it is

held reasonably taut to prevent it

ﬂ apping in the wind.

Feeder and Drinker - These can

be attached to the run using the

hooks on the backs. Open the door

at the end of the run and reach

in hanging them on the side walls

of the run. The drinker should

be placed such that the chickens

have to reach up to drink from the

nipples.

Place the bottom of the Rear Panel

on the back of the Base then rotate

it up to vertical.

The Rear Panel locks to the side

panels with two locking bolts on

the inside of the panel. Simply

rotate the arm of the bolt, slide

the bolt across and rotate the arm

back again. Do this on both sides

and the Rear Panel will be held in

place.

Step 20 - Fitting the Rear Panel

Step 21 - Locking the Rear panel

Slide the lid to the rear of the

eglu. It will be slightly stiff as it

travels along its metal runners to

make sure it is held down nice and

securely. The lid is locked on using

two bolts identical to the ones

holding the Rear Panel.

Step 22 - Locking the Lid

Step 23 - Attach the Accessories

Andere Handbücher für Eglu Cube

Inhaltsverzeichnis

Andere Omlet Tierpflegeprodukte Handbücher

Omlet

Omlet maya cat tree scratching post Bedienungsanleitung

Omlet

Omlet eglu classic Bedienungsanleitung

Omlet

Omlet stak Bedienungsanleitung

Omlet

Omlet Freestyle Bedienungsanleitung

Omlet

Omlet maya Bedienungsanleitung

Omlet

Omlet 086.0101 Bedienungsanleitung

Omlet

Omlet Eglu Go Hutch Bedienungsanleitung

Omlet

Omlet qute Montageanleitung

Omlet

Omlet maya Bedienungsanleitung

Omlet

Omlet Eglu Conversion Kit Bedienungsanleitung

Omlet

Omlet maya cat shelf Bedienungsanleitung

Omlet

Omlet RABBIT PLAY TUNNEL END RINGS Bedienungsanleitung

Omlet

Omlet Geo Bedienungsanleitung

Omlet

Omlet Fido Studio 24 Bedienungsanleitung

Omlet

Omlet maya bed frame Bedienungsanleitung

Omlet

Omlet eglu go hutch 1m run Bedienungsanleitung

Omlet

Omlet eglu classic Bedienungsanleitung

Omlet

Omlet qute Bedienungsanleitung

Omlet

Omlet Outdoor Pet Run Porch Bedienungsanleitung

Omlet

Omlet eglu Bedienungsanleitung

Omlet

Omlet Geo 60 Bedienungsanleitung

Omlet

Omlet zippi Bedienungsanleitung

Omlet

Omlet qute Bedienungsanleitung

Omlet

Omlet fido / maya Nook 24 Curtains Bedienungsanleitung

Beliebte Tierpflegeprodukte Handbücher anderer Marken

Schwinn

Schwinn Rascal Bedienungsanleitung

K&H

K&H Small Animal Bedienungsanleitung

SHOR-LINE

SHOR-LINE 006.3230.00 Bedienungsanleitung

Petsafe

Petsafe Stubborn Dog Receiver Collar Bedienungsanleitung

Datamars

Datamars OMNI MAX Bedienungsanleitung

Trixie

Trixie 24444 Bedienungsanleitung

Roverpet

Roverpet 30DDPP Bedienungsanleitung

SportDOG

SportDOG SD-105S-C Bedienungsanleitung

Staywell

Staywell 400 Series Magnetic Bedienungsanleitung

Dogtek

Dogtek Sonic Birdhouse Bedienungsanleitung

Togfit

Togfit Deluxe Trigger Lock Door Gate Bedienungsanleitung

Girafus

Girafus 227PA Bedienungsanleitung

ubbink

ubbink KoiFeeder Solar Bedienungsanleitung

ULTRACOM

ULTRACOM KOIRA-GPS Bedienungsanleitung

CADOCA

CADOCA Deuba 106911 Bedienungsanleitung

Dogtra

Dogtra RR Deluxe Bedienungsanleitung

Carson

Carson CONVERTIBLE PET YARD 2200 Bedienungsanleitung

Creative Cedar Designs

Creative Cedar Designs K-9 Kabin Bedienungsanleitung
