OmniPrint OM100 Bedienungsanleitung

OM100

User’s Manual

Revision: 1.0

March 26, 2018

OMNIPrint Inc.

1923 East Deere Ave. Santa Ana, California, 92705, U.S.A.

T: 949-833-0080 :: F: 949-833-0040

www.omniprintinc.com

Front View

1. Printer Appearance

Rear View

Left Side View

Right Side View

1.1 Switch and LED Functions

1. Feed Button

Press to feed paper manually; release to stop feeding.

2. Back Button

Default = Disabled, Programmable to reverse paper.

3. Power Condition

When Power LED is on, printer is turned on.

When Power LED is off, printer is turned off.

4. Alarm Indicator

The LED blinks when there is a paper out, cutter error, or print head

overheat condition.

2. Printer Set Up

2.1 Unpacking

The items illustrated below are included in the printer package. If any

items are damaged or missing, please contact your supplier for

assistance:

POWER ADAPTER POWER CORD INTERFACE CABLE

MANUAL PAPER ROLL

Serial

RS232 Serial

DB25 Female

Centronics

Parallel

Connecting the Cables

Before connecting the cables, please make sure that both the printer and host

are turned off.

2.2.1 Connecting the Power Adapter

An approved Class 2 external switching power supply is required for the

operation of this product. An appropriate plug type is provided for the sales

region.

1. Make sure the printer power switch is turned off.

2. Insert the Barrel Connector of the power adapter into the printer DC jack.

3. Plug the power Adaptor into a wall outlet.

4. Use only the power supply provided with the printer.

Input: 100~240VAC 50/60Hz Output: 7.5VDC 2.0A

Please replace with one of the following part numbers:

OMPS5200-2402-NA North America, Japan, Taiwan

-VDE Europe except Italy & Switzerland, Brazil, India

-BSI UK, HK, UAE, Singapore, Malaysia

-CCC China, Australia, New Zealand

2.2.2 Connecting the Interface Cable

Properly shielded serial interface cable must be used to connect your computer

to the printer. Observe the following precautions when connecting the printer to

the host computer.

1. Power to the host must be off.

2. The printer power switch must be turned off.

3. Use only the supplied serial cable, Part No. CBL9500-IF-ASP

4. Make sure connectors are inserted correctly on both ends.

5. Use the two thumb screws to secure the DB-25 connectors together.

3. Paper Loading

Use a paper roll that meets the specifications below. Do not use paper rolls that

are glued to the core. Make sure data is not being transmitted to the printer while

loading paper.

1. With power switch turned on; open the cover fully and remove the old paper roll core.

Illustration “a”

2. Please make sure no objects are dropped inside and avoid touching any internal parts of the

printer including the paper cutter and print head with any sharp object.

3. Make sure the paper roll is positioned as shown in Illustration “b”.

4. Insert leading edge of paper roll under rollers. Illustration “c” Paper will automatically

advance.

5. Close the paper cover.

6. Press the FEED button to make sure the roll is properly loaded, and paper exits correctly

from the printer; illustration “d”.

7. Tear the excess paper against the serrated edge; illustration “f”.

8. To reorder paper, please use part number: PP-300-165.

“a”

“b”

Lift open Paper Cover

Insert new paper roll as shown

“f”

Insert Paper under feed roller

“c”

“d”

Press the paper feed switch

Tear off excess paper

4. Ribbon Installation

Use a Ribbon that meets the specifications below. Only use ribbons that are

from a known source. Make sure data is not being transmitted to the printer while

installing the ribbon.

1. Turn the printer power off.

2. To open the printer cover lift the cover up from the front as indicated in illustration “a”.

3. Place the cover in a safe place and remove the paper from the Printer.

4. Please make sure no objects are dropped inside and avoid touching any internal parts of the

printer including the paper cutter and print head with any sharp object.

5. Remove any slack from the ribbon buy turning the spool in the direction shown on the ribbon

cartridge. Illustration “b”

6. Make sure the ribbon is positioned as shown in Illustration “c”. Place the leading edge of the

ribbon between the print head and the platen as shown.

7. Push down on the body of the ribbon cartridge until it seats in place as shown in Illustration

“d”. Again, remove any slack in the ribbon caused by installation “e”.

8. Reload the paper roll per the instructions in section “3”.

9. To reorder ribbons please use part number ERC-34.

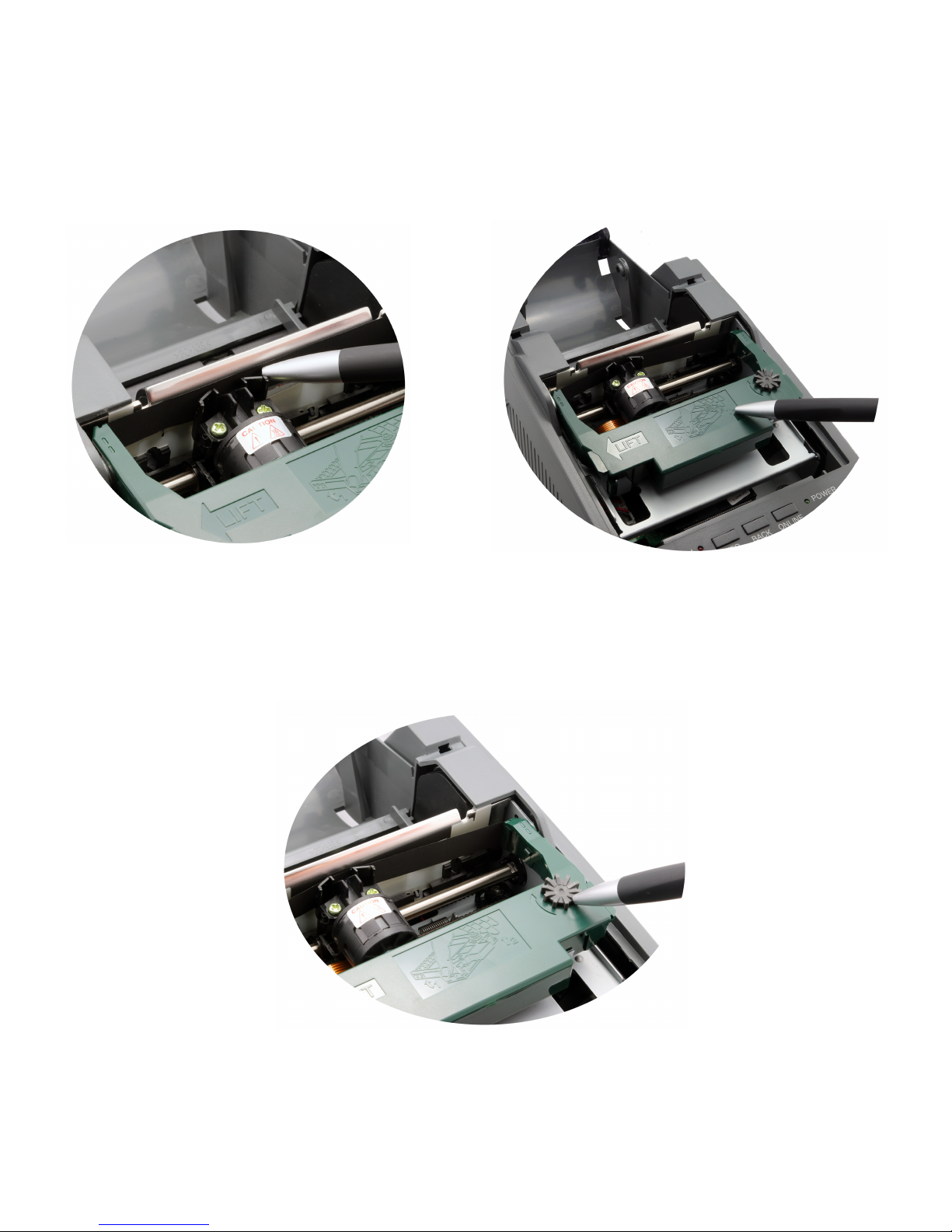

“a”

“b”

Lift off the Ribbon cover

Remove ribbon slack

Place ribbon between print head

and platen

Press ribbon body into place

Take up ribbon slack

“c”

“d”

“e”

5. Dip Switch

5.1 Setting the Dip Switch

An 8 position DIP switch is located on the bottom of the printer unit. Gently turn the printer over

and use a small Philips screw driver to remove the cover. By changing the switch positions you

can modify the default setting for various functions such as cutter mode, character set, beeper,

printer speed etc.

NOTES: 1. To change the dip switch setting please make sure the power is turned off.

2.When changing the baud rate, make sure the host and printer baud rates match.
