INSTALLATION INSTRUCTIONS
M7441 - CANTILEVER TV WALL
MOUNT WITH UNIVERSAL 3, 2
OR 1 ARM DUAL LOCK
MAX WEIGHT
15 KG
COMPLIANT
75 x 75 to 200 x 200
VESA 75 KG
KG
TV SCREEN SIZE
13 - 40”
CAUTION!
DO NOT EXCEED RECOMMENDED TV SCREEN SIZE OR WEIGHT.
SERIOUS INJURY OR TV DAMAGE MAY OCCUR.
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
• Do not begin the installation until you have read and understood all the
instructions and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as specied in
this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone with good mechanical ability who
fully understands this manual.
• Prior to installation ensure your desired installation location is t for purpose.
• We recommend installation to an internal panel. External walls may not offer the
necessary strength and may be used to route plumbing and cables. If in doubt
please consult vehicle manufacturer.
• This product is intended for indoor use only. Using this product outdoors could lead
to product failure and personal injury.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined
weight of the equipment and all attached hardware and components.
• OMP declines all responsibility in the event of incident or accident if they are due to
non-observation of the installation instructions or installation error.
SAFETY INSTRUCTIONS - PLEASE READ
Read the entire instruction manual before you start installation & assembly.
WARNING!
PAGE 2
COMPONENT CHECKLIST
Important:
Ensure that you have received all parts according to the component checklist prior to
installation. If any parts are missing or faulty contact your local OMP distributor for a
replacement.
I
8 x M5 x12
J
8 x M5 x 2
M-A
4 x M4 x 14
M-B
4 x M5 x 14
M-E
4 x D5 Washer
M-F
4 x D8 Washer
M-G
8 x Small Spacer
B
1 x 1 & 2 Arm
Assembly
H
1 x Lock
Assembly
F
2 x VESA
Adaptor
M-C
4 x M6 x 14
M-D
4 x M8 x 20
W-A
5 x ST5 x 25
A
1 x Wall
Bracket
G
2 x VESA
Adaptor
C
1 x 3rd Arm
Assembly
D
1 x VESA
Plate Bracket
E
1 x VESA
Plate
PAGE 3
WOODEN PANEL MOUNTING
WARNING !
• Prior to installation ensure your desired installation location is t for purpose.
• We recommend installation to an internal panel. External walls may not offer the necessary
strength and may be used to route plumbing and cables. If in doubt please consult vehicle manufacturer.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined weight
of the equipment and all attached hardware and components.
Fixings are provided for wooden panel mounting only, as illustrated below. It may be necessary to source
additional xings to mount the wall bracket using an alternative mounting arrangement as deemed appropriate
by the installer. It is the installers responsibility to ensure the xings are suitable for the medium the bracket is
being xed to.
1. Find and mark the exact location of mounting holes making sure the bracket is level.
1
2
3
20mm
4mm
W-A
NOTE - BEFORE INSTALLATION YOU WILL NEED TO DECIDE
HOW MANY ARM/S YOU WILL NEED IN YOUR APPLICATION, 3, 2, OR 1?.
THIS WILL DETERMINE HOW MUCH SPACE YOU WILL NEED
FOR THE FUNCTION OF THE BRACKET.
PAGE 4

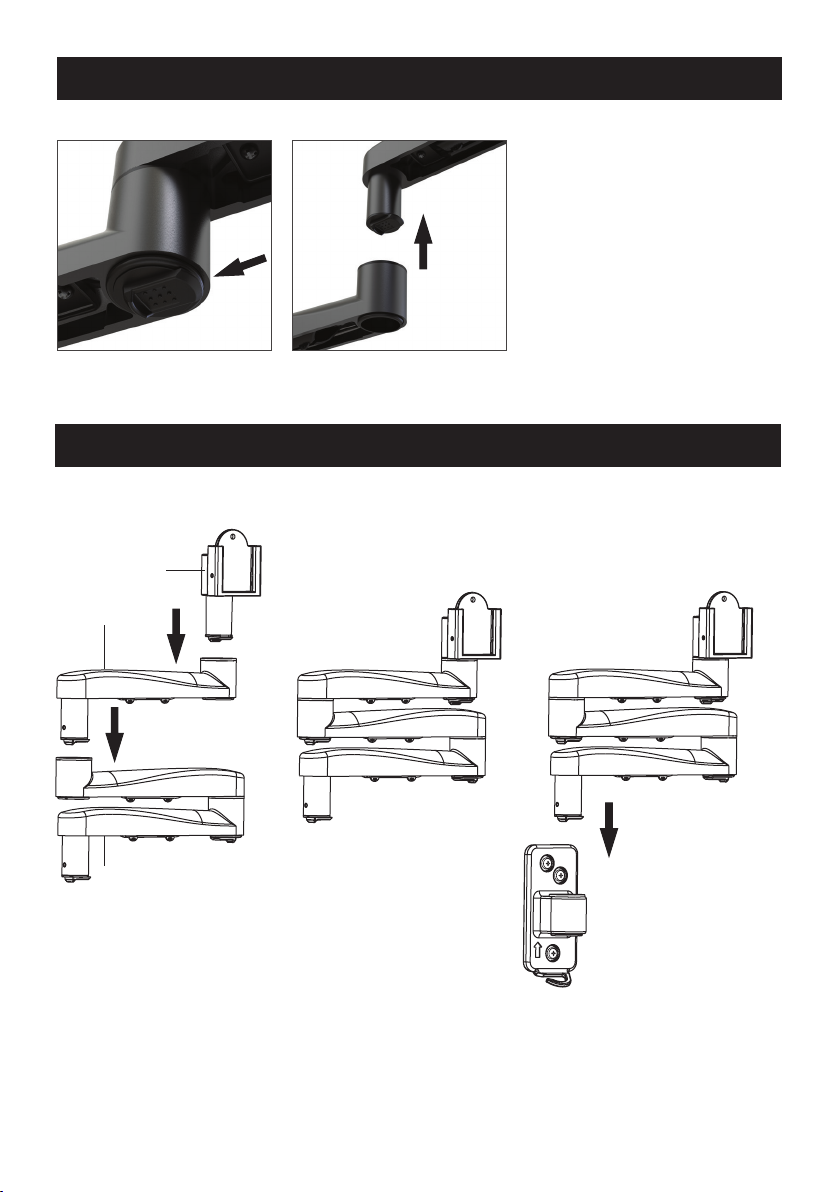

REMOVING OR ADDING ARM/S
FITTING VESA PLATE BRACKET AND ARM ASSEMBLY INTO WALL BRACKET
Note: 3 Arm option shown as an example
Slide Catch Lift Arm
To add arm/s, reverse instruction.
B
C
D
PAGE 5
INSTALLING THE LOCK ASSEMBLY - FOR 3 ARMS
1. Remove the plug.
Spring Lock
Loosen
Lock Plate
2. Fold the arms to make the
arms parallel with the wall.
3. Position the Lock Plate
making sure its central.
(See above).
4. Unfold the arms and use the Lock Plate
to mark the two mounting holes.
5. Fix the Lock Plate to the wall using the W-A screws.
6. Replace the Spring Lock.
W-A
W-A
Centre
(X=Y)
Note - Position the Lock Plate
close to the arm to ensure the
lock pin has maximum
engagement to hold arm.
X = Y reference
X Y
Note:
Before installing the lock assembly
please take note of the position.
PAGE 6
INSTALLING THE LOCK ASSEMBLY - FOR 2 ARMS
INSTALLING THE LOCK ASSEMBLY - FOR 1 ARM
Spring Lock
Loosen
Lock Plate
1. Remove the plug. 2. Fold the arms to make the
arms parallel with the wall.
3. Position the Lock Plate
making sure its central.
(See opposite page above).
4. Unfold the arms and use the Lock Plate
to mark the two mounting holes.
5. Fix the Lock Plate to the wall using the W-A screws.
6. Replace the Spring Lock.
W-A
W-A
Centre
(X=Y)
Spring Lock
Loosen
Lock Plate
1. Remove the plug. 2. Fold the arm to make the
arm parallel with the wall.
3. Position the Lock Plate
making sure its central.
(See opposite page above).
Centre
(X=Y)
4. Unfold the arms and use the Lock Plate
to mark the two mounting holes.
5. Fix the Lock Plate to the wall using the W-A screws.
6. Replace the Spring Lock.
W-A
W-A
PAGE 7
ASSEMBLING THE VESA ADAPTORS
VESA 200 x 200
1. To release - Use the spring lock to release the
arm/s and postition your TV Bracket
VESA 200 x 100
200
100
H
I
200
200
USING THE ASSEMBLY LOCK
Note: 3 arm option
shown as an example.
H
I
1. Pull to release. 2. Replace to lock.
2. To lock - Fold the arms and engage the spring lock to
avoid the arms moving whilst driving.
PAGE 8
Top of the TV
M-A
M-B
Top of the TV
M-A
M-B
M-C
M-E
M-F M-D M-F M-G M-D M-F M-G
OR
VESA 75 x 75 to 100 x 100
INSTALLING THE VESA PLATE
VESA 200 x 200
OR
PAGE 9
M-A
M-B
M-C
M-E
M-F
M-D
M-F
M-D
M-F
M-G M-G
OR
VESA 200 x 100
Tighten all screws but do not over tighten
Top of the TV
Screw the VESA plate onto the TV
M-G
PAGE 10
