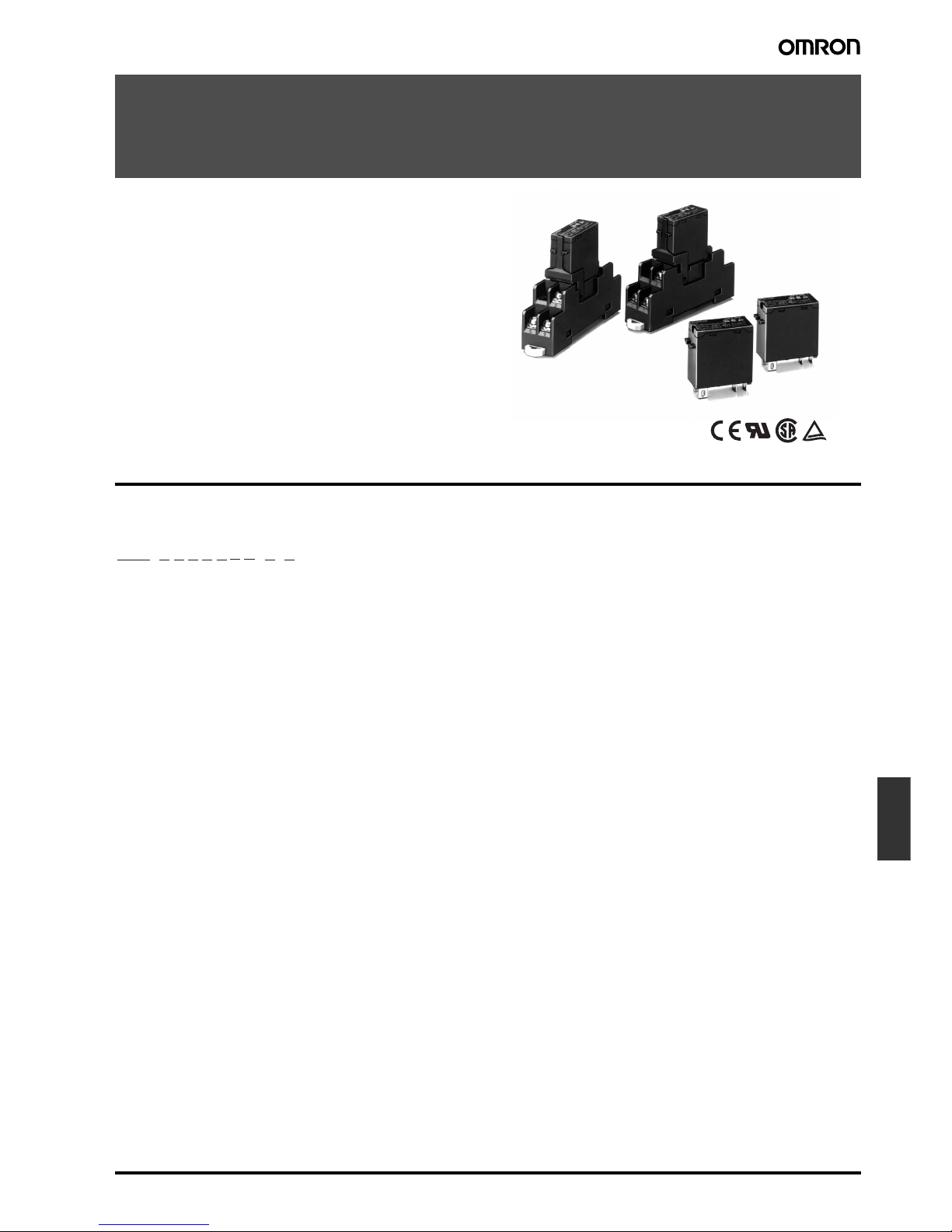

Solid State Relays G3R-I/O J-67

SSR

Solid State Relays

G3R-I/O

Compact SSRs for I/O Interface with High

Dielectric Strength Requirements

• High-speed models with optimum input ratings for a variety of

sensors are available.

• Input Modules and Output Modules that can be used for the

G2R are available.

• Use a coupler conforming to VDE 0884 and assuring an I/O

dielectric strength of 4,000 V.

• Incorporate an easy-to-see monitoring indicator.

• -UTU models certified by UL, CSA, and TÜV.

Model Number Structure

■Model Number Legend

1. Basic Model Name

G3R: Solid State Relay

2. I/O Classification

I: Input module

O: Output module

3. Load Power Supply Type

A: Switches AC loads

D: Switches DC loads

4. Rated Load Power Supply Voltage

Z: 24 VDC

X: 48 VDC

2: 240 VAC

5. Rated Load Current

R1: 0.1 A

01: 1 A

02: 2 A

6. Terminal Type

S: Plug-in terminals

7. Zero Cross Function

Z: Equipped with zero cross function

L: Not equipped with zero cross function

Blank: DC-output model

8. Operation Indicator

N: Equipped with operation indicator

9. Response Speed (only for DC Input Models)

I: Low-speed (10 Hz)

Blank: High-speed (1 kHz)

10.Certification

UTU: Certified by UL, CSA, and TÜV

123 4 5 6 7 8 910

G3R-@@@@@@@-@-@

J-68 Solid State Relays G3R-I/O

Ordering Information

■List of Models

Input Module

Output Module

Note: When ordering, specify the rated input voltage.

■Accessories (Order Separately)

Track/Surface Mounting Socket

(Recommended)

Note: Refer to page 72 for details on other Sockets.

Connecting Socket Attaching Plate

Isolation Indicator Response speed Logic level Rated input

voltage Model

Supply voltage Supply current

Photocoupler Yes --- 4 to 32 VDC 0.1 to 100 mA 100 to 240 VAC G3R-IAZR1SN-UTU

High-speed

(1 kHz)

5 VDC G3R-IDZR1SN-UTU

12 to 24 VDC

Low-speed

(10 Hz)

5 VDC G3R-IDZR1SN-1-UTU

12 to 24 VDC

Isolation Indicator Zero cross

function Rated output load Rated input voltage Model

Phototriac Yes Yes 2 A at 100 to 240 VAC 5 to 24 VDC G3R-OA202SZN-UTU

No G3R-OA202SLN-UTU

Photocoupler --- 2 A at 5 to 48 VDC G3R-ODX02SN-UTU

1.5 A at 48 to 200 VDC G3R-OD201SN-UTU

Model Number of poles

P2RF-05-E 1 pole (G2R: 1 pole usage)

Model Applicable Socket

P2R-P P2R-05A

Solid State Relays G3R-I/O J-69

SSR

■I/O Indication

I/O module classification and AC/DC use are indicated on the mark

affixed to the top of the product.

Specifications

■Ratings (at an Ambient Temperature of 25°C)

Input Module

Input

Output

Output Module

Input

Output

Note: The minimum current value is measured at 10°C min.

Mark indication Specification

AC IN Input module, AC input

DC IN Input module, DC input

AC OUT Output module, AC output

DC OUT Output module, DC output

Mark attached to the top of the product

Model Rated voltage Operating voltage Input current Must operate voltage Must release voltage

G3R-IAZR1SN-UTU 100 to 240 VAC 60 to 264 VAC 15 mA max. 60 VAC max. 20 VAC min.

G3R-IDZR1SN-UTU 5 VDC 4 to 6 VDC 8 mA max. 4 VDC max. 1 VDC min.

12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.

G3R-IDZR1SN-1-UTU 5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min.

12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.

Model Logic level supply voltage Logic level supply current

G3R-IAZR1SN-UTU 4 to 32 VDC 0.1 to 100 mA

G3R-IDZR1SN-UTU

G3R-IDZR1SN-1-UTU

Model Rated voltage Operating voltage Input current Must operate voltage Must release voltage

G3R-OA202SZN-UTU 5 to 24 VDC 4 to 32 VDC 15 mA max.

(at 25°C)

4 VDC max. 1 VDC min.

G3R-OA202SLN-UTU

G3R-ODX02SN-UTU 8 mA max.

G3R-OD201SN-UTU

Model Rated load voltage Load voltage range Load current (See note.) Inrush current

G3R-OA202SZN-UTU 100 to 240 VAC 75 to 264 VAC 0.05 to 2 A 30 A (60 Hz, 1 cycle)

G3R-OA202SLN-UTU

G3R-ODX02SN-UTU 5 to 48 VDC 4 to 60 VDC 0.01 to 2 A 8 A (10 ms)

G3R-OD201SN-UTU 48 to 200 VDC 40 to 200 VDC 0.01 to 1.5 A 8 A (10 ms)

J-70 Solid State Relays G3R-I/O

■Characteristics

Input Module

Output Module

Item G3R-IAZR1SN-UTU G3R-IDZR1SN-UTU G3R-IDZR1SN-1-UTU

Operate time 20 ms max. 0.1 ms max. 15 ms max.

Release time 20 ms max. 0.1 ms max. 15 ms max.

Response frequency 10 Hz 1 kHz 10 Hz

Output ON voltage drop 1.6 V max.

Leakage current 5 µA max.

Insulation resistance 100 MΩmin. between input and output

Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output

Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude

Shock resistance 1,000 m/s2

Ambient temperature Operating: –30°C to 80°C (with no icing)

Storage: –30°C to 100°C (with no icing)

Certified standards UL508 File No. E64562

CSA C22.2 (No. 14, No. 950) File No. LR35535

TÜV File No. R9650094 (EN60950)

Ambient humidity Operating: 45% to 85%

Weight Approx. 18 g

Item G3R-OA202SZN-UTU G3R-OA202SLN-UTU G3R-ODX02SN-UTU G3R-OD201SN-UTU

Operate time 1/2 of load power source

cycle + 1 ms max.

1 ms max. 1 ms max.

Release time 1/2 of load power source cycle + 1 ms max. 2 ms max.

Response frequency 20 Hz 100 Hz

Output ON voltage drop 1.6 V max. 2.5 V max.

Leakage current 1.5 mA max. 1 mA max.

Insulation resistance 100 MΩmin. between input and output

Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output

Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude

Shock resistance Destruction: 1,000 m/s2

Ambient temperature Operating: –30°C to 80°C (with no icing)

Storage: –30°C to 100°C (with no icing)

Certified standards UL508 File No. E64562

CSA C22.2 (No. 14, No. 950) File No. LR35535

TÜV File No. R9650094 (EN60950)

Ambient humidity Operating: 45% to 85%

Weight Approx. 18 g

Solid State Relays G3R-I/O J-71

SSR

Engineering Data

Load Current vs. Ambient Temperature

One Cycle Surge Current: Non-repetitive

Note: Keep the inrush current to half the rated value if it occurs repetitively.

1.5

−30

0.7

0.5

−20 0 20 30 40 55 60 80 100

1.4

−30 −20 0 20 40 55 60 80 100

1.5

0.5

0.6

1.1

1.5

0.5

−30 −20 0 20 40 55 60 80 100

1.4

4-point mounting (see note 1)

16-point mounting (see note 2) 4-point mounting (see note 1)

4-point mounting (see note 1)

16-point mounting (see note 2)

G3R-OA202SZN-UTU/OA202SLN-UTU G3R-OD201SN-UTU (40 to 200 VAC)G3R-ODX02SN-UTU (4 to 60 VDC)

Ambient temperature (°C)

Load current (A)

Ambient temperature (°C)

Load current (A)

Ambient temperature (°C)

Load current (A)

Note: 1. When G730-Z0M04-B is mounted.

2. When G70A-Z0C16 is mounted.

Single-point

mounting Single-point

mounting

16-point mounting

(see note 2)

Single-point

mounting

10 30 50 100 200 500 1000 5000

010 30 50 100 500 1000 2000300

G3R-OA202SZN-UTU/OA202SLN-UTU G3R-OD201SN-UTUG3R-ODX02SN-UTU

Inrush current (A)

Ener

ized time

(

)

Inrush current (A)

Ener

ized time

(

)

Inrush current (A)

Ener

ized time

(

)

J-72 Solid State Relays G3R-I/O

Dimensions

Note: All units are in millimeters unless otherwise indicated.

G3R

Connecting Sockets

Connecting Socket Attaching Plates

57.5

9.6

0.5

5.2

17.4

4.7

4.75

0.5

(+)

(−)

1 5

(−) (+)

13 max. 28 max.

29 max.

Load

Input

Terminal Arrangement/

Internal Connections

(Bottom View)

58.5 *

Five, M3.5×8

P2RF-05

71.5 max.

19.5 max.

54 max.

30 max.

4 dia.

4.2-dia. hole

P2RF-05 Socket

G3R I/O Relay

M3 (M3 x16) or

3.2-dia. hole

* Indicates a value when using the PFP-@N

Supporting Rail.

The value is 67.5 when using the PFP-@N2.

62.5 **

(66.5)***

P2RF-05-E

G3R I/O Relay

3.2-dia. hole

M3 or 3.5-dia. hole

59 max.

48 max.

M3.5 screw

85.5 max.

61 max.

3.5-dia.

hole

PFRF-05-E

Socket

** Indicates a value when using the PFP-@N

Supporting Rail with the P2RF-05-E

The value is 71.5 when using the PFP-@N2.

*** Indicates a value when using the PFP-@N

Supporting Rail with the P2RF-08-E

The value is 75.5 when using the PFP-@N2.

P2R-05A 14.5 max.

35.5 max.

Five, 3x1.5-dia. hole

G3R I/O Relay

P2R-05A Socket

36 max.

(Panel thickness must

be 1.6 to 2.0 mm.)

Solid State Relays G3R-I/O J-73

SSR

Socket Mounting Plate

Use the Socket Mounting Plate when arranging several Sockets in a row.

P2R-05P

Dimensional tolerance is ±0.1.

G3R I/O Relay

P2R-05P Socket

Five, 1.6-dia. hole

35.5 max.

14.5 max.

36 max.

P2R-057P G3R I/O Relay

P2R-057P Socket

Five, 1.6-dia. hole

14 max.

32 max.

41 max.

Square hole

R2.25

10 ellipses

J-74 Solid State Relays G3R-I/O

G70A I/O Block Base

■Ordering Information

Note: Each relay to be mounted must incorporate a coil that has proper specifications within the maximum rated voltage range.

■Dimensions

Note: All units are in millimeters unless otherwise indicated.

Classification Internal I/O circuit common Rated voltage Model

Output NPN (+ common) 24 VDC G70A-ZOC16-3

PNP (– common) 24 VDC G70A-ZOC16-4

Input NPN/PNP 110 VDC max., 240 VAC max.

(See note.)

G70A-ZIM16-5

234

10.2

9.2 19.6

M3.5

48.7

20.7

34.2

35.3+0.2

−0

234

20.7

34.2

48.7

9.2 18.4

28.6

M3.5

35.3+0.2

−0

13.5

G70A-ZOC16 (Output)

G70A-ZIM16 (Input)

Solid State Relays G3R-I/O J-75

SSR

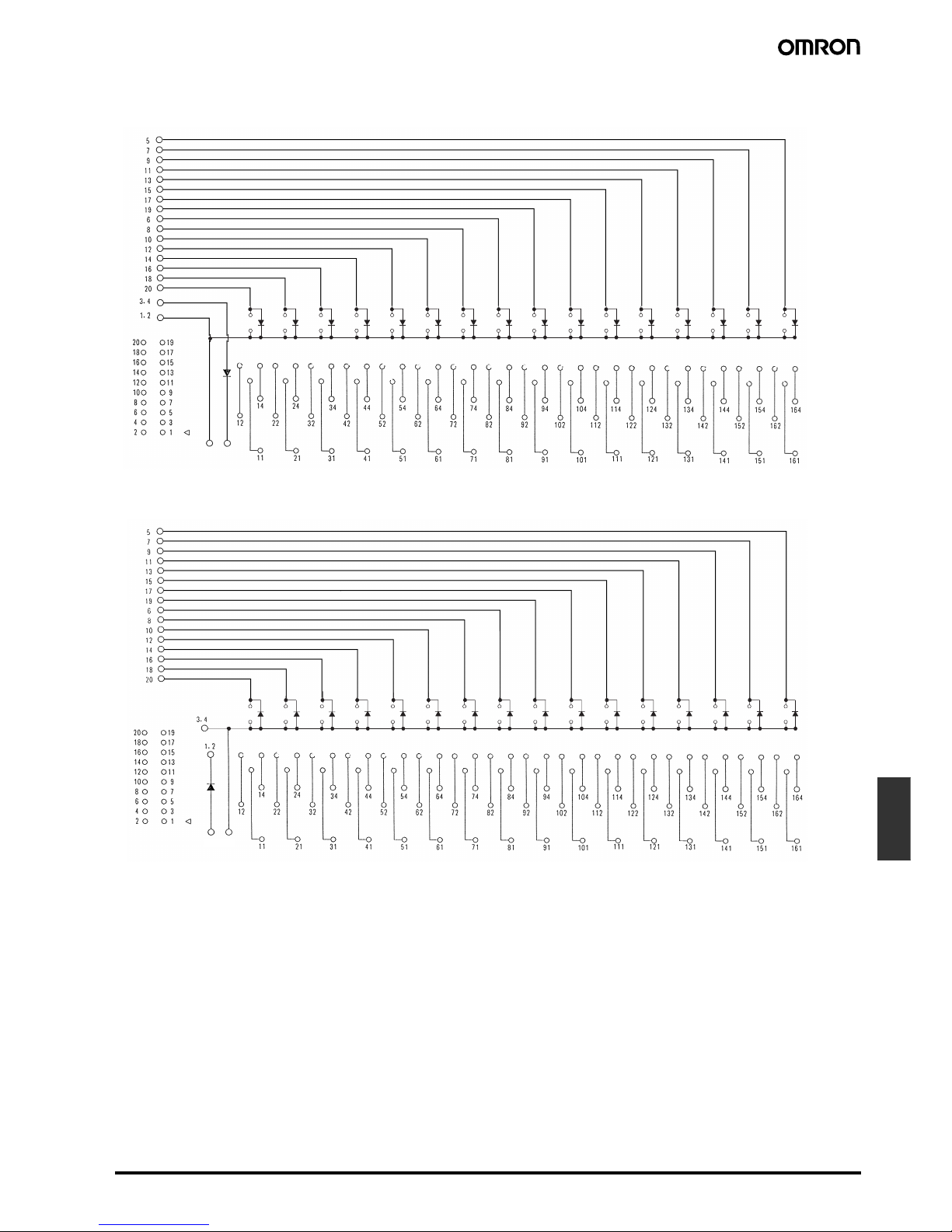

■Terminal Arrangement/Internal Connection

−

(+) (−)

G70A-ZOC16-3 (NPN)

Connector Terminal

Arrangement

(Top View)

−

(+) (−)

G70A-ZOC16-4 (PNP)

Connector Terminal

Arrangement

(Top View)

J-76 Solid State Relays G3R-I/O

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. K091-E1-04

Safety Precautions

■Precautions for Correct Use

Please observe the following precautions to prevent failure to

operate, malfunction, or undesirable effect on product performance.

Connection

With the SSR for DC switching, the load can be connected to either

positive or negative output terminal of the SSR.

Protective Element

Since the SSR does not incorporate an overvoltage absorption

component, be sure to connect an overvoltage absorption

component when using the SSR under an inductive load.

Precaution of Mounting Output Modules

COM. 1A2 2A2 3A2 4A2 5A2 6A2 7A2 8A2 9A2 10A2 11A2 12A2 13A2 14A2 15A2 16A2

9A1 10A1 11A1 12A1 13A1 14A1 15A1 16A15A1 6A1 7A1 8A11A1 2A1 3A1 4A1

−

G70A-ZIM16-5 (NPN/PNP)

Connector Terminal

Arrangement

(Top View)

G3R G3R G3R

With up to four G3R SSRs mounted closely and

side by side, 2-A loads can be switched.

With a G3R SSRs mounted every other slot,

2-A loads can be switched.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Omron Computerhardware Handbücher

Omron

Omron G3NH Bedienungsanleitung

Omron

Omron CP1L Bedienungsanleitung

Omron

Omron CJ1W- ECT21 Bedienungsanleitung

Omron

Omron FJ-AP1 Bedienungsanleitung

Omron

Omron R88A-MCW151-DRT-E Bedienungsanleitung

Omron

Omron H7E Bedienungsanleitung

Omron

Omron SYSMAC CP Series Bedienungsanleitung

Omron

Omron G3NE Bedienungsanleitung

Omron

Omron G3PE Series Bedienungsanleitung

Omron

Omron JUSP-NS500 Bedienungsanleitung

Omron

Omron XTRADRIVE - Bedienungsanleitung

Omron

Omron SYSMAC CV500-BSC11 Bedienungsanleitung

Omron

Omron CP1H CPU UNITS - PROGRAMMING 05-2007 Bedienungsanleitung

Omron

Omron SYSMAC CP Series Bedienungsanleitung

Omron

Omron NX701-1720 Bedienungsanleitung

Omron

Omron 3G8F5-DRM21 Bedienungsanleitung

Omron

Omron E5ZN-DRT Konfigurationshandbuch

Omron

Omron XTRADRIVE - Bedienungsanleitung

Omron

Omron Junma ML-II SJDE-02ANA-OY Kurzanleitung

Omron

Omron G2RS Bedienungsanleitung

Omron

Omron CP1L CPU UNIT - 03-2009 Bedienungsanleitung

Omron

Omron GRT1-PNT Bedienungsanleitung

Omron

Omron JUSP-NS600 Kurzanleitung

Omron

Omron F3SP-U3P-TGR Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
