S8V POWER SUPPLIES
High capacity in a compact format
» Long life – switch mode power supplies
» performance and reliability
» Complete single and 3 - phase ranges
All the power to suit your needs...
Benefits S8VS
All the power to run your application
• Full range from 0.65 A up to 20 A in only 6 models
Ideal for global use
• Wide input range 100 – 240VAC
Global availability
• We are present on all continents/in all countries
Suited for marine applications
• Lloyd’s Register certified

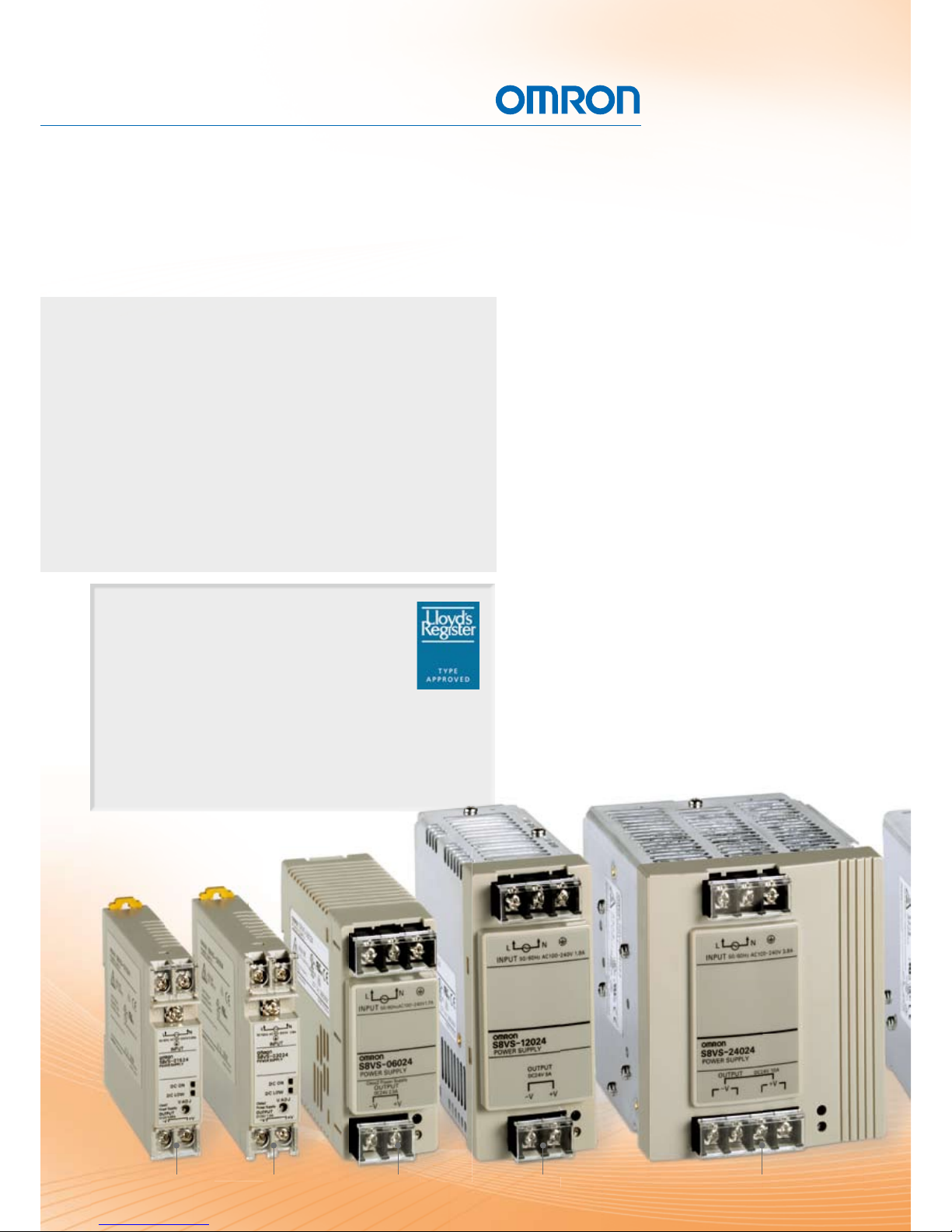

S8VS single phase power supplies
Compact series
The S8VS is our most compact single-phase power supply range.
The dimensions of these compact power supplies mean that less
panel space and depth are required. The range starts at 0.65A
and goes up to 20A at 24VDC. The 20A model is the latest
addition to our successful S8VS series. This model is able to
supply a short-duration 30A peak output current. The S8VS range
offers reliability with compactness and combines high capacity
with natural (fan-less) cooling. All models are designed for easy
click-on DIN-rail mounting and give full power in a wide ambient
temperature range. The terminal locations are situated at the
upper and lower side of the power supply, so that input- and
output-terminals are separated.
Our S8V series of industrial compact power supplies
offers the power you need for your application.
Available with single-phase and three-phase input
voltages, the single-phase S8VS range goes up to 20A
and the three-phase S8VT range extends to 40A.
The S8V series has many practical features that make
these power supplies safe and easy to install.
240 W / 10 A120 W / 5 A60 W / 2,5 A30 W / 1,3 A15 W / 0,65 A
The S8VT is our series of compact three-phase input power
supplies with a wide input range from 400 to 500VAC. The
S8VT offers one of the best power-to-footprint ratios on the
market. The range comprises four models available with power
ratings of 5, 10, 20 or 40A at 24VDC. All models are fuse
protected to secure protection of the power supply and your
DC application.
S8VT 3-phase power supplies
Performance in robust housing
Benefits S8VT
All the power to run your application & reduce panel space
• Full range from 5A up to 40A in only 4 models with best
power-to-footprint ratio
Prevent imbalance in main supply
• Wide 3-phases input range
To increase output voltage or power
• Parallel or serial connections possible
The S8VT range is designed for industrial use and therefore
features DIN-rail mounting, a strong metal case and gives full
power without the need for additional ventilation.
Furthermore, all models are equipped with double connection
for the DC supply, making wiring easier. On top of this you can
use the S8VT as well as a single-phase DC/DC converter with
an input voltage up to 810 VDC. The series conforms to
industrial standards around the world.
120 W / 5 A
240 W / 10 A 480 W / 20 A
960 W / 40 A
480 W / 20 A
'#-,
(#*
)#,
,
('
)'
(, *' -' ()' )+' +/' 0-'
J/MJj`e^c\g_Xj\ J/MK*$g_Xj\
+'
8
N
)+M;:
'#-,
(#*
)#,
,
('
)'
(,
*'
-'
()'
)+'
+/'
0-'
J/MJj`e^c\g_Xj\
J/MJj`e^c\g_Xj\
J/MK*$g_Xj\
+'
8
)+M;:
)+M;:
J/MJj`e^c\g_Xj\
J/MK*$g_Xj\
Benefits S8VT
All the power to run your application & reduce panel space
• Full range from 5A up to 40A in only 4 models with best
power-to-footprint ratio
Prevent imbalance in main supply
• Wide 3-phases input range
To increase output voltage or power
• Parallel or serial connections possible
Practical features that make
the S8V safe and easy to use
Wide voltage input range
Ideal for global use.
DIN-rail mounting
Sturdy, quick and
safe mounting.
Finger protection covers
Prevents accidental contact
with active terminals.
Built-in main supply fuses
No additional external fuses
needed.
Double output terminals
Maximum convenience
for easy wiring.
Output voltage control
• LED indication output ON
• Output adjustable <-10%
to +15%>
Model Description
S8VS Single Phase Power Supplies
S8VS-01524 Power supply, plastic case, 22.5mm wide DIN rail or direct panel mounting,100/240VAC supply, 15W 24VDC 0.65A output
S8VS-03024 Power supply, plastic case, 22.5mm wide DIN rail or direct panel mounting,100/240VAC supply, 30W 24VDC 1.3A output
S8VS-06024 Power supply, 60W, 100-240VAC input, 24VDC 2.5A output, DIN rail mounting
S8VS-12024 Power supply, 120W, 100-240VAC input, 24VDC 5A output, DIN rail mounting
S8VS-24024 Power supply, 240W, 100-240VAC input, 24VDC 10A output, DIN rail mounting
S8VS-48024 Power supply, 480W, 100-240VAC input, 24VDC 20A output, DIN rail mounting
S8VT Three Phase Power Supplies
S8VT-F12024E Power supply, 120W, 320-480VAC 3-phase input, 24VDC 5A output, DIN rail mounting
S8VT-F24024E Power supply, 240W, 320-480VAC 3-phase input, 24VDC 10A output, DIN rail mounting
S8VT-F48024E Power supply, 480W, 320-480VAC 3-phase input, 24VDC 20A output, DIN rail mounting
S8VT-F96024E Power supply, 960W, 320-500VAC 3-phase input, 24VDC 40A output, DIN rail mounting
... Find related datasheets
www.industrial.omron.eu/s8v
'#-,
(#*
)#,
,
('
)'
(, *' -' ()' )+' +/' 0-'
J/MJj`e^c\g_Xj\ J/MK*$g_Xj\
+'
8
N
)+M;:
'#-,
(#*
)#,
,
('
)'
(,
*'
-'
()'
)+'
+/'
0-'
J/MJj`e^c\g_Xj\
J/MJj`e^c\g_Xj\
J/MK*$g_Xj\
+'
8
)+M;:
)+M;:
J/MJj`e^c\g_Xj\
J/MK*$g_Xj\
480 W / 20 A
KPP_S8V_EN_INT01
Although we strive for perfection, Omron Europe BV and/or its subsidiary and affiliated companies do not warrant
or make any representations regarding the correctness or completeness of the information described in this document.
We reserve the right to make any changes at any time without prior notice.
