INSTRUCTION MANUAL

COMPRESSOR

NEBULIZER SYSTEM

MODEL NE-C25

English Français Español

NE-C25-IM .qxd 3/2/04 4:36 PM Page 1

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unit Assembly and Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Cleaning After Each Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Daily Disinfecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Caring for the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

INTRODUCTION

Thank you for purchasing the Omron Compressor Nebulizer System.

This product was developed in conjunction with respiratory therapists for the successful

treatment of asthma, allergies and other respiratory disorders. The compressor forces air

through the tubing to the nebulizer. When the air enters the nebulizer it converts the

prescribed medication into a mist of microscopic droplets that are inhaled.

Your comes with the following components:

• Compressor • 5 Replacement Filters

• Carrying Bag • Jet-Air® Nebulizer Kit

• Air Tubing • Instruction Manual

Federal law (USA) restricts this device to sale by or on the order of a physician.

Fill-in for future reference

DATE PURCHASED: ________________

SERIAL NUMBER: __________________

Staple your purchase receipt here.

SAVE THESE INSTRUCTIONS

This unit is a medical device. Operate this unit only as instructed by your physician

and/or respiratory therapist.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 2

SAFETY INFORMATION

Read all the information in the instruction book and any other literature included in

the box before using the unit.

When using an electrical product, especially when children are present, basic safety

precautions should always be followed including the following:

∆CAUTION: Failure to read and observe all safety precautions could result in

personal injury or equipment damage.

• Disinfect the unit before using the device for the first time after purchase, if the device has

not been used for a long period of time, or if more than one person uses the same device.

• For type, dose, and regimen of medication follow the instructions of your healthcare provider.

• Provide close supervision when this device is used by, on, or near children

or compromised individuals.

• Keep the device out of the reach of infants and children. The device may contain small

pieces that can be swallowed.

• Do not use the device while sleeping or if drowsy.

• Operate the device only as intended. Do not use the device for any other purpose.

Use only authorized parts and accessories.

• Changes or modifications not approved by Omron Healthcare will void the user warranty.

Do not disassemble or attempt to repair the unit or components.

∆WARNING: Risk of electrical shock

• Do not immerse the unit in water or other liquid.

• Do not operate the unit unattended.

• Do not use the unit while bathing.

• Never touch the unit with wet hands.

• Do not operate the unit with a damaged cord or plug.

• Do not block the air openings. Never place the unit where the air openings may be

obstructed during operation.

• Keep the power cord away from heated surfaces.

• Plug the unit into the appropriate voltage outlet.

• Unplug the unit immediately after use.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 3

KNOW YOUR UNIT

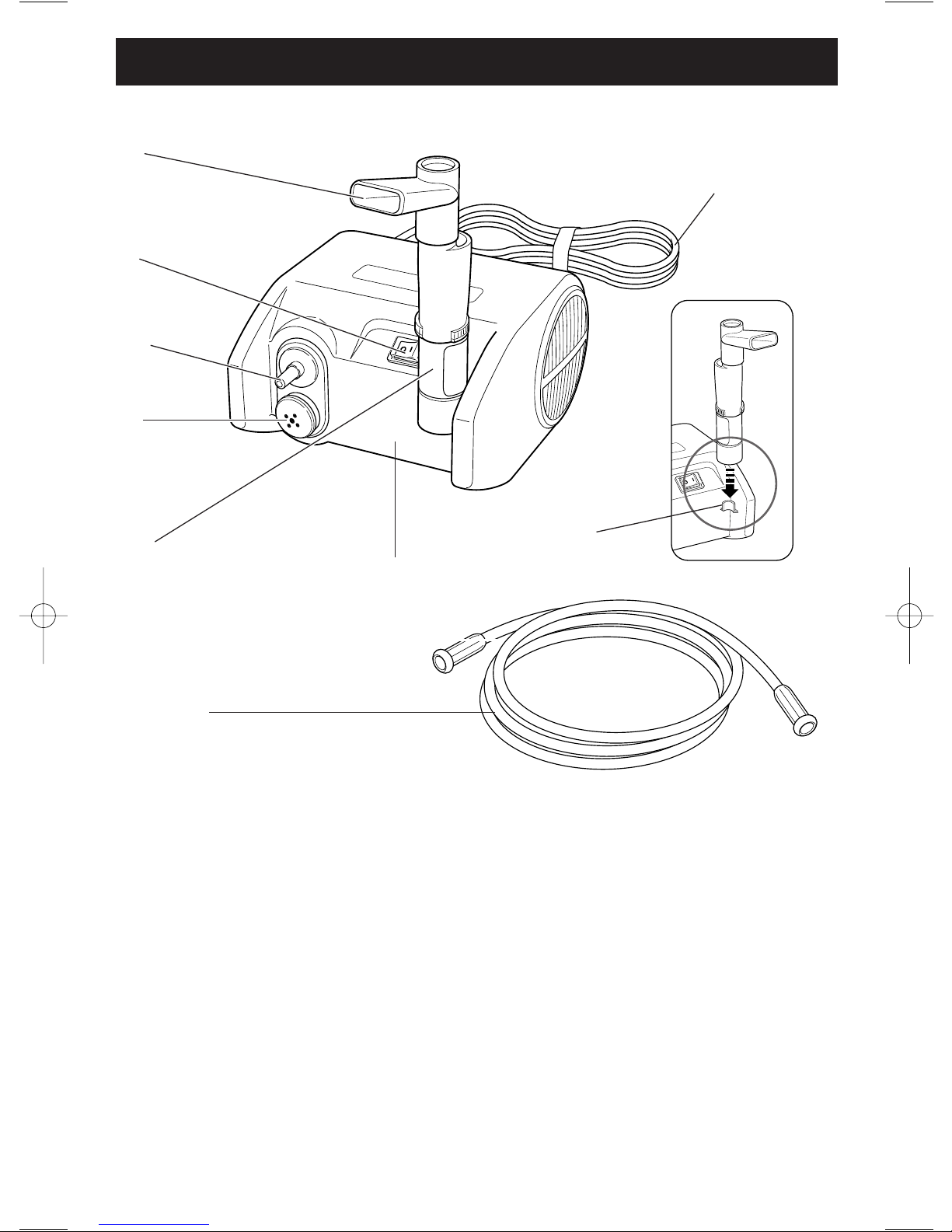

1. MOUTHPIECE

2. POWER SWITCH (ON/OFF)

3. AIR TUBING CONNECTOR

4. PUMP FILTER (FILTER and FILTER COVER)

5. JET AIR NEBULIZER (NEBULIZER MEDICATION CUP)

6. AIR TUBING

7. AC POWER CORD

8. NEBULIZER CLIP

9. COMPRESSOR

NE-C25-IM .qxd 3/2/04 4:36 PM Page 4

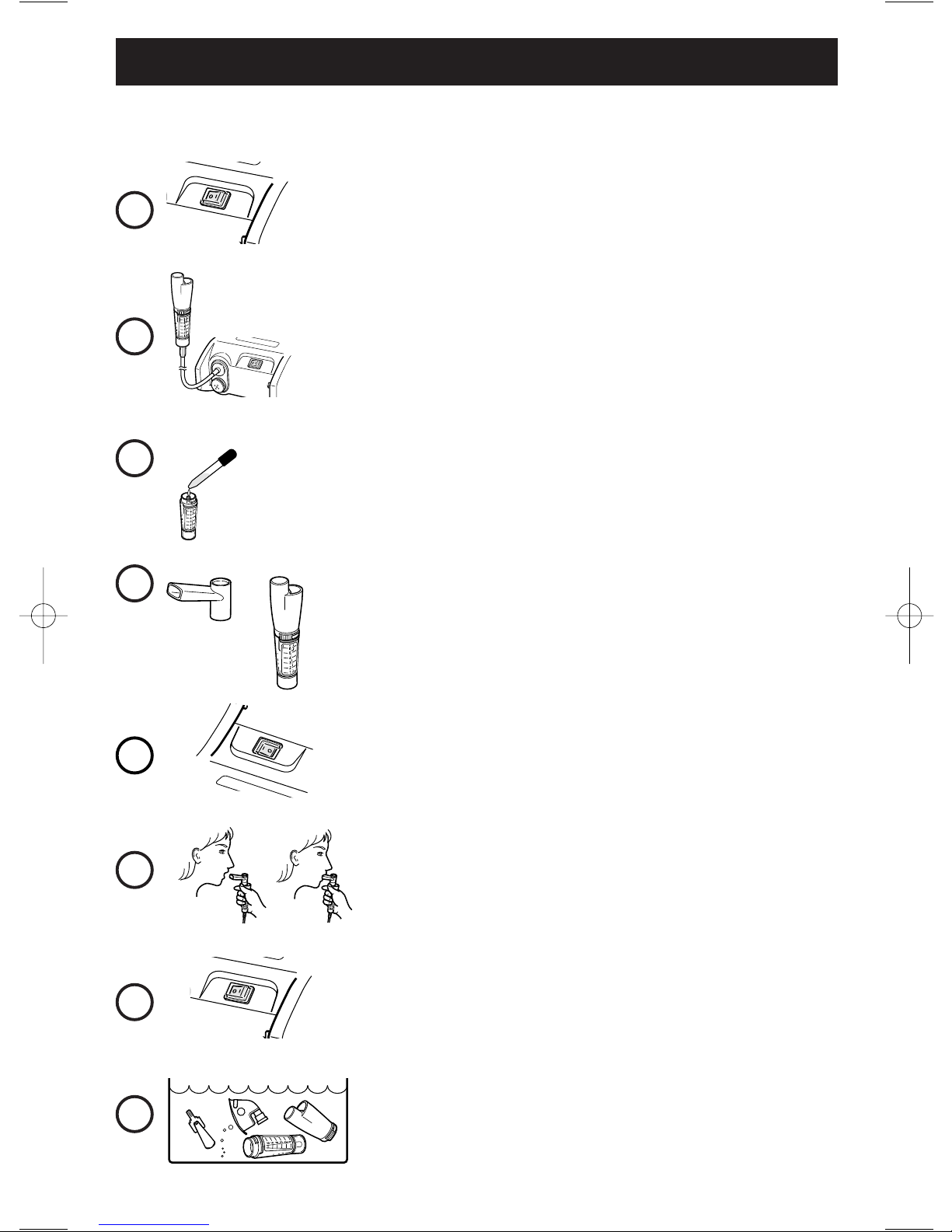

QUICK REFERENCE GUIDE

Make sure the compressor is turned off and the

power cord is disconnected from the

electrical outlet.

Attach one end of the air tubing to the base of the

nebulizer. Attach the other end of the air tubing

to the compressor.

Confirm the pick-up funnel is in the proper

position. Add the prescribed medication to the

nebulizer medication cup. Twist the top and

bottom sections together.

Attach the mouthpiece or mask to the Nebulizer.

Plug in the power cord of the compressor.

Turn the compressor on.

Take treatment as instructed by your

healthcare provider.

Turn the compressor off when treatment is

completed. Unplug the power cord.

Clean and store the nebulizer and compressor as

directed in this manual.

Read all the information in the instruction manual before using the

unit for the first time.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 5

UNIT ASSEMBLY AND USAGE

Clean and disinfect the nebulizer and mouthpiece or mask before using the device

for the first time.

For directions on cleaning and disinfecting refer to pages 8 and 9 in this

instruction manual.

1. Place the compressor on a table or other flat stable surface. Make sure you can

easily reach the controls when you are seated.

∆

Caution: Make sure the power switch is in the off position

2. Remove the nebulizer, mouthpiece and air tubing from the carrying bag.

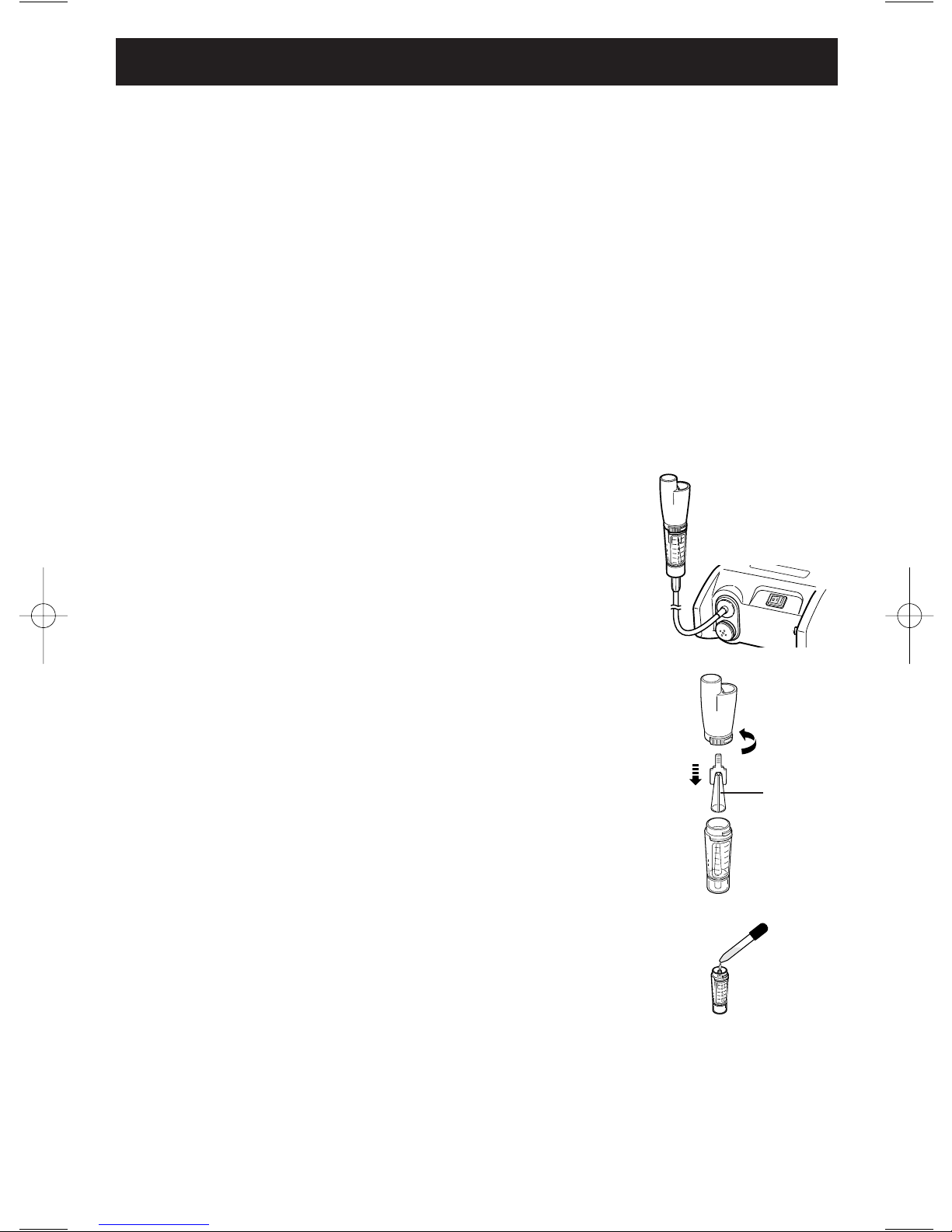

3. Attach one end of the air tubing to the air tubing connector

located on the front of the compressor. The air tubing must

be securely attached to the compressor.

4. Attach the other end of the air tubing to the base of the

nebulizer. Do not bend the air tubing, it will

constrict the airflow in the air tubing.

5. Gently twist and pull the nebulizer to separate the nebulizer

into two sections.

6. Insert the pick-up funnel into the bottom section of

the nebulizer.

7. Add the correct amount of prescribed medication to the nebulizer

medication cup (bottom section of the nebulizer). The maximum

capacity of the nebulizer medication cup is 6 ml.

∆

Caution: Do not add over 6 ml of medication to the medication cup

Funnel

NE-C25-IM .qxd 3/2/04 4:36 PM Page 6

UNIT ASSEMBLY AND USAGE

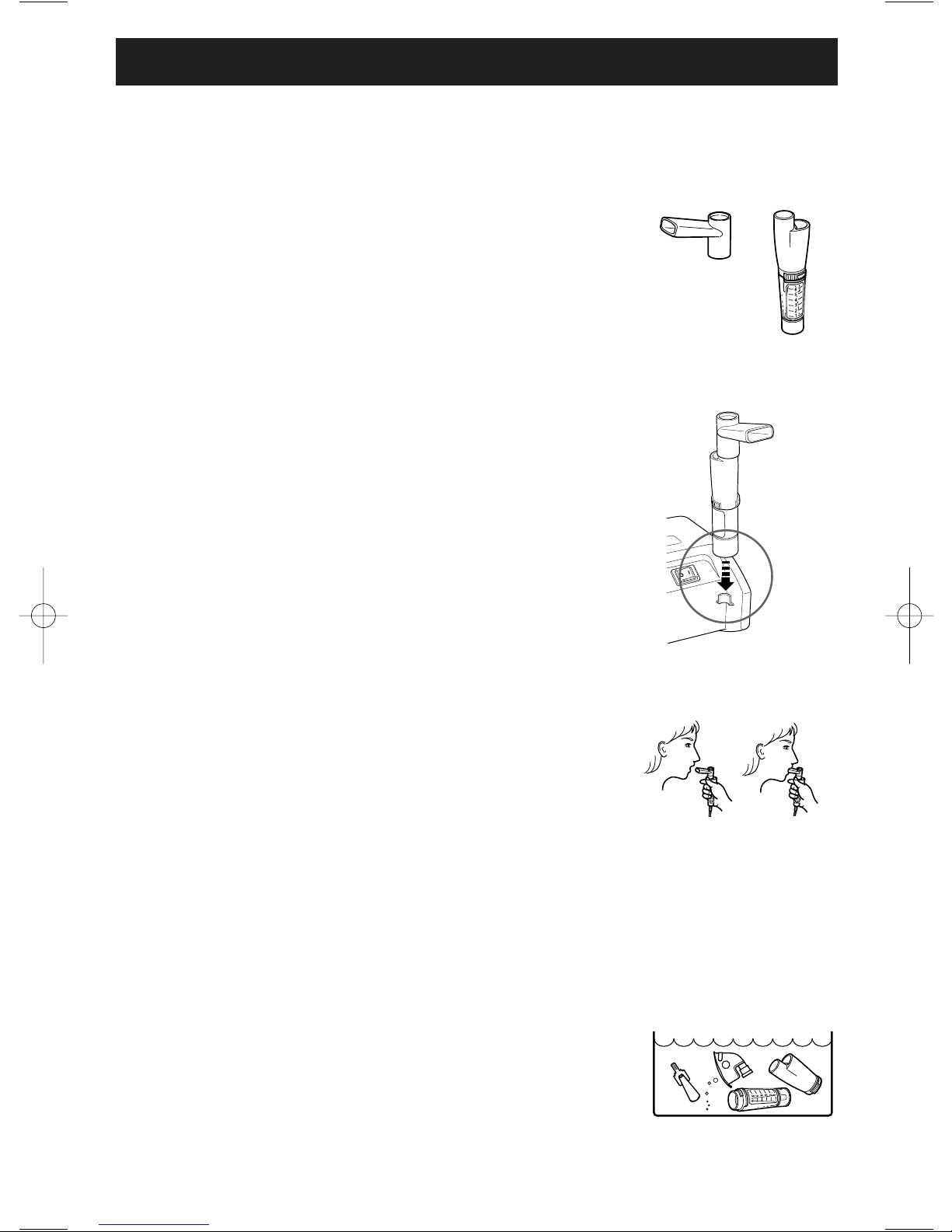

8. Assemble the nebulizer. Gently twist the top and bottom sections together.

Make sure the two sections fit securely.

9. Securely attach the mouthpiece or mask to the top section of

the Jet-Air nebulizer as illustrated.

10. Place the nebulizer on the nebulizer clip on the front of

the compressor.

11. Plug the power cord into the correct voltage electrical outlet.

Remove the nebulizer from the nebulizer clip.

Turn the compressor on.

12. Begin treatment according to your physician’s and/or

respiratory therapist’s instructions. Medication is

dispensed as you tilt the nebulizer towards your mouth.

13. When treatment is complete, turn the compressor off

and immediately unplug the unit from the electrical outlet.

14. Clean and store the nebulizer and compressor as directed

in this instruction manual.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 7

CLEANING AFTER EACH USE

Following the cleaning instructions after each use will prevent any remaining

medication in the bottle from drying resulting in the device

not nebulizing effectively.

Rinse the nebulizer and the mask or mouthpiece with hot tap water

after each use.

1. Remove the mouthpiece or mask from the nebulizer.

2. Disconnect the air tubing from the nebulizer.

3. Gently twist and pull the nebulizer to separate the nebulizer into two sections.

4. Remove the funnel from the bottom section of the nebulizer.

5. Rinse both sections of the nebulizer, mouthpiece or mask, and funnel

with hot tap water.

6. Dry with clean paper towels or allow the parts to air dry in

a clean environment.

7. Assemble the device. Put the parts in a dry, sealed bag and place in the

storage pocket of the carrying bag.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 8

DAILY DISINFECTING

Two different methods of disinfecting the parts may be used. Disinfecting daily

by soaking in a vinegar solution or using a commercially available medical

disinfectant. If your physician or respiratory therapist specifies a different

cleaning procedure follow their instructions.

Disinfect the nebulizer and the mask or mouthpiece after the last

treatment of each day.

VINEGAR METHOD

1. Make a solution of 1 part white vinegar and 3 parts distilled water.

Make enough solution to submerge the parts.

2. Remove the mouthpiece or mask from the nebulizer.

3. Disconnect the air tubing from the nebulizer.

4. Gently twist and pull the nebulizer to separate the nebulizer into two sections.

5. Remove the funnel from the bottom section of the nebulizer.

6. Wash both sections of the nebulizer, mouthpiece or mask, and funnel in

warm water and mild detergent and rinse in hot tap water, or wash

in the dishwasher.

7. Submerge the parts in the white vinegar and distilled water solution

for 30 minutes.

8. Remove the parts and discard the solution. Rinse the parts with hot tap water.

9. Dry with clean paper towels or allow the parts to air dry in a clean environment.

10. Assemble the device. Put the parts in a dry, sealed bag and place in the

storage pocket of the carrying bag.

MEDICAL DISINFECTANT METHOD

Consult your physician or respiratory therapist regarding the use of medical

disinfectant cleaners.

Carefully follow the instructions supplied by the manufacturer of the

medical disinfectant.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 9

CARING FOR THE DEVICE

To keep your device in the best condition and protect the unit from damage

follow these directions:

• Do not subject the device or the parts to any strong shocks such as dropping the

device on the floor.

• Do not store the device in extreme hot or cold temperatures, high humidity

or under direct sunlight.

• Use only Omron Parts and Accessories.

CLEANING THE COMPRESSOR

Clean the casing of the main unit daily by using a soft cloth moistened with water

or a mild detergent. Wipe the casing and immediately dry using a soft clean cloth.

∆

Caution:

• Do not rinse or immerse the compressor in any liquid.

• Do not clean using abrasive cleaners.

STORING THE DEVICE

1. Put the nebulizer kit and the mouthpiece or mask in a dry, sealed bag and place in the

storage pocket of the carrying bag.

2. Coil the air tubing and place in the storage pocket.

3. Place the compressor in the carrying bag and zipper the bag closed.

4. Store the device in a safe area.

FILTER CHANGE

Change the filter every 30 days or when the filter turns gray.

1. Pull the filter cover out to expose the filter compartment.

2. Remove the dirty filter with a small pointed object.

3. Replace with a new, clean Omron filter.

4. Close the filter by inserting cover back into the filter compartment.

∆

Caution:

• Do not attempt to wash or clean the filter. Do not substitute cotton or any other

material for the filter. Do not operate without a filter.

PUMP MAINTENANCE

∆

WARNING: Risk of electrical shock

• Do not attempt to open or disassemble the unit housing. There are no user

serviceable parts.

• Do not attempt to lubricate any parts. This unit does not require oil.

• Maintenance must be performed by an authorized service center.

Unauthorized service will void the user warranty.

NE-C25-IM .qxd 3/2/04 4:36 PM Page 10

Andere Handbücher für COMPAIV XLT NE-C25

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Omron Atemwegsprodukt Handbücher

Omron

Omron COMPAIR PRO Bedienungsanleitung

Omron

Omron NE-C29 Bedienungsanleitung

Omron

Omron NE-U780 Bedienungsanleitung

Omron

Omron COMP A-I-R NE-C801 Bedienungsanleitung

Omron

Omron NE-C801S-E Bedienungsanleitung

Omron

Omron COMP A-I-R NE-C801 Bedienungsanleitung

Omron

Omron NE-C801KD Bedienungsanleitung

Omron

Omron NE-C101 Bedienungsanleitung

Omron

Omron DuoBaby NE-C301-E Bedienungsanleitung

Omron

Omron VIBRATING MESH NEBULIZER NE-U22V Bedienungsanleitung

Omron

Omron MicroAIR U100 Bedienungsanleitung

Omron

Omron NE-C802 Bedienungsanleitung

Omron

Omron Nami Cat Bedienungsanleitung

Omron

Omron COMP AIR NE-C24 Bedienungsanleitung

Omron

Omron MicroAir NE-U22V Bedienungsanleitung

Omron

Omron COMP A-I-R RE-C800KD Konfigurationshandbuch

Omron

Omron A3 Complete Betriebsanleitung

Omron

Omron NE-C802 Bedienungsanleitung

Omron

Omron COMPAIR NE-C28 Bedienungsanleitung

Omron

Omron INSTRUCTION MANUAL Bedienungsanleitung

Omron

Omron CompAIR NE-C801KD Bedienungsanleitung

Omron

Omron NE-C28P Bedienungsanleitung

Omron

Omron C801KD Bedienungsanleitung

Omron

Omron A3 Complete NE-C300-E Bedienungsanleitung

Beliebte Atemwegsprodukt Handbücher anderer Marken

3M 7000 Series Bedienungsanleitung

CERES

CERES nosko nebulizer kit Bedienungsanleitung

Dr.Frei

Dr.Frei NE-SM1 Bedienungsanleitung

North

North 5400 series Bedienungsanleitung

John Bunn

John Bunn Neb-u-Lite LX2 Bedienungsanleitung

DeVilbiss

DeVilbiss UltraNeb Bedienungsanleitung

Sperian

Sperian Panther Hip-Pac P9684 Series Bedienungsanleitung

Dräger

Dräger X-plore 6570 Bedienungsanleitung

3M 8000 Series Bedienungsanleitung

Respironics

Respironics SideStream HS860 Bedienungsanleitung

Sundstrom

Sundstrom SR 500 Bedienungsanleitung

JARDIBRIC

JARDIBRIC KPBRU20 Bedienungsanleitung

Ombra

Ombra 63506 Bedienungsanleitung

Lotus

Lotus M-9520A Bedienungsanleitung

Philips

Philips Respironics EE Leak 1 AF541 Bedienungsanleitung

EVOLU

EVOLU Nano AiR MINI Bedienungsanleitung

Ambu

Ambu SPUR II Bedienungsanleitung

MSA AUER

MSA AUER 3S-PF Bedienungsanleitung
