Dear customer,

Thank you for purchasing the OMRON MicroAIR U22 Nebulizer.

By buying the MicroAIR U22 nebulizer, you have chosen a high-quality, innovative device.

During its development, particular attention was given to reliability, easy and convenient handling.

Before using the nebulizer for the ﬁrst time, please read through this manual carefully.

If you still have any questions regarding its use, contact OMRON customer service at the address

shown on the packaging or in this instruction manual. They will be pleased to assist you.

OMRON HEALTHCARE EUROPE B.V.

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features and beneﬁts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Contents of the OMRON MicroAIR U22 package . . . . . . . . . . . 6

Names and functions of the parts . . . . . . . . . . . . . . . . . . . . . . . 7

How to insert or replace the batteries . . . . . . . . . . . . . . . . . . . . 9

How to assemble the unit and ﬁll the medication container. . . 10

How to select the nebulization mode. . . . . . . . . . . . . . . . . . . . 13

How to inhale with the OMRON MicroAIR U22 . . . . . . . . . . . . 14

How to clean the unit after each inhalation . . . . . . . . . . . . . . . 15

How to disinfect the unit each day. . . . . . . . . . . . . . . . . . . . . . 17

How to replace the mesh cap . . . . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Optional Medical Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 26

)NTENDED USE

Medical Purpose This product is intended to be used for inhaling medication for respiratory

disorders.

Intended User s ,EGALLY CERTIFIED MEDICAL EXPERTS SUCH AS DOCTOR NURSE AND THERAPIST OR

healthcare personnel or patient under the guidance of qualified medical

EXPERTS

s 4HE USER SHOULD ALSO BE CAPABLE OF UNDERSTANDING GENERAL OPERATION OF

MicroAIR U22 and the content of instruction manual.

Intended Patients This product should not be used by patients, who are unconscious or are

not breathing spontaneously.

Environment This product is intended for use in a medical facility, such as Hospital,

clinic and doctor’s office, in a room of general household, and in open-air

environment with a roof.

Durable period Durable periods are as follows, provided the product is used to nebulize

saline 3 times a day for 10 minutes each time at room temperature (23°C).

Durable period may vary depending on usage environment.

Main Unit 5 years

Medication Container 1 year

Mesh Cap 1 year

Mouthpiece 1 year

Adult Mask (PVC) 1 year

Child Mask (PVC) 1 year

Mask Adapter 1 year

Precautions for use Warnings and cautions described in the instruction manual should be

observed.

s 4HIS NEBULIZER IS A MEDICAL DEVICE /NLY USE MEDICATIONS AS PRESCRIBED AND INSTRUCTED BY YOUR DOCTOR

s $ISINFECT THE NEBULIZER BEFORE lRST USE AND AT LEAST ONCE PER DAY WHEN IN USE 3EE PAGE  FOR

disinfection instructions.

s #LEAN THE NEBULIZER AFTER EACH INHALATION 3EE PAGE  FOR CLEANING INSTRUCTIONS

s /NLY USE THE NEBULIZER FOR ITS INTENDED PURPOSE FOR INHALATION THERAPY !NY OTHER FORM OF USE

constitutes an improper use and is therefore dangerous. The manufacturer cannot be held liable for

any damage caused by improper or incorrect use.

s $O NOT LEAVE THE NEBULIZER UNATTENDED WITH PEOPLE WHO REQUIRE SUPERVISION EG PEOPLE WITH

inﬁrmities or children).

s 4HE NEBULIZER DOES NOT CONTAIN USER SERVICEABLE PARTS .EVER OPEN THE MAIN UNIT )N CASE OF

problems, stop using the nebulizer and contact your OMRON dealer.

s $O NOT WASH THE MAIN UNIT WITH WATER DO NOT IMMERSE IT IN WATER

s $O NOT DROP MEDICATION ON THE MAIN UNIT )F YOU DROP MEDICATION IMMEDIATELY WIPE IT OFF

s $O NOT APPLY STRONG SHOCKS TO THE NEBULIZER

s !LTHOUGH THIS DEVICE COMPLIES WITH THE PROVISIONS OF THE %-# %LECTROMAGNETIC #OMPATIBILITY

directive, operating the device should be avoided in direct vicinity of other electronic devices.

s +EEP THIS MANUAL FOR FUTURE REFERENCE

3AFETY PRECAUTIONS

&EATURES AND BENElTS

In the MicroAIR U22, aerosol is generated by pushing liquid medication through ﬁne holes in the newly

developed metal alloy mesh. This is realised by a titanium vibrator, oscillating at high frequency. This

unique technology offers the following features and beneﬁts:

4RUE PORTABLE POCKET SIZE

The device will ﬁt in any handbag or briefcase. Running up to 4 hours on just two penlite batteries,

your medication is always within reach wherever you go, whatever you do.

)NHALATION IS POSSIBLE AT VARIOUS ANGLES

The device enables inhalation at various angles with stable nebulization. Therefore the device can be

used even while in bed or can be used for a baby/child, laying in the arms of the care-taker.

3OUNDLESS OPERATION

The soundless operation of the device enables discrete use.

No loud frightening noises, meaning calm treatment even while using it on a sleeping child.

3IMPLE ONEBUTTON OPERATION

7IDE MEDICATION COMPLIANCE

,OW MEDICATION WASTE AND RESIDUE

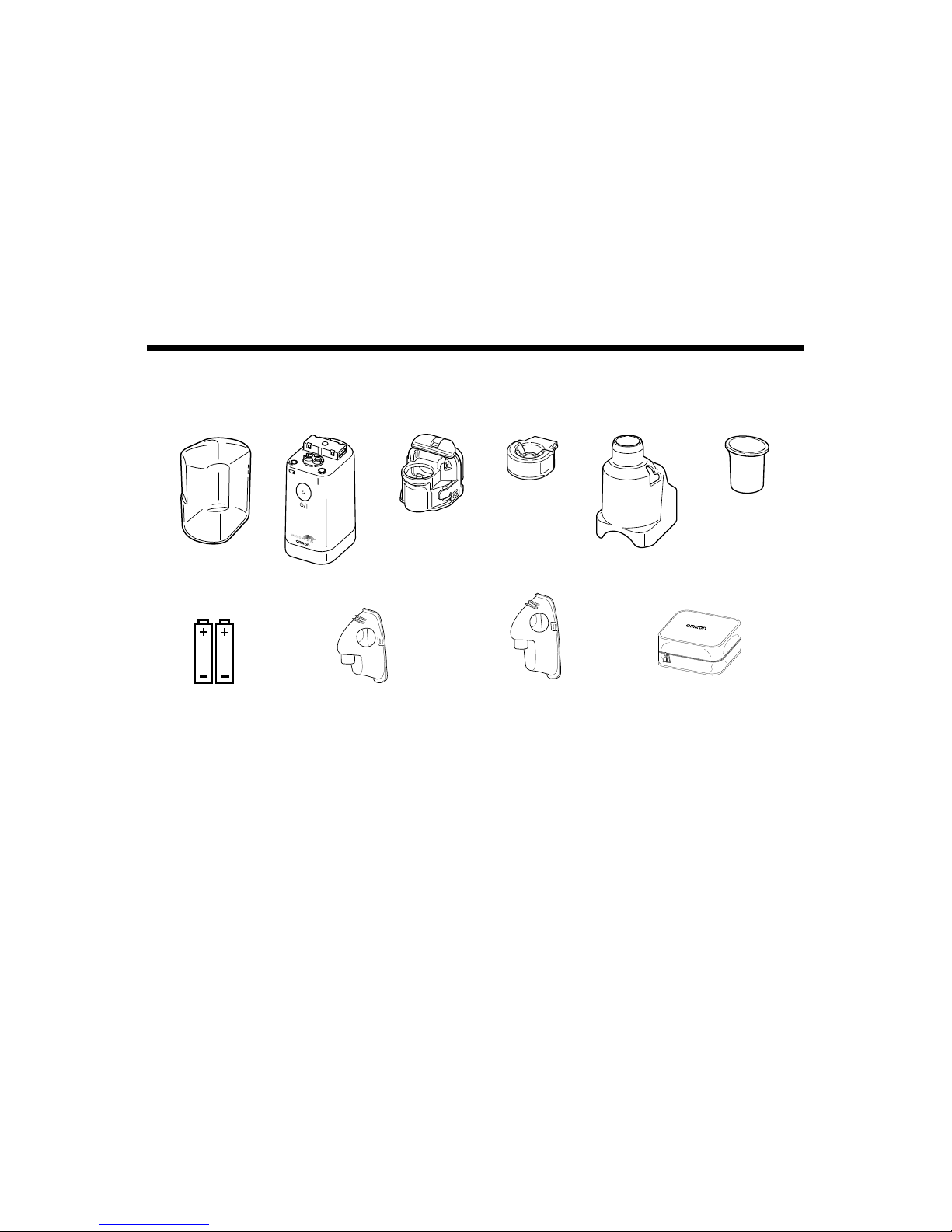

The following items are contained in the package:

Main Unit Cover Main Unit

Medication

Container MouthpieceMask Adapter

Mesh Cap

(with Mesh)

s )NSTRUCTION -ANUAL

s 7ARRANTY #ARD

Child Mask (PVC) Adult Mask (PVC) Soft Pouch

Batteries

X !!,2

#ONTENTS OF THE /-2/. -ICRO!)2 5 PACKAGE

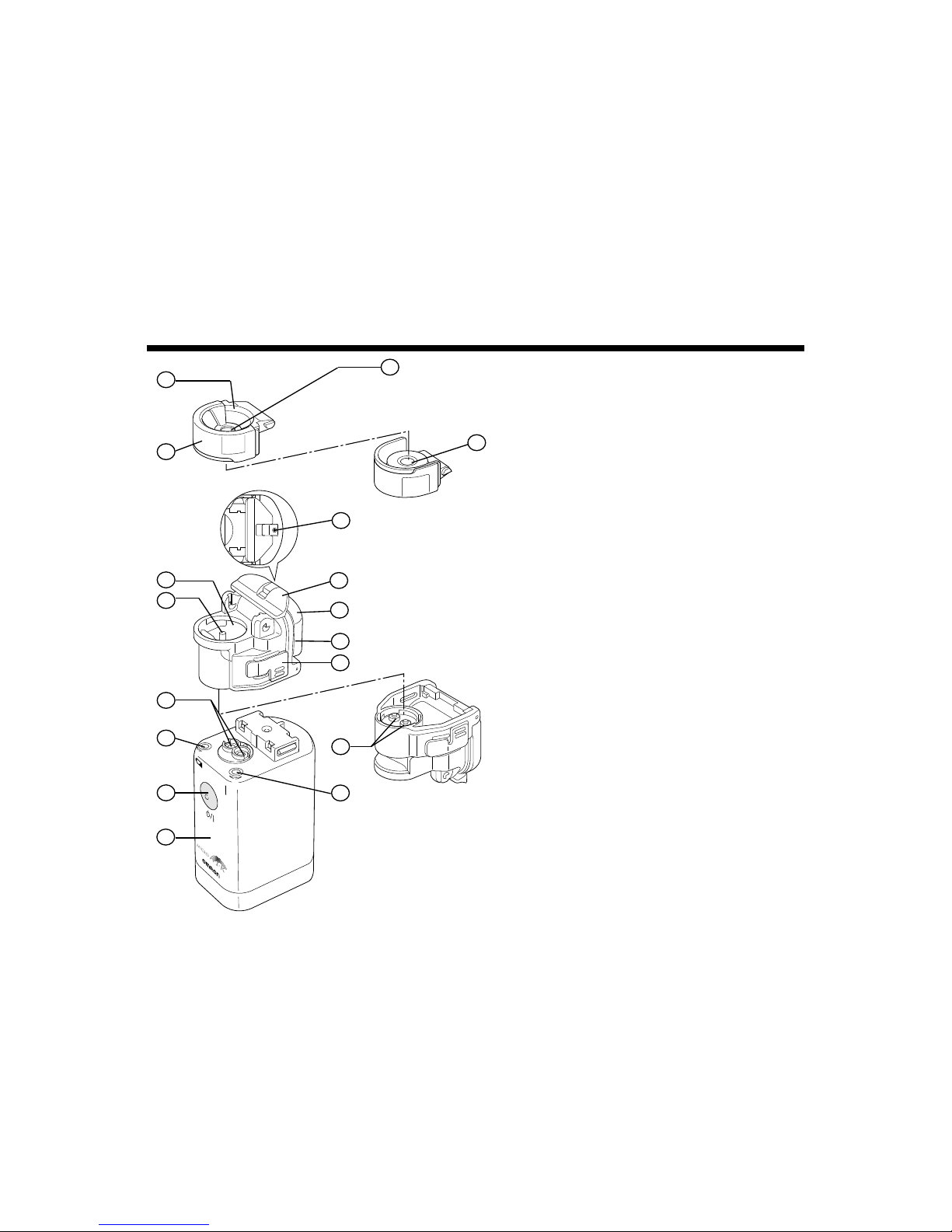

1. -ESH #AP

Contains metal alloy mesh for

nebulization.

2. .EBULIZATION PORT

.EBULIZED MEDICATION EXITS HERE

3. -ESH #AP #OVER

Protects the mesh.

4. -ESH

Efficient nebulization is realized through

the use of minute pores.

Do not touch this fragile part with your

fingers!

Do not attempt to clean with a cotton

swab or a pin!

5. !IR PORT

Stabilizes nebulization.

6. -EDICATION 0ORT

Medication can be filled here by opening

the mesh cap.

7. Vibrator

The tip of this vibrator oscillates at high

frequency and pushes the medication

through the pores of the mesh.

8. -EDICATION CONTAINER CAP LOCKING LEVER

Opens the medication container cap.

9. -EDICATION CONTAINER CAP

To be opened for cleaning the medication

container.

Figure viewed from the above

Mesh cap viewed from

the bottom

Viewed from the bottom

.AMES AND FUNCTIONS OF THE PARTS

10. #ONTAINER

#ONTAINS THE MEDICATION  ML MAX

11. -EDICATION CONTAINER RELEASE BUTTON

Medication container can be removed when the

buttons on both sides are pushed.

12. %LECTRODES

Connects the main unit with the vibrator.

13. "ATTERY ,OW )NDICATOR

An orange light blinks when the batteries are low.

14. /./&& BUTTON

15. %LECTRODES

Connects the vibrator with the main unit.

16. 0OWER INDICATOR

A green light turns on when the power is on.

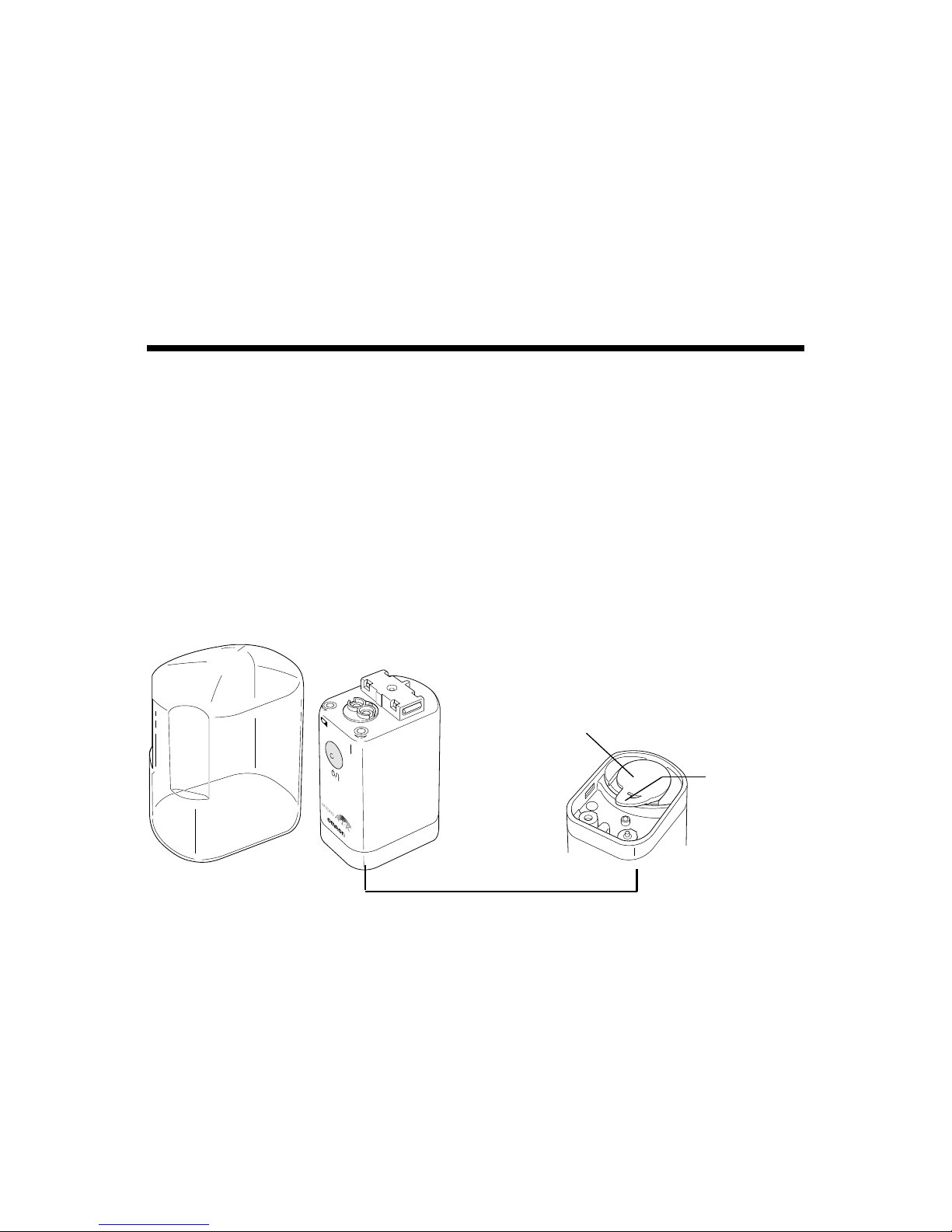

17. -AIN UNIT

Battery Cover

Viewed from the

bottom

Battery cover

removal lever

-AIN UNIT COVER

Protects the main unit.

.AMES AND FUNCTIONS OF THE PARTS

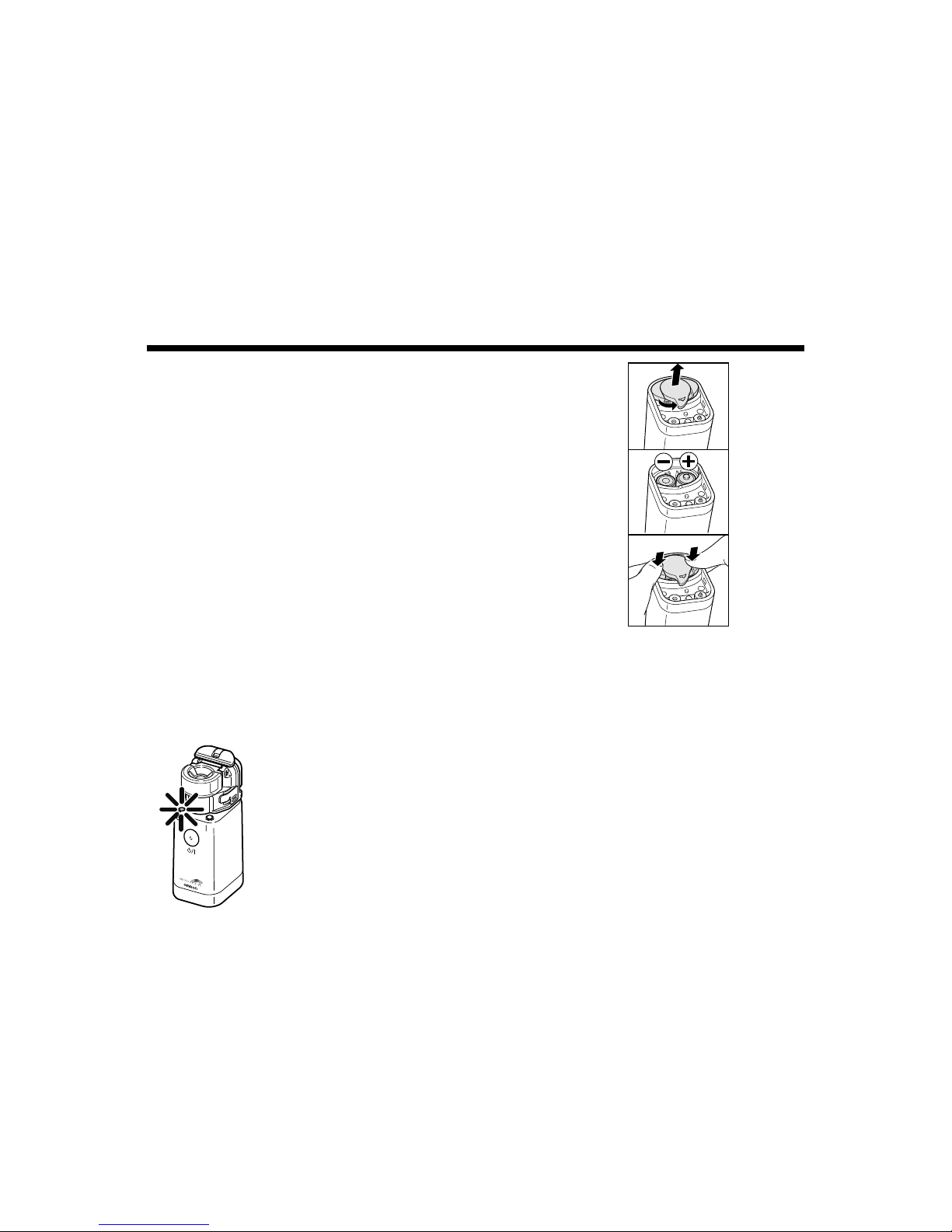

)NSERTING BATTERIES

1. Remove the battery cover by slightly rotating the disengaging

lever in the direction of the arrow (1).

2. Insert the batteries according to the battery polarity indicated

inside the battery compartment.

3. Replace battery cover by aligning tabs and, with your thumbs,

push into place until it clicks.

"ATTERY LIFE AND BATTERY REPLACEMENT

The unit can operate with alkaline batteries or with nickel-metal-hydride (NiMH) rechargeable batteries.

Depending on the capacity and condition of the batteries, the unit can operate up to 8 days on a set of

batteries based on usage of 30 minutes a day.

s 7HEN THE BATTERY LOW INDICATOR ORANGE mASHES THE BATTERIES SHOULD BE

replaced. Replace BOTH batteries with new ones.

s 2EMOVE BATTERIES IF THE UNIT IS NOT IN USE FOR LONG PERIODS &AILURE TO DO

so could result in damage due to battery leakage.

s "ATTERIES SHOULD BE TREATED AS CHEMICAL WASTE DISPOSAL SHOULD BE DONE

at your retail store or at appropriate collection locations.

Notes:

(OW TO INSERT OR REPLACE THE BATTERIES

When using the unit for the ﬁrst time or after not using it for a long period of time, clean and

disinfect the medication container, mesh, mask adapter, mouthpiece and mask. Refer to page 15 for

instructions.

1. Insert batteries, see page 9.

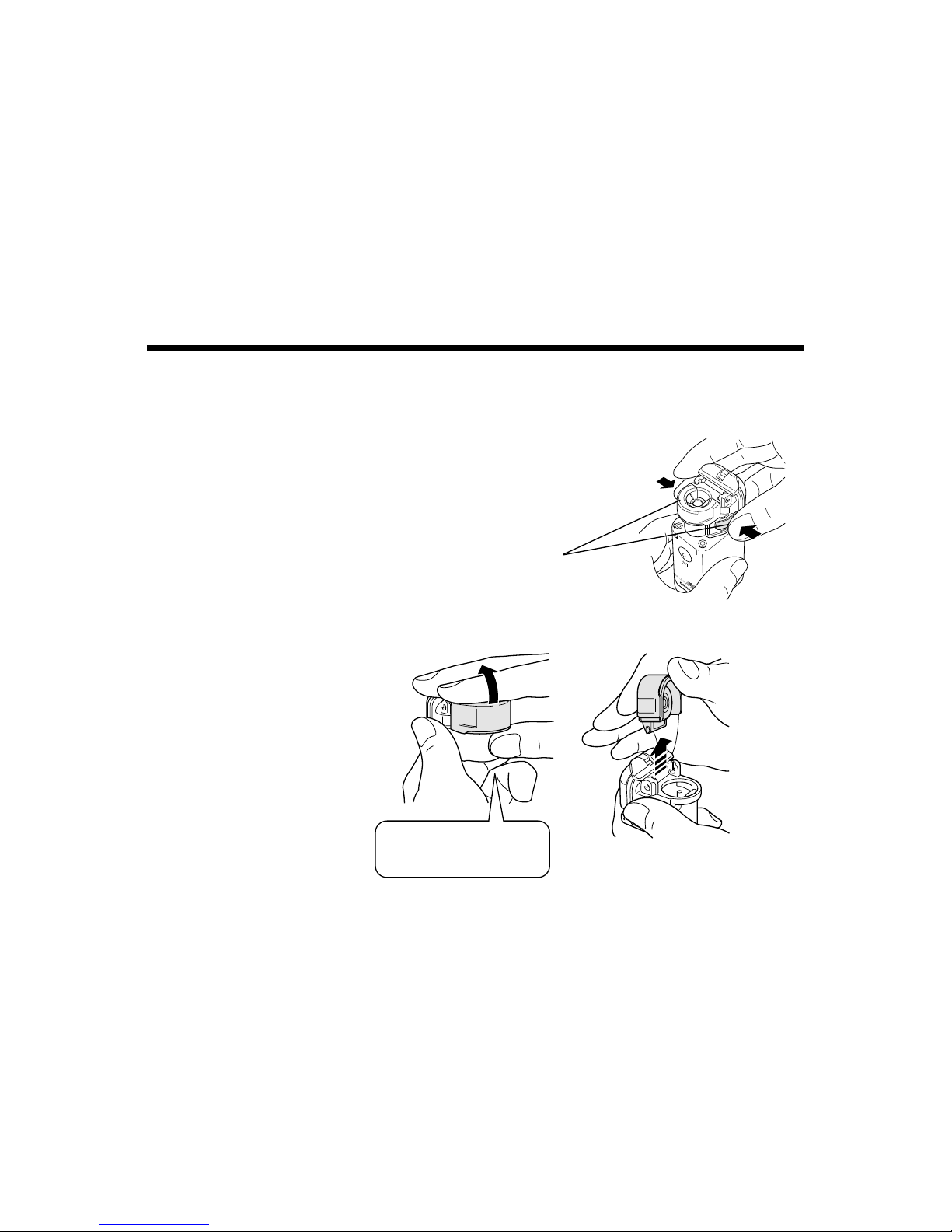

2. Remove the medication container from the main unit.

To do so, push on the release buttons on both sides.

This will disengage the latch mechanism.

Lift up the Mesh Cap

by placing your thumb

under the rim.

3. Remove the mesh cap by

placing your thumb under the

rim, gently pushing up, tilt the

cap back until perpendicular

and lift straight up.

Hold the medication bottle as

illustrated.

Do not touch the mesh!

(OW TO ASSEMBLE THE UNIT AND lLL THE MEDICATION CONTAINER

Medication container

release Buttons
