25VT6A5VGEVB Evaluation

Board User'sManual

Description

The 25VT6A5VGEVB evaluation board is designed such

that it can accommodate a 1x1 to a 2x2 combination of

MOSFETs, for m8−FL and SO8−FL packages. Depending

on the type of application and necessity, any combination of

the above packages can be used. The 25VT6A5VGEVB

evaluation board is designed to operate with an input voltage

ranging from 8 V to 16 V, and to provide an output voltage

of 0.8 V to 1.8 V for load currents of up to 25 A. The

25VT6A5VGEVB comes with a 5 V driver. The

25VT6A5VGEVB evaluation board has a number of test

points that can be used to evaluate its performance in any

given application.

Features

•8 V to 16 V Input Voltage

•25 A of Steady State Load Current

•500 kHz Switching Frequency

•Access to IC Features such as Enable, Switching Node

and VID Settings for Output Voltage

•Convenient Test Points for Simple, Non−invasive

Measurements of Converter Performance Including

Input Ripple, Output Ripple, High Side and Low Side

Gate Signals and Switching Node

Applications

•Synchronous Buck Converters

♦High Frequency Applications

♦High Current Applications

♦Low Duty Cycle Applications

•Multi−phase Synchronous Buck Converters

♦Evaluation Board has only One Phase Implemented

Figure 1. 25VT6A5VGEVB Evaluation Board

http://onsemi.com

EVAL BOARD USER’S MANUAL

25VT6A5VGEVB

http://onsemi.com

EVALUATION BOARD SCHEMATIC

Figure 2. Schematic of the 25VT6A5VGEVB Evaluation Board

25VT6A5VGEVB

http://onsemi.com

ELECTRICAL SPECIFICATIONS

Table 1. ELECTRICAL SPECIFICATIONS FOR 25VT6A5VGEVB

Parameter Notes and Conditions Min Typ Max Units

Input Characteristics

Vin Input Voltage −8 12 16 V

Vdrvr Driver Voltage −4.5 5 6.5 V

VCC Controller Voltage −0 5 7 V

Iin Input Current Vin = 12 V; Iout = 25 A 0−3 A

No load input current Vin = 12 V; Iout = 0 A; Vdrvr = 5 V 09−mA

Output Characteristics

Vout *Output Voltage Vin = 12 V; Iout = 25 A 0.8 1.2 1.8 V

Vp−pMaximum Switch Node

Voltage

Vin = 12 V; Iout = 20 A; Vdrvr = 5 V −16 −V

Iout Output Current Vin = 8 V to 16 V 0−25 A

System Characteristics

FSW Switching Frequency Note 1 −500−kHz

hPeak Peak Efficiency Vin = 12 V; Vout = 1.2 V; Vdrvr = 5 V −91 −%

hFull load efficiency Vin = 12 V; Vout = 1.2 V; Vdrvr = 5 V; Iout = 25 A −87 −%

*The output voltage can be adjusted by changing the VID settings. See Appendix.

1. The switching frequency is defined by the resistors R13 and R14 and can only be changed only by changing the resistors R13 and R14.

CONNECTORS AND TEST POINTS DESCRIPTIONS

Input Power

Connect the input voltage positive probe to Pin 1 of J1 and

sense probe at J9, negative probe to the GND at Pin 2 of J1

and sense probe at J10. The input voltage can range from 8 V

to 16 V.

Output Power

Connect the output voltage positive probe to J13 (large

screw connector) and sense probe at J11, ground probe at J14

(large screw connector) and the sense probe to J12. The

output voltage is set by the VID settings (SW2) and the

potentiometer (R60). Please refer to Start-Up Procedure and

Appendix.

Controller Biasing

Connect the positive probe to Pin 2 of J5 and the negative

probe to the GND at Pin 1 of J5. Please keep this as a separate

supply to avoid damage to the controller, especially when

other drive voltages are used.

Driver Biasing

The driver positive voltage probe VCC should be

connected to both pin 1 and 2 of J6. The driver voltage is

defined in Table 1. The 25VT6A5VGEVB evaluation board

is set up to accept DFN8 footprints of ON Semiconductor

5 V drivers.

Switching Frequency

The converter switching frequency is set by the voltage

divider setup of R13 and R14 between the pins 10 (ROSC)

and 33 (AGND) of the NCP5386 controller. In order to

change the frequency, these resistors have to be changed.

Changing the frequency also changes the Ilim (Over Current

shutdown threshold) settings.

Table 2. R13, R14 1% RESISTOR VALUES FOR

FREQUENCY SET

Frequency (kHz) R13 (kW)R14 (kW)

300 26.7 7.32

400 19.1 5.23

500 14.7 4.02

600 12.1 3.24

700 10.0 2.74

25VT6A5VGEVB

http://onsemi.com

Test Points Description

Monitoring the Input Voltage

The input voltage can be monitored by using the test

points at J9 and J10 on the 25VT6A5VGEVB evaluation

board. This allows the user to find out the exact value of

input voltage since there will be no losses from the cables or

connectors.

Monitoring the Output Voltage

The 25VT6A5VGEVB evaluation board provides two

test points for measuring the output voltage without any

losses from the cables or connectors. The output voltage can

be measured at the points J11 and J12 on the evaluation

board.

Monitoring the Switch Node Waveforms

The 25VT6A5VGEVB evaluation board provides the

opportunity to monitor the switch node waveforms. The

probe socket at test point JS8 provides the switch node

waveforms.

Monitoring the High Side and Low Side Waveforms

The high side waveforms can be obtained from the probe

socket at test point JS6 and the low side waveforms can be

obtained from the probe socket at test point JS10.

The probe sockets that are provided on the evaluation

board for monitoring the waveforms are such that the

oscilloscope probes can be inserted into the probe socket and

are held in place. The Test Point and the Probe Socket are

shown in Figure 3.

Monitoring the PWM Signal

The PWM signal from the controller to the driver can be

monitored from the probe socket provided at JS11.

Figure 3. Tektronix Test Point & Probe Socket

Part #: 700503100

TEST EQUIPMENT REQUIRED

Voltage Sources

(i) DC Supply Source for Input Voltage

The input voltage source should be a 0 to 20 V DC source.

The input voltage may be increased further depending on the

parts that are being used on the 25VT6A5VGEVB

evaluation board such that the part can withstand the applied

voltage. Hence, based on the required input voltage to be

applied, the requirement of the DC power supply varies.

(ii) DC Supply Source for Driver Voltage

The supply source for the driver should be a 0 to 10 V

source. The driver voltage should never exceed 6.5 V.

Electronic Load

The electronic load supplied to the 25VT6A5VGEVB

evaluation board ranges from 0 A to 25 A. Hence a DC

current source of 0 A to 30 A is needed for the evaluation

board.

Meters to Measure Voltages and Currents

In the 25VT6A5VGEVB Evaluation Board, the voltages

that are to be measured are Vin, Vout and Vdrv. The set up for

measuring these voltages are shown in Figure 4. The

connecting wires from the output terminal to the electronic

load should be thicker in order to avoid losses and to

measure the exact voltage at the end of the terminals.

Oscilloscope

The oscilloscope is used to monitor the gate and switch

node waveforms. This should be an analog or digital

oscilloscope set for DC coupled measurement with 50 MHz

bandwidth. The resolution can be set at 5 V/division

vertically and 20ns/division horizontally. The oscilloscope

channels can be connected at various test points such as high

side gate (JS6), low side gate (JS10), switch node (JS8), the

driver PWM Signal (JS11), Vin (sense) (J9 & J10) and Vout

(sense) (J11 & J12).

25VT6A5VGEVB

http://onsemi.com

TEST SET UP AND PROCEDURE

Test Setup

The test set up, test points and components present on the

25VT6A5VGEVB Evaluation Board are shown in Figure 4.

The MOSFET parts placed on the evaluation board are the Q1

and Q4 (Refer to Figure 1).

Figure 4. Schematic of the Test Setup

Start up and Shut down Procedures

Before starting the test, the oscilloscope probes should be

connected. IR or k−type thermo−couples can be used to

monitor the temperature of the parts. IR monitoring requires

the removal of the oscilloscope probes due to the IR beam

interference.

Start up Procedure (VOUT 0.8 V −1.56 V):

1. Initially set all the power supplies to 0 V.

2. Set the output voltage to the desired value by

changing the VID settings on SW2 (see

Appendix). The SW2 must be changed while the

driver and controller are off.

3. Set the driver voltage and controller voltage to 5 V.

4. Set the input voltage to the desired value

(8 V – 16 V).

5. VOUT Adjustments: the output voltage may be

fine−tuned at this time, by adjusting the R60

potentiometer.

6. Set the load current to required value. The load

current must be incremented slowly to prevent the

controller from shutting down due to transient

spikes on the inductor current sense lines (CS1,

CS2 in Figure 2). If the controller shuts down,

there are two different methods that can be used to

reset the controller. The first method is to toggle

Pin 8 (EN) of the Grayhill switch (SW2) to 0

(down position) and then back to 1 (up position).

The second method is to set VIN to 0 V and then

back up to the desired voltage, then turned on and

Vin re−established.

Start up Procedure (VOUT 1.56 V −1.8 V):

1. Initially set all the power supplies to 0 V.

2. Set the output voltage to 1.56 V by changing the

VID settings on SW2 (see Appendix). The SW2

must be changed while the driver and controller

are off.

3. Set the driver voltage and controller voltage to 5 V.

4. Set the input voltage to the desired value

(8 V – 16 V).

5. Adjust the output voltage using the R60

potentiometer until the desired output voltage is

reached (1.8 V maximum).

6. Set the load current to required value. The load

current must be incremented slowly to prevent the

controller from shutting down due to transient

spikes on the inductor current sense lines (CS1,

CS2 in Figure 2). If the controller shuts down,

there are two different methods that can be used to

25VT6A5VGEVB

http://onsemi.com

reset the controller. The first method is to toggle

Pin 8 (EN) of the Grayhill switch (SW2) to 0

(down position) and then back to 1 (up position).

The second method is to set VIN to 0 V and then

back up to the desired voltage, then turned on and

Vin re−established.

Shut down Procedure (VOUT 0.8 V −1.56 V):

1. Shut down the load.

2. Reduce the input voltage to zero and then shut

down the input power supply.

3. Reduce the driver voltage and controller voltage to

zero. Then shut down the driver power supply and

controller power supply.

Shut down Procedure (VOUT 1.56 V −1.8 V):

1. Shut down the load.

2. Adjust the potentiometer until the output voltage

measures 1.56 V.

3. Reduce the input voltage to zero and then shut

down the input power supply.

4. Reduce the driver voltage and controller voltage to

zero. Then shut down the driver power supply and

controller power supply.

Test Procedure

1. Before making any connections, make sure to set

all power supplies to 0 V, and make sure the load

current is 0 A.

2. Connect the oscilloscope probes at the desired test

points.

3. Connect the voltmeters/multi−meters to monitor

the required parameters. (Refer to Figure 4).

4. Set the output voltage to 1.2 V and the input

voltage to 12 V, following the Start−Up Procedure

specified in the previous section.

5. Obtain the required data and waveforms.

6. Follow the Shut−Down Procedure specified in the

previous section.

25VT6A5VGEVB

http://onsemi.com

TEST RESULTS

The following test results were obtained for the 25VT6A5VGEVB evaluation board by following the Test Procedure listed

above. The selected MOSFETs were evaluated in a 1 x 1 combination.

Figure 5. Efficiency of NTTFS4H07N x NTMFS4H02NF for VIN = 12 V, VOUT = 1.2 V, VDRV = 5 V, FSW = 500 kHz

Figure 6. Switch Node and Gate Waveforms of NTTFS4H07N x NTMFS4H02NF taken at IOUT = 20 A

25VT6A5VGEVB

http://onsemi.com

APPENDIX

Table of AMD VID Settings for NCP5386B Controller

The Grayhill 76PSB08ST 8 position switch used for

setting the output voltage of the synchronous buck

converter. Figure 7 below shows the pin assignment of the

switch. VID0 – VID5 set the output voltage. DAC, and EN

is the enable pin of the controller (controller reset). EN must

always be in the up position (1) unless a reset is performed.

To set the output voltage to 1.2 V, for example: VID0 = 0

(down), VID1, VID2, VID3 = 1 (up), VID4 = 0 (down), and

VID5, DAC, EN = 1 (up). Figure 7. Grayhill Switch Pin Labeling

Table 3. VID CONTROL SETTINGS FOR OUTPUT VOLTAGE

PIN 1 PIN 2 PIN 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN 8

VOUT (V) Tolerance

VID0 VID1 VID2 VID3 VID4 VID5 DAC EN

0 0 0 0 0 1 1 1 1.5625 ±0.5%

1 0 0 0 0 1 1 1 1.5375 ±0.5%

0 1 0 0 0 1 1 1 1.5125 ±0.5%

1 1 0 0 0 1 1 1 1.4875 ±0.5%

0 0 1 0 0 1 1 1 1.4925 ±0.5%

1 0 1 0 0 1 1 1 1.4400 ±0.5%

0 1 1 0 0 1 1 1 1.4125 ±0.5%

1 1 1 0 0 1 1 1 1.3875 ±0.5%

0 0 0 1 0 1 1 1 1.3625 ±0.5%

1 0 0 1 0 1 1 1 1.3375 ±0.5%

0 1 0 1 0 1 1 1 1.3125 ±0.5%

1 1 0 1 0 1 1 1 1.2875 ±0.5%

0 0 1 1 0 1 1 1 1.265 ±0.5%

1 0 1 1 0 1 1 1 1.2400 ±0.5%

0 1 1 1 0 1 1 1 1.2125 ±0.5%

1 1 1 1 0 1 1 1 1.1900 ±0.5%

0 0 0 0 1 1 1 1 1.1625 ±0.5%

1 0 0 0 1 1 1 1 1.1375 ±0.5%

0 1 0 0 1 1 1 1 1.1125 ±0.5%

1 1 0 0 1 1 1 1 1.0900 ±0.5%

0 0 1 0 1 1 1 1 1.0650 ±0.5%

1 0 1 0 1 1 1 1 1.0400 ±0.5%

0 1 1 0 1 1 1 1 1.0125 ±0.5%

1 1 1 0 1 1 1 1 0.9875 ±0.5%

0 0 0 1 1 1 1 1 0.9625 ±0.5%

1 0 0 1 1 1 1 1 0.9375 ±0.5%

0 1 0 1 1 1 1 1 0.9125 ±0.5%

1 1 0 1 1 1 1 1 0.8900 ±0.5%

0 0 1 1 1 1 1 1 0.8650 ±0.5%

1 0 1 1 1 1 1 1 0.8400 ±0.5%

0 1 1 1 1 1 1 1 0.8125 ±0.5%

1 1 1 1 1 1 1 1 Shutdown

25VT6A5VGEVB

http://onsemi.com

Pin Diagram of NCP5386B Controller

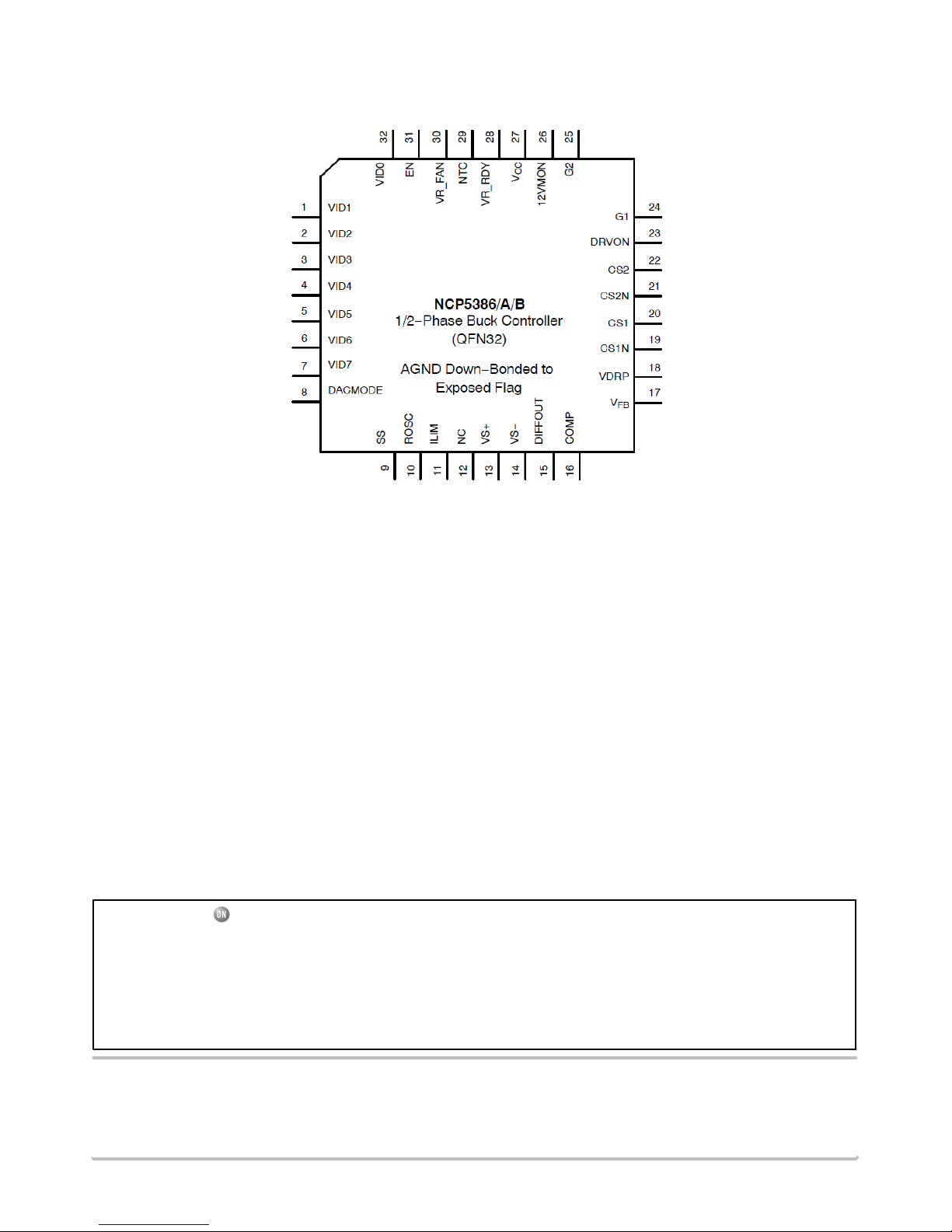

Figure 8. Top View of the Pin Diagram of NCP5386B

Switching Frequency of the Oscillator

The switching frequency of the oscillator can only be

changed by changing the resistors R13 and R14.

For more information on NCP5386B: see Data Sheet of

NCP5386B.

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,

copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC

reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any

particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without

limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications

and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC

does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for

surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where

personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and

its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,

any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture

of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5817−1050

EVBUM2227/D

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor

P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada

Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada

Email: [email protected]

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your local

Sales Representative

Inhaltsverzeichnis

Andere ON Semiconductor Hauptplatine Handbücher

ON Semiconductor

ON Semiconductor MT9V113PACSTCH-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor MT9V126 Bedienungsanleitung

ON Semiconductor

ON Semiconductor AR0835HS Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCP571 0V9 DFN6 LDO Referenzhandbuch

ON Semiconductor

ON Semiconductor CAT4201AGEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor Ezairo 7111 Bedienungsanleitung

ON Semiconductor

ON Semiconductor A5191HRTNGEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor MT9M114 Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCV890201GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCS36000GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor MT9M114EBLSTCZH-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor AGB2N0CS-GEVK Bedienungsanleitung

ON Semiconductor

ON Semiconductor NB7V33MMNG Bedienungsanleitung

ON Semiconductor

ON Semiconductor AR1820HSSC31SMEAH3-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor MT9M024IA3XTRH-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor AR0140CS2C00SUEAH3-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor AR0134CSSC00SUEAH3-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCV7381B FlexRay Series Bedienungsanleitung

ON Semiconductor

ON Semiconductor AR0220AT-iBGA87-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCV97310MW33GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor NCP6925EVK Bedienungsanleitung

ON Semiconductor

ON Semiconductor ASX340AT Bedienungsanleitung

ON Semiconductor

ON Semiconductor MT9M031I12STCH-GEVB Bedienungsanleitung

ON Semiconductor

ON Semiconductor FUSB251 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
