onga PCF60 Bedienungsanleitung
8 1
L300109A
IMPORTANT
Please attach your sales invoice/docket here as proof of purchase should
warranty service be required.
Please do not return Warranty - Retain for your records.
Purchased From
Purchase Date Serial No Model No
Pantera
Cartridge
Filters
Should the installer or owner be unfamiliar with
the correct installation or operation of this type
of equipment you should contact
the distributor/manufacturer for the
correct advice before proceeding with the
installation or operation of the product.
Owner’s Manual
2 7
Pentair Water Product Warranty (Continued)
5) Hydrostatic relief valve supplied separately or incorporated in products are sold with the
express understanding that such products offer limited hydrostatic relief and no representa-
tion is made or implied as to the suitability of such products for a specific application as
their condition at the time of sale are unknown and beyond Pentair Water’s control. It is the
responsibility of the installer to ensure that the performance of the valve meets the required
application.
6) Swimming pools or spa equipment will not be warranted where the Langelier Saturation
Index ‘pH’ range is outside 7.2 to 7.6 and they have not been regularly treated with chlorine or
bromine based sanitising systems, or other recognised sanitising systems.
Spare Parts:
Spare parts are usually stocked for a reasonable period of time following last production.
Pentair Water does not warrant that spare parts will be made available for the whole of the
reasonable period and reserves its right to cease supplying spare parts or providing facilities for
repair of spare parts in circumstances which are beyond its control including the requirement to
remove spare parts from sale as a consequence of changes in the law or otherwise as it deems fit.
How to get service: In Australia please contact your local Clark Rubber Store 13 80 90
Claims under this warranty must give evidence of date of purchase, model and serial number of the
product and the claimants name, address and telephone number.
1) To obtain warranted service, you will be required to provide to either Pentair Water state office or recommended service agent:-
a) the product;
b) confirmation in writing specifying the nature of your claim;
c) proof providing date of original purchase;
d) full contact details including name and address;
e) the serial number of the product if any.
2) Authorised warranty will be free of charge for the first 12 month period from date of the first consumer purchase. After the initial 12
month period the product is to be forwarded by the customer freight paid to Pentair Water, infield service by an authorised Pentair
Water Service Agent will incur a travel, removal & reinstallation fee to adjudicate on warranty issues.
3) Warranty service work will be denied or suspended, on equipment not readily accessible to service personnel, that is products that are
behind barriers, tiled or bricked in, installed in roofs or second storey external walls including inaccessible power points.
4) Any service of any product which is found to be faulty due to abuse, misuse or improper installation will be charged to the owner at the
service agents current servicing
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION
CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Exclusion of damages:
PENTAIR WATER’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PROD-
UCT. PENTAIR WATER SHALL NOT BE LIABLE FOR:
1) DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVEN-
IENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS
OF GOODWILL, INTERFERENCE OF BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
2) ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3) ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effective law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Nothing in this warranty limits or restricts, or is intended to derogate from, any right or remedy which the pur-
chaser or ultimate user of the product may have pursuant to Australian state and/or Australian federal consumer
protection legislation, New Zealand Sale of Goods Act, Consumer Guarantees Act, Fair Trading Act or any other
relevant and applicable New Zealand legislation or authority and where necessary shall so be read and construed.
Relax - you’ve bought an Onga ...
Congratulations on your decision to purchase an Onga
product. Onga is one of the best known brands in its field,
with a proud local and International reputation.
Onga is a brand for reliability, value for money and technological
innovation.
You will find Onga product wherever people need to move water in
3 broad markets covering:
Technologically advanced solutions
for moving and treating water in the
Home, Garden, Pool and Spa.
Innovative Stock and Crop water
management solutions for Primary
Industries.
Water movement products for Build-
ing services, Emergency services and
Original Equipment manufacturers.
6 3
Pentair Water Product Warranty
Pentair Water warrants that, when this product is used for the purpose it was designed, is correctly housed and
vented against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of
the original purchase.
This warranty is limited to the cost of the product and does not cover third party costs including the
costs of electricians, plumbers, etc. unless authorised by Pentair Water.
TERMS AND CONDITIONS APPLICABLE INTERNATIONALLY
How long the warranty is effective Internationally
1) This Pentair Water product is warranted for 12 months for all parts from the date of the first
consumer purchase. Should any parts fail as a result of such defects within the specified period,
the part will be replaced free of charge. (This does not include travel charges, removal and
reinstallation charges.)
TERMS AND CONDITIONS APPLICABLE IN AUSTRALIA
1) YOU SHOULD CAREFULLY READ THE INSTRUCTIONS SUPPLIED PRIOR TO USING THIS PENTAIR
WATER PRODUCT.
This product is to be installed and operated in accordance with the instructions provided.
This warranty will not apply if it is used in a manner otherwise than in accordance with
the instructions.
What the warranty covers:
Pentair Water warrants its products to be free of defects in material and workmanship during
the warranty period. If a product proves to be defective in material or workmanship during the
warranty period, then Pentair Water will, at its sole option repair or replace the product with a like
product. Replacement product or parts may include re-manufactured or refurbished parts or components.
How long the warranty is effective:
1) This Pentair Water product is warranted for 12 months (60 months Tank Body) for all parts
from the date of the first consumer purchase.
2) Where this Pentair Water product is sold for commercial application as defined in the relevant
Trade Practices and Consumer Protection legislation the warranty shall be for a period of six
months from the date of purchase by the end user.
3) Ancillary equipment including but not limited to plastics and metal fittings, electrical
controls (including touch pads), bladders, pressure switches, filter cartridges, pressure
gauges, etc. shall be warranted for a period of twelve months only in relation to consumer
applications and six months in relation to commercial applications.
Who the warranty protects:
This warranty is valid only for the consumer purchaser.
What the warranty does not cover:
1) Damage, deterioration or malfunction resulting from:
a) accident, misuse, negligence, fire, water, lightning, or other acts of nature, unauthor-
ised product modification or failure to follow instructions supplied with the product;
b) repair or attempted repair by anyone not authorised by Pentair Water;
c) any damage to the product due to shipment;
d) removal or installation of the product;
e) causes external to the product such as electric power fluctuations or failure;
f) use of supplies or parts not meeting Pentair Water specifications;
g) normal wear and tear;
h) water ingression or exposure to abnormal corrosive conditions or run in dry conditions;
i) any other cause which does not relate to a product defect.
2) Damage caused to the product as a consequence of use of another manufacturer’s product
used in conjunction with Pentair Water and affiliate companies.
3) This warranty does not cover such products as combustion engines, mechanical seals or
other component parts of units not manufactured by Pentair Water, but where possible Pentair
Water will make available to purchaser the benefit of any warranty of that manufacturer.
4) This guarantee does not cover underwater light bulbs, underwater lights will only be warrant-
ed if wiring is to approved standards, and an approved transformer incorporating thermistors
has been used, running the light not submerged in water will void warranty.
The Pantera range of cartridge filters are ideal for domestic swimming pool
and spa applications. They offer a more effective filtration area taking up
less space when compared to sand or D.E. filters. The Pantera cartridge
filters have been designed to provide performance at a realistic cost.
IMPORTANT!
The operator must be provided with this owner’s manual. This must be
read before operation and followed during operation.
These instructions are a guide only. Users not familiar with pool
equipment should seek advice from suitably qualified persons with
experience in pool equipment installation.
Technical Data
Inlet
UPVC inlet to suit 40mm or 50mm PVC
pipe internal
Outlet
UPVC inlet to suit 40mm or 50mm PVC
pipe internal
Max. Working Pressure 280 kPa
Water Temperature Range 5 – 450C
Max Ambient Temperature 550C
Optimal pH Range 7.2 - 7.6 (Guide Only)
Materials of Construction
Filter Housing
UV Resistant UPVC
Filter Lid
UV Resistant UPVC
O’Ring Nitrile
Clamp Powder Coated Marine grade Aluminium
Cartridge Material Dupont Remay
Cartridge moulded end caps Urethrae
Cartrige Core ABS
Pressure Guage 0-270 kPa Glycerine filled
Model Sq Foot Model Sq Foot
PCF60 60 PCF150 150
PCF75 75 PCF180 180
PCF100 100
45
All glued fittings and pipe work should be allowed to dry to atmos-
phere for 24 hours before closing installation. Failure to do so could
cause injury or installation failure.
INSTALLATION
FILTER INSTALLATION
1. Place filter on solid Horizontal surface. (Concrete slab recommend.)
NOTE: Allow sufficient height clearance for cartridge removal!
PCF60 = 330mm
PCF75 = 450mm
PCF100 = 650mm
PCF150 = 450mm
PCF180 = 450mm
2. Fit interconnecting plumbing between pump and filter.
Pump discharge should be plumbed up to the outlet marked ‘IN’
Outlet marked ‘OUT’ should return to Pool or Spa
3. Fit manual air bleed and pressure gauge to top of filter.
4. Fix filter base to foundation surface via holes on ring on base.
5. Blank off unused inlet and outlet connections using blanks provided
NOTE:
1. Ensure the filter clamp band is correctly fitted and firmly in place.
Failure to fit clamp correctly may result in filter lid lifting off in a violent move-
ment.
2. If you are not familiar with fitting of filter clamp band - do not attempt this
operation - consult your pool serviceman or ring your local pool store.

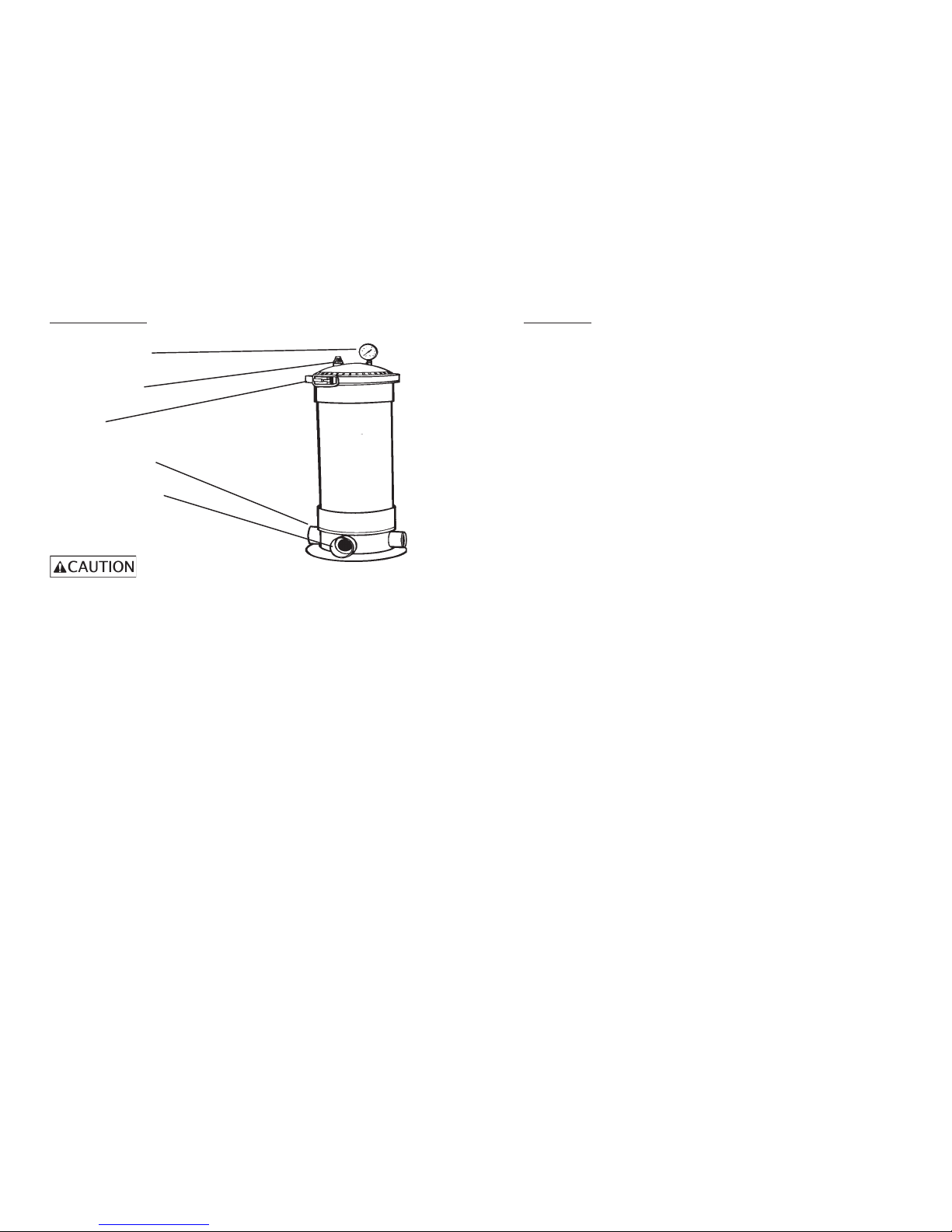

Pressure Guage
Air Relief Valve
Inlet Connection
Outlet Connection
Clamp
Operation
1. Ensure pool is filled with water - water level must be ¾ of the way up to skimmer
opening.
2. Open manual air bleed at filter, air will be expelled from the filter as it fills with water
from the pool. Close manual air bleed when water is released.
3. Switch on Pump - ensure water flows freely through system and back to pool.
4. Record the startup pressure - when a 70 kPa rise from start up pressure is detected
clean the cartridge.
5. To clean the cartridge refer service and maintenence
6. If the time period between filter cartridge "cleans" becomes progressively shorter
it maybe necessary to "soak" or clean the cartridge with a propriety cleaner.
7. If the cartridge element is mechanically damaged then correct filtration conditions
cannot be maintained - the cartridge element must be replaced. Periodic replacement
approximately every 24 months is recommended.
8. For Spa Pools, with hot water and higher bather loads, clean cartridge on regular
basis - minimum fortnightly.
Cartridge Maintenance
To Clean the cartridge.
A) Switch off the pump and isolate from mains power.
B) Shut off any valves to isolate the filter from the plumbing system.
C) Release the air relief valve to relieve any built up pressure in the filter
housing
D) Remove filter clamp ring - take care to note how to reassemble the
clamp ring correctly
E) Lift cartridge element out of housing and hose clean with a strong jet
from a garden hose.
- If the time period between filter cartridge ‘cleans’ becomes
progressively shorter it maybe necessary to ‘soak’ the
cartridge with a propriety cleaner.
F) Replace cartridge Element and refit lid and filter clamp ring.
G) Open any previously closed valves and follow start up filter procedure.
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere onga Wasserfiltersystem Handbücher
Beliebte Wasserfiltersystem Handbücher anderer Marken
Gaggenau
Gaggenau BRITA INTENZA 467873 Bedienungsanleitung
Brita
Brita SAFF-100 Bedienungsanleitung
HEISSNER
HEISSNER FPU24000-00 Bedienungsanleitung
BGS technic
BGS technic 1518 Bedienungsanleitung
Reverse Osmosis
Reverse Osmosis RF Series Bedienungsanleitung
ubbink
ubbink Filtramax Series Bedienungsanleitung
