Ontech GSM 9030 Bedienungsanleitung

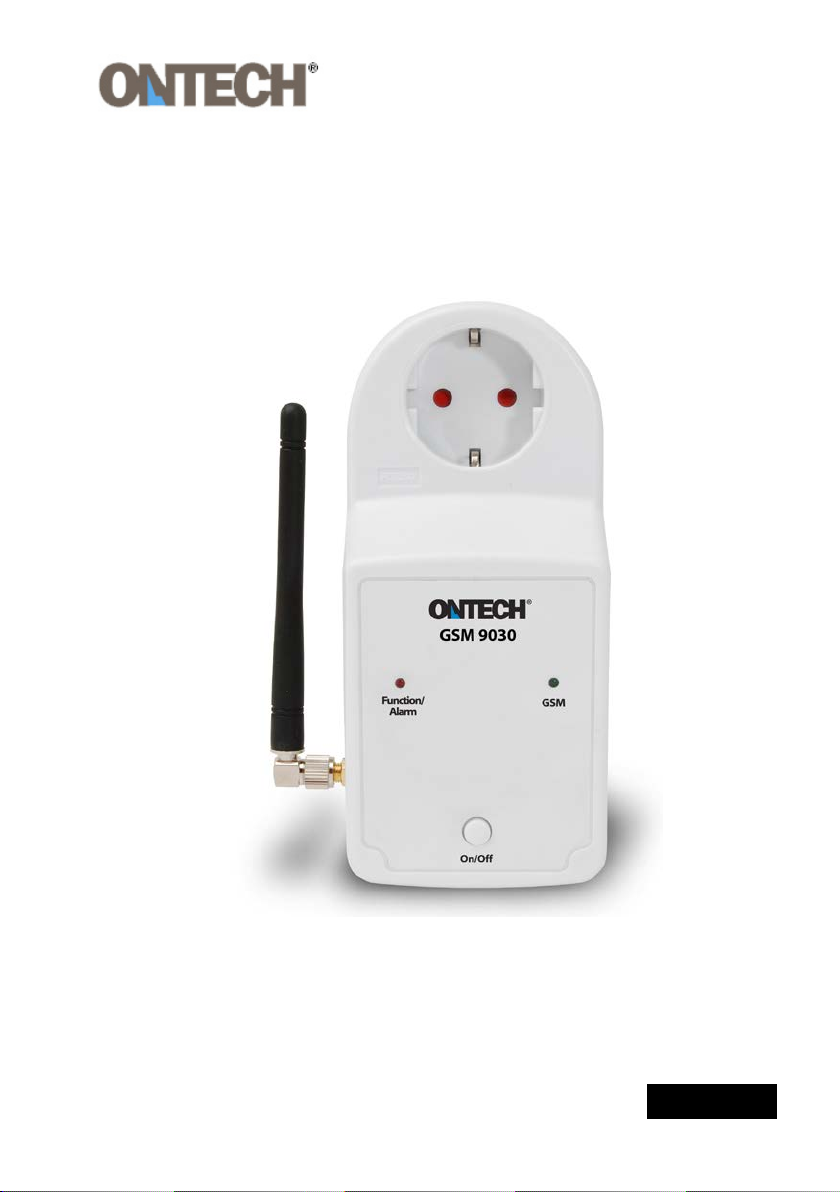

Ontech GSM 9030

Users Manual aENGLISHa

-2-

Welcome

Thank you for choosing Ontech GSM 9030

We hope that the product will satisfy your needs and that you will find this manual easy

to handle and that it guides you in an appropriate way.

If you want to learn more, please visit our web site at www.ondico.se, where you can

find more information.

Questions can be directed to [email protected]e.

SMS text will be shown with gray background and bold text, for example:

1234#1*0#

Also the buttons to be pressed when using a telephone in tone mode (not pulse) is

shown in this way.

Text in italic indicates a menu in your mobile phone, for example;

Contacts

Quotation mark shall never be written in the contacts, it is used in this manual only in

order to separate the commands from other text.

This version of the manual is valid for all units with software version 005 or later. To check

the version of your unit, please refer to “SMS showing the SIM-card settings” on page 31.

Ondico AB is not responsible for damages that may occur due to incorrect use or if the

product does not work as desired.

-3-

Content

Overview.................................................................................................................................. 5

Content in package ............................................................................................................... 6

Get started............................................................................................................................... 6

Necessary programming of the SIM card .....................................................................................................6

Optional programming of the SIM card ........................................................................................................7

Back side, cover removed .......................................................................................................................................8

Installation of the unit ...............................................................................................................................................9

Check the SIM card settings ..................................................................................................................................9

Testing the unit .............................................................................................................................................................9

Functions ...............................................................................................................................10

Remote relay ................................................................................................................................................................10

Control the relay manually ............................................................................................................................10

Control the relay with a telephone..........................................................................................................10

Control the relay with SMS............................................................................................................................11

The position of the relay after a power failure ..................................................................................11

Alarm.................................................................................................................................................................................11

Wired alarm.............................................................................................................................................................12

Wireless alarm detectors.................................................................................................................................13

Delayed activation of alarm detector .....................................................................................................14

Activation of relay when alarming – Alarmrelay..............................................................................14

Turn off/on the alarm function...................................................................................................................14

When the unit is alarming..............................................................................................................................15

Acknowledge an alarm....................................................................................................................................16

Temperatur ...................................................................................................................................................................17

Temperature sensors.........................................................................................................................................17

Temperature alarm.............................................................................................................................................17

Thermostat function..........................................................................................................................................19

Power supply ...............................................................................................................................................................21

Connecting power supply and charging .............................................................................................21

Decrease power consumption ...................................................................................................................21

Low battery...................................................................................................................................................................21

Short range radio – extra relays........................................................................................23

Reference...............................................................................................................................24

SMS from the unit.....................................................................................................................................................24

Alarm SMS / Status SMS ..................................................................................................................................24

SMS about power supply ...............................................................................................................................25

SMS showing the SIM card settings.........................................................................................................25

-4-

Commands....................................................................................................................................................................26

Push button..................................................................................................................................................................27

The lamps.......................................................................................................................................................................27

The DIP switch.............................................................................................................................................................28

Tip! ..........................................................................................................................................29

Troubble shooting...............................................................................................................31

Technical specifications......................................................................................................32

Declaration of conformity..................................................................................................33

-5-

Overview

Ontech GSM 9030 is a combined remote relay and an alarm caller and is communicating

over the GSM network. The cabinet is made for indoor use..

The unit is powered by plugging it into a main power wall socket..

Remotely controlled by telephone calls or SMS.

Alerts and temperature and power fail via SMS

Relay230V/16A. Has a timer function. Can be programmed to remember

position after a power failure.

Two alarm inputs for corded alarm detectors. Can be set to NO or NC. Can be

programmed to activate relay when alarms.

Internal temperature sensor reports temperature.

External temperature sensor with high accuracy is optional.

Alerts if the temperature falls below or rise above alarm temperature.

Thermostat function, temperature regulates the relay.

Can control extra relay units (Ontech 9010) via short range radio.

-6-

Content in package

•Ontech GSM 9030

•Antenna

•This manual

•Connection cable

Get started

In order to use the unit you must have a SIM card for a GSM mobile telephone and

access to a mobile phone. Cash card can be used.

The installation is made in three simple steps:

1. Programming the SIM card

2. Physical installation

3. Test of the unit and its functions

Necessary programming of the SIM card

1. Insert the SIM card in a GSM mobile phone

2. Deactivate the PINCODE function. See the user manual of the mobile phone.

3. Delete all old contacts from the SIM card if there are any

4. Choose Contacts in the mobile phones menu.

a. Create a new entry. Name it ”PINCODE”

b. In the field for telephone number, enter your personal four digit

number. This number is the PINCODE you must enter each time you

contact your Ontech GSM 9030.

5. Go to ”Optional programming of the SIM card” if you want special functions

6. Turn off the mobile phone and remove the SIM-card. Go to to ”Installation of

the unit” see page 9 Fel! Bokmärket är inte definierat.

Make sure that you save all information are on the SIM card and not only in the

memory of the GSM telephone. It can be necessary to open the contacts and copy

to the SIM card from the memory of the telephone. See the manual of the

telephone. Avoid to copy more contacts than necessary to the SIM card. No

quotation marks or slashes or similar shall be written, just the text.

-7-

Optional programming of the SIM card

In order to use some of the function you want it can be necessary to program more

contacts on the SIM card. See below:

NB! To be sure programming is made in a correct way, you can check by requesting an

SMS with SIM card settings. See page 25. Do this every time you have changed the SIM

card settings.

1. Create a send list for alarms (see page 11).

1) Create a new contact. Name it ”SMS0” (note that 0 is zero and not the

letter O).

2) Enter the mobile phone number for the receiver of the SMS. Save.

3) The following contacts in the send list are named SMS1, SMS2 etc,

and the mobile numbers are entered. All numbers from SMS0 to SMS9

can be used, in total 10 different numbers.

2. Set delay for activation of alarm detector (DELAY) (see page 14).

1) It is possible to set a delayed activation for an alarm detector. This is

for giving you time to deactivate the alarm before the unit is sending

an alarm.

2) Create a new contact. Name it ”DELAYX ”. X is the ID of the alarm

detector you want to delay (values of 1-8 are permitted).

i. Write the numbers of seconds you want to delay in the

telephone number field

Example: You want alarm detector with ID no 6 to b activated

with a delay of 45 seconds. In the name field of the contact,

write “DELAY6” and in the field for the telephone number

write “45”.

3. Activate the temperature alarm (TEMP) (see page 17).

1) Create a new contact and name it ”DEGREE”.

i. Write the alarm temperature in the telephone number field. If

the alarm temperature is below zero degrees Celsius, add

zero (“0”) before the temperature. For example; minus 7

degrees C is written as “07”.

2) Create a new contact and name it ”TEMP”.

i. In the telephone number field write ”1” if you want an alarm

if the temperature drops below the alarm temperature given

-8-

in “DEGREE” or write “2” if you want the alarm when the

temperature rises above the alarm temperature.

4. Set active temperature sensor (EXTTEMP) (see page 17).

1) If you have an external temp sensor (optional) and you want it to

control the temperature alarm and thermostat you have to activate it.;

Create a new contact and name it EXTTEMP.

i. In the telephone number field write ”1”.

5. Active the function “relay activates at alarms” (ALARMRELAY) (see page

14)

1) Create a new contact and name it “ALARMRELAY”.

i. In the telephone number field write ”1”

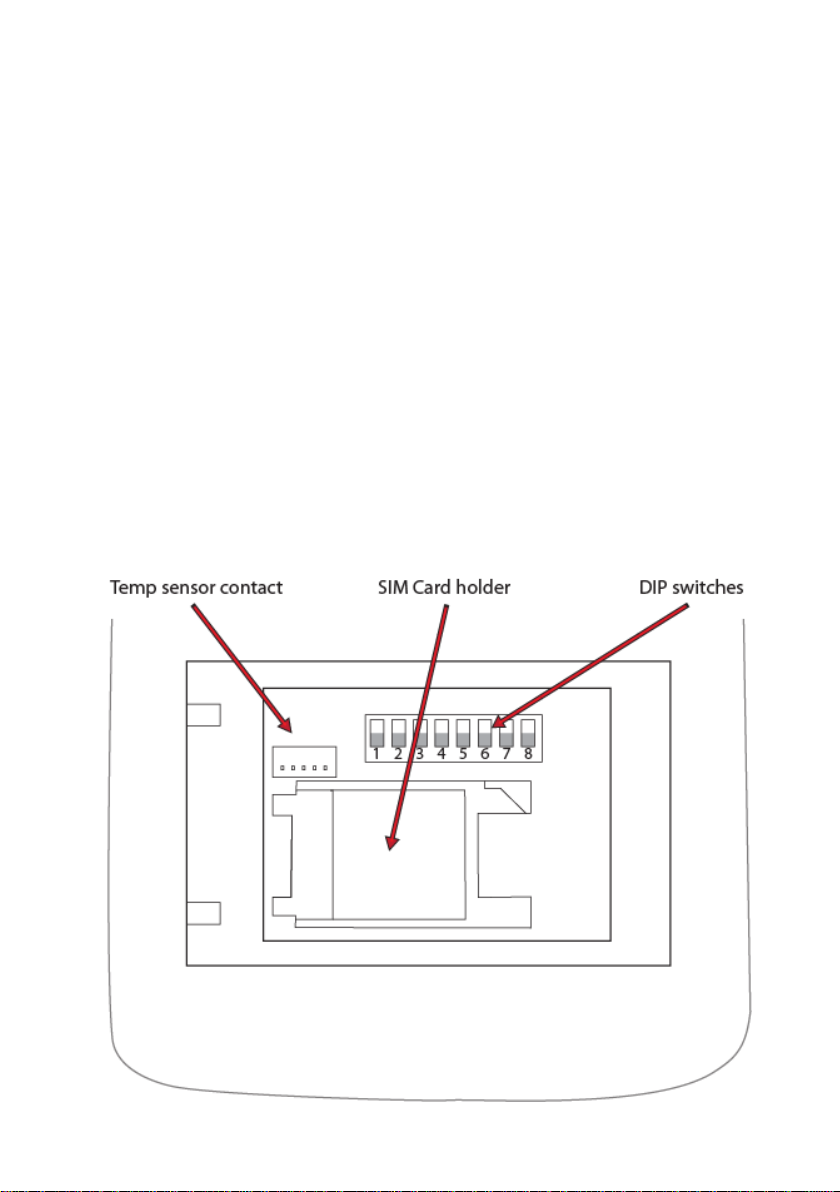

Back side, cover removed

-9-

Installation of the unit

1. Remove the cover door on the back of the unit . Use a small screwdriver..

2. Install the SIM card (see picture).

a. The upper part of the SIM card holder is moved to left until you hear a

click.

b. Fold up the upper part of the SIM card holder.

c. Place the SIM card in the upper part. The cut corner of the SIM card

shall be positioned in the upper right corner when the upper part of

the card holder is folded back.

d. Fold back the upper part.

e. Lock the upper part by moving it to the right until you hear a click..

3. If an external temperature sensor shall be used, , connect to Temp sensor

contact.

4. Replace the cover door.

5. Insert the unit in a power socket.

a. The green lamp starts flashing for about 45 seconds. This indicates

that the unit is searching an GSM network.

b. Finally the green lamp is lit. The unit is communicating with the GSM

network and the unit is ready for use.

c. If both the red and the green lamp is flashing, this indicates:

i. SIM-card is missing

ii. The PIN-code on the SIM-card is not deactivated.

Check the SIM card settings

It is recommended to control the SIM card setting after installation. See page 25.

Do as follows:

1. Send an SMS to the unit with a request of the SIM card setting. Write

ABCD#8*2# (where ABCD is the PINCODE you have programmed to the SIM

card.

2. The unit replies with an SMS with the settings.

Testing the unit

When you have installed the unit it is recommended to test the function. Call the unit or

send SMS to control the relay. Test the alarm inputs if used. Ask for status SMS to check

temperature.

-10-

Functions

Remote relay

With this function you can call the unit or send an SMS and activate or deactivate the

230V/16A relay.

Insert the unit in the wall power socket you wish. Put the power contact of the device

you want to operate in the power socket of the unit.

Control the relay manually

You can activate and deactivate the relay by pushing on the button on the front. When

the relay is activated the red lamp is lit.

Control the relay with a telephone

1. Call the unit. Be sure you use tone mode on the telephone.

2. The unit answers with a beep.

3. Press your PINCODE and then #.

Exemple: 1234#

If the PINCODE is correct the unit replies with a beep. If it is not correct the call

is disconnected. Call again and try.

4. Activate the relay by pressing the buttons as follows::

1*1#

The unit confirms with a beep. If there are two beeps, try again.

5. Deactivate the relay by pressing the buttons as follows:

0*1#

The unit confirms with a beep. If there are two beeps, try again.

6. Activate the relay with timer function

The relay can be set to be activated during a preset number of hours (1-99)

Press the buttons as follows:

1*1*T# (T= the number of hours you want the relay to be active).

The unit confirms with a beep. If there are two beeps, try again.

After you have made one operation you can directly continue with another operation

without calling up again. When you have completed all operations, then hang up.

Inhaltsverzeichnis

Andere Ontech Hausautomation Handbücher

Ontech

Ontech GSM 9040 Bedienungsanleitung

Beliebte Hausautomation Handbücher anderer Marken

Truth Hardware

Truth Hardware Sentry II Bedienungsanleitung

FIBARO

FIBARO FGWPA-111 Bedienungsanleitung

Hezborg

Hezborg BGR8016B Bedienungsanleitung

MYDLINK

MYDLINK Pro Series Bedienungsanleitung

Panasonic

Panasonic KX-HNA101FX Bedienungsanleitung

GamaBit

GamaBit Houseper Bedienungsanleitung

nedis

nedis WIFILRF10C37 Bedienungsanleitung

Veho

Veho TA45 Bedienungsanleitung

Nexa

Nexa ZPR-111 Bedienungsanleitung

Vimar

Vimar 00801 Bedienungsanleitung

Leviton

Leviton 47604-F6 Bedienungsanleitung

EVERSPRING

EVERSPRING AN180 Bedienungsanleitung

Coltech

Coltech 18-1339 Bedienungsanleitung

IDS

IDS NXT vegas Leitfaden

Vimar

Vimar 03975 Bedienungsanleitung

iNels

iNels RFIM-20B Bedienungsanleitung

EVA Logik

EVA Logik ZW30 Bedienungsanleitung

Leviton

Leviton ODCØP-S0W Bedienungsanleitung
