OPAX B230-BE Bedienungsanleitung
Installation Manual
B230-BE Wireless Base
PAX TECHNOLOGY LIMITED
1. Checklist
Congratulations on receiving your PAX Technology payment terminal. We do hope you enjoy it!
The box you have just opened should contain the following items:
• 1 x PAX B230-BE
2. Product Description

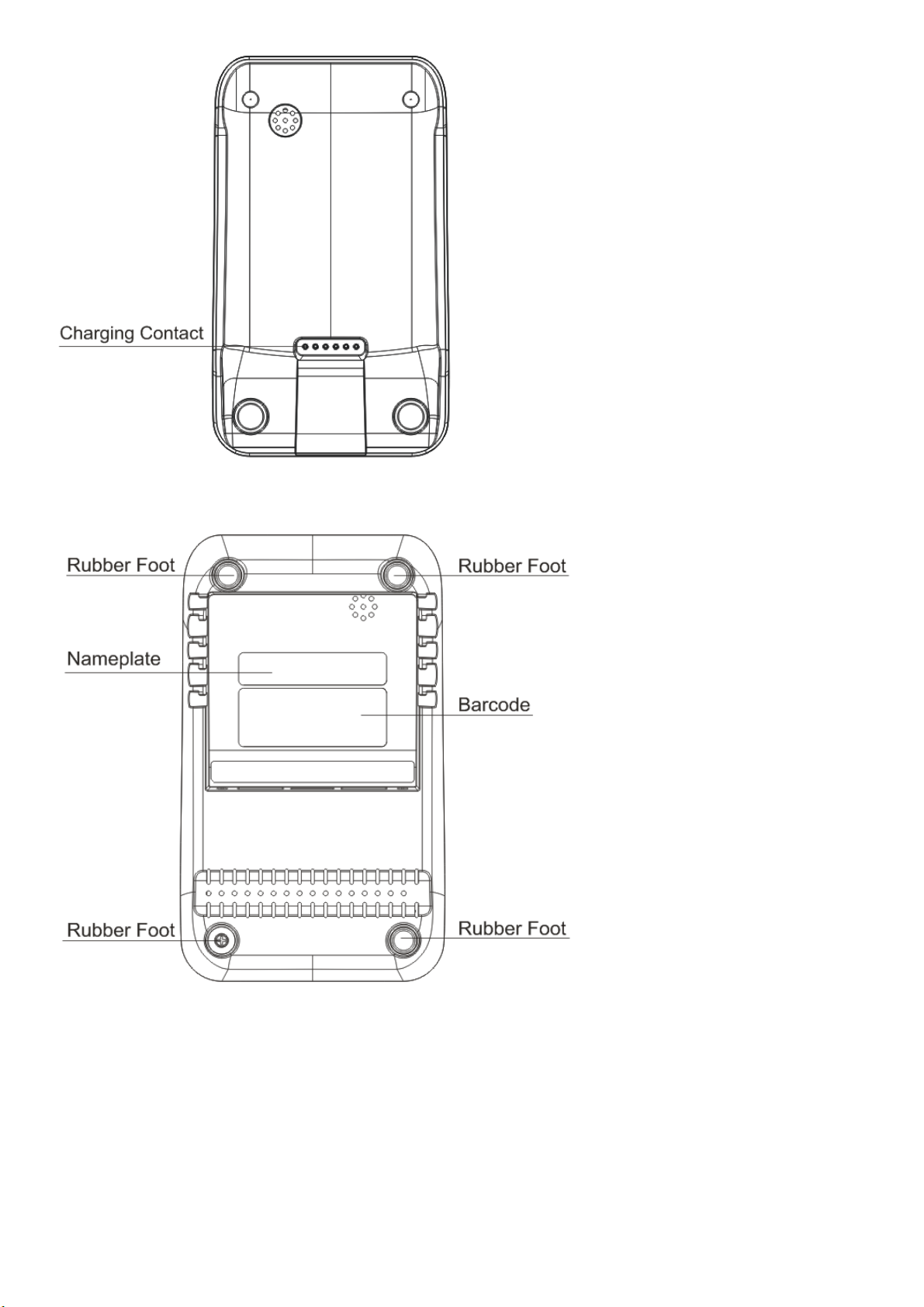

Front
Back
The matching diagram for D230 host and B230 Wireless Communication Base is as follows:
3. Installation
Use USB cable to connect the base's USB power port with the power adapter.
Put the machine into the base in the vertical direction and confirm that the charging
contactors are in full contact.
Note:
Please put the base on the open and ventilated table for use. When using the machine, do
not vibrate the base and D230 host violently, so as to avoid the charging interruption between
the host and the base.
4. Specifications
Power Supply：Type C port-5V@2A
Port Instruction:
1 Serial Port (RJ45, Default)
1 Ethernet (RJ45,100M )
1 Type-C port (Charge only)
1 Type C port (Device)
1 USB A port (HOST)
5. General Usage Tips
Do not damage electric wire and power adapter. If electric wire or power adapter is damaged,
please do not use the terminal any more.
Before power adapter is plugged into power socket, please make sure that voltage which the
power socket supplies is appropriate working voltage for the terminal.
Do not expose the terminal in sunshine, or in humid, hot, or dusty environment
Keep the terminal away from liquid material.
Do not plug any unknown material into any port of the terminal, since it may create serious
damage to the terminal.
If the terminal is defective, please contact professional POS repair technicians.
Do not assemble the terminal in explosion hazardous area.
6. Environmental Parameters
Working Environment：Temperature:0℃～5℃(32 ℉～113℉) (non-charging)
Storage Environment：Temperature:-20℃～70℃(-4℉～158℉) (non-charging)
Humidity：5%～95% (non-condensing)
7. Icons
Dispose in a professional recycling manner
Class II equipment
For indoor use only
Energy efficiency marking
AC voltage
DC voltage
PAX Technology Limited
Manufacturer: PAX Computer Technology (Shenzhen) Co. Ltd.
Address: 4/F, No.3 Building, Software Park, Second Central Science-Tech Road,High-Tech
Industrial Park, Shenzhen, Guangdong, China.
Tel: +86 755 86169630
Website: www.pax.com.cn
