OpenVox VS-GW2120-28W Bedienungsanleitung

3G UMTS Us er Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

3G Gateway User Manual

Address:10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District,

Shenzhen, Guangdong,China 518109

Tel: +86-755-82535461, 82535095, 82535362

Fax: +86-755-83823074

Business Contact: sales@openvox.cn

Technical Support: support@openvox.cn

Business Hours: 09:00-18:00(GMT+8) from Monday to Friday

URL: www.openvox.cn

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

Version1.0 (2015-11-10)

Full text

The overall layout adjustment

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

prior written permission.

Confidentiality

Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox

Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than

the direct recipients without the express written consent of OpenVox Inc.

Disclaimer

OpenVox Inc. reserves the right to modify the design, characteristics, and products at any time without

notification or obligation and shall not be held liablefor any erroror damage of any kind resulting from the

use of this document.

OpenVox has made every effort to ensure that the information contained in this document is accurate and

complete; however, the contents of this document are subject to revision without notice. Please contact

OpenVox to ensure you have the latest version of this document.

Trademarks

All other trademarks mentioned in this document are the property of their respective owners.

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

Contents

1. Overview...................................................................................................................................... 1

What is 3G Gateway? 1

Sample Application 1

Product Appearance 2

Main Features 4

Physical Information 4

Software 5

2. System.............................................................................................................................................. 6

Status 6

Time 7

General and Cluster 10

Language Settings 10

Scheduled Reboot 10

Working Mode 11

Tools and Information 12

Reboot Tools 12

Information 14

3. MODULE......................................................................................................................................... 15

Module Settings 15

IMEI Modification 16

Call Duration Limit Settings 19

Call Forwarding 22

Call Waiting 23

DTMF 24

Toolkit 25

4. VOIP ............................................................................................................................................... 27

VOIP Endpoints 27

Advanced: Registration Options 29

Call Settings 30

Advanced: Signaling Settings 30

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

Advanced: Timer Settings 31

Advanced SIP Settings 32

Networking 32

Advanced: NAT Settings 33

Parsing and Compatibility 35

Security 36

Media 37

Codec Settings 37

Advanced IAX2 Settings 38

5. Routing........................................................................................................................................... 41

Call Routing Rule 41

DISA Settings 42

Advance Routing Rule 42

Groups 45

MNP Settings 45

6. SMS ................................................................................................................................................ 47

SMS Settings 47

General 47

Sender Options 47

SMS to E-mail 48

SMS Control 50

HTTP to SMS 51

SMS to HTTP 51

SMS Sender 52

SMS Inbox 52

7. Network......................................................................................................................................... 54

LAN Settings 54

DDNS Settings 56

Toolkit 56

8. Advanced ....................................................................................................................................... 58

Asterisk API 58

Asterisk CLI 60

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

Asterisk File Editor 61

9. Logs ................................................................................................................................................ 62

Appendix Feature List........................................................................................................................ 67

Application Diagrams ........................................................................................................................ 70

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

1. Overview

What is 3G Gateway?

OpenVox VoxStack Series 3G Gateway is an open source asterisk-based GSM VoIP Gateway

solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily

setup their customized Gateway. Also secondary development can be completed through AMI

(Asterisk Management Interface).

There are three models with VoxStack series of 3G Gateway, the VS-GW1202, VS-GW1600 and VS-

GW2120. The Modular Design of 3G Gateways are ranging from 4 up to 44 3G/UMTS channels, it is

designed for multiple frequency bands Including 3G/UMTS 850/900/1900/2100 MHz, and it can

support a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.726. For a reliable

connecting 3G to voip gateway, it can quickly reduce telecommunication expenses and maximize

cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both

SIM cards and 3G gateway modules. Users can simply add or remove the modules for hardware

expansion or exchange. Each 3G gateway module runs an independent asterisk system inside. The

VoxStack gateway designs with two LAN Switch boards that provide stack ability on the hardware

upgrade. The 3G Gateways will be 100% compatible with asterisk, Elastix, trixbox, 3CX ,

FreeSWITCH SIP server and VOS VoIP operating platform.

Sample Application

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

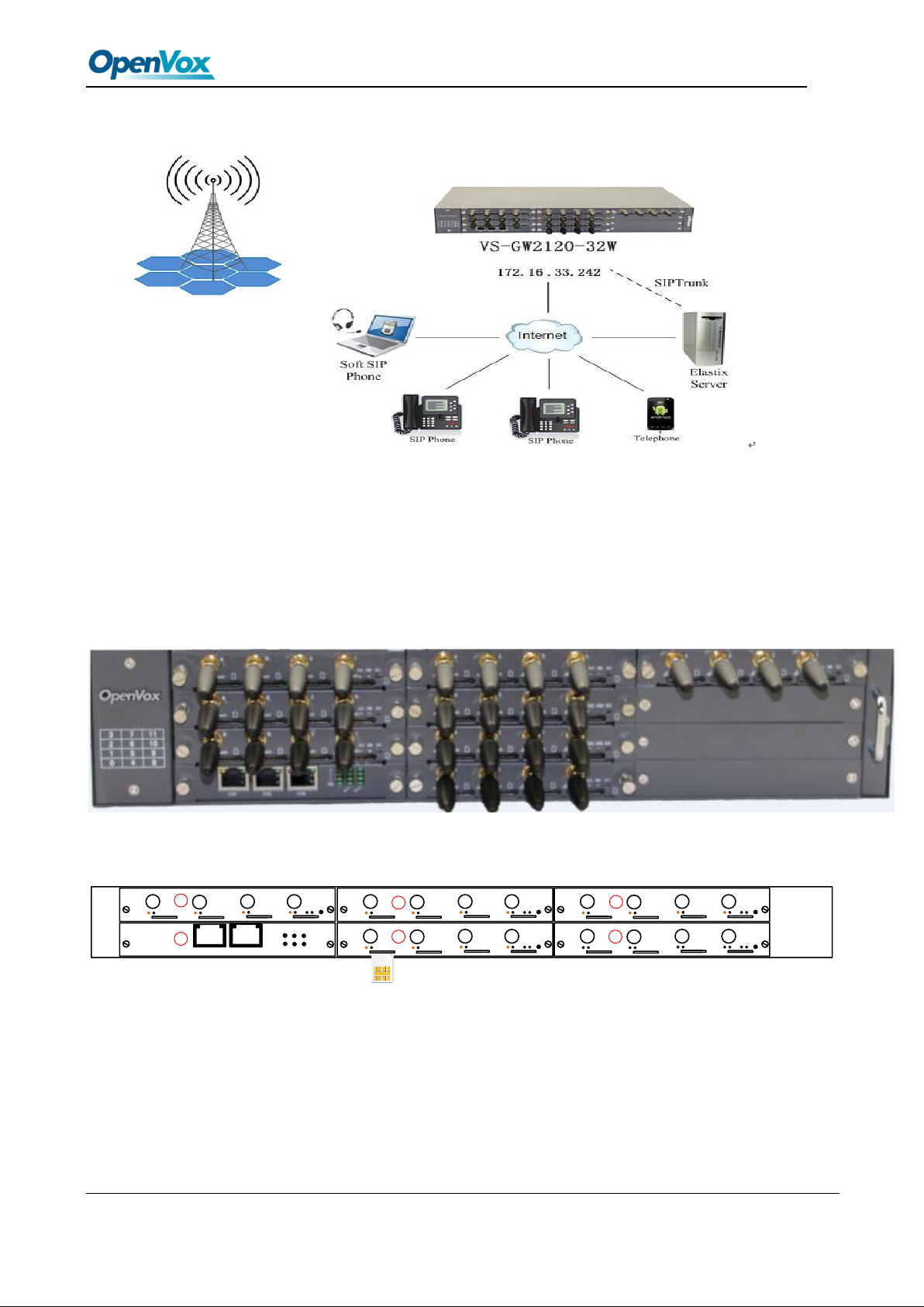

Figure 1-2-1TopologicalGraph

Product Appearance

The picture below is appearance of VS-GW2120.

Figure 1-3-1 Product Appearance

Figure 1-3-2 Front Panel

Reset Reset

Reset

ETH1 ETH2

○

0Network Data Switch Board: ETH1, ETH2.

ETH1: Access Board 1 only, provide proxy access to other boards with different port numbers

which can avoid IP conflict.

ETH2: Access different Boards with different IP address.

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

VoxStack provides 2 working modes: Stand-alone and Cluster.

Stand-alone: A single IP address manages one 3G modules (4 ports).

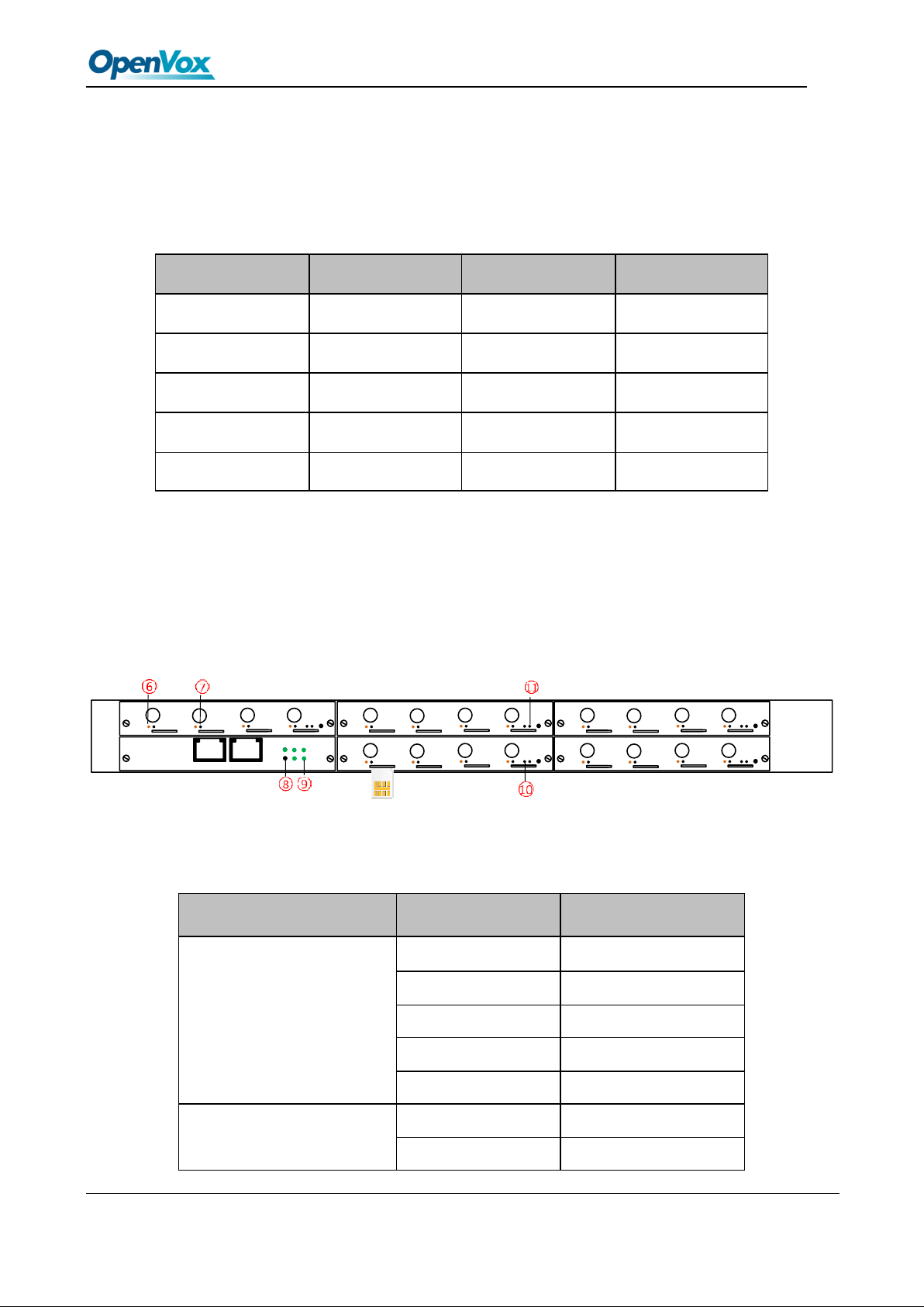

Table1-3-1ETH2 IPAddresses

Stack Num

Username

Password

○

172.16.99.1

admin

○

172.16.99.2

admin

○

172.16.99.3

admin

○

172.16.99.4

admin

○

172.16.99.5

admin

Cluster: A single IP address manages up to 5 GSM modules (up to 20 ports).

Default IP: 172.16.99.1

Figure 1-3-3 Front Panel

Reset Reset

Reset

ETH1 ETH2 Reset

Table 1-3-2 LED Indicator

LED Indicator

Color

Status

⑥Signal Status LED

Green and Flash

Module Initiating

Red and Flash

No SIM Card

Red and No-flash

Worst Signal Quality

Yellow and No-flash

Medium Signal Quality

Green and No-flash

Best Signal Quality

⑦Call Status LED

Flash (0.25s)

Communicating

Blind

Normal

https://arttel.ru/

https://arttel.ru/shop/gsm-shlyuzy/openvox-vs-gw2120-28w

3G UMTS User Manual

OpenVox Communication Co.Ltd URL:www.openvox.cn

⑧⑨Network Status LED

Green and Flash

Network Connected

⑩Running Status LED

Green and Flash(1s)

Work Normally

⑾Power LED

Always Green

Supply Power

Main Features

Modular and VoxStack design

Based on Asterisk○R

Editable Asterisk○Rconfiguration file

Wide selection of codecs and signaling protocol

Support SMS sending, receiving, group sending

Support transferring SMS to E-mail

Support SMS automatically resent

Support SMS remotely controlling gateway

Support USSD service

Support IMEI modification

Support PIN identification

Support unlimited routing rules and flexible routing settings

SIM cards and modules are all hot-swap

Stable performance, flexible dialing, friendly GUI

Physical Information

Table 1-5-1Description of Physical Information

Weight

6144g(VS-GW2120-28w)

Size

44cm*34cm*9cm

Frequency

GSM 850/900/1800/1900MHz

Temperature

-40~85°C (Storage)

-40~85°C (Operation)

Operation humidity

10%~90% non-condensing

Max power

95W

LAN port
