Opera FONDA PRO Bedienungsanleitung

FONDA PRO

Installation manual

Montagehandleiding

Dear customer,

Thank you for choosing a OPERA extractor hood.

Please carefully read the following information and explanations on the proper use of

your new OPERA hood before using the appliance for the first time. Please also read

our operating and installation instructions as well as the cleaning recommendations to

ensure that you enjoy many years of service from your appliance.

- The installation, in particular for exhaust air operation, may only be carried out by

authorised personnel are carried out or checked.

- A window contact with DIBt approval should always be used for safe exhaust air

operation. If your cooker hood does not have a window contact connection, a

power supply interrupter must also be installed.

- Opera GmbH accepts no liability for consequential damage to the exhaust emission

system Introduction that could be caused by room air extraction.

- Please refer to these installation instructions for proper installation.

Conrm:

The data presented in this manual are alone the product description. No statements concerning a certain

condition or suitability for a particular application cannot be derived from our information. The gures do not

constitute the user's own assessment and verication. It is natural to note that our products are subject to

natural wear and aging.

disposal such as copying and distribution rights lies with us.

On the front page an example conguration is shown. The delivered product may

dier from theillustration.

The original operating instructions were prepared in English.

Installation specialist : Employee name: Date:

Fa:

Acceptance specialist : Employee name: Date:

Fa:

TABLE OF CONTENTS

WARNING NOTICE AND SYMBOLS 3

PRELIMINARY REMARKS 4

1 SAFETY INSTRUCTIONS

2 TECHNICAL DATA, CONNECTION VALUES

3 PRODUCT DESCRIPTION

4 MOUNTING ACCESSORIES - SCOPE OF DELIVERY

5 DIMENSIONS

6 ASSEMBLY PREPARATION

7 FITTING REQUIREMENTS

8 INSTALLATION PREREQUISITE - ELECTRICAL CONNECTION 18

ASSEMBLY INSTRUCTIONS 19

9 FITTING INSTRUCTIONS

10 CONTACT WITH WINDOW SWITCH

CLEANING AND DISPOSAL 32

11 CLEANING INSTRUCTIONS

12 DISPOSAL

13 ENVIRONMENTAL INFORMATIONS 32

PAGE

Warnings in these operating instructions are placed in front of an instruction that may

result in personal injury or property damage.

Measures to avert a hazard must be observed.

WARNING

SIGNS MEANING

Warning of a danger spot !

Indicates potentially dangerous situations. Failure to observe the

warning notices may result in personal injury and/or damage to

property.

Warning of dangerous voltage!

Indicates possible hazards due to electricity. Failure to observe the

warnings may result in death, injury and/or property damage.

Warning of hot surface !

Indicates possible hazards due to high surface temperatures.

Failure to observe the warnings may result in personal injury and/or

damage to property.

Warning of hand injuries !

Indicates possible hazards due to moving and rotating parts. Non-

observance of the warnings can result in personal injury.

Warning of toxic substances !

Indicates possible dangers due to inhalation of toxic gases. Failure to

observe the warnings may result in death or serious poisoning.

Warning of flammable substances !

Indicates possible dangers due to fire hazard. Failure to observe the

warnings may result in death, personalinjury or property damage.

Warning of cuts due to glass breakage !

Indicates possible hazards due to sharp edges. Failure to observe the

warnings may result in cutting injuries and personal injury.

WARNINGNOTICE ANDSYMBOLS

Safety instructions

Assembly, connection, commissioning and repair may only be carried out by a

specialist. This specialist can determine the suitable mounting and exhaust air routing

of the cooker hood. The fastening must be suitable for the weight of the cooker hood

and the load on the substrate. Observe the pull-out values of the dowels supplied.

These have the following values depending on the substrate: Dowel Ø10 mm:

Concrete B25 9.4 kN Wall brick Z20 5.2 KN Lime sand solid brick KSV20 4.8 KN. In

the case of other unsafe substrates, a building expert, e.g. a structural engineer or

architect, must be consulted to ensure safe installation of the cooker hood.

Risk of injury !

Sharp edges may be present in the hood body due to production. Wear protective

gloves during assembly!

Danger of electric shock !

The mains voltage must correspond to the specifications on the nameplate. This is

located in the area of the filters inside the hood. Only connect the extractor hood to a

properly installed socket outlet with earthing contact. The socket must be easily ac-

cessible after installation so that the cooker hood can be disconnected from the mains

voltage if necessary. If the appliance is permanently connected (e.g. if there is no

socket), the cooker hood may only be connected to the mains voltage by a qualified

electrician. For permanent connection, the cooker hood must be connected to a single

circuit with a disconnecting device. Switches with a contact opening of at least 3 mm

and all-pole switches, e.g. LS switches and contactors, are regarded as disconnecting

devices. Switch off the mains circuit(s) before working on the electrical connection of

the extractor hood. Before drilling fixing holes, check that no electrical cables can be

damaged by drilling. The electrical connection must be prepared so that the cooker

hood can easily be connected. Local regulations must be observed.

EN PRELIMINARYREMARKS

The exhaust air must not be led into a chimney which is used for exhaust gases from

devices with fuels (e.g. gas). Official regulations for the discharge of exhaust air must

be observed. The exhaust air path must be prepared in such a way that the cooker

hood can easily be connected to it. The exhaust hose must be cooker hood can be

easily connected to it. The exhaust hose must be laid without kinks. If the extractor

hood is operated simultaneously with other room air dependent fireplaces (e.g. wood-,

gas-, oil- or coal-fired appliances) in one room during exhaust air operation, deadly

combustion gases can be returned to the room through a negative pressure. The ope-

rator must therefore ensure an adequate supply of air at all times. The negative pres-

sure in the room must not exceed 4 Pa (0.04mbar). Do not exceed max. duct length of

5m with B-version.

Fireplace for solid fuels

The cooker hood may only be installed above a fireplace for solid fuels from which

there is a risk of fire (e.g. flying sparks) if the fireplace has a closed, non-removable

cover.

Installation

The device may only be connected by authorised specialists in compliance with all

relevant regulations of the power supply companies as well as the building regulations

of the federal states. Observe the corresponding instructions during installation! Da-

mage to the device must be reported immediately upon delivery. Damaged devices

may be installed. Defective parts must be replaced by original parts. Repairs may only

be carried out by authorised specialist personnel.

Air turbulence can occur at high levels with C recirculation air versions!

Before the cooker hood leaves our factory, it is subjected to a detailed functional test

by our quality control department before being shipped.

The pictures, drawings and models shown in the operating instructions may differ

from the model supplied or may contain options which are not included in the scope of

delivery.

We reserve the right to make technical changes!

Exhaust air duct (for exhaust air operation)

1.SAFETY INSTRUCTIONS

- Fonda Professional Type: DFP83B120

DFP83C120

DFP83B140

DFP83C140

Dimensions: - 830 x 580 x 81 mm

Motor voltage: - 1N ~ 220-240 V 50/60 Hz

Integrated motor: - Airflow: free flow: 900 m³/h

- Power: 169 Watt

Cooktop: - Max Power:

- Voltage: 7,4 KW

1N ~ 220-240 V 50/60 Hz

2N ~ 380-415 V 50/60 Hz

Filter: - 1 condensation filter

- 1 grease filter

- 1 activated carbon filter (only in C - version)

Control element: - Touch interface (glass)

Connection pipe: - Naber 220x90mm

Weight: - ~27 KG (without motor)

DFP83___

Designation:

EN 2.TECHNICAL DATAANDCONNECTION VALUES

FONDA PROFESSIONAL B/C - Version

Fonda Professional cooking hob

Touch control panel

Air inlet glass, variably adjustable

Naber canal (fitting length)

Fan motor B/C version

Outlet nozzle in air direction

Nozzle plate for change of blowing direction

Suction silencer

Outlet silencer

Fan-cooking hob connection cable

Airflow

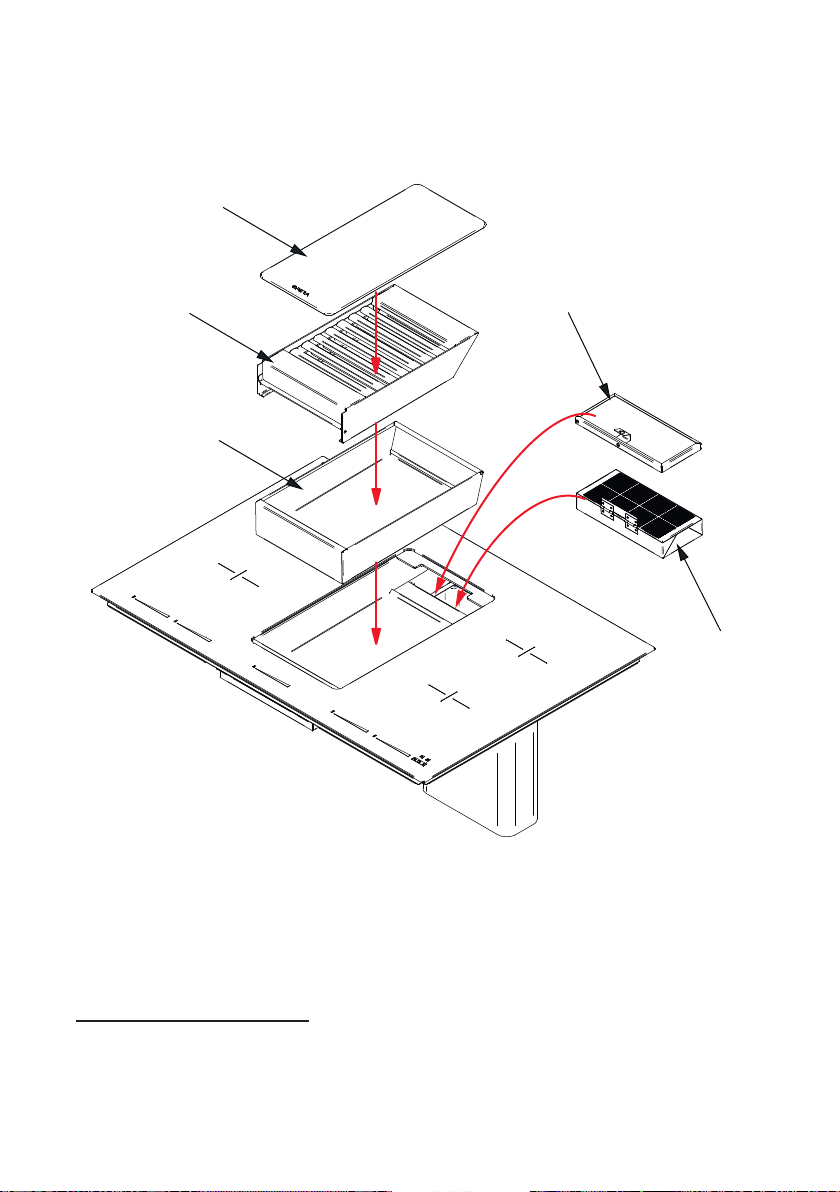

3.PRODUCT DESCRIPTION

Activated carbon filters (C version only)

Grease filters

Water collector

Condensation filter

Installation sequence: 11-12-13-14-3
