QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Always read the user manual for complete safety and operation

instructions before using this product.

Only use the camera in a temperature range between -20°C to +50°C

(-4°F to +122°F).

Do not connect or disconnect external devices to/from the camera

inside hazardous areas.

This product uses Li-Ion batteries. Always follow safety instructions

when using batteries.

Do not attempt to disassemble or modify this product in any way.

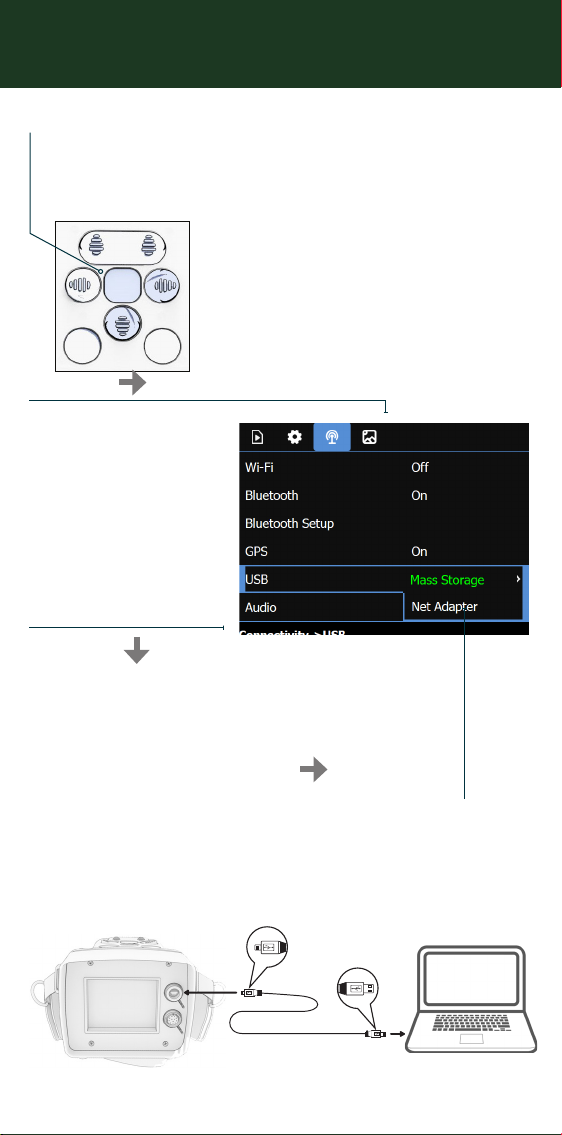

1. Press the menu

button to enter the

menu.

2. Press the right

navigation button

to navigate to the

connectivity tab.

4. Press the right

navigation button

to select Mass

Storage.

3. Press the down

navigation button

and select USB.

5. Connect the USB cable between EyeCGas® 2.0 and a

computer.

EyeCGas® 2.0 appears as a storage device on the computer,

from where files can be transferred.

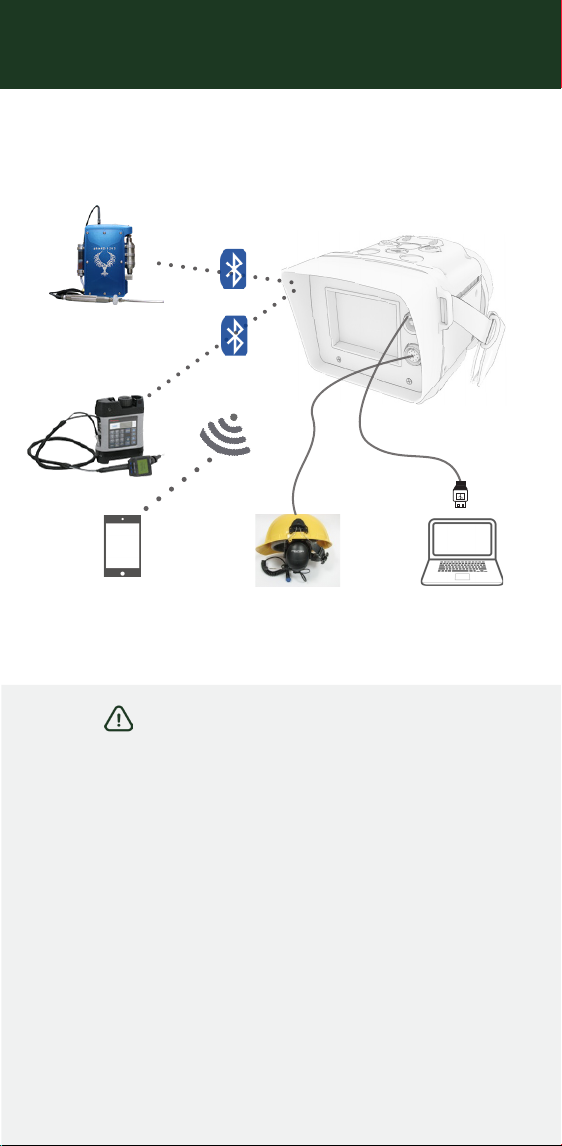

Connectivity

The following connectivity options are available.

For more information, refer to the user guide.

Bluetooth

connectivity

Audio headset

connectivity

USB

connectivity

Wi-Fi connectivity

(camera as hotspot)

Downloading Videos and Images

Video and Image Playback

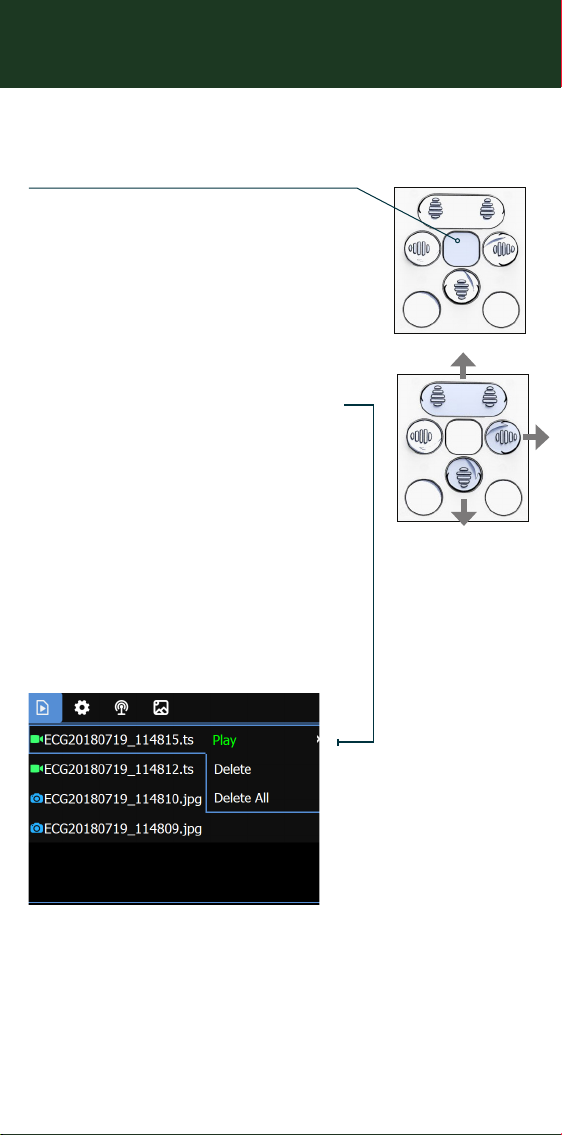

To playback an image or video on the LCD display:

1. Press the menu button to enter

the menu.

2. Press the up/down navigation

buttons to navigate between

files.

3. Press the right navigation button

to select a video or image file.

4. Press the right navigation button

to select the relevant action.

5. Press the record keypad button

to return to the file menu.

Unclassified | commercial confidential | Doc P/N: QG-8G9A0000B | Rev 02

Screen Overlay

Starting EyeCGas® 2.0

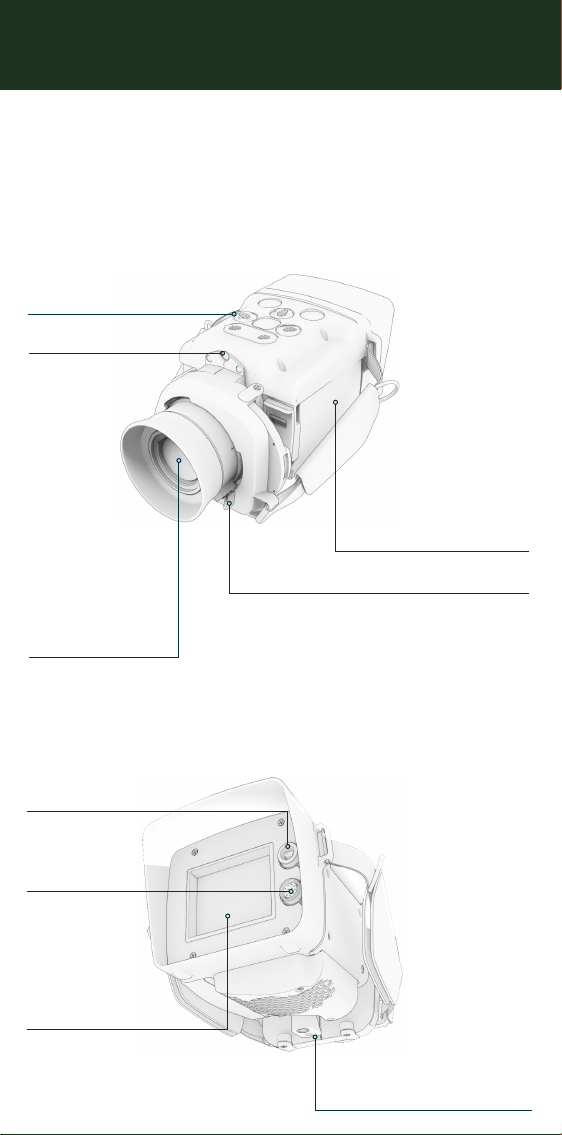

EyeCGas® 2.0 Overview

EyeCGas® 2.0 is a handheld infrared camera used

for the detection of gas leaks.

LCD display

Tripod mount

Battery

USB

connector

Audio

connector

Keypad buttons

HD camera

IR lens

Lens release latch

A.Charge the battery:

1. Plug battery charger into power outlet.

2. Remove tape from battery contacts.

3. Insert battery into charger until it

latches in place.

4. Battery fully charged on green led.

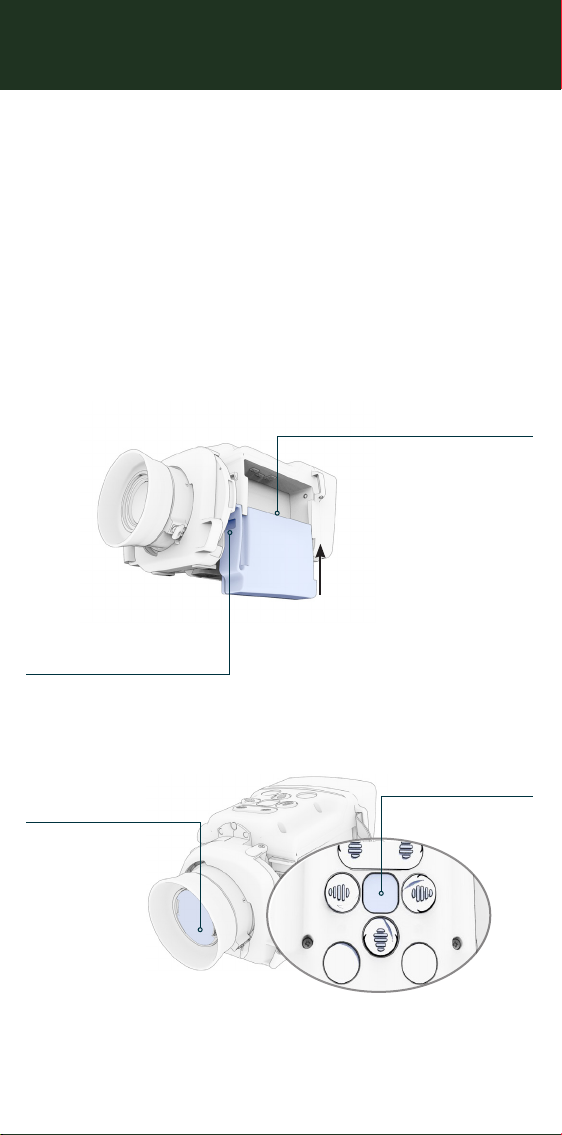

B. Insert battery into camera:

1. Ensure contacts are

facing up.

2. Slide battery up until

battery clip snaps in

place.

C.Power up

EyeCGas® 2.0

1. Ensure lens

cover is on.

Press the power button for

one second.

Power-up sequence: For 8-10 minutes, EyeCGas® 2.0 is in cool down state.

Only visible viewing mode is available during this time.

IMPORTANT: Keep lens cover on during the entire power-up sequence.

The following status indicators appear on the LCD

display:

Viewing mode Polarity

Zoom level

Time and Date

Cooler active (icon blinks during cool down)

Battery level status

Internal memory used

USB*

GPS*

Wi-Fi*

Bluetooth*

Recording in progress / Snapshot taken

GPS

coordinates

Perform NUC process

(hold for 3 seconds)

Record video

Zoom

Power off camera (hold

for 3 seconds)

Take snapshot

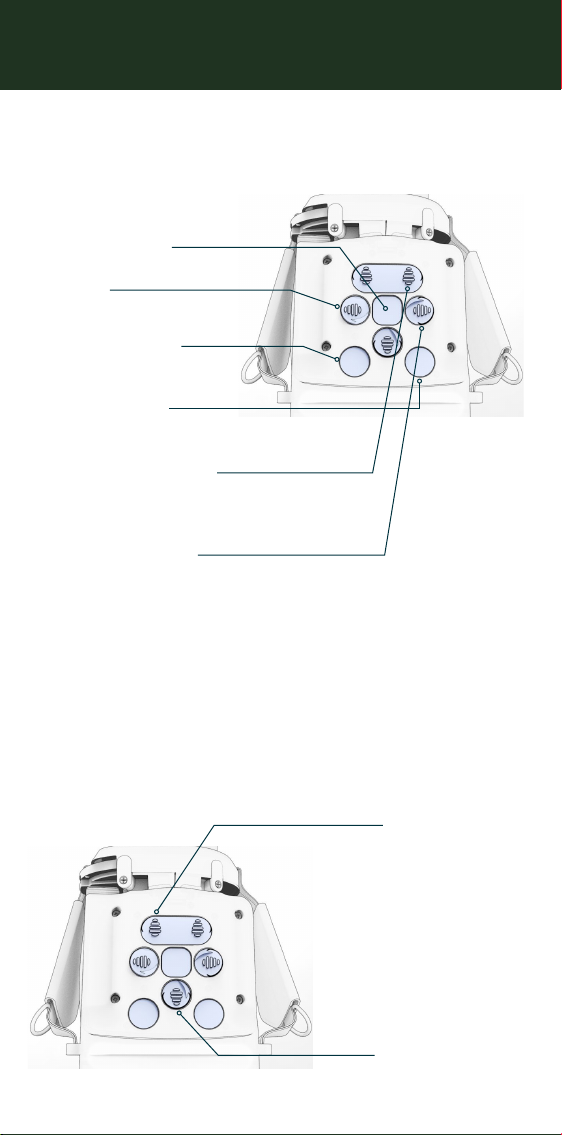

Use the keypad buttons to perform the following

operations:

Switch between the following

viewing modes:

Visible

Normal

Enhanced

Thermography

Normal mode:

Select polarity

Enhanced mode:

Select polarity

Thermography

mode:

Select color palette

Enhanced mode:

Select enhancement level

Thermography mode:

Select emissivity value

Routine Operations

The following two keypad buttons change

functionality based on the viewing mode selected:

(snapshot icon

appears over

recording icon)
