1 INTRODUCTION

1-1 BEFORE INSTALLATION................2

1-2 PARTS IDENTIFICATION................3

1-3 DETECTION AREA..........................3

2 INSTALLATION

2-1 INSTALLATION................................4

3 WALK TEST

3-1 WALK TEST.....................................7

4 DIP SWITCH SETTING

4-1 LED..................................................8

4-2 ALARM OUTPUT.............................8

4-3 PIR SENSITIVITY............................8

4-4 ANTI-MASKING...............................8

5 OTHERS

5-1 WALL TAMPER (OPTION)

CONNECTION.................................9

5-2 EXAMPLE OF EOL WIRING .........10

5-3 LED LIGHT PATTERN...................11

6 SPECIFICATIONS

6-1 SPECIFICATIONS.........................11

6-2 DIMENSIONS................................12

FTN-ST Standard model with 2 PIRs

FTN-AM FTN-ST with anti-masking

Compact design

190° adjustable bracket

Intelligent AND logic

Digital anti-masking (AM model)

Wall tamper (option)

•

NO.59-1645-1

INSTALLATIONINSTRUCTIONS

Compact outdoor

detector

Compact outdoor

detector

fit series

- 1 -

1INTRODUCTION

1-1

BEFORE INSTALLATION

Warning Failure to follow the instructions provided with this indication and improper

handling may cause death or serious injury.

Caution Failure to follow the instructions provided with this indication and improper

handling may cause injury and/or property damage.

The check mark indicates recommendation.

The nix sign indicates prohibition.

Warning Caution

Do not remove the PCB. Do not touch the PCB except for the DIP switch.

2 3 4

Mounting height. Keep the detector parallel to the

ground. Consider the direction a person is

approaching from, as well as the

detection area.

Install the detector in a place where it is free from false alarm factors. For example:

Sunlight and reflection

•Heat source

•Objects moving in the wind

•

0.8 – 1.2 m

(2'7" – 3'11")

Parallel Tilt

- 2 -

10'

15'

2345

(m) (ft.)

(ft.)

(m)

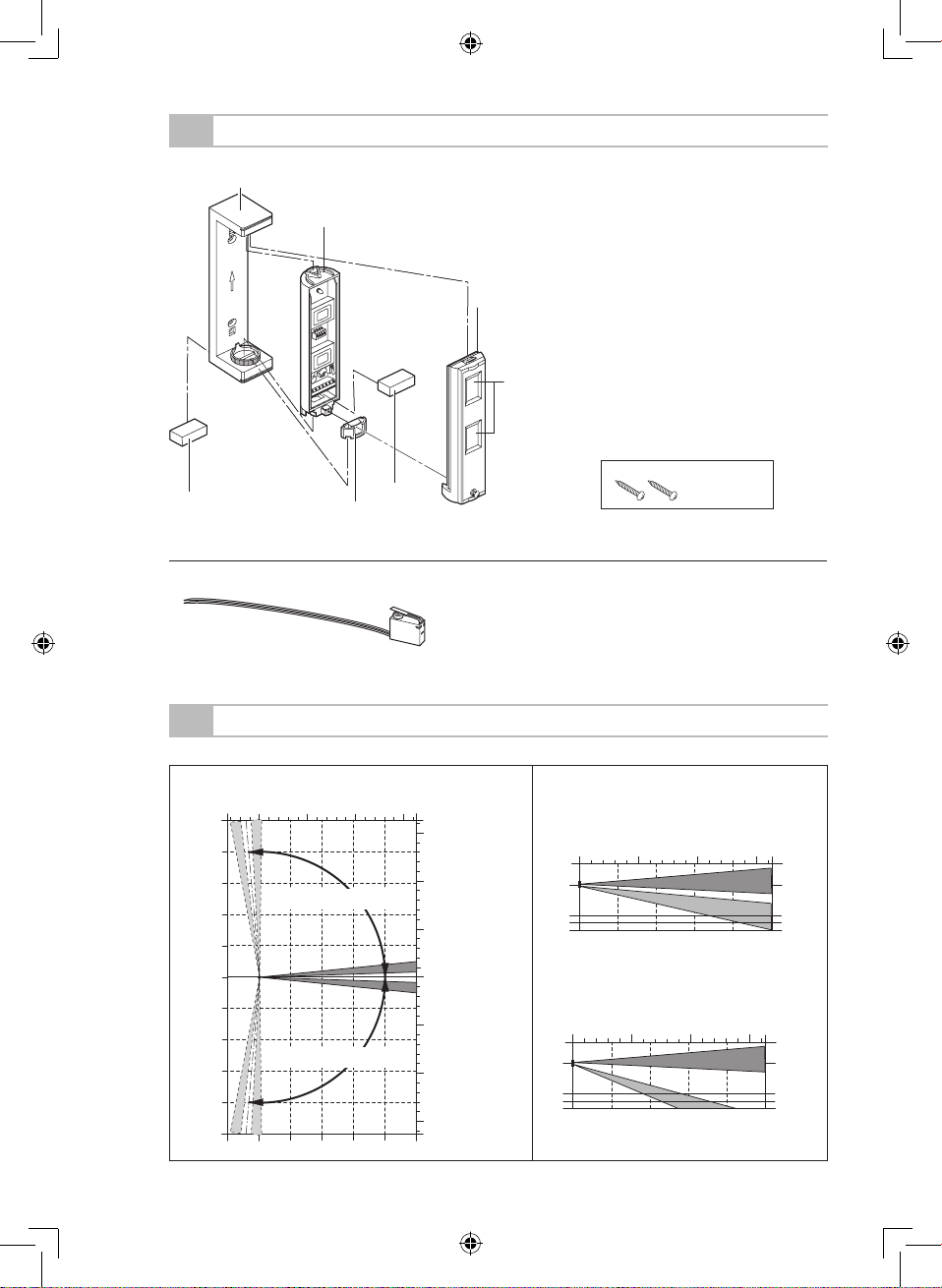

1-2

PARTS IDENTIFICATION

-Optional accessories

Wall tamper (WRS-02)

Bracket

Sponge Fixture

Main unit

Main unit cover

Lens

Screw kit

Screw (3 × 20 mm)

0' 5' 10' 15'

0.8

(m)

1.0

1.2

2'7"

0'(ft.)

3'3"

3'11"

10 2 3 4 5

(m)

(ft.)

0' 5' 10' 15'

0.8

(m)

1.0

1.2 10 2 3 4 5

(m)

2'7"

0'(ft.)

3'3"

3'11"

(ft.)

1-3

DETECTION AREA

Top view Side view

2 m detection length

5 m detection length

Adjustable range: 95° (by 5° pitch)

Sponge

- 3 -

2INSTALLATION

2-1

INSTALLATION

Open the main unit cover.

Remove the fixture.

FixtureFixture

Hold the top of the bracket lifted and

remove the main unit.

Bracket Main unit

Put the wire extending from the wall

through the wiring hole in the bottom of

the bracket, and mount the bracket on

the wall.

Note>>

For wall tamper wiring (option), refer to

page 9.

•

Screw (3 × 20 mm)

Mounting height:

0.8 – 1.2 m

(2'7" – 3'11")

Sponge

Screw (3 × 20 mm)

Mounting height:

0.8 – 1.2 m

(2'7" – 3'11")

Sponge

Pull the wire through the main unit. Lift the top of the bracket slightly and mount

the main unit to the bracket.

83.5 mm

(3.29")

- 4 -

Wire terminal connections.

Notes>>

Anti-masking output is recognized as TROUBLE.

For EOL, refer to page 10.

-Power cable length

The power cable should be limited to the following length. Unit: m (ft.)

Cable diameter FTN-ST FTN-AM

12 V 14 V 12 V 14 V

AWG22 (0.33 mm2)340

(1,120') 730

(2,400') 290

(950') 620

(2,030')

AWG20 (0.52 mm2)530

(1,740') 1,160

(3,810') 450

(1,480') 980

(3,220')

AWG18 (0.83 mm2)850

(2,790') 1,850

(6,070') 720

(2,360') 1,570

(5,150')

•

Power input (+)

Power input (-)

Alarm output

COM

Spare

Tamper

Power input (+)

Power input (-)

Alarm output

COM

Trouble output

Tamper

FTN-ST FTN-AM

Power input (+)

Power input (-)

Alarm output

COM

Spare

Tamper

Power input (+)

Power input (-)

Alarm output

COM

Trouble output

Tamper

FTN-ST FTN-AM

Determine the horizontal detection angle and attach the fixture.

Note>>

To make adjustments, remove the fixture.

•

Note>>

Check that the fixture and bracket

engage correctly.

•

Note>>

Check that the fixture and bracket

engage correctly.

•

Angle pitch: 5°

95° 95°

Angle pitch: 5°

95° 95°

AL C SP TP TP

AL C TR TP TP

- 5 -

Determine the detection length. (2 m or 5 m)

If 2 m is required, rotate the lower lens

180 degrees.

Note>>

Do not remove the upper lens.•

If 2 m is required, rotate the lower lens

180 degrees.

Note>>

Do not remove the upper lens.•

5 m detection length

(Factory default) 2 m detection length

Side view

0' 5' 10' 15'

0.8

(m)

1.0

1.2

2'7"

0'(ft.)

3'3"

3'11"

10 2 3 4 5

(m)

(ft.) 0' 5' 10' 15'

2'7"

0'(ft.)

3'3"

3'11"

0.8

(m)

1.0

1.2

(ft.)

10 2 3 4 5

(m)

Side view

5 m detection length

(Factory default) 2 m detection length

Side view

0' 5' 10' 15'

0.8

(m)

1.0

1.2

2'7"

0'(ft.)

3'3"

3'11"

10 2 3 4 5

(m)

(ft.) 0' 5' 10' 15'

2'7"

0'(ft.)

3'3"

3'11"

0.8

(m)

1.0

1.2

(ft.)

10 2 3 4 5

(m)

Side view

Attach the main unit cover.

Note>>

To prepare for walk test, check that DIP

switch 1 (LED) is set to “ON” before

attaching the main unit cover.

•

Perform walk test.

For details, refer to page 7.

- 6 -

If the LED does not need to be turned

on at all times, set the DIP switch 1

(LED) to “OFF”.

1234

DIP switch

1234

DIP switch

Check that LED lights for 2 seconds

when the intended object is detected.

Set DIP switch 1 (LED) to “ON”.

Note>>

The switch is set to “ON” by factory

default.

•

1234

DIP switch

1234

DIP switch

3WALK TEST

3-1

WALK TEST

Detected Not detected

- 7 -

4-1

LED DIP switch 1 FTN-ST

FTN-AM

1234

OFF

Position Function

(Factory default) LED ON

OFF LED OFF

4-2

ALARM OUTPUT

DIP switch 2 FTN-ST

FTN-AM

1234

N.O.

N.C.

Position Function

N.O. N.O. output

N.C.

(Factory default) N.C. output

4-3

PIR SENSITIVITY

DIP switch 3 FTN-ST

FTN-AM

1234

STD

LOW

Position Function

STD

(Factory default) Normal sensitivity

LOW Low sensitivity

4-4

ANTI-MASKING DIP switch 4 FTN-ST

FTN-AM

1234

Position Function

(Factory default) ANTI-MASKING ON

OFF ANTI-MASKING OFF

1234

●: Factory default

DIP switch

1 LED

2 ALARM OUTPUT

3 PIR SENSITIVITY

4 ANTI-MASKING

4DIP SWITCH SETTING

2 3 4

Do not touch the PCB

except for the DIP switch

and the terminal.

OFF

- 8 -

5-1

WALL TAMPER (OPTION) CONNECTION

Connect the tamper lead as shown below when connecting a wall tamper (option).

CAL

+SP TP TP

Wall tamper (option)

WRS-02

Twist and swage the wires.

Control panel

-ANTI-MASKING function

When masking condition continues more than 3 minutes, TROUBLE will be generated.

TROUBLE is generated after 20 seconds under the anti-masking test mode.

Note>>

If a trouble is output (mal-detection of anti-masking) immediately after the operation has

started, set the DIP switch 4 (ANTI-MASKING) to “OFF” and then to “ON”, and close the

cover.

•

Please close the main unit cover before turning on the power supply.

“Teaching mode” will begin immediately after the power is supplied.

Re-starting the power is necessary if the power has been applied prior to the closing.

Please be careful not to leave any object within 1 m from the unit.

ANTI-MASKING test mode

The trouble is output after 20 seconds.

Normal mode

The trouble is output after 3 minutes.

10 minutes

Teaching

1 minute

-Mounting position

Note>>

Pull the wire through the bracket

before installing the wall tamper

(option).

•

5OTHERS

Bracket

Sponge

- 9 -

1234567

Alarm relay Trouble relay Tamper

Tamper-EOL-ResistanceAlarm-EOL-Resistance

Control panel Control panel

Positive (+)

terminal Negative (-)

terminal Alarm

(N.C./N.O.) COM Trouble (N.C.) Tamper (N.C.) Tamper (N.C.)

5-2

EXAMPLE OF EOL WIRING

Since the alarm and trouble outputs share the COM terminal, the wire connection should be

made for the fit series detector according to the following diagram.

-Double EOL

-Triple EOL

1234567

Alarm relay Trouble relay Tamper

Tamper-EOL-ResistanceAlarm-EOL-Resistance

Control panel Control panel

Positive (+)

terminal Negative (-)

terminal Alarm

(N.C./N.O.) COM Trouble (N.C.) Tamper (N.C.) Tamper (N.C.)

1234567

Alarm relay Trouble relay Tamper

Tamper-EOL-

Resistance

Alarm-EOL-

Resistance

Control panel Control panel

Positive (+)

terminal Negative (-)

terminal Alarm

(N.C./N.O.) COM Trouble (N.C.) Tamper (N.C.) Tamper (N.C.)

Trouble-EOL-

Resistance

- 10 -
