Opti-solar SP2500 Junior Bedienungsanleitung

SOLAR INVERTER

DC TO AC 2500W INVERTER

WITH BUILT-IN SOLAR CHARGER CONTROLLER

DC12V or 24V to AC220V~240V Instruction Manual

Please read user manual before use.

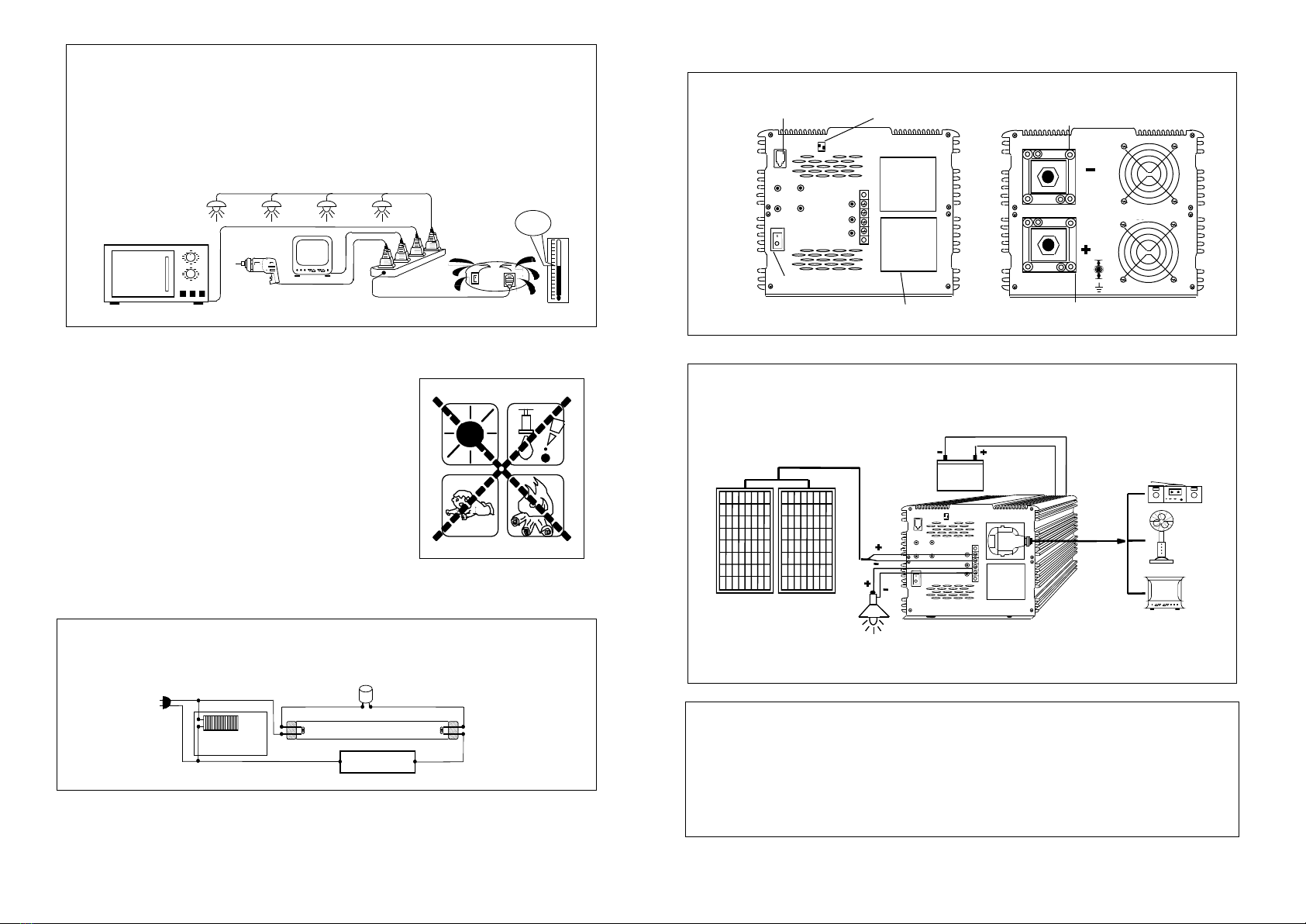

INVERTER USEFUL APPLICATIONS

RUN NOTEBOOK COMPUTERS, RADIOS, TVS, VCRS,

LAMPS, FANS, FAX, DRILL, . . . . . . ETC.

INVERTER SPECIFICATION

INPUT VOLTAGE RANGE : DC 10~15V (12V) // DC 20~30V (24V)

INPUT FULL LOAD CURRENT : 250A (12V) // 125A (24V)

STANDBY INPUT CURRENT : <0.8A (12V) // <0.6A (24V)

OUTPUT VOLTAGE (AC) : 220V~240V

OUTPUT WAVEFORM : MODIFY SINEWAVE

OUTPUT FREQUENCY : 50Hz or 60Hz

CONTINUE OUTPUT POWER : 2500W

PEAK OUTPUT POWER : 5000W

EFFICIENCY : 85~90%

BATTERY LOW PRE-ALARM : 10.5 ± 0.5V (12V) // 21 ±1V (24V)

BATTERY LOW SHUTDOWN : 10 ± 0.5V (12V) // 20 ±1V (24V)

THERMAL PROTECT : 60 ±5℃(MICROCONTROLLER )

AUTO-OPERATION FAN (TEMPERATURE OR LOAD)

OVERLOAD PROTECT : YES (MICROCONTROLLER )

OUTPUT SHORT PROTECT : YES ( MICROCONTROLLER )

BATTERY EX. 12V / 24V PROTECT : YES ( MICROCONTROLLER )

BATTERY POLARITY PROTECT : YES (BY FUSE )

FUSE : 20A*16PCS (12V) // 10A*16PCS (24V)

SOLAR CHARGER CONTROLLER SPECIFICATION

Standby current(A)︰< 30 mA

CHARGER CURRENT : 30A (12V // 24V)

Max Solar Array Voc (volt)︰50V

Max Solar Array Current(A)︰30A

Charge stage︰PWM →Float

Max Load Current(A)︰30A (12V // 24V)

Low Volt Protection︰10 ± 0.5V (12V) // 20 ±1V (24V)

Low Volt Reset︰12.5 ± 0.5V (12V) // 25 ±1 V (24V)

Over Load Protection︰Yes ( 120% of rated current )

Efficiency︰> 90%

DIMENTION ( L*W*H) mm : 420*169*152

WEIGHT : 7.6Kg

IF THE TOTAL WATTS OF ELECTRICAL APPLIANCES EXCEEDS

THE OUTPUT CAPACITY OF INVERTER. OR AFTER OPERATING

FOR A PERIOD OF TIME. IF THE TEMPERATURE OF THE

INVERTER REACHES 60℃, THE INVERTER SHALL BE REDUCED

AC OUTPUT BY THE PROTECTION CIRCUIT.

60 C

CAUTION

ALWAYS PLACE THE INVERTER IN AN

ENVIRONMENT WHICH IS:

(A) WELL VENTILATED

(B) NOT EXPOSED TO DIRECT SUNLIGHT

OR HEAT SOURCE

(D) AWAY FROM WATER/MOISTURE,

OIL OR GREASE

(E) AWAY FROM ANY FLAMMABLE SUBSTANCE

※WARNING※FLUORESCENT LAMP

DO NOT USE THIS DEVICE WITH FLUORESCENT LAMPS.

BALLASTS

Glow switch

Lamp

AC IN

Power Factor

Capacitor

SOLAR INVERTER

DIP

SWITCH

TERMINAL

TERMINA

(RED)

(BLACK)

AC OUTPUT SOCKET

REMOTE CONTROL

CHARGER

FAULT

DC LOAD

OVER

TEMP

POWER SWITCH

OFF

REMOTE

CONTROL

AC OUTPUT

OUTLET

NORMAL

OVER

LOAD

LOW

BATT.

CAUTION : DO NOT REVERSE Polarity of DC side. (+) of SOLAR PANEL and

BATTERY and DC LOAD should be connected to (+) of terminal as per the printing of

inverter . The connection of (-) is the same.

SOLAR PANEL

BATTERY

SOLAR INVERTER

DC LOAD

OFF

REMOTE

CONTROL

AC OUTPUT

OUTLET

INVERTER WARNING SIGNAL

LOW BATTERY PRE-ALARM BI---------BI---------BI

OVER HEATING PRE-ALARM BI---BI---BI---BI---BI

OVER LOAD PRE-ALARM BI-BI-BI-BI-BI-BI-BI

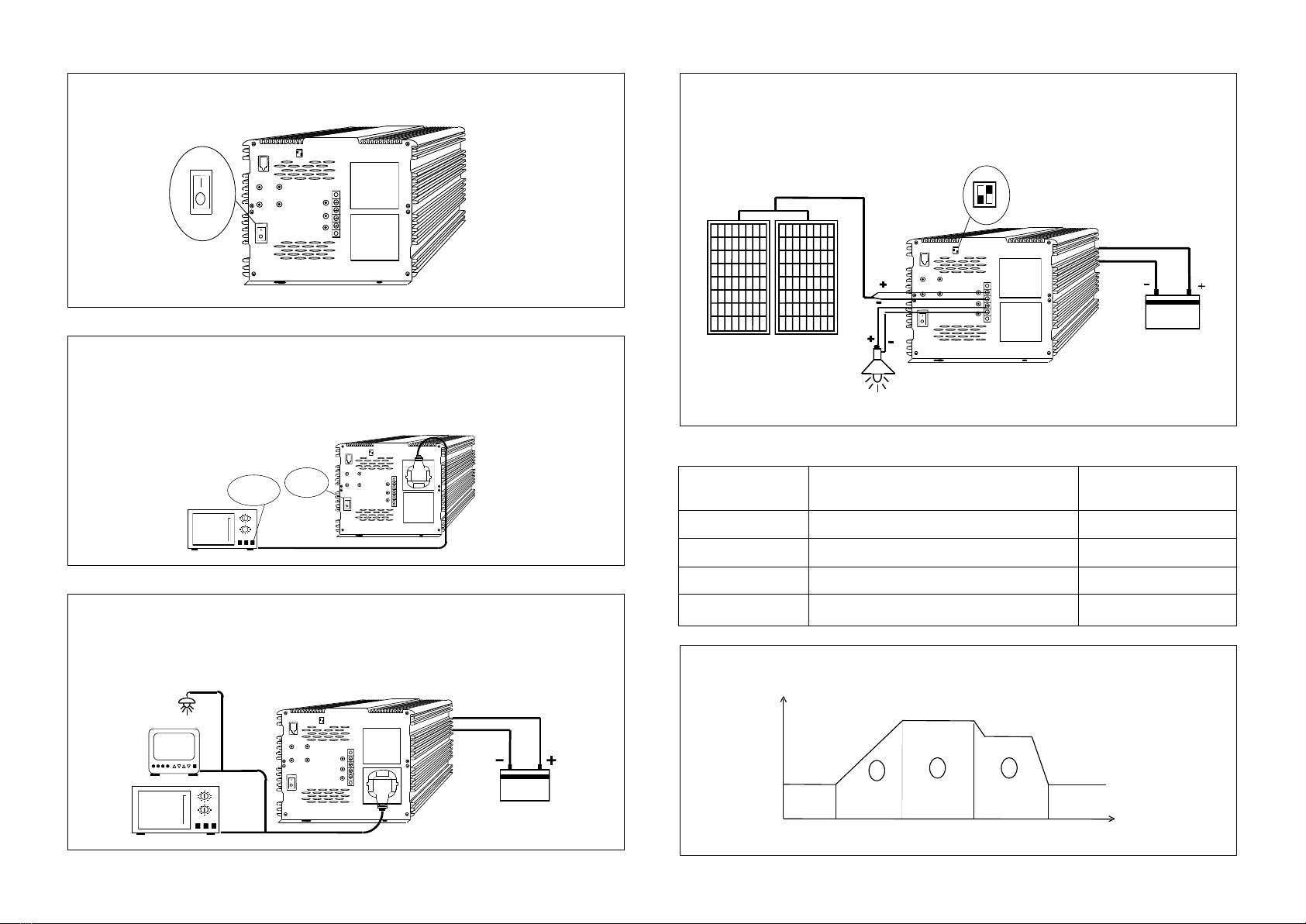

※USE INVERTER

STEP1:

SET THE POWER SWITCH AT THE OFF

OFF

CHARGER

FAULT

DC LOAD

OVER

TEMP

OFF

REMOTE

CONTROL

AC OUTPUT

OUTLET

NORMAL

OVER

LOAD

LOW

BATT.

STEP2:

WHEN CONNECTED TO ANY APPLIANCE, BE SURE TO TURN

ON INVERTER FIRST. AND THEN, TURN ON THE POWER

SWITCH OF THE APPLIANCE.

TURN ON

SECONDLY

TURN ON

FIRSTLY

OUTLET

CHARGER

FAULT

DC LOAD

OVER

TEMP

OFF

REMOTE

CONTROL

AC OUTPUT

NORMAL

OVER

LOAD

LOW

BATT.

DO NOT USE THE INVERTER EXCEED ITS MAXIMUM OUTPUT POWER,

WHEN CONNECTED TO ANY APPLIANCE. MAKE SURE THE TOTAL

STARTING POWER CAPACITY DOES NOT EXCEED THE MAXIMUM

OUTPUT POWER OF THE INVERTER.

OUTLET

BATTERY

CHARGER

FAULT

DC LOAD

OVER

TEMP

OFF

REMOTE

CONTROL

AC OUTPUT

NORMAL

OVER

LOAD

LOW

BATT.

※USE SOLAR CHARGER CONTROLLER

DON’T REVERSE POLARITY OF DC SIDE. PLEASE SET DIP SWITCH TO CORRECT

LOCATION ACCORDING TO THE BATTERY. THE DC LOAD WHICH YOU CONNECTED

CAN’T BE OVER THE RATING.

SOLAR PANEL

BATTERY

DIP SWITCH

SOLAR INVERTER

DC LOAD

CHARGER

FAULT

DC LOAD

OVER

TEMP

OFF

REMOTE

CONTROL

AC OUTPUT

OUTLET

NORMAL

OVER

LOAD

LOW

BATT.

DIP SWITCH SETTING FOR BATTERY TYPE

DIP SWITCH

2 1

BULK FLOAT

(12V // 24V) (12V // 24V)

BATTERY TYPE

OFF OFF

15V // 30V 14.5V // 29V

NI-CAD

ON OFF

14V // 28V 13.8V // 27.6V

GLE/AGM

OFF ON

14V // 28V 13.5V // 27V

FLOODED

ON ON

14V // 28V 13.2V // 26.4V

SEALED/WET

SOLAR CHARGING STAGES

NIGHT

VOLTAGE

TIME

BULK

PWM

NIGHT

FLOAT
