Optika TB-3W Bedienungsanleitung
Ver. 2.0 2019
INSTRUCTION MANUAL
TABLET PC
Model
TB-3W
TB-5W
Page 2
Table of Contents
1. Warning 3
2. Symbols and conventions 3
3. Safety Information 3
4. Intended use 3
5. Overview 4
5.1 TB-3W / TB-5W 4
6. Unpacking 5
7. Assembling 5
7.1 TB-3W / TB-5W 5
7.2 System assembling 6
8. Use of camera and software 8
9. Maintenance 9
10. Micrometric Slide M-005 10
Equipment disposal 11
Page 3
1. Warning
This device is a scientic precision instrument designed to last for many years with a minimum of maintenance.
It is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual
contains important information on safety and maintenance, and that it must therefore be made accessible to the
instrument users. We decline any responsibility deriving from incorrect instrument use uses that does not comply
with this manual.
2. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.
3. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the ope-
ration voltage of the equipment and that the lamp switch is in o position. Users should observe all safety regu-
lations of the region. The equipment has acquired the CE safety label. However, users have full responsibility to
use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure safe
operation of the unit.
4. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
Page 4
5. Overview
CAMERA
TABLET
PROJECTION
LENS
5.1 TB-3W / TB-5W
USB CABLE 2.0
SOCKET
Page 5
6. Unpacking
The device is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and
lift the top half of the container. Take some care to avoid that the optical items (camera and projection lens) fall
out and get damaged.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or
other residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
7. Assembling
7.1 TB-3W / TB-5W

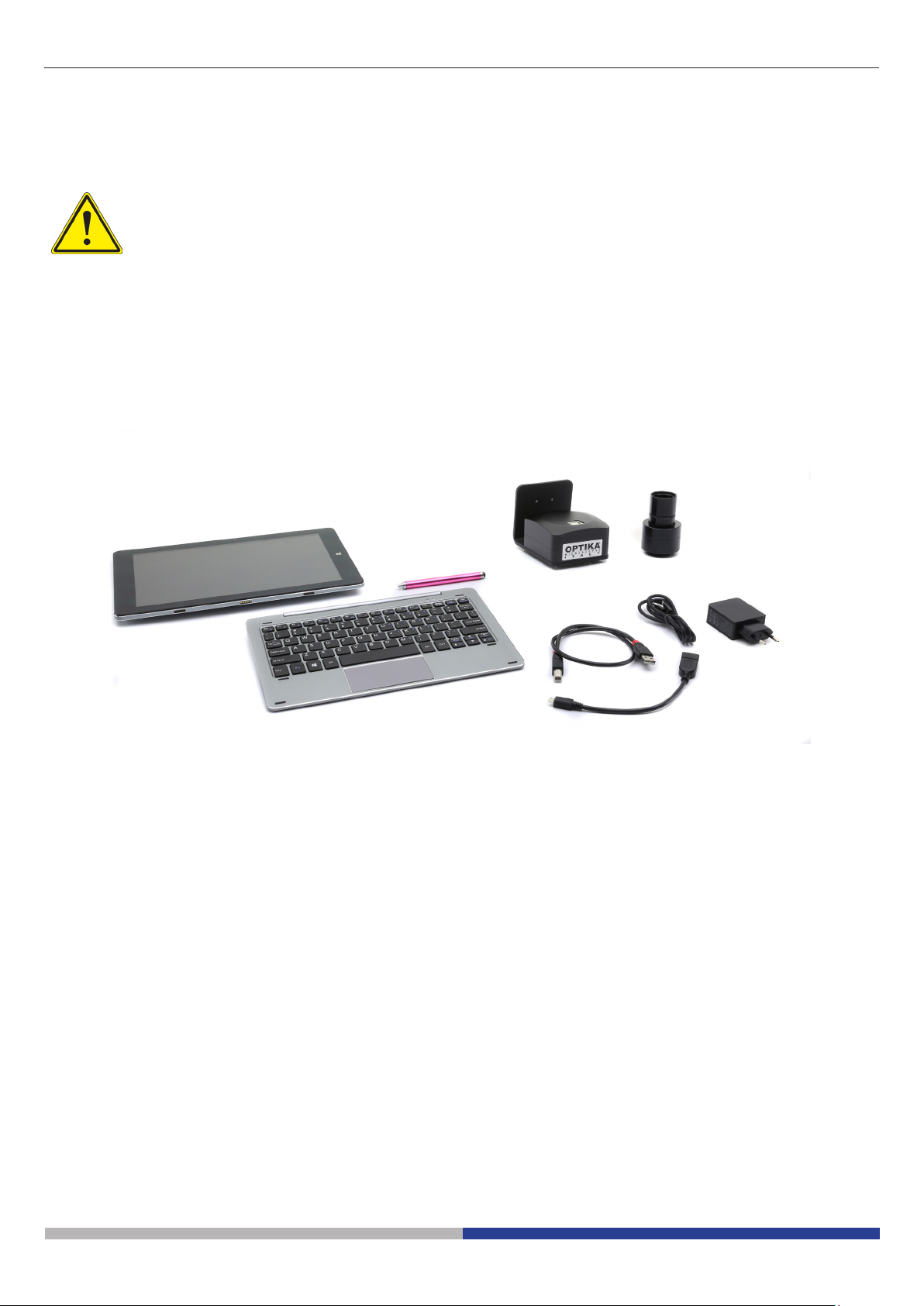

Once opened the TB-3W / TB-5W box, the system parts are the following:
① Camera
TB-3W: 3MP
TB-5W: 5MP
② Projection lens
③ Tablet + keyboard
④ Tablet power supply
⑤ OTG cable
⑥ USB cable
⑦ Touch pen
③
⑤
⑥
⑦
④
①
②
Page 6
Fig. 2
Fig. 4
Fig. 3
7.2 System assembling
1. Remove the dust cover from camera and from
projection lens.
2. Screw the projection lens to the camera’s thread.
(Fig. 1)
3. Insert the nal part of the projection lens into the
empty hole of the photo/tv exit. (Fig. 2)
4. Mount the tablet. Insert the connectors ① placed
on the camera bracket into the holes ②placed
on the tablet bracket and gently push down until
the connectors are properly locked. (Fig. 3-4-5)
• You can select one of three sets of holes to
position the tablet at the desired height.
• To remove the tablet from the bracket, gently push
up and pull the connectors out of the bracket.
Install the tablet.
Fig. 1
①
②
Page 7
5. Plug one side of the cable named CAMERA
CONNECTION (USB + OTG) to the camera and
the other side to the Tablet PC.
6. Plug the cable named POWER SUPPLY
CONNECTION to the Tablet PC for battery
recharge.
Fig. 5
Tablet has been set with the Rotation function disabled: this prevents any ipping of the Live View in order to
get a continuous and as large as possible view of your slide also when the Tablet is removed from the holder.
To enable this function again: activate the Rotation by swiping the screen on his bottom right side and selecting
Settings + Screen.
• Anyway, it’s not suggested to activate the function when the camera is in Live View mode as it may give
troubles when the camera runs at high resolutions.
Page 8
8. Use of camera and software
The camera is managed by software PROVIEW. Click on the desktop icon to start the software
Software is pre-installed before the shipment from the factory.
The SW user manual is available in PDF format within the SW itself and can be opened using the F1 function
key.
You must have Acrobat Reader installed to view the manual.
The manual contains all the operating instructions for using the camera and for the various functions of the SW.
Page 9
9. Maintenance
Operative environment
This system is recommended to be used in a clean, dry and shock free environment with a temperature of 5°-
40°C and a maximum relative humidity of 75 % (non condensing). Use a dehumidier if needed.
To think about when and after using the system
• The system should always be kept vertically when moving it.
• Never mishandle or impose unnecessary force on the system.
• Never attempt to service the system yourself.
• After use, turn o the light immediately, cover the system with the provided dust cover, and
keep it in a dry and clean place.
Electrical safety precautions
• Before plugging in the power supply, make sure that the supplying voltage of your region
matches with the operation voltage of the equipment and that the lamp switch is in o-
position.
• Users should observe all safety regulations of the region. The equipment has acquired the
CE safety label. However, users do have full responsibility to use this equipment safely.
Cleaning the optics
• If the optical parts need to be cleaned try rst to: use compressed air.
• If that is not sucient: use a soft lint-free piece of cloth with water and a mild detergent.
• And as a nal option: use the piece of cloth moistened with a 3:7 mixture of ethanol and ether.
• Note: ethanol and ether are highly ammable liquids. Do not use them near a heat source, near sparks or
near electric equipment. Use these chemicals in a well ventilated room.
• Remember to never wipe the surface of any optical items with your hands.
• Fingerprints can damage the optics.
For the best results, use the OPTIKA cleaning kit (see catalogue).
If you need to send the systema to Optika for maintenance, please use the original packaging.
Page 10
10. Micrometric Slide M-005
For biological microscopes calibration
1 DIV=0.01mm
Micrometric slide, 26x76mm, with 2 scales
(1mm/100div. for biological microscopes / 10mm/100div. for stereomicroscopes)
For stereo microscopes calibration
1 DIV=0.1mm
0 1 2 3 4 5 6 7 8 9 10
