Concertmate®975

Portable Stereo Musical Instrument

with 61 Full-Size Keys and 100-Songs

42-4036.fm Page 1 Thursday, August 12, 1999 8:20 AM

FEATURES

Your Optimus Concertmate 975 Por-

table Stereo Musical Instrument is a

state-of-the-art keyboard with many

exciting features. You can set the

keyboard to sound like 100 different

musical instruments or sound effects.

To accompany your music, the key-

board has 100 rhythms, as well as

auto accompaniments and percus-

sion sounds.

Your keyboard’s features include:

100 Prerecorded Tunes — let you

hear a sample of what you and the

keyboard can do. You can play the

tunes either one at a time or consecu-

tively, and you can turn off the melody

or accompaniment portion so you can

play along with the tunes.

100 Tones — you can set your key-

board to sound like anything from a

harpsichord to a honky-tonk piano.

12-Note Pol

phonic Sound — lets

you play and hear up to 12 notes at

the same time so you can play or cre-

ate almost any type of music.

Tempo Control — lets you speed up

or slow down the tempo of any select-

ed music pattern.

100 Auto-Rh

thms — give you a

steady beat for many styles of music

from rhumba to slow rock.

Fill-In Rh

thm — lets you insert a

short variation into any auto-rhythm.

Auto Accompaniment — lets you

automatically play a preset harmonic

pattern to match the selected auto-

rhythm.

Tune Control — lets you adjust the

pitch of your keyboard so you can

play in tune with other instruments.

Transpose Function — lets you in-

stantly change the key of the music,

even while you are playing.

Two Built-In Speakers — provide

excellent sound to help make your

music come alive.

Headphones/Output Jack — lets

you connect headphones so you can

play without disturbing others, or an

external amplifier so you can play for

a crowd.

Three Power Options — let you

power the keyboard from internal bat-

teries (not supplied), standard AC

power (with an optional adapter), or

your vehicle’s cigarette-lighter socket

(with an optional adapter) so you can

make music almost anywhere.

Concertmate, Optimus, and RadioShack are registered trademarks used by Tandy Corporation.

42-4036.fm Page 2 Thursday, August 12, 1999 8:20 AM

To fully enjoy the features and func-

tions of this electronic keyboard,

please read this manual carefully and

completely.

Note: This owner’s manual explains

how to use this electronic keyboard. It

does not teach music.

We recommend you record your key-

board’s serial number here. The num-

ber is on the bottom of the keyboard.

Serial Number _________________

THE FCC WANTS YOU

TO KNOW

This keyboard complies with the limits

for a Class B digital device as speci-

fied in Part 15 of

FCC Rules

. These

limits provide reasonable protection

against radio and TV interference in a

residential area. However, your key-

board might cause TV or radio inter-

ference even when it is operating

properly. To eliminate interference,

you can try one or more of the follow-

ing corrective measures:

• Reorient or relocate the receiv-

ing antenna

• Increase the distance between

the keyboard and the radio or TV

• Use outlets on different electrical

circuits for the keyboard and the

radio or TV

Consult your local RadioShack store

if the problem still exists.

You must use shielded interface ca-

bles with this equipment.

42-4036.fm Page 3 Thursday, August 12, 1999 8:20 AM

CONTENTS

Preparation ..................................................................................................... 5

Connecting Power ..................................................................................... 5

Using Batteries .................................................................................... 5

Using AC Power .................................................................................. 6

Using Vehicle Battery Power ............................................................... 6

Connecting Headphones ........................................................................... 7

Listening Safely ................................................................................... 7

Connecting an External Amplifier .............................................................. 8

Using the Sheet Music Stand .................................................................... 8

Control Locations .......................................................................................... 9

Operation ...................................................................................................... 10

Basic Operation ....................................................................................... 10

Cancelling Auto Power Off ................................................................ 10

Playing the Prerecorded Tunes ................................................................ 11

Playing Back a Prerecorded Tune ..................................................... 11

Playing Along with a Prerecorded Tune ............................................ 12

Turning Applause Off/On .................................................................. 12

Consecutively Playing Back the Tunes ............................................. 13

Using the Preset Tones ........................................................................... 13

Selecting/Playing a Preset Tone ....................................................... 13

Keyboard Split Tones ........................................................................ 14

Layered Tones .................................................................................. 14

Percussion Sounds ........................................................................... 14

Using the Preset Auto-Rhythms .............................................................. 15

Selecting/Playing an Auto-Rhythm ................................................... 15

Using SYNCHRO .............................................................................. 16

Using FILL-IN .................................................................................... 16

Using Auto Accompaniment .................................................................... 16

Concert Chord ................................................................................... 17

Standard Fingering ........................................................................... 18

Special Features .......................................................................................... 20

Changing Keys ........................................................................................ 20

Tuning the Keyboard ............................................................................... 21

Troubleshootin

........................................................................................... 22

Care and Maintenance ................................................................................. 23

Standard Fin

erin

Chord Chart ................................................................ 24

thm List .................................................................................................. 26

Specifications ............................................................................................... 27

42-4036.fm Page 4 Thursday, August 12, 1999 8:20 AM

PREPARATION

CONNECTING POWER

You can power your keyboard in any

of these ways:

• internal batteries (see “Using Bat-

teries”)

• standard AC power using an

optional AC adapter (see “Using

AC Power” on Page 6)

• a vehicle’s cigarette-lighter

socket using an optional DC

adapter (see “Using Vehicle Bat-

tery Power” on Page 6)

Notes:

• Connecting an AC or DC adapter

automatically disconnects any

internal batteries.

• Always disconnect the AC or DC

adapter when you finish using the

keyboard.

Using Batteries

Your keyboard can use six AA batter-

ies (not supplied) for power. For the

best performance, we recommend al-

kaline batteries, such as RadioShack

Cat. No. 23-557.

Cautions:

• Use only fresh batteries of the

required size and recommended

type.

• Do not mix old and new batteries,

different types of batteries (stan-

dard, alkaline, or rechargeable),

or rechargeable batteries of dif-

ferent capacities.

1. Set POWER/MODE to OFF.

2. While pressing the tab on the bat-

tery compartment cover, pull the

cover up to remove it.

3. Put six AA batteries into the com-

partment as indicated by the

polarity symbols (+ and –)

marked below the compartment.

4. Replace the cover.

When the keyboard stops operating

properly, replace all six batteries.

Cautions:

• If you do not plan to use the key-

board for a week or more, or if

you plan to use only an AC or DC

adapter, remove the batteries.

Batteries can leak chemicals that

can destroy electronic parts.

• Dispose of old batteries promptly

and properly. Do not burn or bury

them.

42-4036.fm Page 5 Thursday, August 12, 1999 8:20 AM

Using AC Power

You can power your keyboard from

standard AC power using an optional

9-volt AC adapter (such as Ra-

dioShack Cat. No. 273-1656).

Cautions:

• You must use an AC adapter that

supplies 9 volts and delivers at

least 800 mA. Its center tip must

be set to negative and its plug

must fit the keyboard’s DC 9V

jack. The recommended adapter

meets these specifications. Using

an adapter that does not meet

these specifications could dam-

age the keyboard or the adapter.

• Always plug the AC adapter into

the keyboard before you plug it

into the AC outlet. Always unplug

the AC adapter from the AC out-

let before you unplug it from the

keyboard.

•BesurePOWER/MODE is set to

OFF before you connect or dis-

connect the adapter.

Follow these steps to connect an AC

adapter to the keyboard.

1. Connect the AC adapter’s 5.5

mm outer diameter/2.1 mm inner

diameter barrel plug to the DC 9V

jack on the back of the keyboard.

2. Plug the AC adapter’s other end

into a standard AC outlet.

Using Vehicle Battery Power

You can power your keyboard from

your vehicle’s cigarette-lighter socket

with an optional 9-volt DC adapter

(such as RadioShack Cat. No. 273-

1815).

Cautions:

• You must use a DC adapter that

supplies 9 volts and delivers at

least 800 mA. Its center tip must

be set to negative and its plug

must fit the keyboard’s DC 9V

jack. Using an adapter that does

not meet these specifications

could damage the keyboard or

the adapter.

• Always plug the DC adapter into

the keyboard before you plug it

into the cigarette-lighter socket.

Always unplug the DC adapter

from the cigarette-lighter socket

before you unplug it from the key-

board.

•BesurePOWER/MODE is set to

OFF before you connect or dis-

connect the adapter.

Follow these steps to connect a DC

adapter to the keyboard.

42-4036.fm Page 6 Thursday, August 12, 1999 8:20 AM

1. Plug the DC adapter’s 5.5 mm

outer diameter/2.1 mm inner

diameter barrel plug into the

cable so it reads – TIP.

2. Set the DC adapter’s voltage

switch to 9 volts.

3. Connect the DC adapter’s barrel

plug to the DC 9V jack on the back

of the keyboard.

4. Plug the DC adapter’s other end

into your vehicle’s cigarette-

lighter socket.

Note: If the keyboard does not oper-

ate when you use the DC adapter,

unplug the cord from the cigarette-

lighter socket and clean any ashes or

debris from the socket. If your key-

board still does not work, check the

fuse in the DC adapter and replace it

if necessary.

CONNECTING

HEADPHONES

To listen to your keyboard without

disturbing others, you can connect an

optional pair of stereo headphones

with a 1/4-inch plug. Your local Ra-

dioShack store sells a wide selection

of headphones.

Insert the headphones’ 1/4-inch plug

into the PHONES/OUTPUT jack on the

back of the keyboard.

Note: Connecting headphones dis-

connects the keyboard’s built-in

speakers.

Listening Safely

To protect your hearing, follow these

guidelines when you use head-

phones.

• Set the volume to the lowest set-

ting before you begin listening.

After you begin listening, adjust

the volume to a comfortable level.

• Do not listen at extremely high

volume levels. Extended high-

volume listening can lead to per-

manent hearing loss.

• Once you set the volume, do not

increase it. Over time, your ears

adapt to the volume level, so a

volume level that does not cause

discomfort might still damage

your hearing.

42-4036.fm Page 7 Thursday, August 12, 1999 8:20 AM

CONNECTING AN

EXTERNAL AMPLIFIER

To amplify your keyboard’s sound,

you can connect it to an optional ex-

ternal amplifier using an audio cable

with a 1/4-inch plug (not supplied).

To connect an external amplifier to

your keyboard, insert the cable’s 1/4-

inch plug into the PHONES/OUTPUT

jack on the back of the keyboard, and

connect the cable’s other end to the

amplifier’s input jack(s) (such as AUX

IN or TAPE IN).

Your local RadioShack store sells a

full line of amplifiers, speakers, and

connection cables.

USING THE SHEET

MUSIC STAND

To easily view sheet music while

playing your keyboard, insert the sup-

plied sheet music stand into the holes

on the top back panel.

42-4036.fm Page 8 Thursday, August 12, 1999 8:20 AM

CONTROL LOCATIONS

Speaker

PLAY/

STOP

TRANSPOSE/

TUNE

RHYTHM

TEMPO

START/STOP

SYNCHRO/FILL-IN

VOLUME

POWER/MODE Number

+/_

TONE

SONG

LEFT

Speaker

100 RHYTHMS

List

100 TONES List

100 SONGS List

ON/OFF RIGHT

ON/OFF

PAUSE

Keys

42-4036.fm Page 9 Thursday, August 12, 1999 8:20 AM

OPERATION

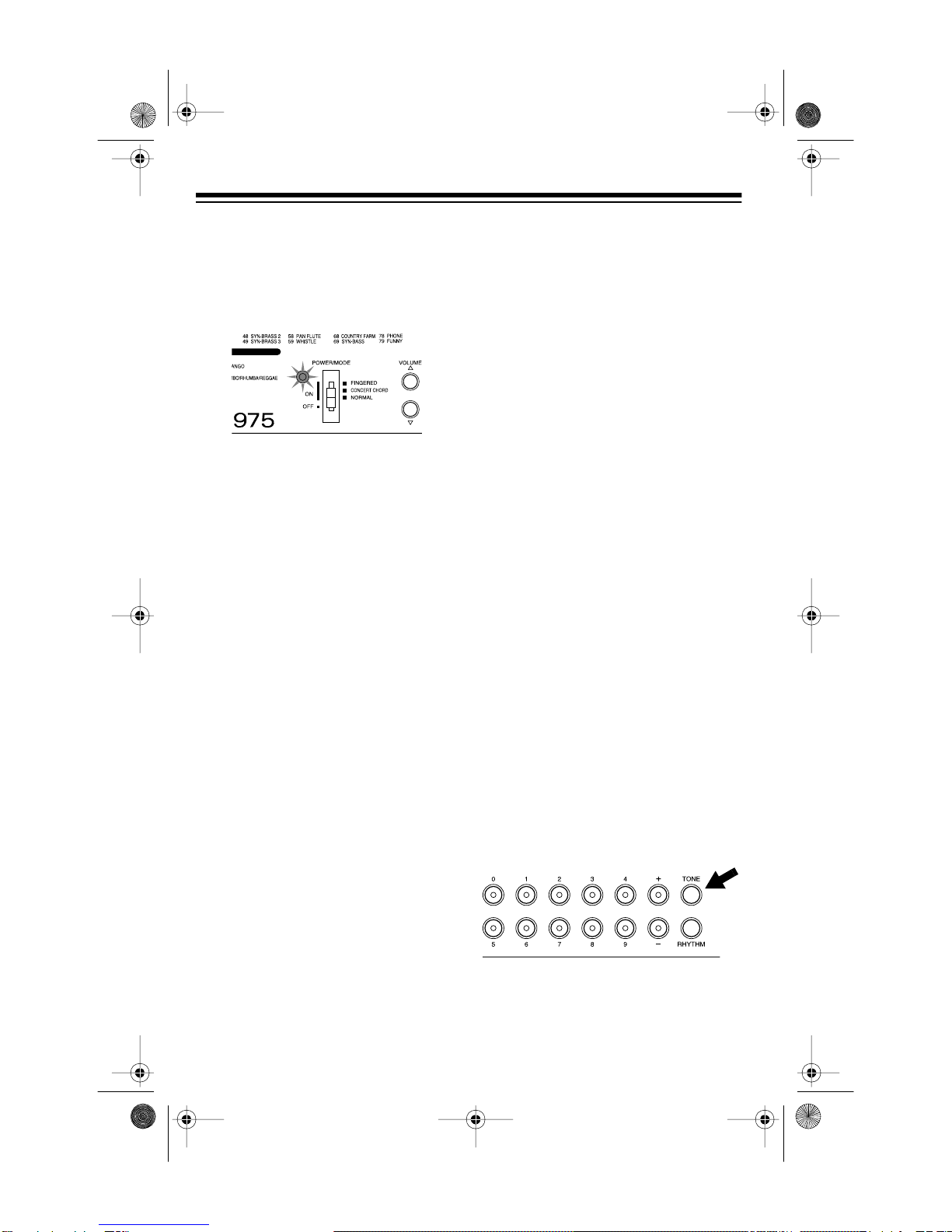

BASIC OPERATION

1. To turn on the keyboard, set

POWER/MODE to NORMAL.The

POWER/MODE indicator lights.

Note: To save power when oper-

ating on batteries, the keyboard

automatically turns off after about

6 minutes if you do not press a

key. To turn on the keyboard

again, set POWER/MODE to OFF

then back to NORMAL. (To cancel

the auto power off feature, see

“Cancelling Auto Power Off”).

2. To hear a sample of the Concert-

mate 975’s many sounds, play a

prerecorded tune (see “Playing

the Prerecorded Tunes” on

Page 11). To make your own

music, simply begin playing the

keyboard.

Notes:

• The keyboard automatically

selects the tone PIANO 1 (No.

00) when you turn the power

on. To select a different tone,

see “Selecting/Playing a Pre-

set Tone” on Page 13.

• To select an auto-rhythm, see

“Using the Preset Auto-

Rhythms” on Page 15.

• To play auto accompaniment,

see “Using Auto Accompani-

ment” on Page 16.

3. Repeatedly press VOLUME s or t to

increase or decrease the volume.

The current setting appears.

Notes:

• The keyboard’s volume ranges

from 0 (no sound) to 9 (maxi-

mum). Each time you turn on

the keyboard, the volume is set

to 7.

• To quickly change the volume

setting, hold down VOLUME s

or t.

• To quickly return to the default

volume setting of 7, press both

VOLUME buttons at the same

time.

• The volume level differs

depending on the tone, accom-

paniment, or song you

selected.

4. To turn off the keyboard, set

POWER/MODE to OFF. The POW-

ER/MODE indicator turns off.

Cancelling Auto Power Off

To have the keyboard not automati-

cally turn off during a session, turn on

the keyboard while holding down

TONE.

The next time you turn the keyboard

off then back on again, it will automat-

ically turn off after about 6 minutes.

42-4036.fm Page 10 Thursday, August 12, 1999 8:20 AM

Inhaltsverzeichnis

Andere Optimus Elektronische Tastatur Handbücher

Optimus

Optimus MD-1150 Bedienungsanleitung

Optimus

Optimus CONCERTMATE 690 42-4035 Bedienungsanleitung

Optimus

Optimus Concertmate 42-4035 Bedienungsanleitung

Optimus

Optimus Concertmate 980 Bedienungsanleitung

Optimus

Optimus MD-1200 Bedienungsanleitung

Optimus

Optimus CONCERTMATE 970 Bedienungsanleitung

Optimus

Optimus MD-1600 Bedienungsanleitung

Optimus

Optimus CONCERTMATE 575 Bedienungsanleitung

Optimus

Optimus CONCERTMATE 970 Bedienungsanleitung

Optimus

Optimus Concertmate 410 Bedienungsanleitung

Beliebte Elektronische Tastatur Handbücher anderer Marken

Casio

Casio LK-50 Konfigurationshandbuch

Casio

Casio VZ-1 Fehlerbehebungshandbuch

Casio

Casio Privia PX-100 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-225GM Bedienungsanleitung

Behringer

Behringer U-CONTROL UMX49 Bedienungsanleitung

Yamaha

Yamaha Portatone X2500 Bedienungsanleitung

Yamaha

Yamaha Portatone PSR-100 Bedienungsanleitung

Casio

Casio WK-1600 Bedienungsanleitung

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Technisches Datenblatt

Yamaha

Yamaha PortaSound PCS-30 Bedienungsanleitung

Roland

Roland Juno-6 Bedienungsanleitung

McGrey

McGrey 6170 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-41 Bedienungsanleitung

HDC

HDC Kurzweil KP300X Bedienungsanleitung

Casio

Casio Celviano AP-45 Bedienungsanleitung

Akai

Akai MPK88 Bedienungsanleitung

Waldorf

Waldorf IRIDIUM Bedienungsanleitung

Yamaha

Yamaha NP-30 Montageanleitung
