1. Install Software
4. Plug In Hardware
Download the latest software installer* from
the website or use software CD if included.
Run the installer and follow its prompts.
Connect the V120:SLIM's cord to a USB port of an OptiTrack OptiHub or USB hub.
OptiHubV120:SLIM
two-pin connector
Install M12 Lens - PCB Install M12 Lens - Case Install CS Lens - Case Install C Lens - Case
Wave Spring
PCB wih M12 lens holder
and Filter Switcher
2. Install Lens (optional)
Thread the lens into included lens holder/adapter until finger tight.
* PCB-only V120:SLIM cameras (no case) only support M12 lenses.
* Mounting an M12 lens on a V120:SLIM camera with the case requires a CS to M12 adapter.
* OptiTrack M12 lenses should be installed with the included Wave Spring for secure focusing.
* CS lenses can be installed directly onto the V120:SLIM case.
* C lenses require a CS to C adapter before mounting onto the camera case. PCB wih M12 lens holder
and Filter Plug
Technical Notes
* Make sure all USB hubs used with the device are externally powered (plug into wall).
* When using a V120:SLIM camera, a lens must be used to track or capture video.
* Windows 2000, XP, Vista and Windows 7 users must be logged in as an administrator to
install the USB drivers. If you only have one user login on your computer, you probably
have administrator privileges.
*To find compatible software, please visit the
website.
3. Install Filter Plug or Filter Switcher (optional)
* Insert Filter Plug/Filter Switcher into slot on the side of M12 lens holder (right-side slot if
camera is upright and facing you).
* Tighten set screw on right side of plug.
* If Filter Switcher: Plug two-pin connector into jack at top rear of board. Route wire through
notch at top of board.
Note: Perform steps in reverse to uninstall Filter Plug/Filter Switcher.

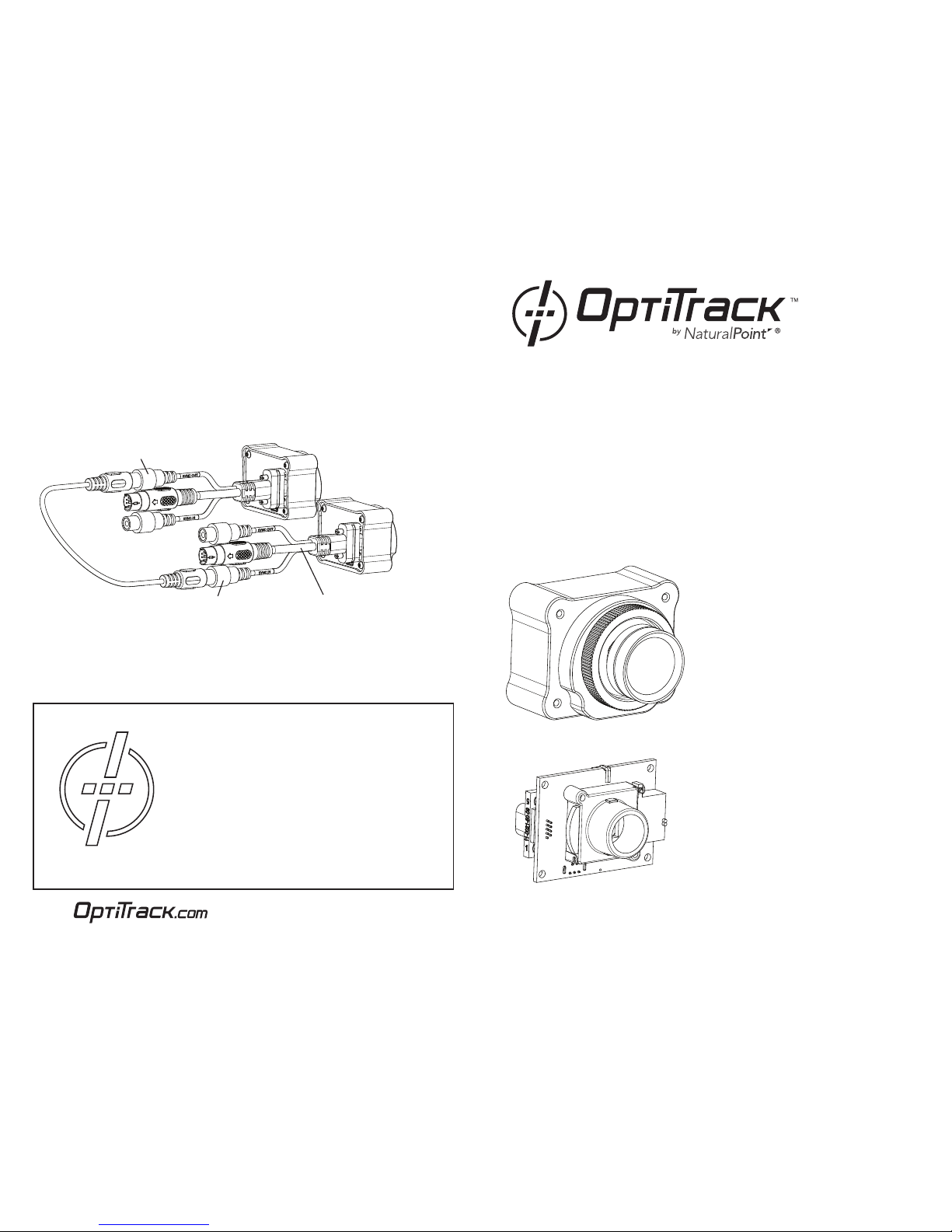

Synchronizing Multiple Cameras
Multiple OptiTrack cameras may be synchronized for greater precision.
* See back for instructions.
