ModelName:DV-10

SERVICEMANUAL

Date Revise Version Description

2005/8/30 V1.0 Initial Issue

CopyrightAugust, 2005 .All RightsReserved

Prepared bySI:

________________________________________

Prepared byTSE :

________________________________________

Checked by:

________________________________________

Approved by:

________________________________________

DV-10

Preface

This manual is applied to DV-10 0.55” DMD XGA digital projection system. It’s the mode of

single Panel, 180 Watt Compact P-VIP Lamp and 854(H) x 480(V) resolution. The manual

gives you a brief description of basic technical information to help in service and maintaining

theproduct.

Your customers will appreciate the quick response time when you immediately identify prob-

lems that occur with our products. We expect your customers will appreciate the service that

youofferthem.

This manual is for technicians and people who have an electronic background. Send the

product back to the distributor for repairing and do not attempt to do anything that is complex

or is not mentioned in the troubleshooting.

NOTICE :

The information found in this manual is subject to change without prior notice.Any subsequent

changes made to the data herein will be incorporated in further edition.

Manual Version 1.0

TableofContents

Chapter1Introduction 1-1

ProductHighlight1-1

MechanicalSpec1-2

CompatibleModes1-9

Chapter2DisassemblyofProcedure 2-1

EquipmentNeeded 2-1

RemoveLamp,DVDModuleand ControlKeypad Board 2-2

RemoveTop Cover,Speaker,Keypad Board,RearCover,

Fan Module,MainBoardandAudioBoard 2-5

RemoveLampDriver,LVPS,Engine,ColorWheel2-8

RemoveDMDBoard,DMDChip,ThermalBoard,FrontCover,

ElevatorModuleand Keypad Board.2-10

Chapter3Troubleshooting 3-1

EquipmentNeeded 3-1

LEDIndicationsTable 3-1

MainProcedure 3-1

Chapter4Function Testand AlignmentProcedure 4-1

TestEquipment4-1

TestCondition 4-1

TestDisplayModesand Pattern 4-2

InspectionProcedure 4-5

Calibration 4-7

Guide toEntering ServiceMode andFactoryReset4-8

Chapter5FirmwareUpgradeProcedure 5-1

EquipmentNeeded 5-1

HardwareSetup Procedure 5-1

FirmwareProgarm Installation Procedure 5-2

FirmwareUpgrade Procedure 5-9

DV-10

Chapter6EDIDKey-inProcedure 6-1

EquipmentNeeded 6-1

Setup Procedure 6-2

DDC Key-inProcedure 6-3

Chapter7DV-10 DVDCodeInstallation Procedure 7-1

DVDRegion Code 7-1

Setup Procedure 7-1

AppendixA7-1

Exploded Overview7-1

AppendixB7-32

PCBA Code Definition 7-32

AppendixC7-33

SerialNumberSystemDefinition 7-33

Reader’s Response 7-34

DV-10ii

DV-10

1-1

Chapter1

Introduction

1-1 Product Highlights

Projector

-One 480P (854 x 480) DMD DVD projection system with DVD module bundled

-800ANSI lumens (typical), 680ANSIlumens

-75% uniformity (Typical), 65% minimum (Japan standard)

-Contrast (FOFO) : 2000 : 1 (Typical), 1300:1

-Dimensions : 14.5 x 4.6 x 10.75 inches (368.5 x 116.6 x 272.7 mm)

-Weight < 8 lb

-Adjustable Feet angle 9.5%

-Zoom lens 1.1X, throw ratio from 1.35 to 1.5

-Diameter 44mm, 7segments GRBWGRB color wheel spinning at 120Hz.

-200 Watt Phoenix Lamp. Lamp life 2000 hours, Low mode 3000 hours-based on

Phoenix DC lamp specification.

-High efficiency cooling system with typical system acoustic noise level : 35 dB(A) in

normal mode and 32 dB(A) in the low mode.

-Computer capability up to SXGA 60Hz forAnalog

-NTSC/PAL/SECAM video capability with S-video, composite and HDTV(480i/p,

576i/p, 720p, 1080i)

-Auto detection of computer signal input.

-Auto Image.(Auto-tracking /frequency /position adjustment)

-Automatically saves adjustments for future use

-Projector on-screen menu with 9 languages. (Eng/Fra/Ger/Ita/Spa/Por/Traditional

Chinese/Simplified Chinese/Korean)

-On Screen lamp life timer.

-One IR remote controller for projector and DVD play both

-Half height DVD Meca + SOC

DVD Module

-Half Height top loading DVD traverse

-One SOC for MPEG decoder and DVD servo

-Direct interlace, digital video output from MPEG decoder to Scaler ITU-R 656 YUV

(4:2:2)

-Digital audio out and one subwoofer out

DV-10

1-2

-Compatible with DVD,VCD,SVCD,HDCD,CD,CD-R,CD-RW,MP3, WMA,discs and

Kodak CD picture.

-Contrast, brightness, saturation, tint, sharpness, gamma adjustment open up

-On-screen menu with 9 languages. (Eng/Fra/Ger/Ita/Spa/Por/Traditional Chinese/

Simplified Chinese)

-DVD keypad/button function

1. Play/Pause, Stop, Eject, Forward, Backward, Menu, Volume up, Volume down.

1-2 Mechanical Spec.

-Dimensions(WxHxD)14.5 x 4.6 x 10.75 inches (368.5 x 116.6 x 272.7 mm)

-Weight 8.25 lb

-Cooling System AdvancedAir Flow

Two motor fans (one 5020 Blower fan and one 7020 axial fan)

Temperature control circuits with adaptive voltage control fan speed

-Lamp Door Protection

Lamp power supply shuts off automatically when door open

-Feet Adjustable foot 9.5%

-Packing One Carry bag + Outside cushion and carton

Display Panel Specifications

-TI DMD 480p / 12deg / 854x480

-Number of active dots : 854(H) x 480(V)

Electrical Specifications

-PowerSupply Universal 100~240 VAC+/-10%, 50-60 Hz with PFC input

For DV-10 , AC100V+/-10% (50-60 Hz) only.

-Powerconsumption 275W +/- 10% (Operating)

230W +/- 10%(ECO)

14W(Standby)

I/O ports & Inputs signals

-Video I/O

DV-10

1-3

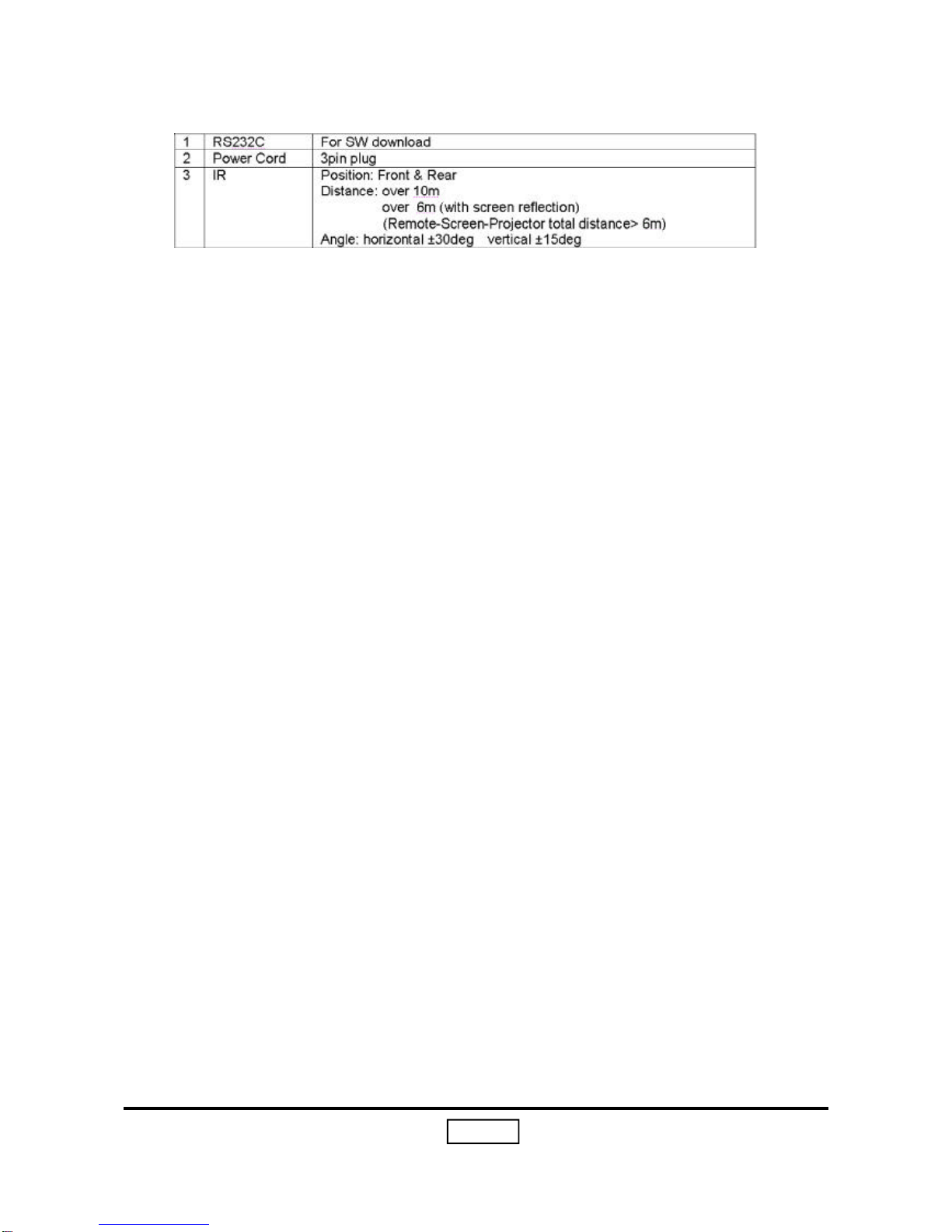

-Others

Input signal spec.

-H-sync Frequency: 15.75 ~ 91.1 kHz

-V-sync Frequency: 43 ~ 85 Hz

-Video Signal RGB (PC)

Analog RGB: 0.7Vp-p, 75 ohm

Analog RGB: 1Vp-p, 75 ohm, Sync. Signal

Separate TTL H,V Sync.

CompositeTTL Sync.

-Video

Composite video: 1Vp-p,75 ohm

S-video Luminance: 0.714Vp-p,75 ohm

S-video Chrominance: 0.286Vp-p,75 ohm

Video Compatibility

-Standards : (Should be frame lock)

NTSC - M,

PAL - B, D, G

HDTV - 720p, 1080i

Note: support 480i, 480p, 576i and 576p

TV Lines -500 lines

Intelligent Zoom

-by using “TI DDP2000” Chips to provide excellent quality zooming.

Keystone

-Vertical: +/- 15 deg (Desk-projector angle)

Control Key Pad

-7 keys for projector and 6 keys for DVD

IR Remote Controller

-Top of the minus side battery spring should be directed to inside of cabinet.

-Top of the plus side battery spring should be lower than the libs of cabinet.

DV-10

1-4

Indicator

-“Lamp” Red

-“Temp” Orange

-“Power” Blue (Power on) / Red (Stand by)

Auto Detect & Install

-Automatically recognizes the computer's video signal and configures itself

accordingly.

-Automaticallysaves adjustments forfuture use.

On-Screen Menu

-Multi-language: 17 languages support be separate into two version - forAsia/US

and EMEA Chinese/Korean

-6 main items ( Image-I, Image-II, Display, System, Language, Lamp Setting)

Projection lens

-f = 28.3 ~ 38.2 mm, F/3.4, 1.1X.

Projection Image Size

-21” to 282” Diagonal

Throw Distance

-3.28 ft to 32.80 ft/ 1.0m to 10m

Offset

-154% = H’ /H

-120% with extension feet.

DV-10

1-5

Throw Ratio: 1.25~1.5 (Projection Distance/Image Width)

DV-10

1-6

Tolerance

-Throw ratio <= +- 5%

Brightness

-Typical 800ANSI lm /Minimum 680ANSIlm

<Condition> Spoke light mode “White” on Service Menu. (Bright mode)

Contrast

-Full on / Full off :Typical 2000 : 1 /Minimum 1300 : 1 (Spoke on/Spoke off)

<Condition> Spoke light mode “White” and “Black” on Service Menu.

at the center of a spoke mode black pattern

<Condition> White: Same as full on brightness

Black: True black (no dithering noise)

<Condition> Bright mode

The white rectangles shall be at 100% gray and the black rectangles at 0% gray.

Illuminance measurements shall be made at the center of each of the rectangles.

Uniformity

-Typical Japan 75% /Minimum 65% (Full on)

<Condition> Spoke light mode “White” on Service Menu. (Bright mode)

Temperature

-Operating: 5oC -- 35oC

-Storage: -10oC -- 60oC

Maximum Humidity

-Operating: 5oC -- 35oC , 0 - 80 %RH (Max.), non-condensing

-Storage: -10oC -- 60oC , 0 - 80 %RH (Max.), non-condensing

Acoustic noise level

-typical : 35dB(A)/Normal mode.

-typical : 32dB(A)/Low mode.

-noisemeasurement:

Follows ISO 7779, A-weighted sound pressure level measurement

7200 rpm color wheel rotation and with DVD operation.
