Optoma EP735 Bedienungsanleitung

FCC Notice

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference

in a residential installation.

Trademarks

Trademarks are the rights of their respective owners.

English

Usage Notice

Precautions .......................................................................................... 2

Introduction

Product Features.................................................................................. 3

Package Overview ............................................................................... 4

Product Overview ................................................................................. 5

Installation

Connecting the Projector ...................................................................... 8

Powering On/Off the Projector.............................................................. 9

Adjusting the Projected Image.............................................................. 11

User Controls

Panel Control & Remote Control .......................................................... 13

On-Screen Display Menus ................................................................... 15

Appendices

Troubleshooting .................................................................................... 22

Changing the Lamp............................................................................... 25

Specifications ....................................................................................... 26

Compatibility Modes............................................................................. 27

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Usage Notice

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down, and follow

all changing instructions.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life from OSD

menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

Warning- When connecting the projector to computer, please turn on the

projector first.

Warning- To reduce the risk of injury to the eyes, do not look directly into the

laser light on the remote control and do not point the laser light into

anyone’s eyes. This remote control is equipped with a Class II laser

that emits radiation.

Warning- When the lamp reaches the end of its life, it will burn out and may

make a loud popping sound. If this happens, the projector will not

turn back on until the lamp module has been replaced. To replace the

lamp, follow the procedures listed under “Changing the Lamp”.

English

Product Features

This product is an XGA single chip 0.7” DLPäProjector. The outstanding

features of it are listed as follows:

qTrue XGA, 1024 x 768 addressable pixels

q3.3 lbs (1.5 kgs) lightweight compact design

qSingle chip DLPätechnology

qSXGAcompression and VGA, SVGAre-sizing

q130 Watts user replaceable P-VIP lamp

qMac/NEC PC-98/FM Towns compatible

qNTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV (1080i,720P,480i/P)

compatible

qFull function remote with mouse control and laser pointer

qHigh-techDVI Connection for digital and analog video connectivity

qHigh definition TV compatibility

qUser friendly Multilingual on-screen display menu

qAdvanced electronic keystone correction

qUser friendly control panel with backlight

qLuxurious carrying case included

Introduction

English

Package Overview

This projector comes with all the items shown below. Check to make sure your

unit is complete. Contact your dealer immediately if anything is missing.

Projector Power Cord

S-Video Cable RCA Audio Cable

D-Sub RGB to DVI Cable

Remote Control with Mouse

Function & Laser Pointer

Carrying Case

Warranty Card

Composite Video Cable

DVI Signal Cable for

HDTV/Component

Quick Start Card

Remote Mouse Y Cable

Battery x 2 User’s Guide

English

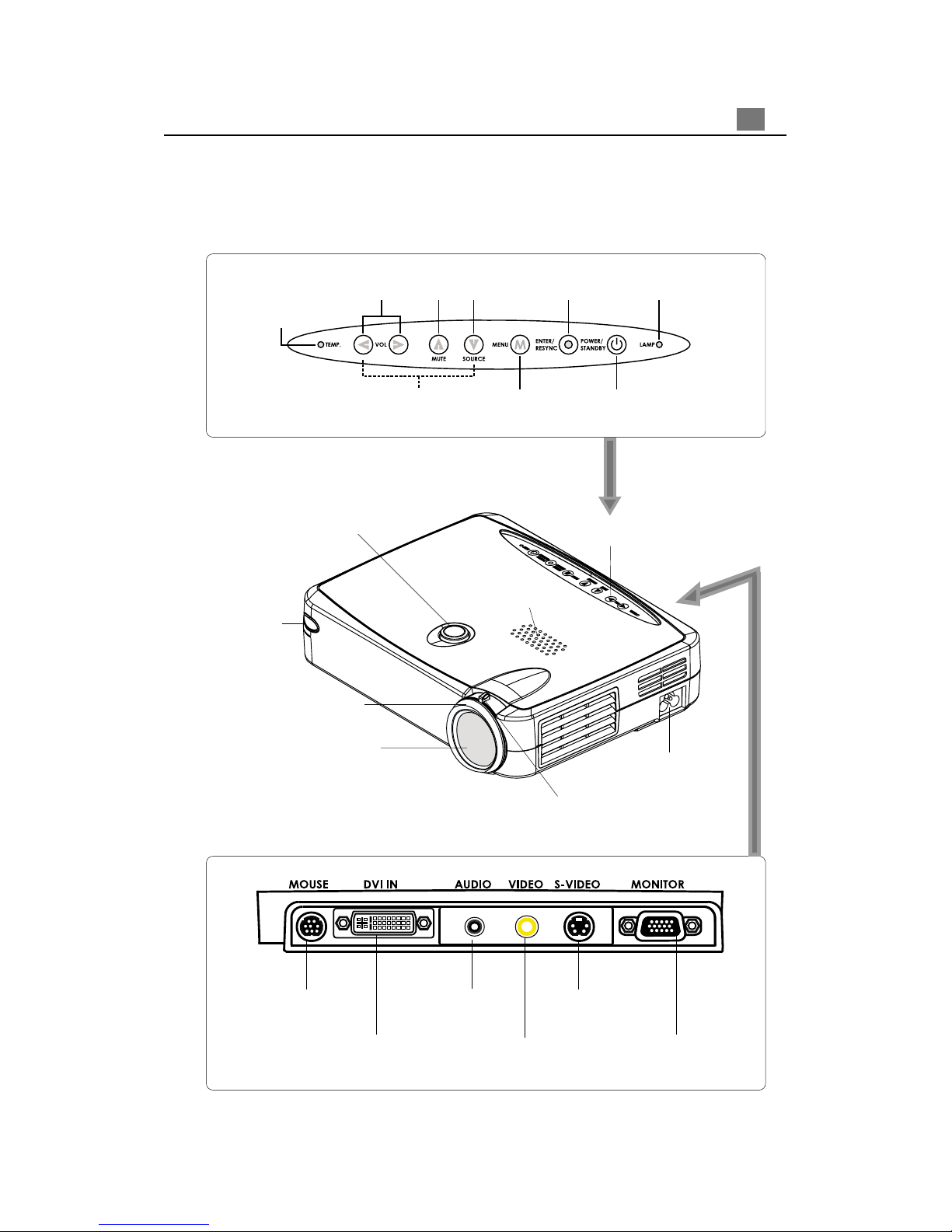

Product Overview

Speaker

Focus Ring

Remote Control

Receiver

Zoom Ring

Zoom Lens Power Connector

Elevator Button

ConnectionPorts

HDTV/ComponentVideo

& Computer Input

Connector

S-videoInput

Connector

Audio Input

Connector

Composite Video

InputConnector

Remote Mouse

InputConnector

MonitorLoop-

throughConnector

PanelControl

Power On / StandbyMenu

(On/Off)

Enter /

Resync

Source

FourDirectional

Select Keys

MuteVolume Lamp

Warning LED

MainUnit

Panel Control

Temperature

Warning LED

English

Remote Control with Mouse Function & Laser Pointer

Source

Resync

Freeze

Keystone Correction

Power / Standby

Volume ( + / - )

Mute

Multi-Directional

Laser Pointer

Zoom In / Zoom Out

PageUp

PageDown

LED Point

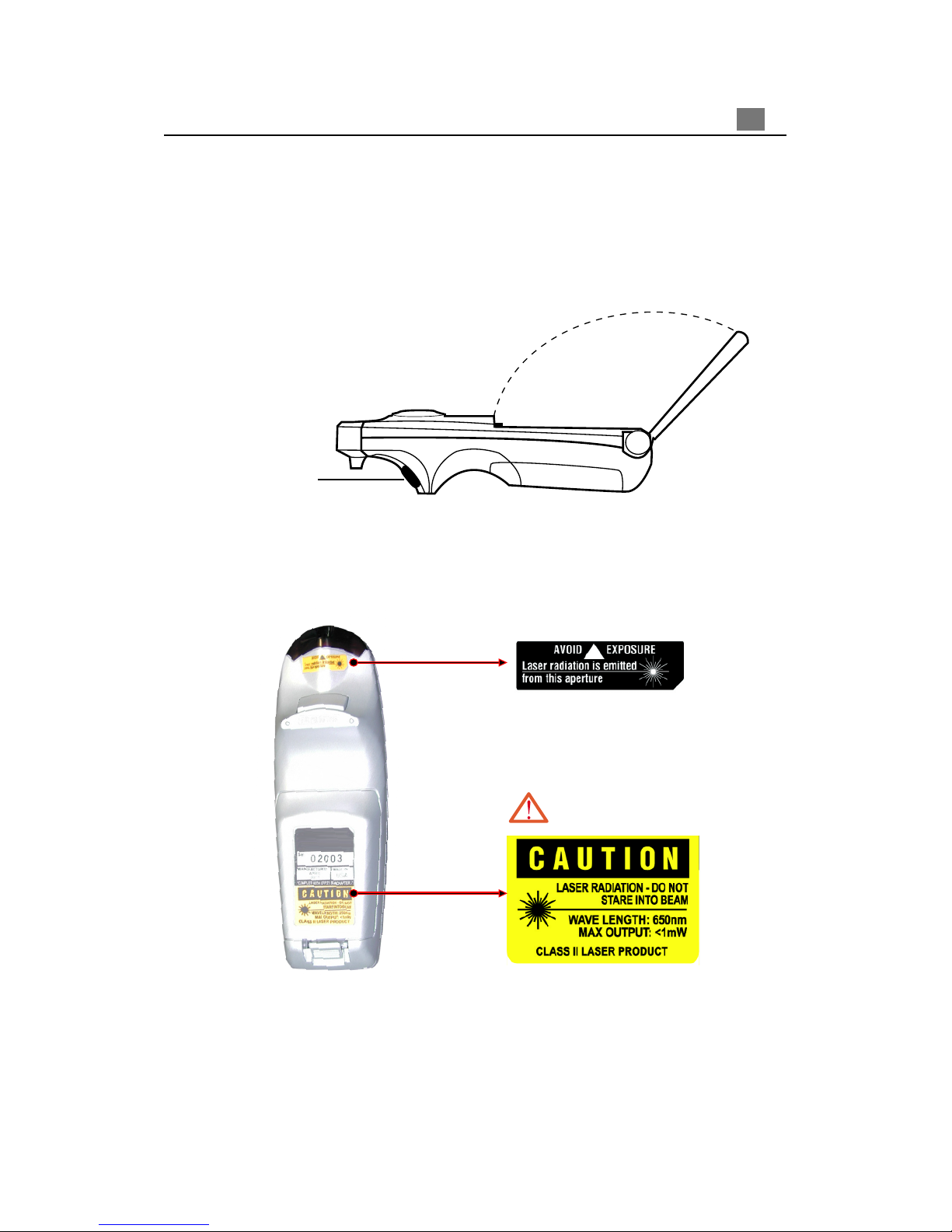

Caution: To reduce the risk of injury to the eyes, do not look directly

into the laser light on the remote control and do not point the laser light into

anyone’s eyes.This remote control is equipped with a Class II laser that

emits radiation.

English

Enter Key

Laser Pointer Caution

English

Connecting the Projector

Installation

vDVI signal cable for DVI is the optional accessory.

vTo ensure the projector works well with your computer, please configure the

display mode of your graphic card to make it less than or equal to 1024 X 768

resolution. Make sure timimg of the display mode is compatible with the projecor.

Refer to the“Compatibility Modes”section on page 27.

Power Cord

S-Video Output

Monitor Cable

S-Video Cable

Video Output

Audio Output

Remote Mouse Y Cable

D-Sub RGB to DVI Cable

D-Sub RGB to

DVI Cable

RGB Port

Digital Port

RGBPort

DigitalPort

DVI Signal Cable for

HDTV/Component

Composite Video Cable

RCA Audio Cable

RS232

USB

*DVI Signal Cable for DVI

English

uPowering On the Projector

1. Remove the lens cap.

2. Ensure that the power cord and signal cable are securely connected.

3. The “Power/Standby” indicator will flash.And press the “Power/Standby” button

again to start on your projector.

The startup screen will display and count down for 20 seconds and the Power/

Standby indicator will light solid amber.

4. Turn on your source (computer, notebook, or video player ,etc.). The projector will

detect your source automatically.

* If the screen displays “No Signal” , please make sure the signal cables are

securely connected.

* If you connect multiple sources at the same time, use the “Source” button

on the Remote Control or Panel Control to switch.

* Turn on the projector first and then the computer.

Power On/Off the Projector

Lens cap

Power /

Standby
