Oracle® ZFS Storage ZS7-2 Getting Started Guide

Contents

1 Oracle ZFS Storage ZS7-2 controller 2 Two power cords 3 Slide rail kit

4 Cable management arm 5 One 6-meter Ethernet cable (black) 6 Three 2.5-meter Ethernet cables (black,

yellow, green)

7 Up to eight (mid-range model) or up to

sixteen (high-end model) 3-meter or 6-

meter optical SAS cables (blue). Length

and quantity per customer request, and sold

separately.

Front Panel Components

1 RFID tag 2 System status LED: Locator (white) 3 System status LED: Service Action

Required (amber)

4 System status LED: Power/OK (green) 5 Power button 6 Fan service action required (amber)

7 Power Supply (PS) service action required

(amber)

8 Over-temperature warning (amber) 9 Service Processor (SP) OK (green)

10 Do Not Service indicator 11 System disk 0 12 System disk 1

13 Filler panel 14 Filler panel 15 Filler panel

16 Filler panel 17 Filler panel 18 Filler panel

19 Filler panel 20 Filler panel 21 Filler panel

22 Filler panel

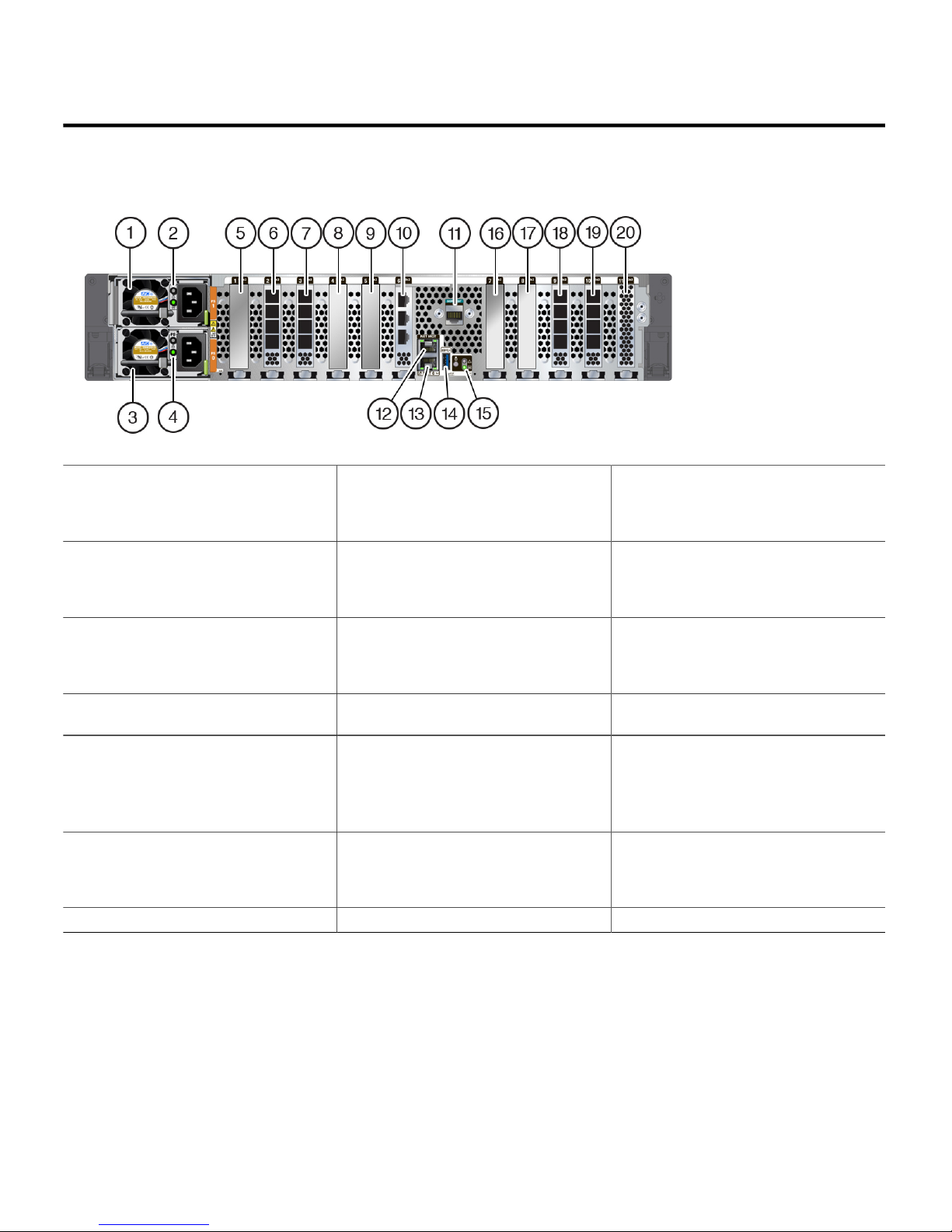

Back Panel Components

1 Power Supply Unit (PSU) 1 2 PSU 1 status indicators (top to bottom):

■ Attention (amber)

■ Power/OK (green)

3 PSU 0

4 PSU 0 status indicators (top to bottom):

■ Attention (amber)

■ Power/OK (green)

5 Fifth PCIe option (slot 1) 6 External SAS-3 HBA (slot2)

7 Slot 3:

■ High-end model: External SAS-3 HBA

■ Mid-range model: Filler panel

8 First PCIe option (slot 4) 9 Third PCIe option (slot 5)

10 Cluster interface card (slot 6) 11 Serial management (SER MGT) RJ-45

serial port

12 Service Processor (SP) NET MGT port

13 Network (NET) 100/1000BASE-T RJ-45

Gigabit Ethernet (GbE) port: NET 0

14 USB 3.0 port 15 System status LEDs:

■ Locate (white) - left

■ Attention (amber) - right, top

■ Power/OK (green) - right, bottom

16 Fourth PCIe option (slot 7) 17 Second PCIe option (slot 8) 18 Slot 9:

■ High-end model: External SAS-3 HBA

■ Mid-range model: Filler panel

19 External SAS-3 HBA (slot 10) 20 Internal SAS-3 HBA (slot 11)

Install the Hardware

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage.

Connect System Cables

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage. If you have clustered controllers, connect the cables to both controllers. Do not connect

power cables to the controllers or disk shelves until instructed to do so in "Power On and Configure the System."

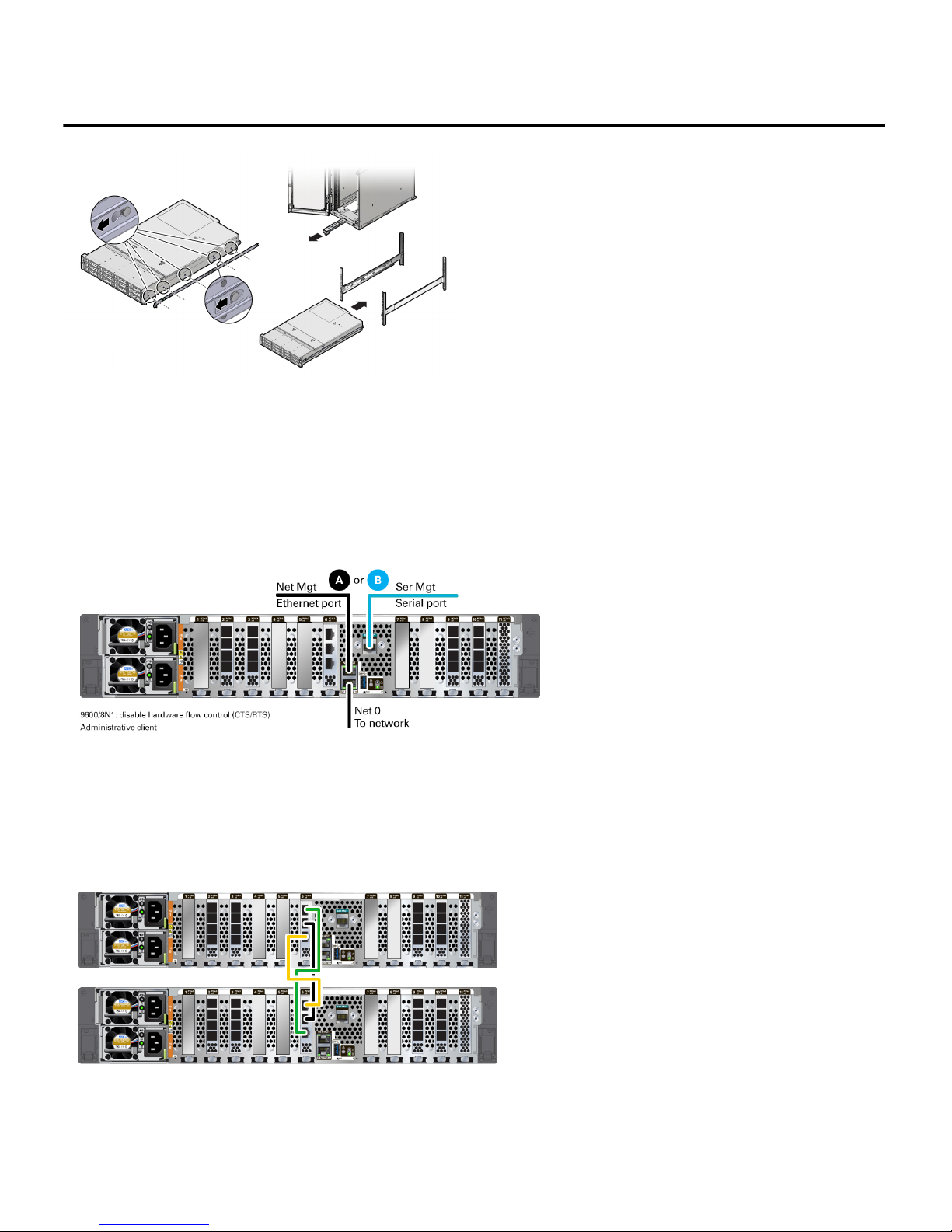

The following illustration shows an Oracle ZFS Storage ZS7-2 high-end model.

Connect Clustered Controllers

If you have clustered controllers, connect the two controllers together. For detailed information, see the Oracle ZFS

Storage Appliance Cabling Guide available from https://docs.oracle.com/en/storage.

Connect Disk Shelves

The following illustration shows the Oracle ZFS Storage ZS7-2 mid-range model with external SAS-3 HBAs in slots

2 and 10, and connected to the Oracle Storage Drive Enclosure DE3-24P disk shelf. For additional configuration

options, see the Oracle ZFS Storage Appliance Cabling Guide available from https://docs.oracle.com/en/

storage. Do not connect power cables to the disk shelves or controllers until instructed to do so in "Power On and

Configure the System."

Power On and Configure the System

Required information: A) Network host name and port of your serial connection, or B) Network management port

DHCP-assigned address. Connect disk shelf power cables, power on disk shelves, connect controller power cables,

power on controllers, and configure the system as described in the Oracle ZFS Storage Appliance Installation Guide

available from https://docs.oracle.com/en/storage.

Perform Initial Configuration

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage, including properly configuring the management interfaces and updating the controller

software.

Product Documentation Library

Documentation for this product is available in the storage section of the Oracle Help Center, located at https://

docs.oracle.com/en/storage/.

Access to Oracle Support

Oracle customers that have purchased support have access to electronic support through My Oracle Support. For

information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.

com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

Feedback

Provide feedback on this document at http://www.oracle.com/goto/docfeedback.

Part No: E93300-01

Mfg. No: 7357697

October 2018
