Orbital Systems Oas Standard Bedienungsanleitung
Oas Standard : Compressed installation process
Please note: This document does not replace the
installation manuals. For installation purposes, please
use the respective Oas installation manuals.
Oas Standard

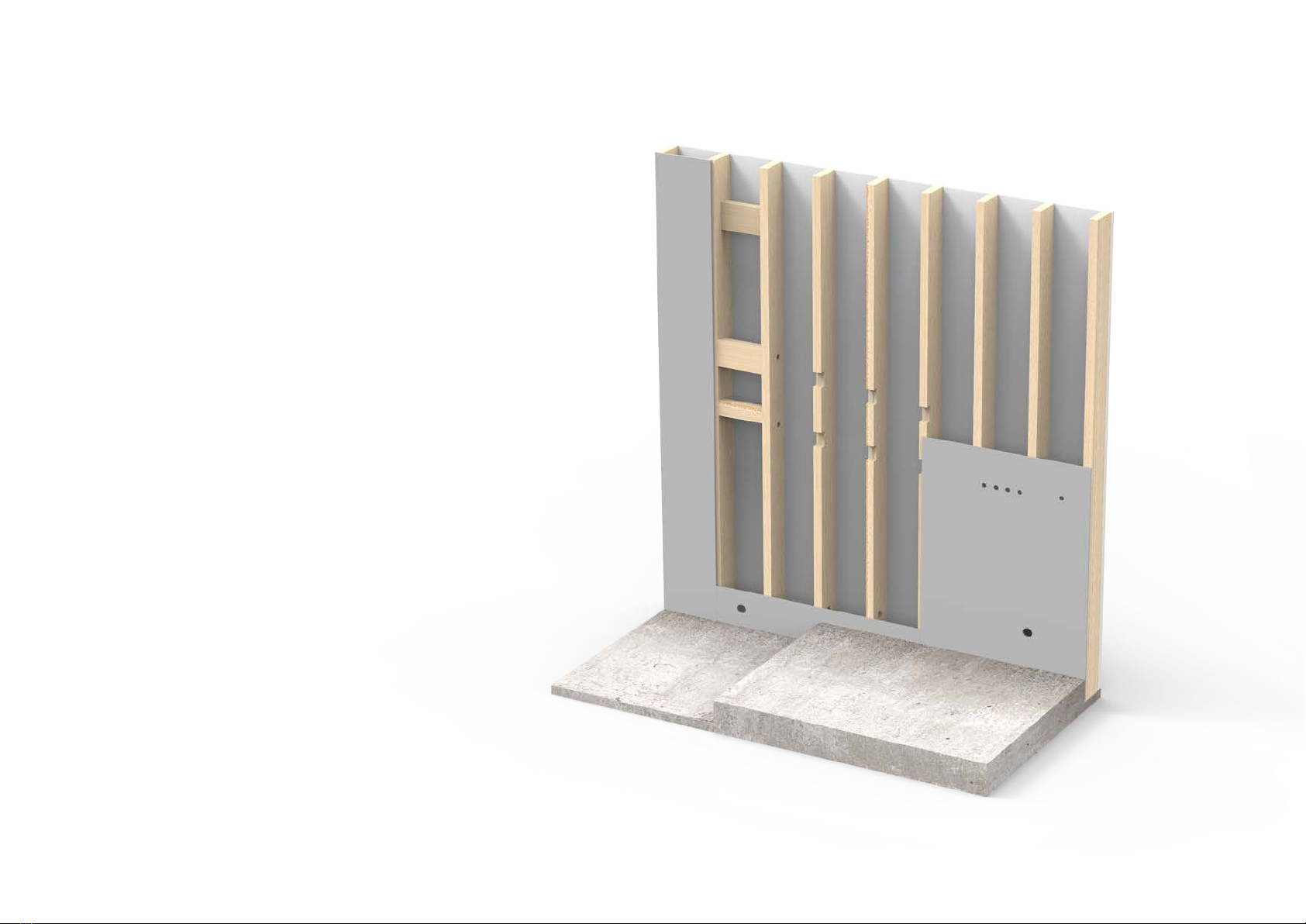

• Prepare shower space
Step. 1

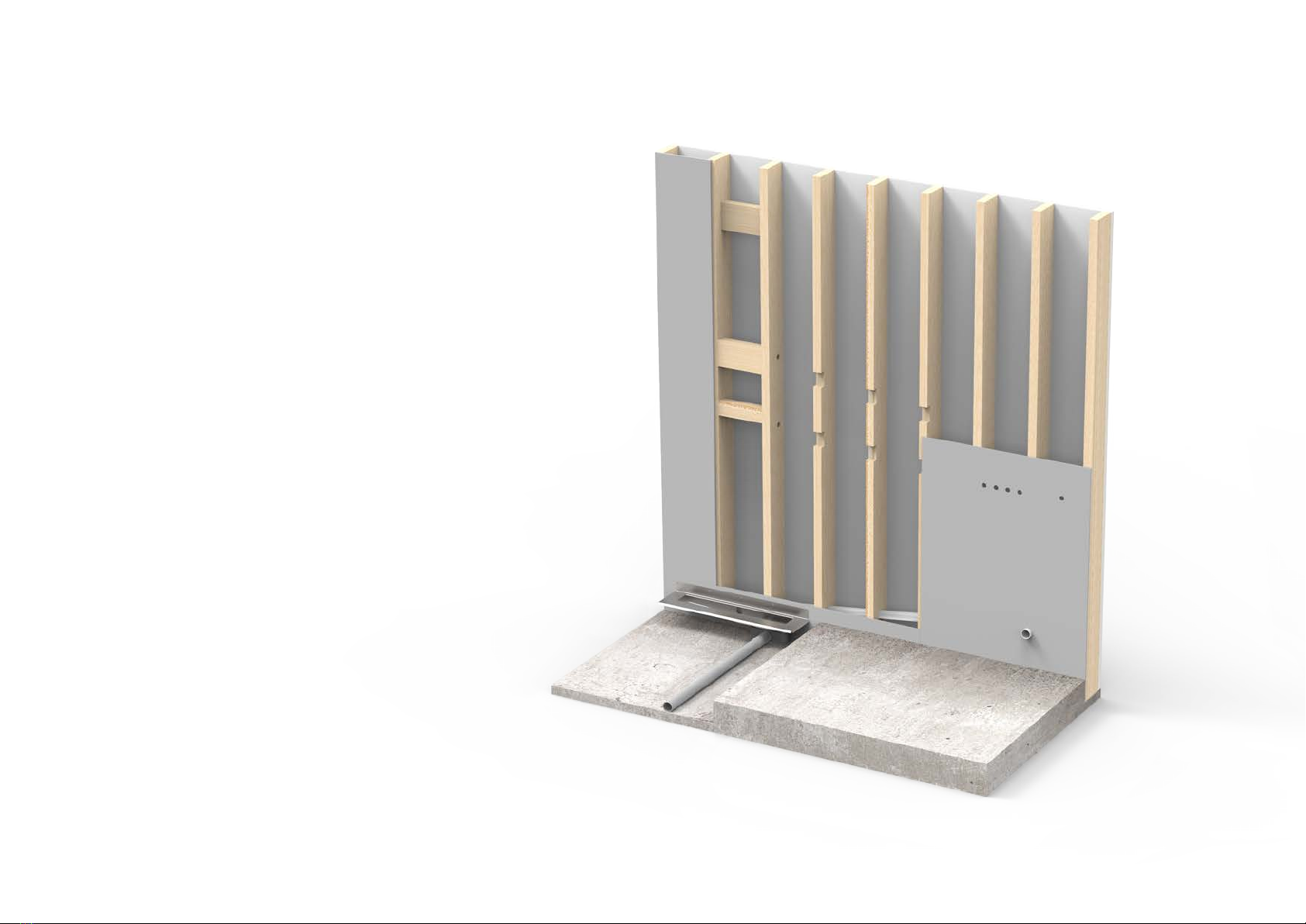

• Mount Drain Unit and sewage piping
Step. 2

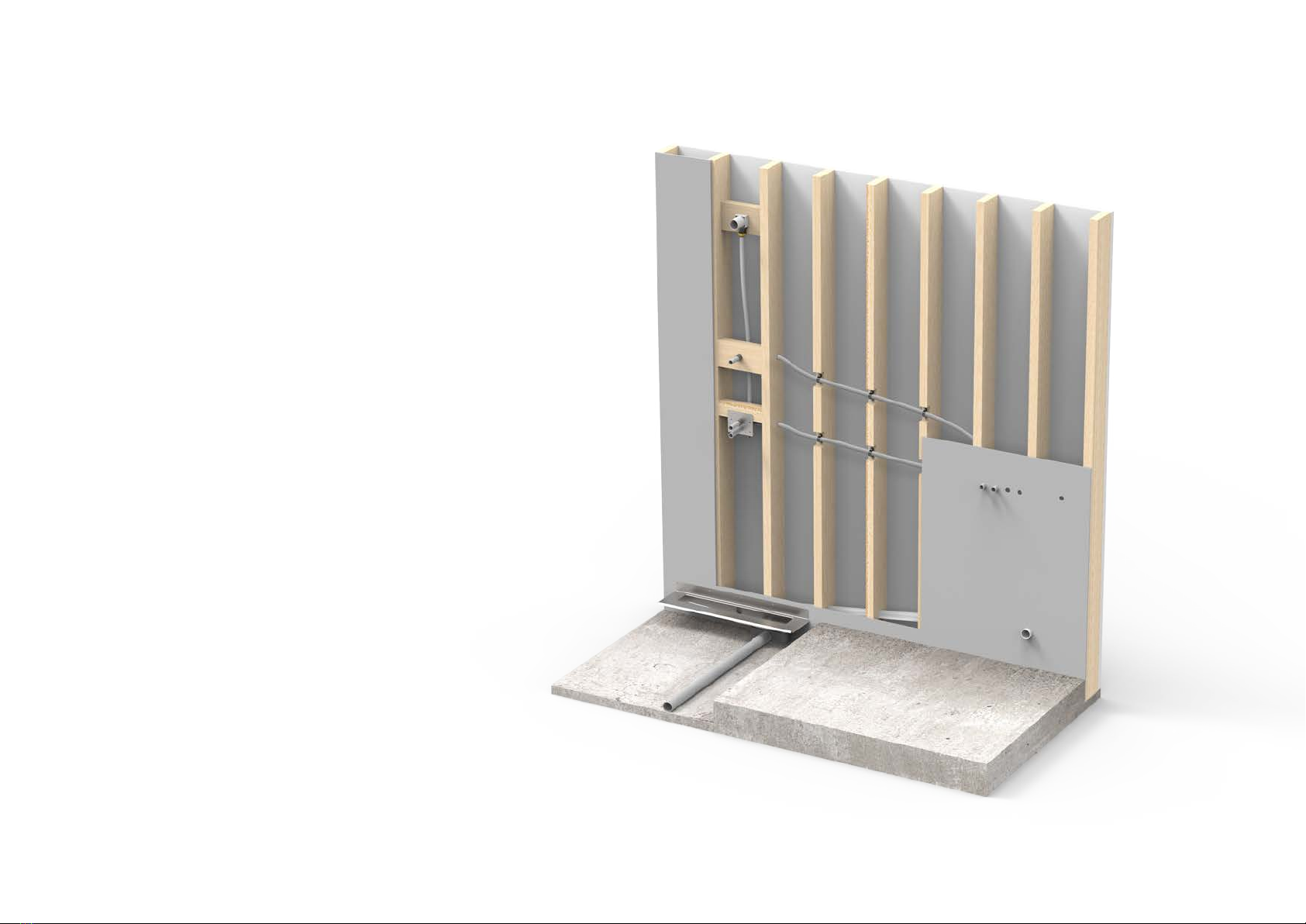

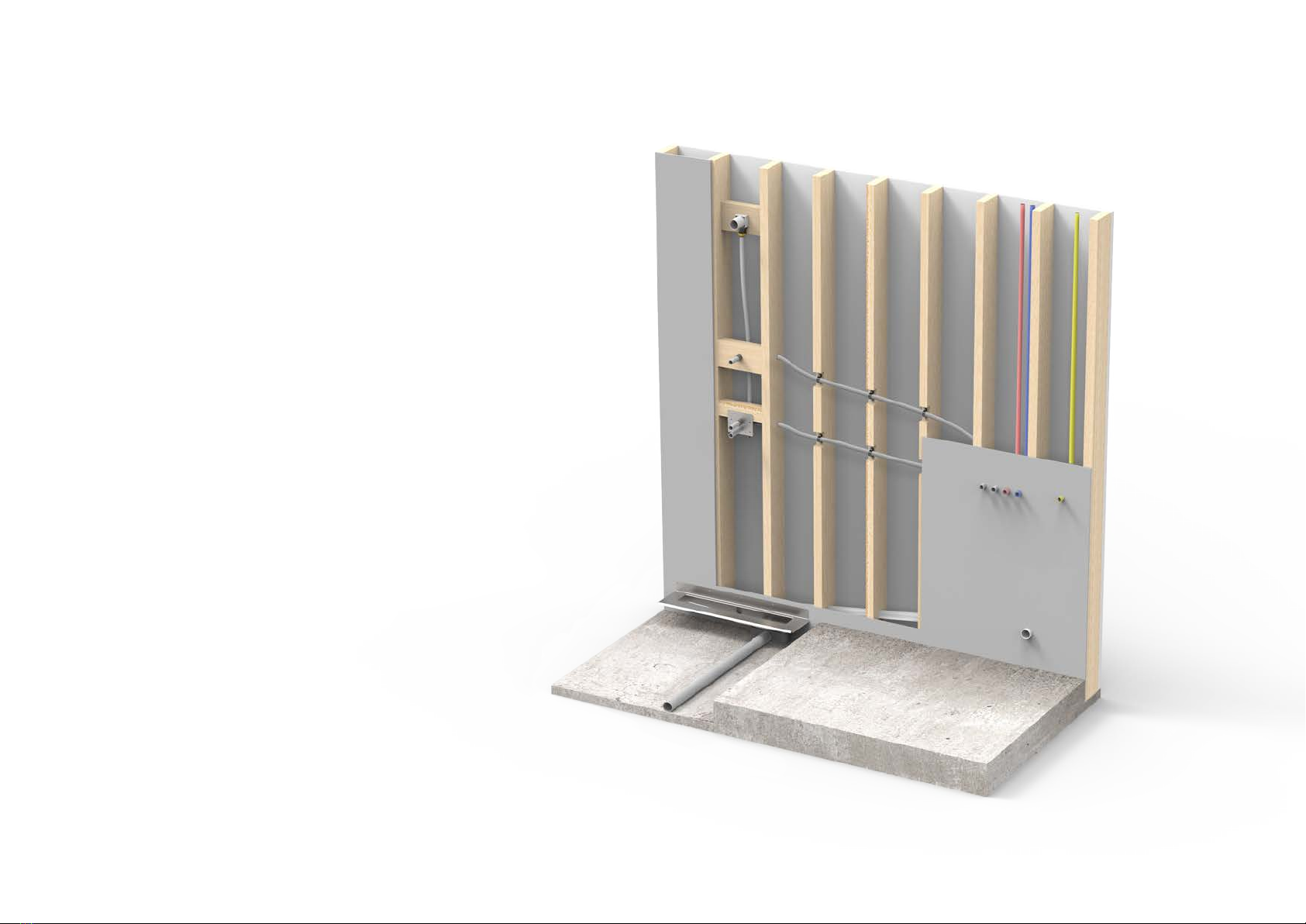

• Mount piping to Shower Heads, Diverter
and Control Dial
Step. 3
• Install incoming water (hot & cold)
• Install power supply
Step. 4

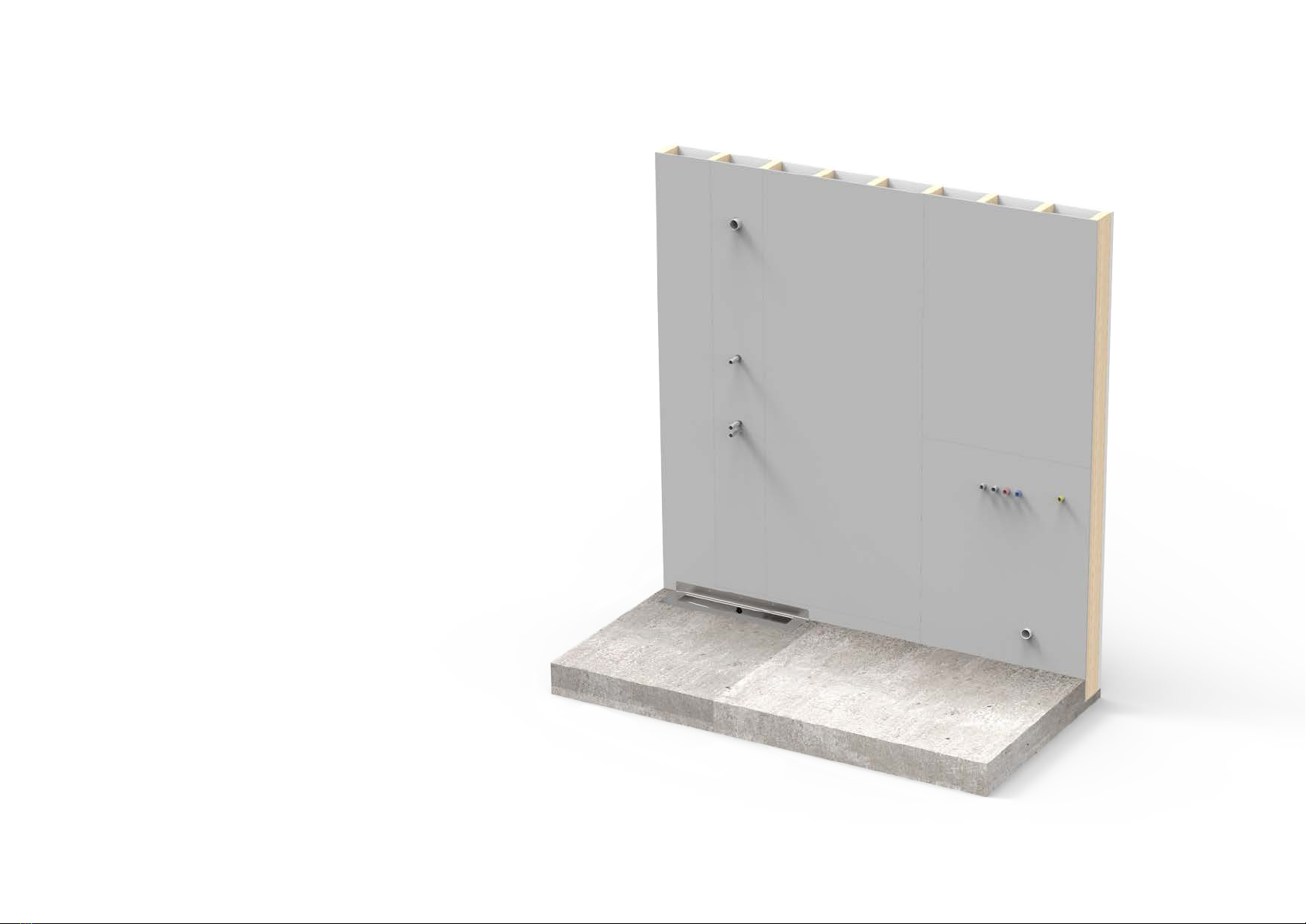

• Cover wall
• Raise floor
Step. 5

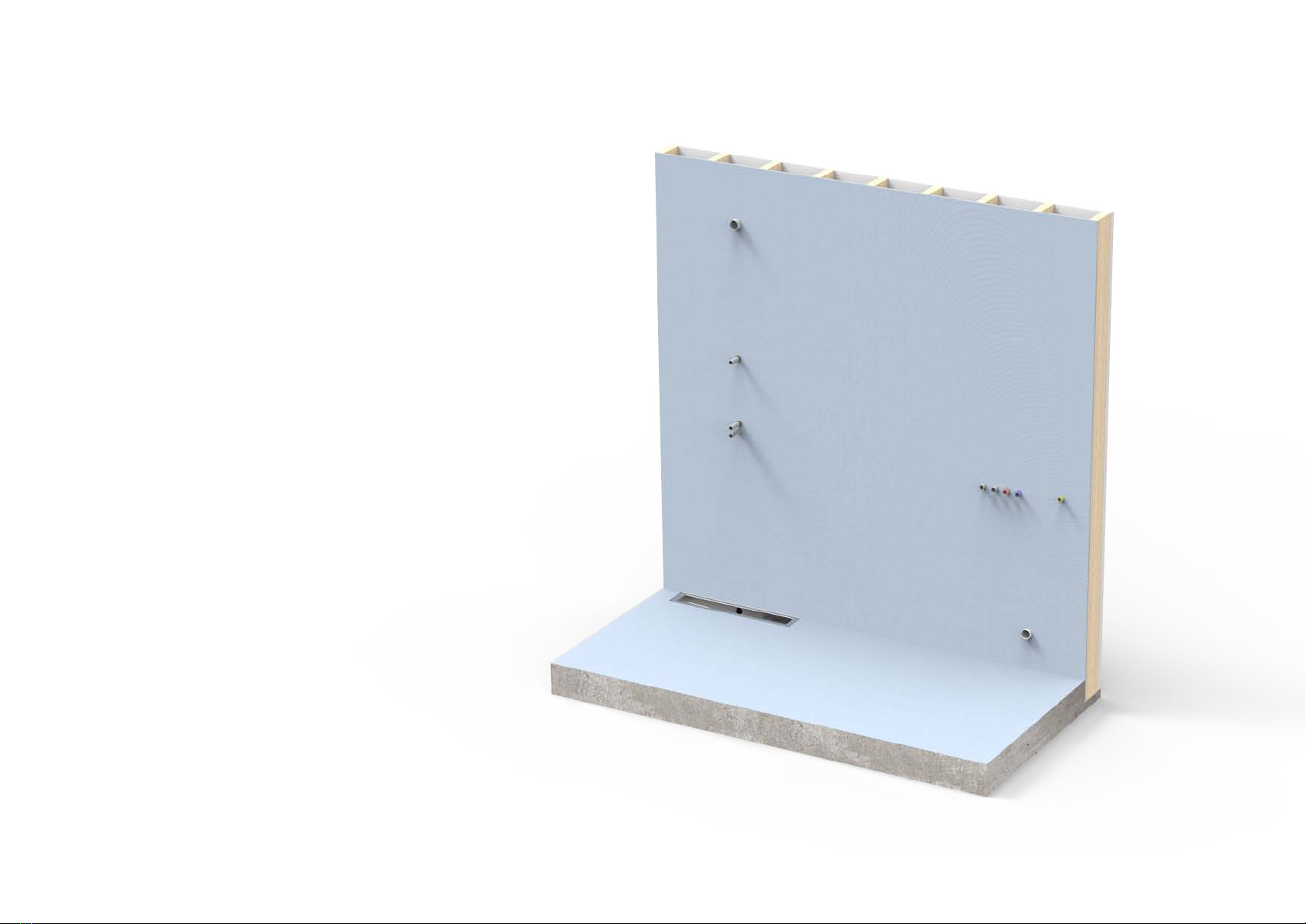

• Apply waterproofing membrane
Step. 6

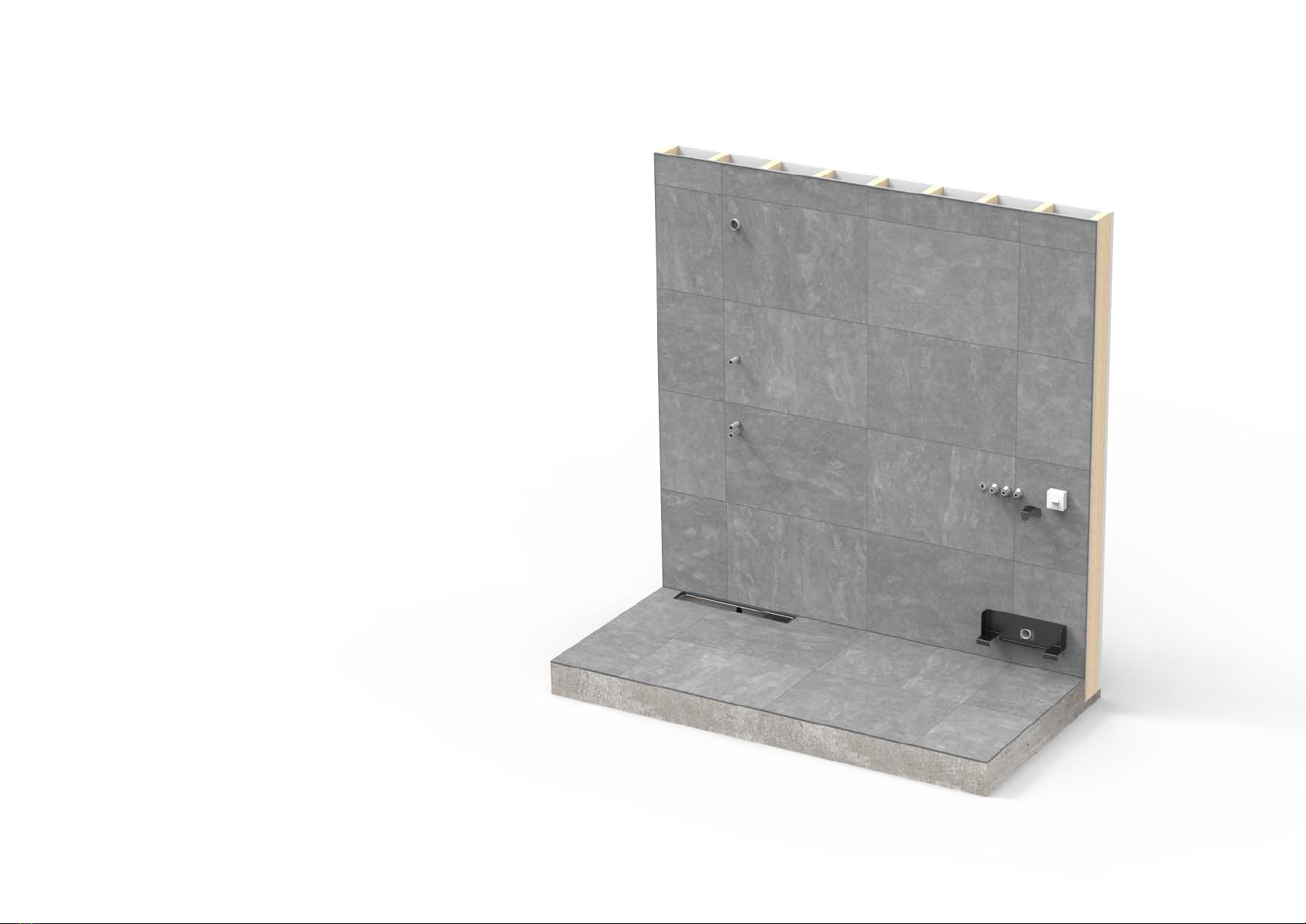

• Tile walls & floor
• Mount Core brackets and fixtures

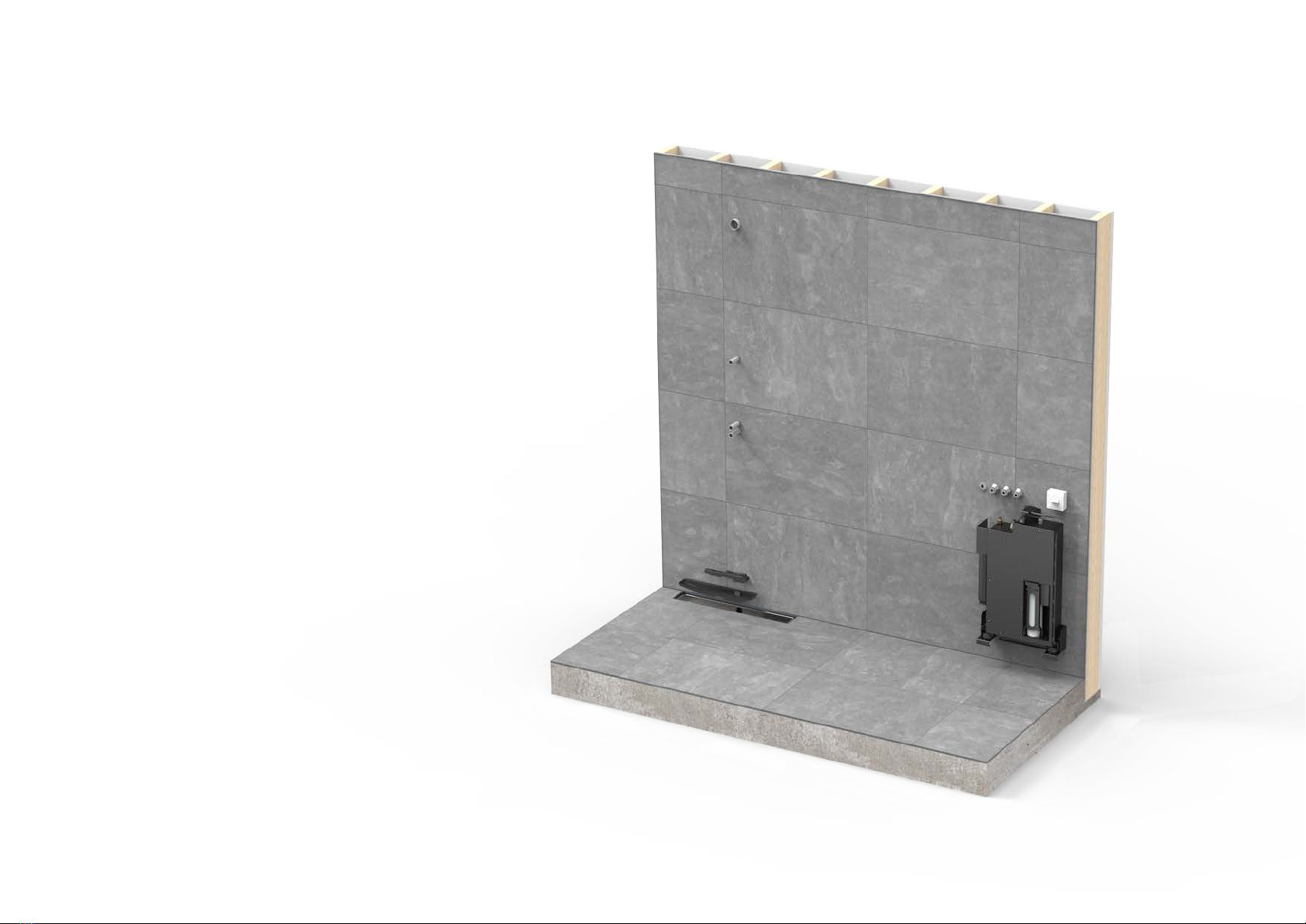

Step. 7
Step. 8
• Mount Oas Core to brackets
• Install Smart Sensor in Drain Unit
