Oregon Scientific Smart Dynamo 2 Bedienungsanleitung

HELP CONTENT & FAQ

Version 1.1 (2014/10/07)

ENGLISH

Due to printing limitations, the displays shown online may differ from the actual display.

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

1 von 75 28.04.2015 11:26

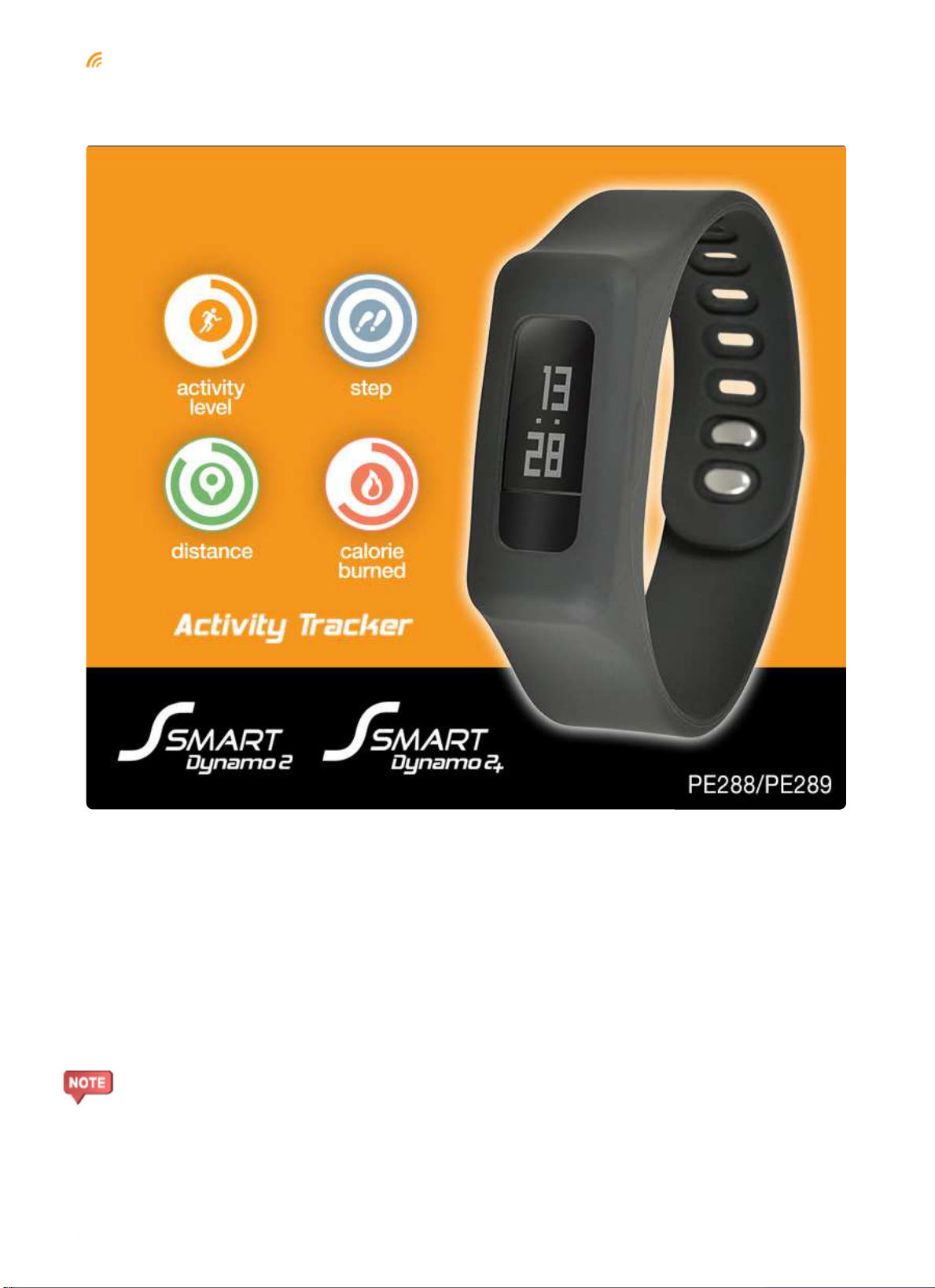

Introduction

Number Description

1Operation button

• Press to display the last messages, current time and mobile device notification summary.

• Press and hold to start/end sleep mode or find my phone.

2 Snap button holes

3 Metal Plate (PE289 - Dynamo 2+ only)

4 Display screen

5 Buckle

6 Smart core

Dynamo 2/Dynamo 2+

USB Charger (AD288)

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

2 von 75 28.04.2015 11:26

The illustrations as shown above may differ from the actual product.

Package Items

The package includes the following items:

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

3 von 75 28.04.2015 11:26

1 x Dynamo 2/Dynamo 2+ Activity Tracker

1 x Charger Pod (AD288)

1 x Oregon Scientific™ Warranty Card

1 x Quick Start Guide

1 x Extension cable

How to charge

Before you start using the activity tracker, please charge it for at least 1 hour before use.

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

4 von 75 28.04.2015 11:26

1. Align the two metal connection points of the charger pod with the pair on the smart core.

2. Make sure the clips of the charging pod are aligned with the sides of the smart core, then gently push the

smart core into the charger pod as shown in the diagram below. You will hear a click when it is securely

inserted in to the pod.

3. Plug the charger pod into USB port of your PC or other power supply.

4. Once the smart core is correctly connected with the charger pod, the battery charging animation will appear

on the display.

Battery indicator

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

5 von 75 28.04.2015 11:26

Indicators Status Action

Charging Connect the smart core with the

charger pod and link it to USB power

supply.

Charging completed Remove the smart core from the

charger pod.

Low battery Charge the smart core until fully

charged.

When the smart core is fully charged, it lasts about 5-7 days. The operation time varies

depend on actual usage.

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

6 von 75 28.04.2015 11:26

Indicators Status Action

ls Charge

Compatible models

Dynamo 2/Dynamo 2+ supports iOS and Android smart devices. For the latest compatible list, please visit

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

7 von 75 28.04.2015 11:26

iOS 7.0 or above

iPhone 4s/5/5c/5s

iPad mini WiFi

iPad mini Wi-Fi + Cellular

iPad Wi-Fi (3rd/4th generations)

iPad Wi-Fi + Cellular (3rd/4th generations)

iPad Air Wi-Fi

iPad Air Wi-Fi + Cellular

iPad mini WiFi with Retina display

iPad mini Wi-Fi + Cellular with Retina display

iPod touch (5th generation)

Android 4.3 or above

Google Nexus 5

Nexus 7 (2013)

Samsung

Galaxy Note III

Galaxy S4 (version 4.3)

Galaxy S5

for details.

http://ssmart.oregonscientific.com/dynamo2

How to wear

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

8 von 75 28.04.2015 11:26

Your Dynamo 2/Dynamo 2+ is adjustable to fit most wrist sizes. Please follow the below steps:

1. Insert the smart core into the wristband. Align the button side of both wristband and smart core before

inserting.

2. Insert the buckle into the appropriate buttonholes.

3. Gently press both the buckle and the wristband between your thumb and forefinger until the wristband is

securely fastened. Do not make the Dynamo 2/Dynamo 2+ too loose as this could cause inaccurate readings.

Oregon Scientific| Ssmart Dynamo 2 | PE288 http://ssmart.oregonscientific.com/dynamo2/um/ios_eng/index.html

9 von 75 28.04.2015 11:26

4. To make sure the Dynamo 2/Dynamo 2+ is securely fastened, pull the smart core with some pressure to

make sure it is not easily loosened from your wrist.

Download the App

The app is available in both Apple App Store and Google Play Store. Search “Ssmart Fit” in the search engine
