INTRODUCTION

Congratulations on your selection of the Oregon ScientificTM MP120.

This rugged yet compact sized Digital MP Player combines various

playback and audio enhancing features into a water and shock resistant

design that you can conveniently take along wherever you go, even

up to 1 meter underwater. This full-featured player supports a variety

of audio formats and can store 128MB, 256MB or 512MB of song

tracks and other data that can easily be transferred to and from a

computer using a high speed USB connection.

FEATURES

• Waterproof / shock resistant casing

• IPX7 standard (waterproof to a depth of 1 meter for 0 minutes,

equivalent to JIS7 standard)

• ISO141 shock resistant standard

• FM radio with option to save 0 preset FM channels

• Support for MP and WMA / WMA DRM audio formats, ID

Tagging

• Multi-format support for mass data storage

• Built-in 128MB, 256MB or 512MB Flash memory (refer to

indication on packing)

• Built-in rechargeable battery

• 5 preset equalizer and 5 preset playback modes

• Firmware upgradeable

• USB 1.1 and USB 2.0 (Full and High Speed) connectivity

• Waterproof earphone

ACCESSORIES

• CD-ROM

• Waterproof earphones with 2 earbuds

• Carrying pouch

• USB cable

• USB adaptor (optional)

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM1

¶´ƒ

All manuals and user guides at all-guides.com

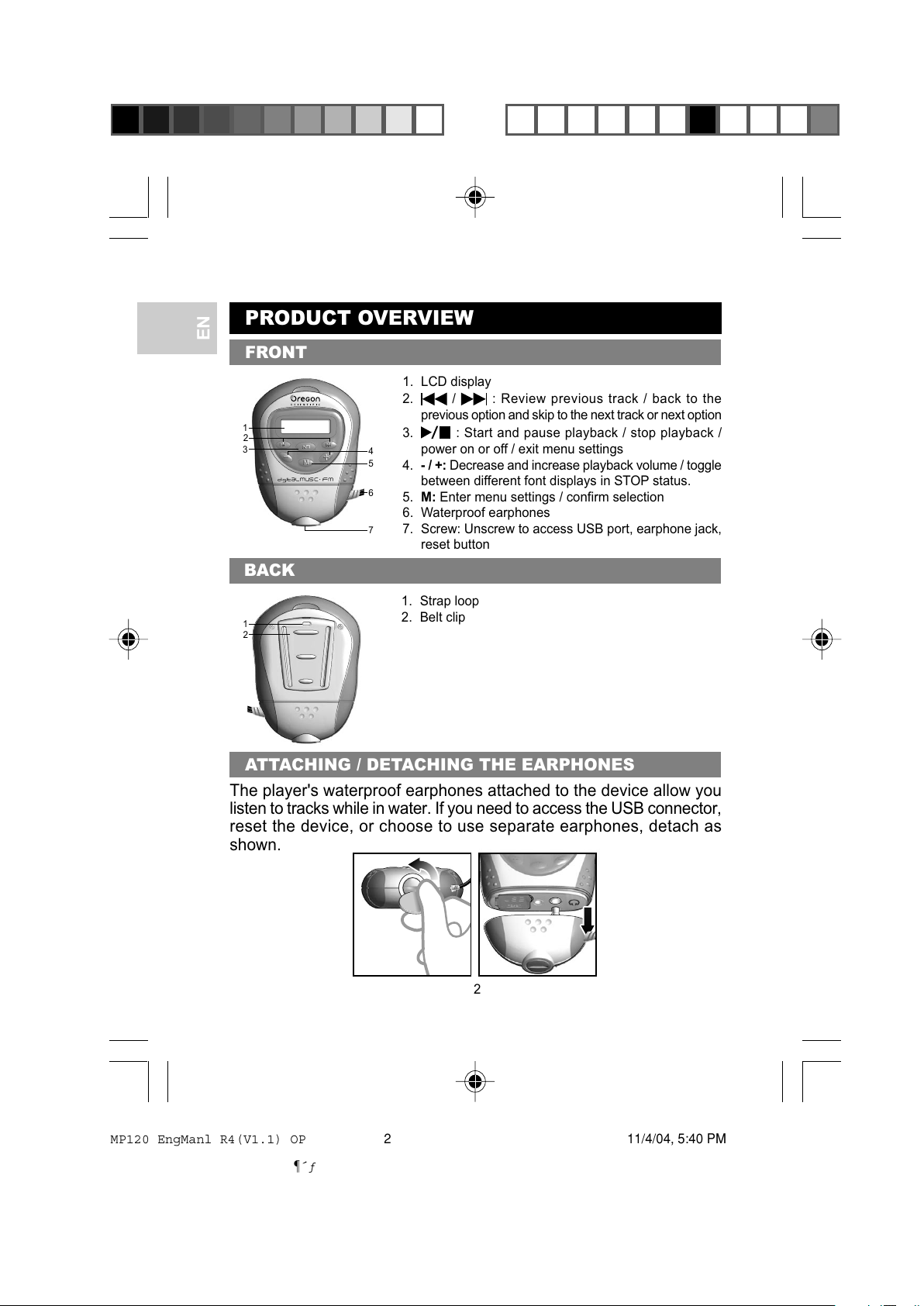

PRODUCT OVERVIEW

FRONT

1. LCD display

2. / : Review previous track / back to the

previous option and skip to the next track or next option

. : Start and pause playback / stop playback /

power on or off / exit menu settings

4. - / +: Decrease and increase playback volume / toggle

between different font displays in STOP status.

5. M: Enter menu settings / confirm selection

6. Waterproof earphones

7. Screw: Unscrew to access USB port, earphone jack,

reset button

BACK

1. Strap loop

2. Belt clip

ATTACHING / DETACHING THE EARPHONES

The player's waterproof earphones attached to the device allow you

listen to tracks while in water. If you need to access the USB connector,

reset the device, or choose to use separate earphones, detach as

shown.

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM2

¶´ƒ

All manuals and user guides at all-guides.com

1. To detach the player's bottom casing from the main unit, use a

coin to turn the screw in a counterclockwise motion. Once the

screw is loosened, pull the bottom half out.

2. To reattach the bottom casing back onto the main unit, use a

coin to turn the screw in a clockwise motion until it is firmly secured

and locked into position to ensure that water will not seep into

the device.

NOTE: To listen to music more clearly, attach earphone covers

(earbuds) onto the earphones. If needed, you may use a pair of scissors

to cut the earbuds until they fit firmly into your ears.

NOTE: You can attach your own earphones to listen to music but the

player will not be water resistant. You may use normal earphones (not

included) when the water resistant capability is not needed.

NOTE: Never immerse the unit in water if the bottom protective screw

casing is removed. This can cause electrical shock and damage the

unit.

WAYS TO USE THE CLIP

Attach it to the arm

belt (not included).

Not recommend for

use under water.

Wear it like a necklace

using a strap

(not included).

Attach it to swimming

goggles (not included).

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM3

¶´ƒ

All manuals and user guides at all-guides.com

all-guides.com

GETTING STARTED

IMPORTANT: Please read the section on SAFETY AND CARE

carefully before using the player.

Check to make sure your computer meets the following minimum

system requirements:

• Intel® Pentium® 1 MHz or faster

• CD-ROM drive

• USB 1.1 port or USB 2.0 support

• 10MB free hard disk space

• Microsoft® Windows® 98SE, Me, 2000, or XP

• Mac OS 9.0 or above

DRIVER SOFTWARE INSTALLATION

(WIN 98SE USERS ONLY)

WINDOWS 98SE

Installing the MP120 driver software will allow your computer to

recognize your MP player each time it is connected to the computer.

1. Insert the MP120 CD-ROM into your computer. If the installer

does not automatically begin, please refer to the troubleshooting

section for help.

2. Follow the onscreen instructions.

. Restart your computer.

WINDOWS ME, 2000, XP

When you connect your MP player to your PC, it will appear as a

removable drive (i.e., Removable Disk (H:)).

MACINTOSH OS 9.0 OR ABOVE

When you connect your MP player to your Macintosh, it will appear

as a drive icon on the desktop (i.e., Untitled).

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM4

¶´ƒ

All manuals and user guides at all-guides.com

CONNECTING THE PLAYER TO YOUR COMPUTER /

CHARGING THE BATTERY

To connect the player to your computer using the supplied USB cable:

NOTE: Make sure you turn off the player before connecting to the PC.

Once connected the player's built-in battery will automatically begin

charging. "READY" will show on the LCD.

When the battery is fully charged after approximately 2- hours on a

continuous charge, the battery icon shows . Please disconnect

the player when charging is finished unless you are transferring files.

The battery status indicators are as follows:

NOTE: When the low battery indicator shows , recharge the battery

as soon as possible. When the battery icon shows , this indicates

the battery is about to run out of power within a few seconds minutes.

NOTE: Charging time may vary depending on the computer's USB

usage status.

TIP: You can charge your player with a USB adaptor (optional

accessory). AC cable and plugs differ from region to region.

FILE TRANSFER

After connecting your MP player to the computer, the computer will

detect and identify the device as a removable storage drive, allowing

you to drag and drop all forms of data files between your computer

and your player.

PC USB

Low Medium Full

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM5

¶´ƒ

All manuals and user guides at all-guides.com

1. Double click the My Com uter icon.

2. Double click the drive letter (i.e. Removable Disk (H:)) of your

player assigned by the computer.

. Drag and drop the file(s) you wish to copy from your computer

onto your player.

NOTE: You will not be able to view or play any of the stored data

unless it is one of the supported MP (MPEG-1, Audio Layer )

or WMA (Windows Media Audio) / WMA DRM audio formats.

CAUTION: To prevent data loss, wait at least 15 seconds to make

sure the file transfer is complete before unplugging your player from

the computer.

DISCONNECTING PLAYER FROM COMPUTER

WINDOWS 98SE

1. Double click the My Com uter icon.

2. Right click the removable drive letter your player has been assigned.

. Click "Eject" from list before disconnecting.

WINDOWS ME, 2000, XP

1. Click the "Stop USB Mass Storage Device" icon on the

Windows taskbar at the bottom right of the monitor.

2. Click your player drive letter to stop the device before

disconnecting.

MACINTOSH OS 9.0 OR ABOVE

Drag and drop the "Untitled" icon from Mac desktop to the "Trash"

icon to eject the player before disconnecting.

POWER ON / OFF

POWER ON

To turn the power on, press and hold for

2 seconds. The unit will enter STOP status

with the icon displayed.

NOTE: In STOP status, a power saving

feature will cause your MP player to

automatically shut off if no key is pressed for

1 minute.

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM6

¶´ƒ

All manuals and user guides at all-guides.com

Good Bye

My Music.mp3

0:00:02

1. Playback icon

2. Track number / Time elapsed or

remaining

. Track name

4. RPT icon

5. Equalizer icon

POWER OFF

To turn the power off when the player is in STOP

status, press and hold a few seconds

until after the "Good Bye" screen appears.

MODES

There are 2 main modes to choose from: MUSIC and FM. When the

player turns on it defaults to MUSIC mode (STOP status).

1. To access FM mode, press M for a few seconds.

2. Press to scroll to "FM", then press M to select it.

. Press and hold M to go back to the main menu screen and press

to scroll to "MUSIC". Then press M to select it to access

MUSIC mode.

MUSIC

PLAY

1. Press to start playback.

TIP: See section on MENU NAVIGATION for information about how to:

• Display elapsed or remaining track time by changing the "TIME"

setting.

• Change the speed a track name is displayed under the "SCROLL"

section option.

STOP / PAUSE

1. When the player is playing back a music track, press to

pause the track, will appear on the display. Press

again to continue playback.

2. When the MP player is in playback or pause mode, press and

hold to stop the song. will appear on the display.

MP120 EngManl R4(V1.1) OP 11/4/04, 5:40 PM7

¶´ƒ

All manuals and user guides at all-guides.com

Andere Handbücher für MP 120

Inhaltsverzeichnis

Andere Oregon Scientific MP3-Player Handbücher

Oregon Scientific

Oregon Scientific DDM328 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 130 Bedienungsanleitung

Oregon Scientific

Oregon Scientific BBL218 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP810 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 130 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 210 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 120 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 100 Bedienungsanleitung

Oregon Scientific

Oregon Scientific BBL218 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP820 128MB Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP200 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP100 128MB Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 130 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP305 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP120 128MB Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP121 512MB Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP303 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 210 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 210 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP810 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 100 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP306 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP200 Bedienungsanleitung

Oregon Scientific

Oregon Scientific MP 120 Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Philips

Philips PSA250 Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung
