Data setter OPX-2A

For the BLV Series

OPERATING MANUAL

Thank you for purchasing an Oriental Motor product.

This Operating Manual describes product handling procedures and safety precautions.

•Please read it thoroughly to ensure safe operation.

•Always keep the manual where it is readily available.

−2−

1 Safety precautions .............................. 3

2 Introduction ......................................... 4

3 Preparation .......................................... 5

3.1 Checking the product ............................... 5

3.2 Names and functions of parts .................. 5

3.3 How to read the display ........................... 6

3.4 How to read the LED indicators ............... 6

3.5 Types of operation modes ....................... 6

3.6 Basic operations of the OPX-2A .............. 7

3.7 Edit lock function ..................................... 8

3.8 Rewriting the driver’s non-volatile

memory .................................................... 9

4 Installation and connection of the

OPX-2A ............................................. 10

4.1 Location for installation .......................... 10

4.2 Installation method ................................ 10

4.3 Connecting to the driver .........................11

4.4 Error display on OPX-2A screen ............11

5 Screen transitions ............................. 12

6 Monitor mode .................................... 16

6.1 Overview of the monitor mode ............... 16

6.2 Monitored items ..................................... 16

7 Data mode ......................................... 19

7.1 Setting items .......................................... 19

7.2 Initializing operation data ....................... 19

8 Parameter mode ............................... 20

8.1 Parameter ID ......................................... 20

8.2 Setting example ..................................... 30

9 Test mode .......................................... 32

9.1 Overview of the test mode ..................... 32

9.2 I/O test ................................................... 32

9.3 JOG operation ....................................... 33

10 Copy mode ........................................ 34

10.1 Overview of the copy mode ................... 34

10.2 Downloading to the driver ...................... 35

10.3 Uploading to the OPX-2A ...................... 35

10.4 Verifying data ......................................... 36

10.5 Initializing driver data ............................. 36

Table of contents

−3−

Safety precautions

1 Safety precautions

The precautions described below are intended to prevent danger or injury to the user and other

personnel through safe, correct use of the product. Use the product only after carefully reading and fully

understanding these instructions.

Also read the "Safety precautions" sections in the USER MANUAL that came with the product you are

combining with the OPX-2A.

Handling the product without observing the instructions that accompany a

"Warning" symbol may result in serious injury or death.

Handling the product without observing the instructions that accompany a

"Caution" symbol may result in injury or property damage.

Note

The items under this heading contain important handling instructions that the

user should observe to ensure safe use of the product.

General

•Do not use the product in explosive or corrosive environments, in the presence of ammable gases,

locations subjected to splashing water, or near combustibles. Doing so may result in re, electric shock

or injury.

•Only qualied and educated personnel should be allowed to perform installation, connection, operation

and inspection/troubleshooting of the product. Handling by unqualied and uneducated personnel may

result in re, electric shock or injury.

•When the driver’s protective function is triggered, rst remove the cause and then clear the protective

function. Continuing the operation without removing the cause of the problem may cause malfunction

of the motor and driver, leading to injury or damage to equipment.

Repair, disassembly and modication

•Do not disassemble or modify the data setter. This may cause electric shock or injury. Refer all such

internal inspections and repairs to the branch or sales ofce from which you purchased the product.

General

•Do not use the motor, gearhead and driver in conditions exceeding the specications. Doing so may

result in electric shock, injury or damage to equipment.

Operation

•Provide an emergency stop device or emergency stop circuit so that the entire equipment will operate

safely in the event of a system failure or malfunction. Failure to do so may result in injury.

Disposal

•Dispose the product correctly in accordance with laws and regulations, or instructions of local

governments.

Introduction

−4−

2 Introduction

Only qualied personnel should work with the product.

Use the product correctly after thoroughly reading the section "1 Safety precautions" on page.3.

The product described in this manual has been designed and manufactured to be incorporated in general

industrial equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for

any damage caused through failure to observe this warning.

 Overview of the product

The OPX-2A is a data setter that lets you set operation data and parameters, perform monitoring, etc.

Use the OPX-2A properly and safely after thoroughly reading the "BLV Series USER MANUAL" and

understanding the basic operating procedures and other details.

 Features of OPX-2A

The OPX-2A can be used to save data in addition to setting of operation data and parameters.

There are four destinations (data banks) to save data.

OPX-2A

Data bank 1

Data bank 0

Data bank 2

Data bank 3

Driver

Set operation data and parameters.

Up to 4 sets of operation data and

parameters can be saved.

Copy any one of the

4 sets to the driver.

The OPX-2A can be used for the following purposes:

•Operation data and parameters of the driver can be set.

•The operating status of the motor can be monitored.

•Operation data and parameters set in the driver can be saved to the OPX-2A.

•Operation data and parameters saved in the OPX-2A can be copied to other drivers.

 Specications

Connection Mini DIN, 8 pins

External dimensions 96 (W)×72 (H)×21.5 (D) mm

[3.78 (W)×2.83 (H)×0.85 (D) in.]

Cable length 5 m (16.4 ft.)

Mass 0.25 kg (8.8 oz)

 RoHS Directive

The products do not contain the substances exceeding the restriction values of RoHS Directive

(2011/65/EU).

−5−

Preparation

3 Preparation

This chapter explains the items you should know before using the OPX-2A.

3.1 Checking the product

Verify that the items listed below are included. Report any missing or damaged items to the branch or

sales ofce from which you purchased the product.

•Data setter OPX-2A .................................. 1 unit

•Information ................................................ 1 copy

3.2 Names and functions of parts

Display

This area shows the motor

position, operation data,

parameters, alarms, etc.

LED indicators

These LED indicators are used

to indicate the operation mode

of the OPX-2A and the driver

status.

Use this button to select data or

change the displayed item or

move to the lower level.

Use this button to change the

operation mode or move to the

upper level.

Use these buttons to change the selected item or set data and parameters.

Use these buttons to increase or decrease the value

or change the selected item.

Use these buttons to navigate through each data

or parameter to a desired digit.

 Notation

In this manual, keys are denoted by symbols, such as .

In gures, a simplied illustration of the display and LED indicators is used, as shown below.

Preparation

−6−

3.3 How to read the display

The display consists of 7-segment LEDs. (The number "5" and alphabet "S" are the same.)

1234567890

• Numbers

• Signs

• Alphabets

B C D E F G H I J

K L M N O P Q R S T

U V W Y

3.4 How to read the LED indicators

When the operation mode is changed or an alarm or warning generates, a corresponding LED will be lit.

While the motor is operating or the edit lock function is enabled, the condition is also indicated by the

illumination of a corresponding LED.

Lit in the copy mode

Lit in the test modeLit in the parameter mode

Lit in the data mode

Lit in the monitor mode

Lit while an alarm is present

Lit while a warning is present

Lit while the motor is operating Not used

Lit while the edit lock function is enabled

Not used

3.5 Types of operation modes

The OPX-2A has multiple operation modes. The

operation mode will change every time the

key is pressed.

The display starts in the monitor mode when the

power is turned on.

When the operation mode is changed, the LED

indicator corresponding to the previous mode will

turn off and the one corresponding to the new

mode will be lit. Identify the present operation

mode based on the LED indicator currently lit.

Monitor mode

(MON)

Copy mode

(COPY)

Test mode

(TEST)

Parameter mode

(PAR)

Data mode

(DATA)

The mode changes

every time the key

is pressed.

−7−

Preparation

3.6 Basic operations of the OPX-2A

Use the six keys to set data and operate the motor.

 Operation ow

The OPX-2A is operated according to the ow shown below.

Level 2: Item selection screen Level 3Level 1: Top screen in each mode

Use the

key to navigate

through the

modes.

Use the

key to move

to the lower level.

toUse

move to the

previous item.

toUse

move to the

next item.

Use the

key to move

to the upper level.

1. Use the key to select a desired operation mode appropriate for your intended

operation.

Example: If you want to use a function in the test mode, press the key to select the test mode

(indicated by a lit "TEST" LED).

The top screen of the test mode is displayed.

2. Press the key to move to the lower level.

3. Use the keys to select a desired item.

4. To move to the lower level, press the key. To return to the previous level, press the

key.

As explained above, use the key to navigate through the levels and use the keys to

select a desired item. This is the basic operation ow.

Note If the key is pressed while the driver performs the internal processing, the

screen cannot change to any lower level from the top screen, and "mEm-bUSY" is

displayed. Be sure to wait until all internal processing is completed, before pressing

the key.

Preparation

−8−

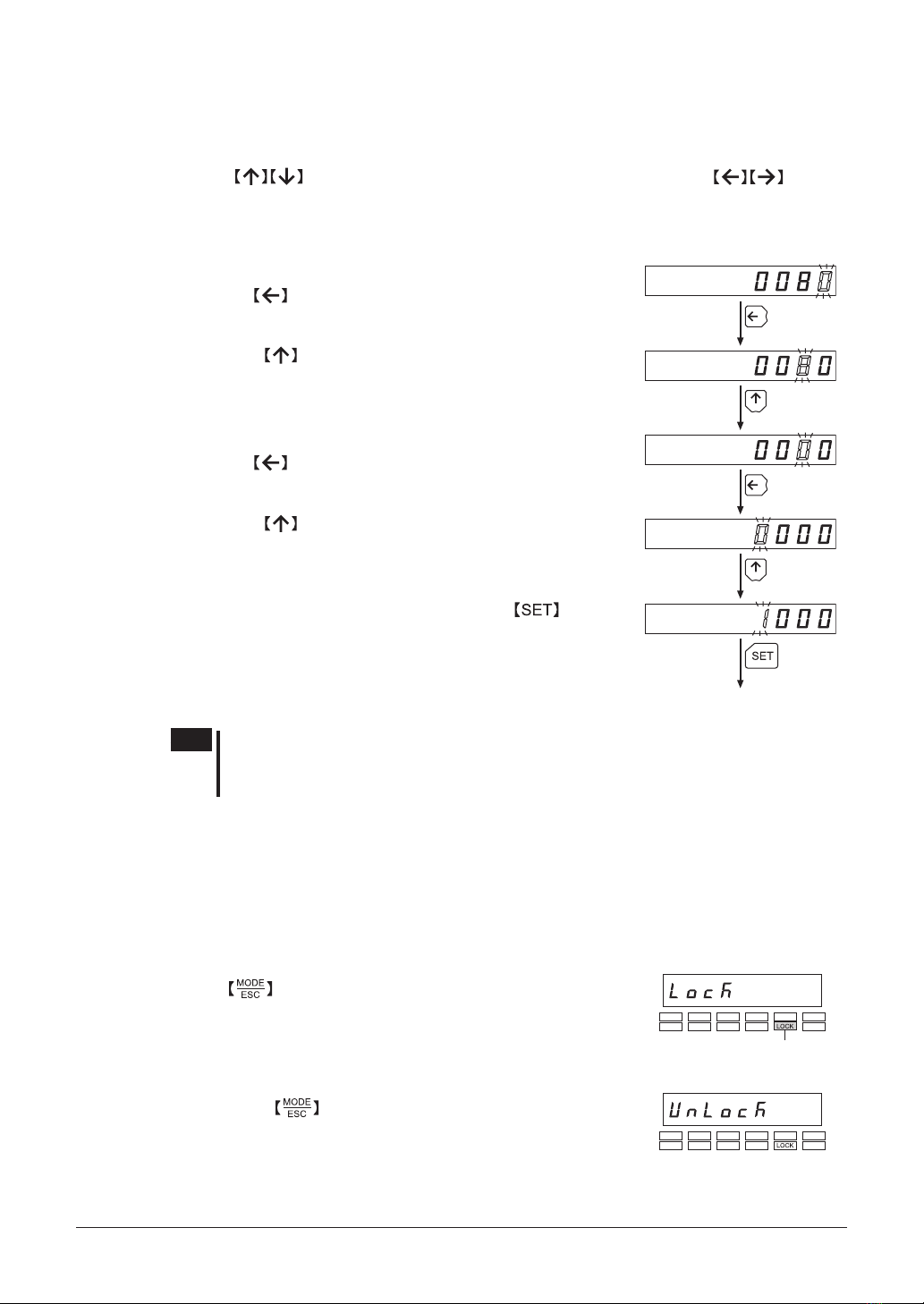

 How to input values

As an example, how to change the rotation speed from "80" r/min to "1000" r/min is explained.

Basic operations

•Use the keys to increase/decrease the value or change the sign. Use the keys to

move to the digit you want to edit.

•If positive and negative values are differentiated, each value is preceded by a sign.

•The digit currently blinking can be edited.

1. First, change the 10’s place from "8" to "0."

Press the key once to move to the 10’s digit you want to edit.

Determined

Once

Twice

Once

2. Press the key twice to change the value to "0."

3. Next, change the 1000’s place from "0" to "1."

Press the key twice to move to the 1000’s digit you want to

edit.

4. Press the key once to change the value to "1."

5. After all digits have been changed, press the key to

determine the value.

All digits comprising the value blink for approximately 2 seconds.

Note If the value you have input is outside the setting range, "Error" will be displayed for

1 second. If this error display appears, input a different value that falls within the

setting range.

3.7 Edit lock function

Enable the edit lock function if you want to prevent operation data and parameters from being edited or

cleared.

Operation data and parameters cannot be changed or deleted while the edit lock function is enabled.

•Setting the edit lock function

Press the key for at least 5 seconds on the top screen in each mode.

The display will show "LocK" and the edit lock function will be enabled.

The "LOCK" LED in the LED indicator area will also be lit.

"LOCK" lit

•Canceling the edit lock function

Again, press the key for at least 5 seconds on the top screen in each

mode.

The display will show "UnLocK" and the edit lock function will be

cancelled.

The "LOCK" LED in the LED indicator area will turn off.

−9−

Preparation

3.8 Rewriting the driver’s non-volatile memory

Operation data and parameters are saved to the driver’s non-volatile memory. The non-volatile memory

can be rewritten approximately 100,000 times. The non-volatile memory will be rewritten after one of

the following operations is performed:

•Edit any operation data or parameter

•Download data from the OPX-2A to the driver

•Initialize driver operation data and parameters

Installation and connection of the OPX-2A

−10−

4 Installation and connection of the OPX-2A

4.1 Location for installation

The OPX-2A is designed and manufactured to be incorporated in equipment.

Install it in a well-ventilated location that provides easy access for inspection. The location must also

satisfy the following conditions:

•Inside an enclosure that is installed indoors (provide vent holes)

•Operating ambient temperature 0 to +40 °C (+32 to +104 °F) (non-freezing)

•Operating ambient humidity 85% or less (non-condensing)

•Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid

•Area not exposed to direct sun

•Area free of excessive amount of dust, iron particles or the like

•Area not subject to splashing water (rain, water droplets), oil (oil droplets) or other liquids

•Area free of excessive salt

•Area not subject to continuous vibration or excessive shocks

•Area free of excessive electromagnetic noise (from welders, power machinery, etc.)

•Area free of radioactive materials, magnetic elds or vacuum

•1000 m (3300 ft.) or less above sea level

4.2 Installation method

Using a metal plate of 1 to 3 mm (0.04 to 0.12 in.) in thickness, insert the OPX-2A into the mounting

hole from the front side and securely attach it.

92 +0.8

0 (3.62 )

+0.031

68 +0.7

(2.68 )

+0.028

• Dimension of mounting hole [mm (in.)]

Removing method

Press all of the four hooks provided on top and bottom of the

OPX-2A.

In this condition, press the OPX-2A forward to release.

Hook

Andere Handbücher für OPX-2A

Inhaltsverzeichnis

Andere Oriental motor Steuereinheit Handbücher

Oriental motor

Oriental motor OPX-2A Bedienungsanleitung

Oriental motor

Oriental motor AR Series Bedienungsanleitung

Oriental motor

Oriental motor ASTEP AR Series Bedienungsanleitung

Oriental motor

Oriental motor ASTEP AR Series Bedienungsanleitung

Oriental motor

Oriental motor PKP Series Bedienungsanleitung

Oriental motor

Oriental motor RKII Series Bedienungsanleitung

Oriental motor

Oriental motor MSS W Series Bedienungsanleitung

Oriental motor

Oriental motor OPX-2A Bedienungsanleitung

Oriental motor

Oriental motor ASTEP AR Series Bedienungsanleitung

Oriental motor

Oriental motor ASTEP AZ Series Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
