Before using the product
2
1 Before using the product
Only qualied personnel of electrical and mechanical engineering should work with the product.
Use the product correctly after thoroughly reading the section “Safety precautions“ of the operating manual. In
addition, be sure to observe the contents described in warning, caution, and note in this manual.
The motorized actuator is designed and manufactured to be incorporated in general industrial equipment. Do not
use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any compensation for damage caused
through failure to observe this warning.
Notation on this manual
CAUTION
Handling the product without observing the instructions that accompany a
“CAUTION“ symbol may result in injury or property damage.
The items under this heading contain important handling instructions that the user
should observe to ensure safe use of the product.
The items under this heading contain related information and contents to gain a
further understanding of the text in this manual.
Related operating manuals
Operating manuals for this product are listed below.
Operating manuals are not included with the product. Download them from Oriental Motor Website Download Page
or contact your nearest Oriental Motor sales oce.
•LJ Linear Head Combination with AZ Series Function Setting Edition (this manual)
•LJ Linear Head OPERATING MANUAL
•AZ Series/Motorized actuator equipped with AZ Series OPERATING MANUAL Function Edition
Product combination list
•The box () in the model name indicates a number representing the stroke length.
•The box () in the model name indicates A(standard) or M(with electromagnetic brake) representing the motor
type.
•The box () in the model name indicates U(upward), L(leftward), or R(rightward) representing the cable outlet
direction.
Linear head model Motor model
AGL5H18-
AZM98C-TS10
AZM98C-TS20
AZM98C-TS30
Setting the parameters
3
2 Setting the parameters
2-1 Guidance
This chapter describes the parameter setting for a motorized actuator (hereinafter referred to as rack and pinion
motor) that the LJ linear head and the AZ Series motor are combined.
STEP 1 Install the rack and pinion motor. Refer to the LJ Linear Head OPERATING MANUAL
for how to assemble a linear head and a motor.
STEP 2 Connect the driver.
STEP 3 Start the support software MEXE02.
STEP 4 Set the parameters of the driver. (P.4) The setting le having input the recommended
parameters is available.
STEP 5 Set the software limit when no sensor is
used.
STEP 6 Check the movement of the rack and pinion
motor.
Check the movement of the rack and pinion
motor with “Teaching, remote operation“ of the
MEXE02 software.
STEP 7 Save the set data.
•When the rack and pinion motor is used in combination with the pulse input type driver, do not
change the SW1-No.1 of the function setting switch on the driver (factory setting: OFF). If this
switch is set to ON, the resolution is xed to 10,000 P/R, and an unexpected movement may result.
←
OFF ←OFF
AC power
input driver
No.1
DC power
input driver
•If the rack is operated in a vertical direction, an alarm of Overvoltage may be detected depending
on the driving condition. If an alarm of Overvoltage was generated, reconsider the operating
condition or use Oriental Motor’s regeneration resistor RGB100.
•To restore the driver to the factory setting, select “Restored to the factory setting“ under the
“Communication“ menu to initialize.
About the setting le for rack and pinion motor
The setting le that the recommended parameters were input in advance to operate the rack and pinion motor is
provided in the download page of the MEXE02 software. Download the setting le to use.
•The setting le is created based on the contents of this manual.
•The minimum travel amount is 0.01 mm.
Setting the parameters
4
2-2 Setting examples of parameters
•The box () in the model name indicates A(standard) or M(with electromagnetic brake) representing the motor
type.
•The box () in the model name indicates Uupward), L(leftward), or R(rightward) representing the cable outlet
direction.
Product specications
AZM98C-TS10AZM98C-TS20AZM98C-TS30
Mechanism lead 11.310 [mm] 5.655 [mm] 3.770 [mm]
Motor & mechanism parameter
This section describes setting examples of parameters when the minimum travel amount is set to 0.01 mm (resolution
1,000 P/R).
Refer to the AZ Series OPERATING MANUAL Function Edition for how to set parameters.
items represent parameters to be changed.
Item Setting example
AZM98C-TS10AZM98C-TS20AZM98C-TS30
Mechanism settings Manual setting
Electronic gear A 36,893 55,057 55,057
Electronic gear B 41,725 31,134 20,756
Mechanism lead 11,310 5,655 3,770
Mechanism lead decimal digit
setting ×0.001 [mm]
Initial coordinate generation &
wrap coordinate setting Manual setting
Initial coordinate generation &
wrap setting range 1800 [rev]
Wrap setting Disable
The number of the RND-ZERO
output in wrap range 180 90 60
JOG/HOME/ZHOME operation
setting Manual setting
Unit of travel amount step
mm
*Not possible to
set
step
mm
*Not possible to
set
step
mm
*Not possible to
set
(JOG) Operating speed 1,000 [Hz] 10 [mm/s] 1,000 [Hz] 10 [mm/s] 1,000 [Hz] 10 [mm/s]
(JOG) Acceleration/deceleration 50 [kHz/s]] 0.5 [m/s2]15 [kHz/s] 0.15 [m/s2] 5 [kHz/s] 0.05 [m/s2]
(JOG) Operating speed (high) 2,000 [Hz] 20 [mm/s] 2,000 [Hz] 20 [mm/s] 2,000 [Hz] 20 [mm/s]
(ZHOME) Operating speed 2,000 [Hz] 20 [mm/s] 2,000 [Hz] 20 [mm/s] 2,000 [Hz] 20 [mm/s]
(ZHOME) Acceleration/
deceleration rate 50 [kHz/s] 0.5 [m/s2]15 [kHz/s] 0.15 [m/s2] 5 [kHz/s] 0.05 [m/s2]
(HOME) Home-seeking mode Push-motion
(HOME) Operating speed 600 [Hz] 6 [mm/s] 600 [Hz] 6 [mm/s] 600 [Hz] 6 [mm/s]
(HOME) Acceleration/
deceleration 50 [kHz/s] 0.5 [m/s2]15 [kHz/s] 0.15 [m/s2] 5 [kHz/s] 0.05 [m/s2]
(HOME) Operating current for
push-home-seeking 51 % 49 % 55 %
Setting the parameters
5
•Set the unit of the travel amount with“step“.
•When changing the acceleration/deceleration unit, also change the values set in the (JOG) Acceleration/
deceleration, (ZHOME) Acceleration/deceleration, and (HOME) Acceleration/deceleration parameters.
Only changing the unit will not change the setting values.
•Check the specications of the maximum speed to set the operating speed.
•If an alarm is detected, reconsider the operating condition or use Oriental Motor’s regeneration resistor
RGB100.
•Use equal to or less than the values shown in the table below for the acceleration/deceleration rate
when setting the electronic gears (0.01 mm/step).
AZM98C-TS10AZM98C-TS20AZM98C-TS30
Maximum
acceleration 1 m/s20.3 m/s20.1 m/s2
Acceleration/
deceleration rate 100 kHz/s 30 kHz/s 10 kHz/s
Setting the parameters
6
2-3 Moving direction of rack
The following two methods are available to change the moving direction of the rack. Use them selectively in
accordance with the intended use.
•To change the travel amount.
•To change the “Motor rotation direction“ parameter.
When changing the travel amount
When assembling the LJ linear head and the AZ Series motor (factory shipment), the moving direction of the rack is
set as shown below. Changing the travel amount or the pulse input method can change the moving direction of the
rack.

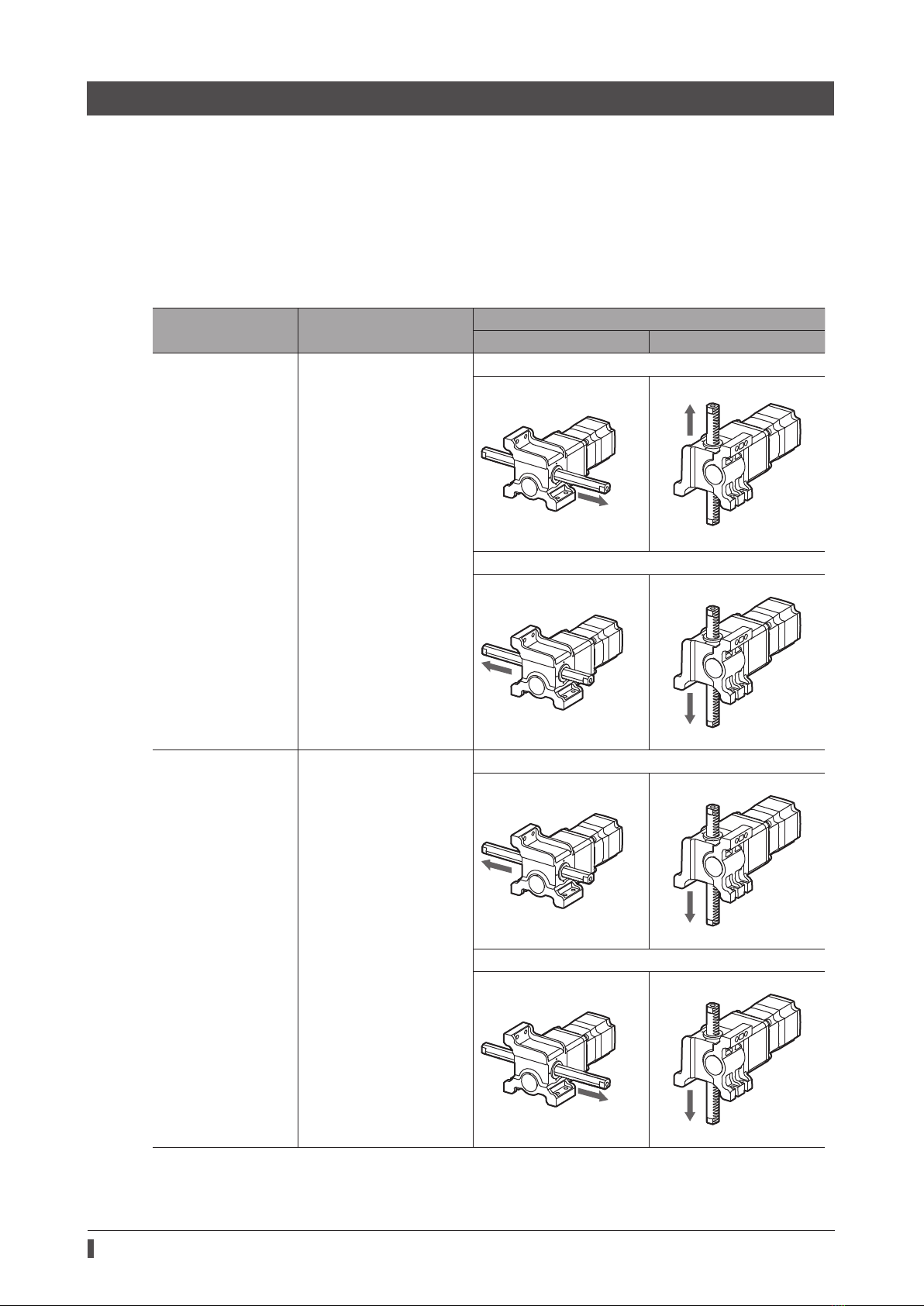

When setting the
operation data
When inputting the pulse
signal
Moving direction of rack
Horizontal installation Vertical installation
Set the positive (+)
value in travel amount
•2-pulse input mode
Input the pulse signal to the
CW input
•1-pulse input mode
Input the pulse signal to the
PLS input when the DIR
input is ON
AZM98-TS10
AZM98-TS20, AZM98-TS30
Set the negative (-)
value in travel amount
•2-pulse input mode
Input the pulse signal to the
CCW input
•1-pulse input mode
Input the pulse signal to the
PLS input when the DIR
input is OFF
AZM98-TS10
AZM98-TS20, AZM98-TS30
Positive direction
Positive direction
Positive direction
Positive direction
Negative direction
Negative direction
Negative direction
Negative direction
Setting the parameters
7
When changing the “Motor rotation direction“ parameter

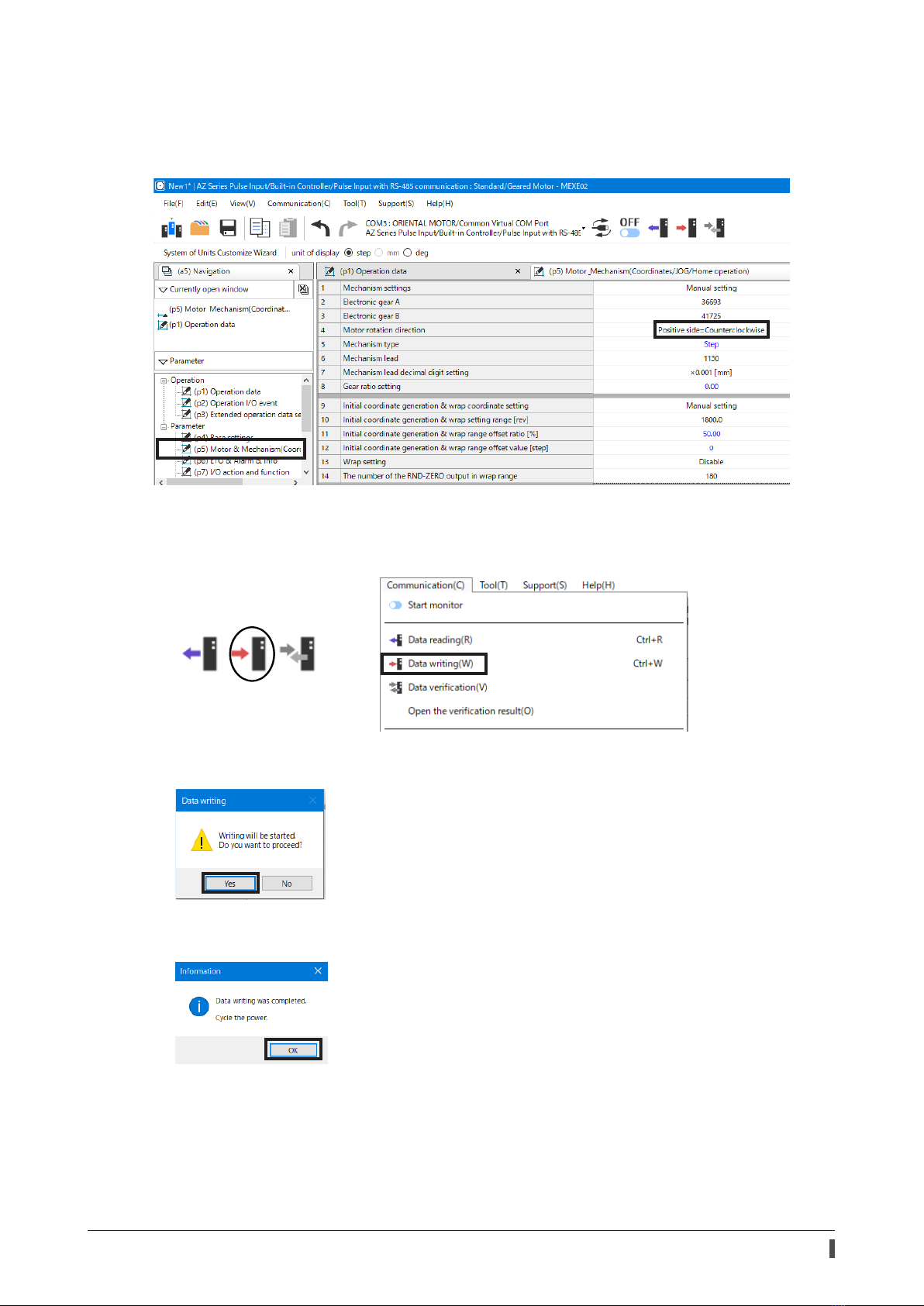

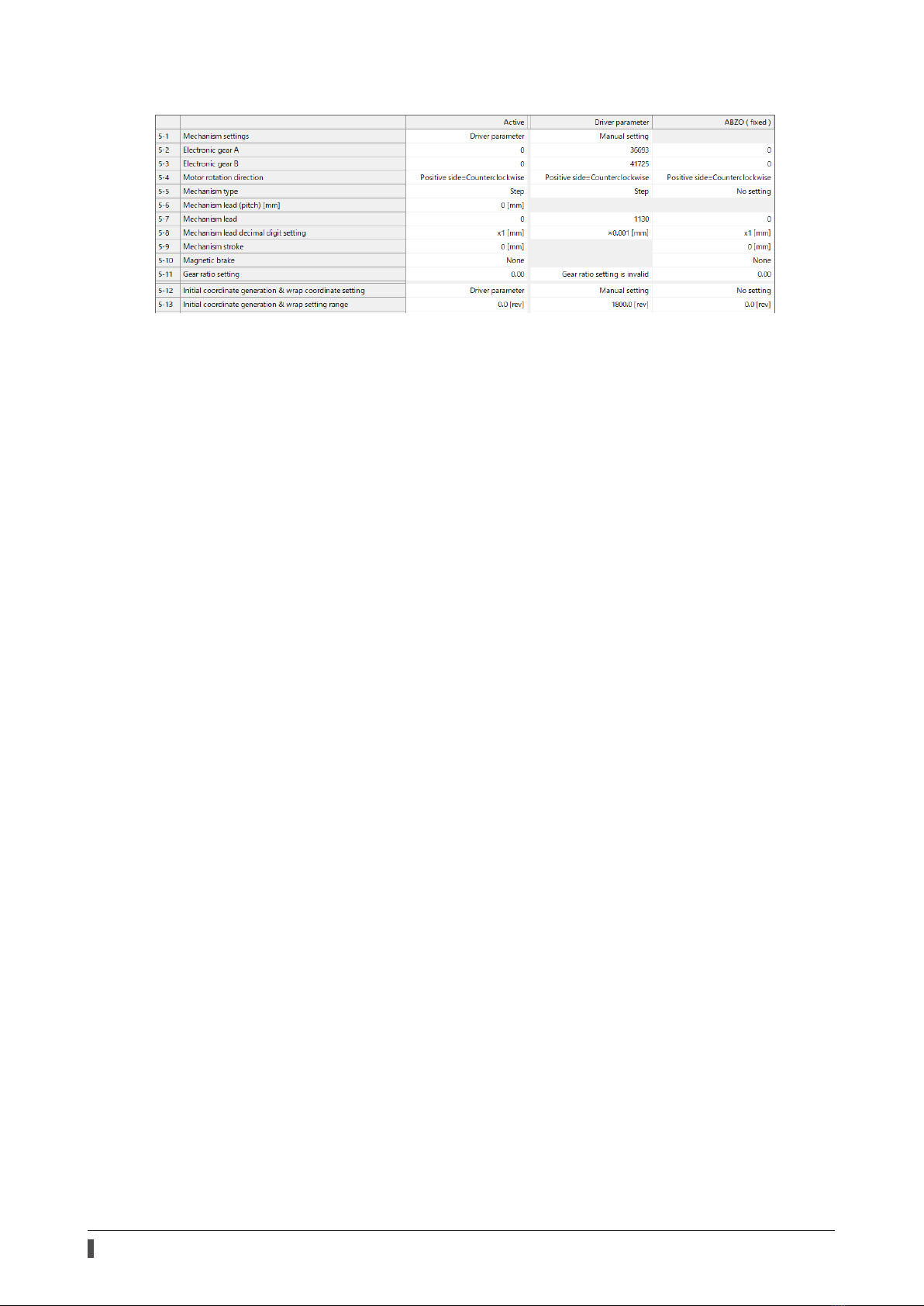

1. Select the “Motor & Mechanism (Coordinates/JOG/Home operation)“ on the MEXE02 software.
2. Change the “Motor rotation direction“ parameter to “Positive side=Clockwise“ or“Positive side=Counterclockwise.“
3. Write the parameter to the driver in the following steps.
1) Click the “Data writing“ icon or “Data writing“ under “Communication.“
or
2) Click “Yes.“
Writing the parameter is started.
3) Click “OK.“
Writing the parameter is completed.
4) Turn on the power supply of the driver again.
Setting the parameters
8
4. Check that the changed parameter is updated on the unit information monitor window.
Operation
9
3 Operation
3-1 Absolute positioning operation
The motor of the AZ Series manages the absolute position by the ABZO sensor.
The ABZO sensor stores the present position as the absolute position until the number of rotations of the motor
output shaft exceeds 1,800 revolutions (±900 revolutions) with reference to the home. Within this range, it keeps the
present position even if the driver power is turned o.
Before starting absolute positioning operation, be sure to set the home.
Setting the home
When replacing the linear head or motor, set the home again after replacement.
1. Select “Teaching, remote operation“ using the MEXE02 software.
2. Click “Teaching, remote operation.“

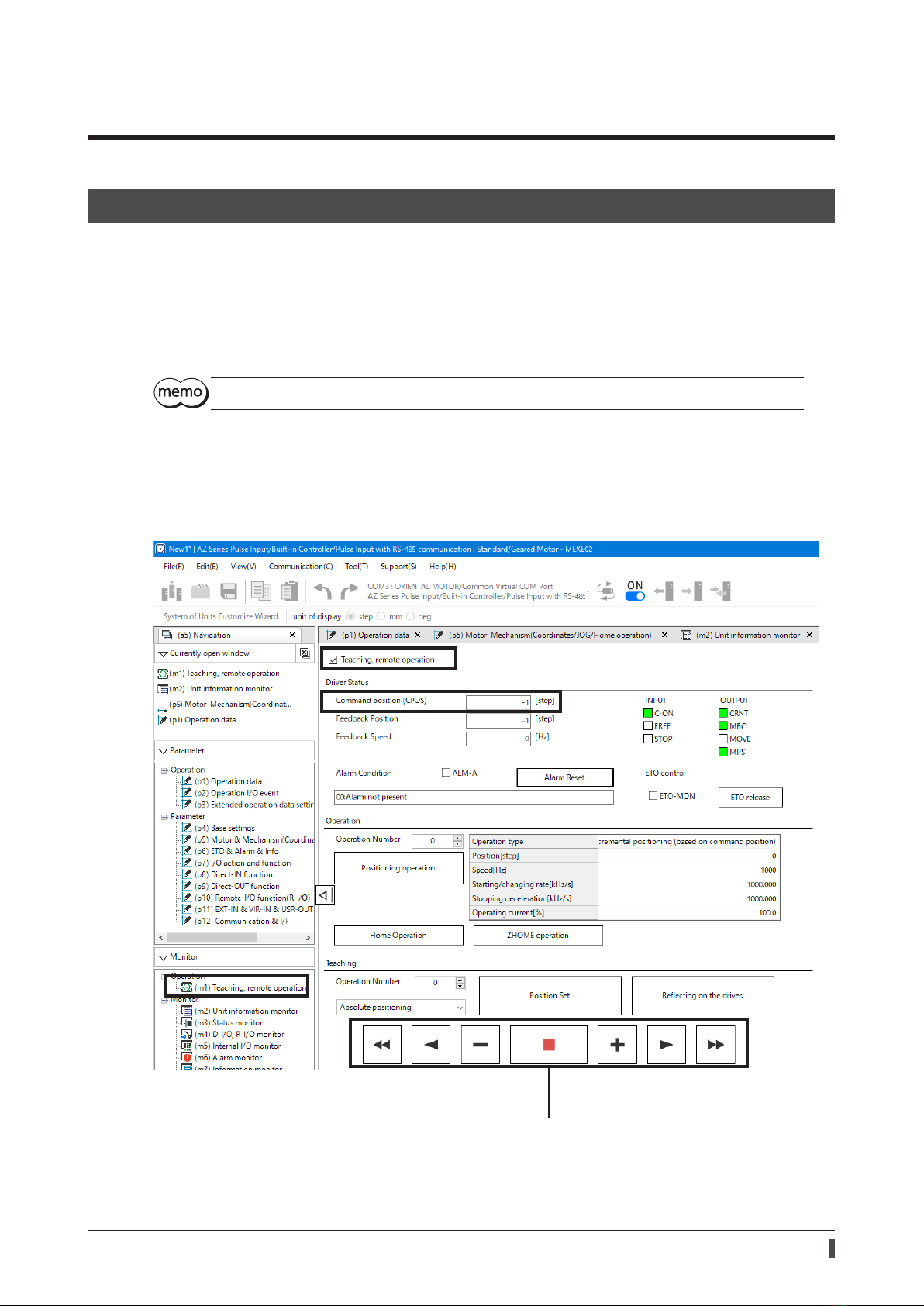

3. Using the JOG operation switches, move the rack to the home. Adjust the position while checking the“Command
position (CPOS)“ in the“Driver Status“ eld.
JOG operation buttons
Operation
10

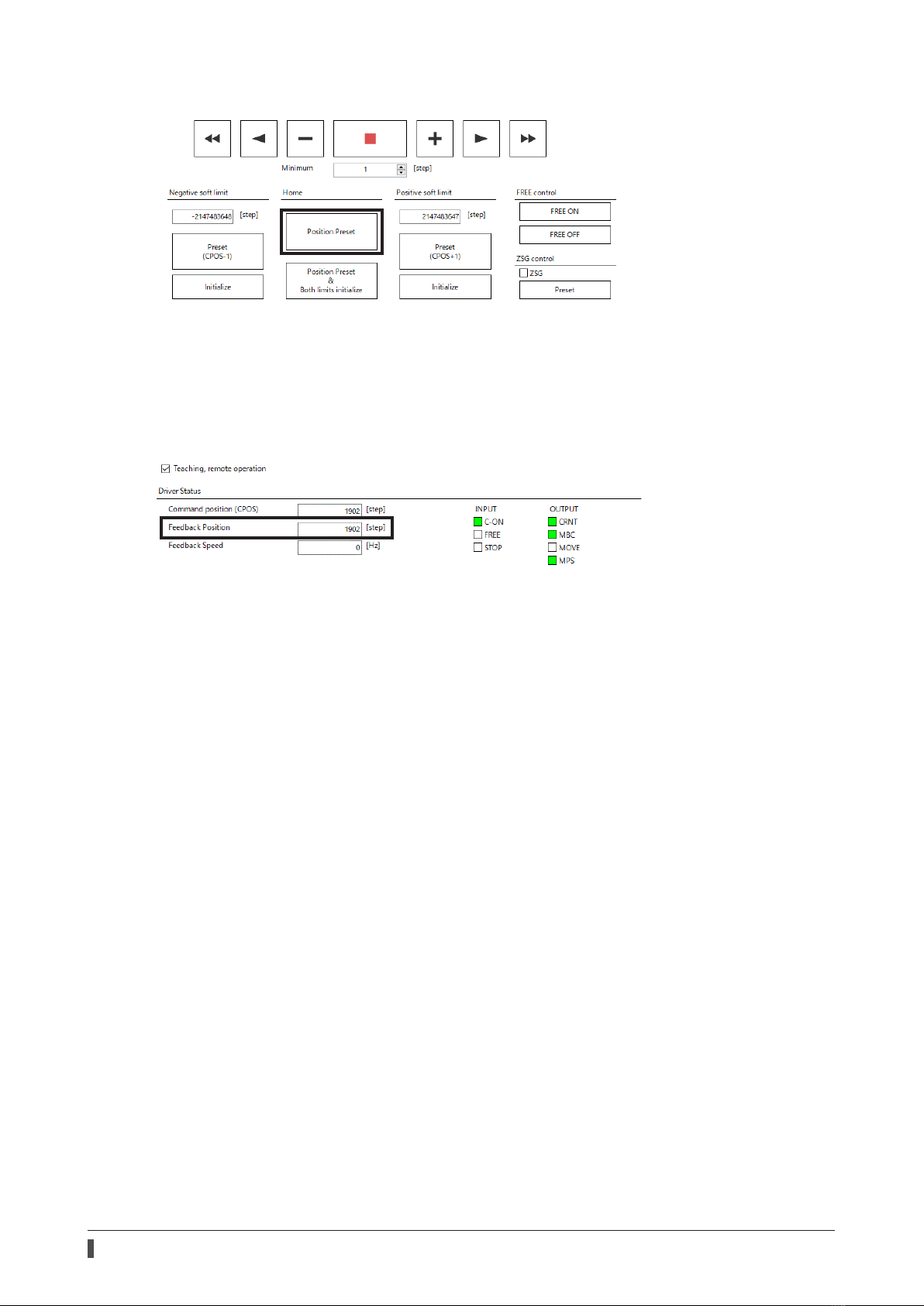

4. Click “Position Preset“. The home is set.
Checking the movable distance
Check the movable distance by the MEXE02 software or actual measurement.
Check by MEXE02 software
Using the JOG operation switches, move the rack from the home.
Check the “Feedback position“ in the “Driver Status“ eld.
Check by actual measurement
Using the JOG operation switches, move the rack to a desired position.
Measure the distance from the end face of the rack to the rack bushing.
