D39•DIRECTOR 3” SPEAKER MANUAL

DIRECTOR COLLECTIONTM



 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 



DIRECTOR COLLECTIONTM 3'' MANUAL





           





         



 







)

)

)



)

)







 

 

 

 

 

 

 

 

 

3.What’sIncluded

Speaker Bayonet Ring Grille Template

Subwoofer Amp

2 Channel Amp

D39

Minimal Opening Collection

Cut-Out Template: 3 1/4” (83mm)

www.originacoustics.com

[email protected]

844.674.4461

8:00AM - 5:00PM (PT) Mon - Fri

         

DIRECTOR COLLECTION

DIRECTOR 10”| 8” & 6” LOUDSPEAKERS

SPECIFICATIONS

Please visit docs.originacoustics.com or scan this QR code using your smart device for the

most up to date safety information and use instructions for this product.

*All warranties and warranty conditions are subject to change. Please

refer to docs.originacoustics.com for the latest information.

ALL 10'' SERIES

10 3/8” (264mm)

11 ” (286mm)

11 ” (299mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

ALL 8'' & 6'' SERIES

8 ” (222mm)

9 ” (244mm)

10” (254mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

OriginAcoustics

ORIG I N®

ACOUS T I C S

111/2in

286mm

113/4in

299mm

61/4in

158mm

103/8in

264mm

OriginAcoustics

ORIG I N®

ACOU S T I C S

10in

254mm

95/8in

244mm

222mm

83/4in

51/4in

133mm

41/8in

105mm

 

SPECIFICATIONS ALL 3'' SERIES

Cutout Diameter 3 ” (83mm)

Speaker Diameter 3 ” (100mm)

Grille Diameter 4 ”(108mm)

Grille Depth ” (3mm)





 

 

 

 

 

 

 

 

 

 

 

 













 

 

 

 

Subwoofer Amp

2 Channel Amp

Subwoofer Amp

2 Channel Amp



DIRECTOR COLLECTIONTM 3'' MANUAL





































DIRECTOR COLLECTIONTM 3'' MANUAL

      











Subwoofer Amp

2 Channel Amp





DIRECTOR COLLECTIONTM 3'' MANUAL

2 Channel Amp

             



           









DSUB6 Installation Manual

Amplifier

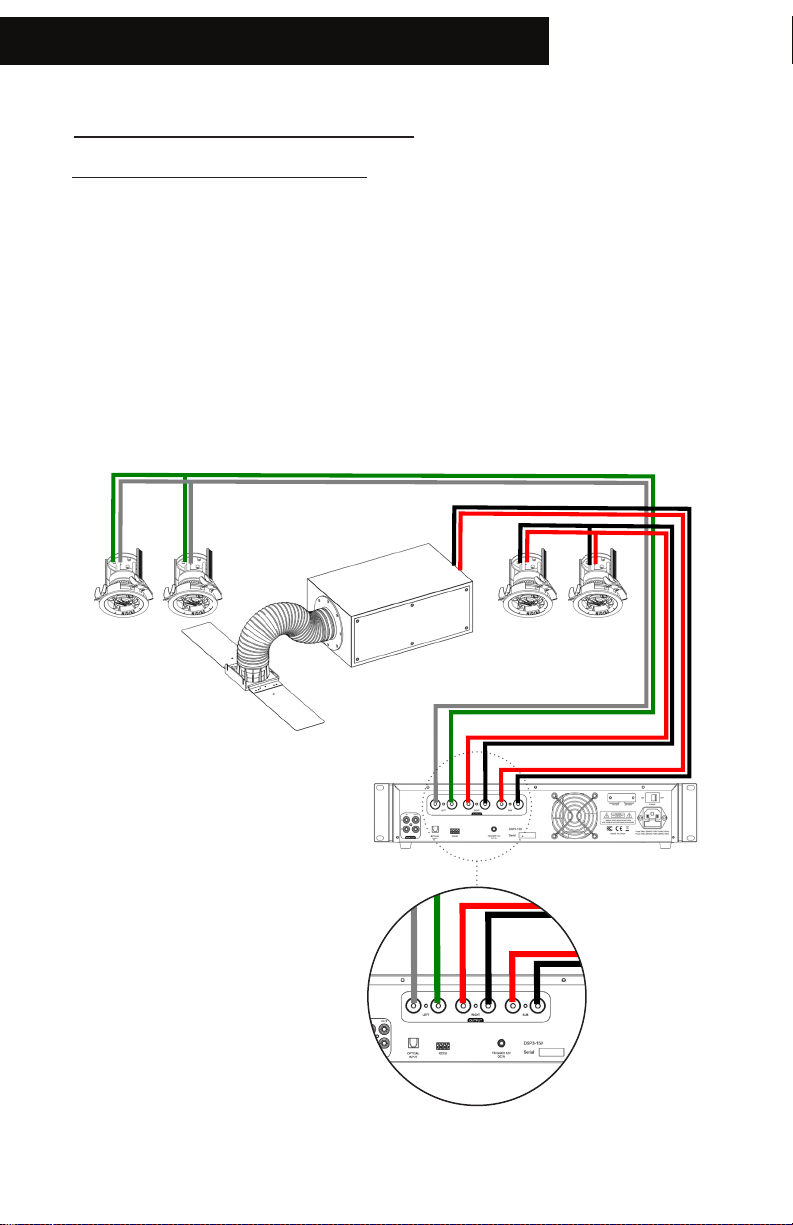

8. Wiring: 2-Channel Amplifier

Remove the pair of Type A Connector that comes

pre-installed to the DSUB6 input terminals. (See

section 10 on next page). Insert the le & right channel

wires from the 2-Ch Amplifier into the DSUB6 input

terminals labeled “Input from amplifier”, making sure

that the positive wire is being attached to the red

terminal and the negative wire is being attached to

the black terminal. You will also probably want to run

the wires from the DSUB6 output terminals labeled

“Output to speakers” at this time.

Only use 1 pair of D100, D80, D60 or D50 speakers with

a single 2-channel amplifier.

Using up to 2 Director D30 speakers per channel is

safe with 4 Ohm stable amplifiers.

Amplifier

DSUB6 Installation Manual

Amplifier

8. Wiring: 2-Channel Amplifier

Remove the pair of Type A Connector that comes

pre-installed to the DSUB6 input terminals. (See

section 10 on next page). Insert the le & right channel

wires from the 2-Ch Amplifier into the DSUB6 input

terminals labeled “Input from amplifier”, making sure

that the positive wire is being attached to the red

terminal and the negative wire is being attached to

the black terminal. You will also probably want to run

the wires from the DSUB6 output terminals labeled

“Output to speakers” at this time.

Only use 1 pair of D100, D80, D60 or D50 speakers with

a single 2-channel amplifier.

Using up to 2 Director D30 speakers per channel is

safe with 4 Ohm stable amplifiers.

Amplifier



DIRECTOR COLLECTIONTM 3'' MANUAL

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

Strip ¼ to ½ inches (6 to 12 mm) of the

insulation o both ends of the wire. To

avoid stray strands, twist them at the

end. Connect the wire to the amplifier,

and make sure the wire connected to

the le speaker output will be routed

to the le speaker, right output to right

speaker, etc.



Use a two conductor wire that allows you to identify one conductor from the oth-

er. This designation may be obvious or as subtle as a ridge on one conductor.

It’s crucial that you keep track of which wire you use for positive (+) and negative

(-). Typically if the wires are colored red and black, the red wire is used for positive

and the black wire is used for negative, but sometimes other colors or patterns are

used. You can choose whichever color of wire you want to be positive and nega-

tive as long as you remain consistent throughout the install.

On both your amplifier and your speaker the connectors will be identified as red

for positive and black for negative. It is very important to look carefully at the

speaker wires and be certain that the same wire that is attached to the positive

connector in the amplifier is attached to the positive connector in the speaker.



0.25 - 0.5”

(6 - 12mm)

Speaker

Wire

Plan how you’ll route the wire to the desired speaker location. There are several

methods for routing the wire, and you may need to combine several of them.



One option is to li up the carpet and

route “tape wire” under the carpet.

• 

The wire can be routed behind the

baseboard by cutting a groove out of

the back of the baseboard, or by buy-

ing special baseboard designed for

concealing wires.

• 

When available, you can route the wire

through an attic or crawlspace.

•

When running wires through a wall, be

sure to avoid all obstacles such as AC

wiring, pipes, and ducts.

•

If these speakers are being installed in a new home during construction, the

installation process will be a bit dierent (although much simpler). For these

situations, it’s recommended you purchase a bracket. Instructions on how

to install the speakers are provided with the bracket, or can be found on our

website. Visit www.originacoustics.com for more information.

• 


