Original BTC DAVEY LIGHTING 0755 Bedienungsanleitung
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: this light fitting must be earthed. Make connections following the diagram below. The 0755/0761
MUST be connected to the supplied 12V driver before installing fitting on a mains voltage circuit. The 0758/0762 feature an
integrated driver and can be connected directly to the main supply.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connectors.
10. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the Installation
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidentally touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical
flex or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. For use in dry, indoor environment only. Ensure the fitting does not come
into contact with any liquids.

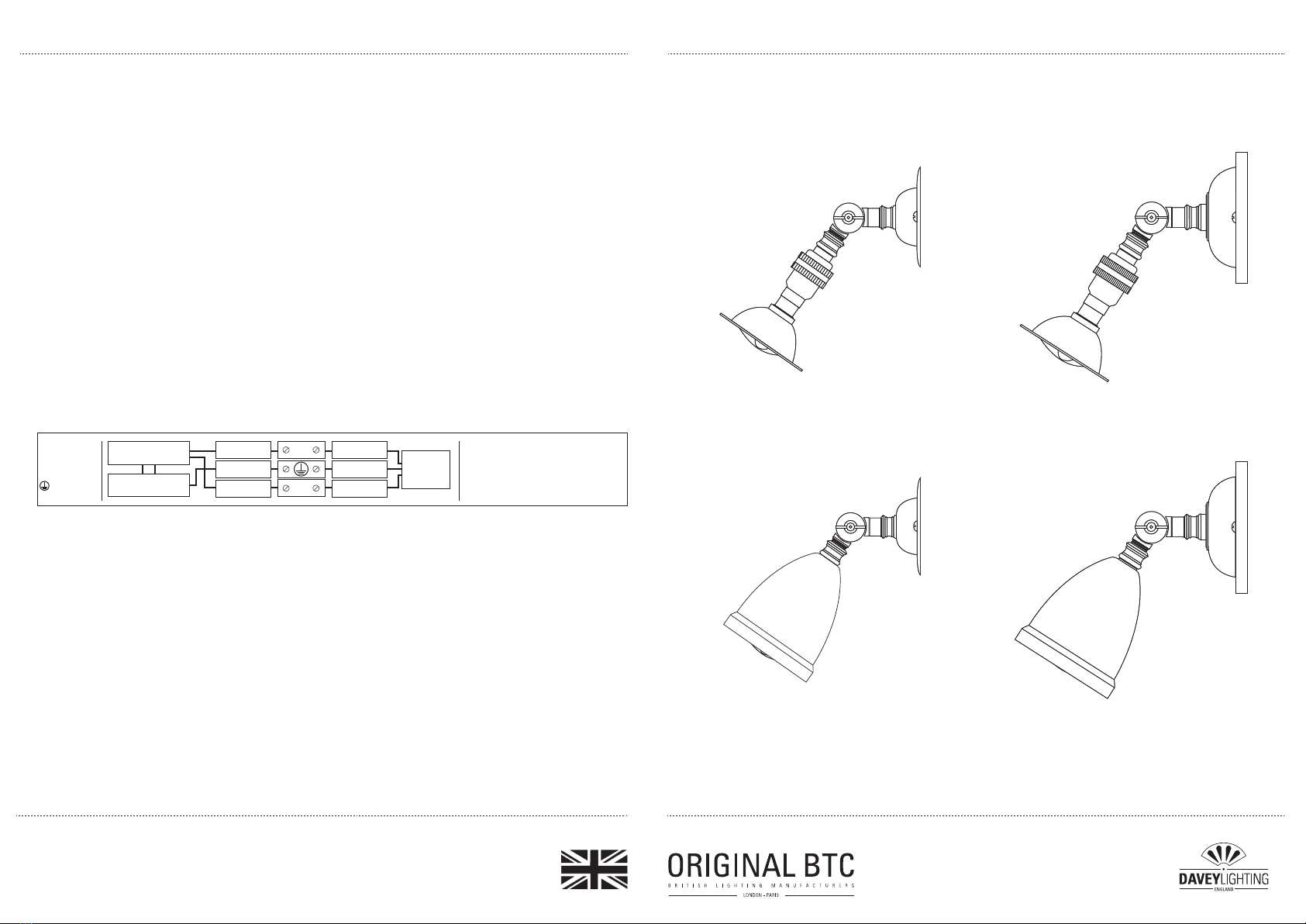

Whitby LED Spotlights
Instruction Manual
0755/0761/0758/0762
Safety & Installation Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
+44 (0)1993 882 251
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Driver
Light fitting
*After 2004, wiring installation colours
changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off power to the fitting
before cleaning.
v1.3-01.20
DP0755
DP0761 DP0762
DP0758
Whitby LED Spotlights
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
INSTALL DRIVER IN SUITABLE ENCLOSURE DIRECTLY ABOVE OR
BEHIND FITTING
12V0755/0761

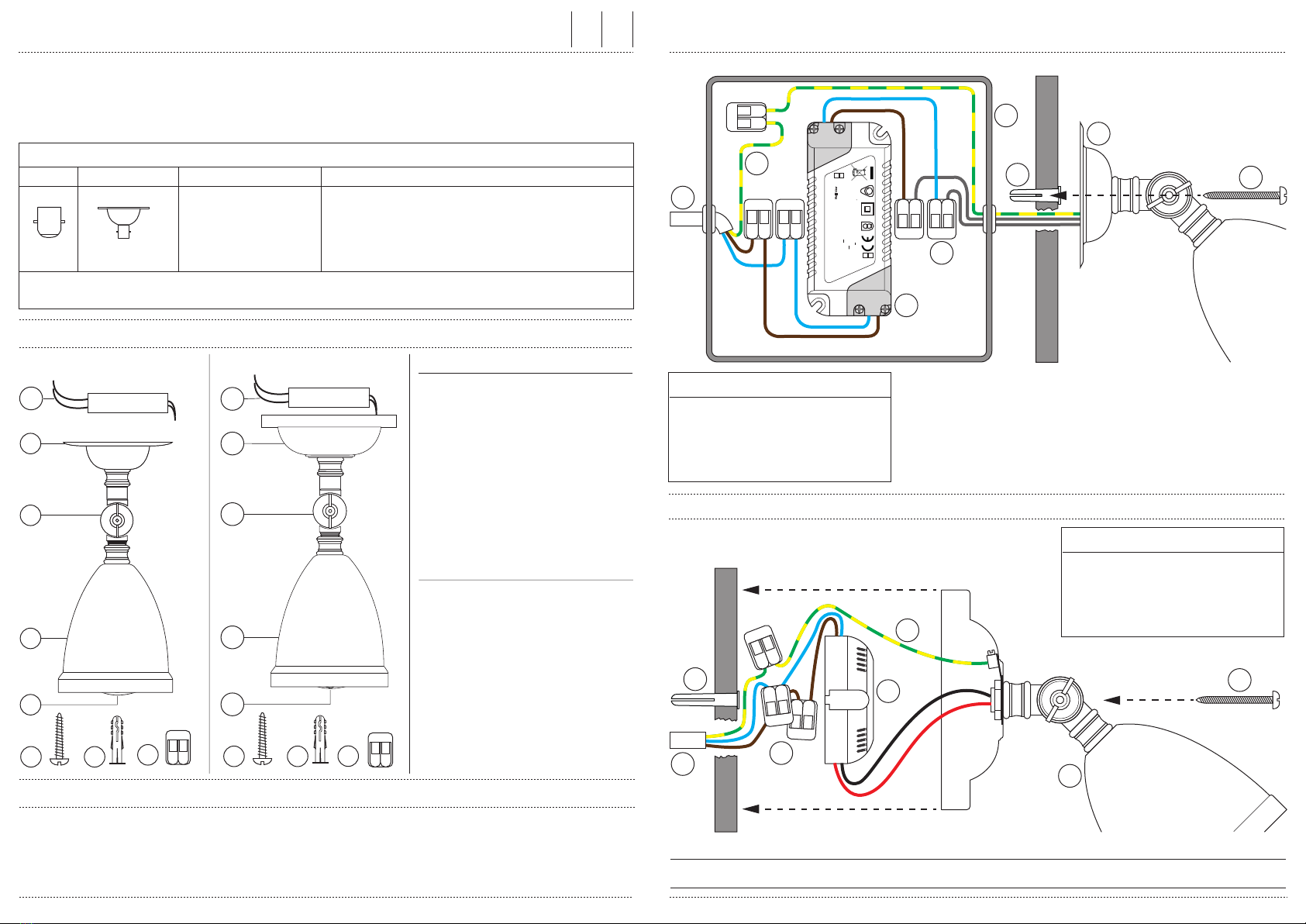

0755/0761 Installation Diagram
0758/0762 Installation Diagram
Contents
IP20
230V0758/0762 IP20
DP0755 Whitby LED Spotlight, With Remote Driver
DP0761 Whitby LED Spotlight, With Shade And Remote Driver
DP0758 Whitby LED Spotlight, With Integral Driver
DP0762 Whitby LED Spotlight, With Shade And Integral Driver
Contents
1 - LED Driver
2 - Backplate
3 - Knuckle Joint
4 - Shade (0761/0762 only)
5 - Bulb
6 - 2 x Fixing Screws
7 - 2 x Rawl Plugs
8 - 5 x 2-Way WAGO
9 - 3 x 2-Way WAGO
0755/0761 0758/0762
Required for Installation
-Screwdriver, flat-head
- Drill (if holes are required)
Refer to instructions on back page. All four fittings are dimmable; for best results use a trailing edge dimming module.
0755/0761 are supplied with a driver for remote installation. Make the connections directly behind/above the fitting in a suitable
enclosure.
0758/0762 are Low Voltage 12V fittings supplied with an integral driver. They MUST be connected to a 12V driver if installing
on a 230V circuit. Do NOT connect directly to the main supply.
Installation and Assembly Instructions
1
3
4
5
2
9
6 7
2
3
4
5
6 7
SBC AR70 HALOSPOT
LAMP GUIDANCE
TYPE WATTAGE*
BASE SHAPE
INCANDESCENT
CFL
HALOGEN
LED
n/a
n/a
n/a
7w
* Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
1
8
A
B
C
D
Main Supply
Rawl Plug
WAGO
LED Driver
Key
E
F
G
Earth Wire
Fitting
Fixing Screw
A
B
C
D
Main Supply
Earth Wire
Driver
WAGO
Key
E
F
G
H
Enclosure
Rawl plug
Fitting
Fixing Screw
A
G
A
Dimming LED Driver
INPUT
OUTPUT
Model: 3020079
Input: 220-240V ~ 50/60Hz 0.05A
Output: 9-15V --- P rated: 7W
U out: 28V --- I rated: 450mA(CC)
Power Factor: >0.90
For LED modules only
No Flicker
201924
ta= 50°C
tc= 90°C
N
L
+
-
E
F
G
H
D
C
B
B
C
D
E
F
