Orion 250R & 275R Bedienungsanleitung

HCCA 225R, 250R& 275R

OWNER'S MANUAL

HIGH PERFORMANCE CAR AUDIO

page 2

TABLE OF CONTENTS

INTRODUCTION 3

WARRANTY 6

SPECIFICATIONS 8

TECHNICAL DESIGN FEATURES 10

SYSTEM PLANNING 12

POWER CONNECTIONS 20

SPEAKER CONNECTIONS 24

INPUT SECTION 32

INTERNAL CROSSOVER SECTION 34

INTELLI Q 38

AUXILIARY OUTPUT SECTION 42

REMOTE GAIN SECTION 43

INSTALLATION TIPS 44

TROUBLESHOOTING TIPS 50

AUTOSOUND 2000 TROUBLESHOOTING TIPS 52

page 3

INTRODUCTION

Thank you for your purchase of ORION’s HCCA power amplifier. Each HCCA amplifier is designed to be the leader in its class offer-

ing the most power, advanced features and extreme ease of use. In high-end sound systems or high SPL systems, the HCCA ampli-

fiers will give you years of trouble-free performance.

• HCCA 225R- 25 watt per channel 2 channel high current amplifier with built-in fully variable high-pass, low-pass or band-

pass crossover with INTELLLi Q. Equipped with remote gain capability, the HCCA 225Ris capable of 3, 2, or 1 channel op-

eration with a maximum power capability of 400 watts into 1Ωmono.

• HCCA 250R- 50 watt per channel 2 channel high current amplifier with built-in fully variable high-pass, low-pass or band-

pass crossover with INTELLLi Q. Equipped with remote gain capability, the HCCA 250Ris capable of 3, 2, or 1 channel op-

eration with a maximum power capability of 800 watts into 1Ωmono.

• HCCA 275R- 75 watt per channel 2 channel high current amplifier with built-in fully variable high-pass, low-pass or band-

pass crossover with INTELLLi Q. Equipped with remote gain capability, the HCCA 275Ris capable of 3, 2, or 1 channel op-

eration with a maximum power capability of 1200 watts into 1Ωmono

The installation of all ORION components will determine the overall performance result. Improper installation will not only limit

the performance of your ORION system but also potentially compromise the reliability of this amplifier. To ensure proper sonic re-

sults and component reliability, please refer to your Authorized ORION dealer for installation assistance of advice. If you decide to

perform the installation yourself, read the entire installation section of this manual before beginning the installation.

ABOUT THIS MANUAL

This manual is designed to answer your questions about this product. In the event you have questions not covered in this manual,

please refer questions to your local Authorized ORION Dealer. Additionally, you can call ORION’s Technical Support Hotline at 1-

800 315-2052 or (480) 705-5600 for assistance.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100 dB may cause permanent hearing loss. High powered automotive sound

systems can generate sound pressure levels in excess of 130 dB. When playing your system at high levels, please use hearing pro-

tection and prevent long term exposure.

RECORD YOUR SERIAL NUMBER AND DATE:

MODEL:

SERIAL NUMBER:

DATE OF PURCHASE:

COMPANY PURCHASED FROM:

page 4

WHAT’S IN THE BOX

QTY DESCRIPTION

1 HCCA power amplifier

2 2 conductor 4 gauge power connector

1 5 conductor 12 gauge speaker connector

4 #8 Phillips Pan Head Screws

1 HCCA Reference Manual

page 5

WARRANTY

ORION Industries Inc. warrants this product to be free from defects in material and workmanship under the following terms:

Parts and Labor are warranted for a period of 3 years IF:

a. The product is purchased from an Authorized ORION Dealer

b. The product is installed by an Authorized ORION Dealer

Parts and Labor are warranted for a period of 1 year IF:

a. The product is purchased from an Authorized ORION Dealer

b. The product is NOT installed by an Authorized ORION Dealer

Parts and Labor are warranted for a period of 90 days IF:

a. The product is NOT purchased from an Authorized ORION Dealer

If you are uncertain as to whether your dealer is authorized, please contact ORION at 1-800-350-9726 or (480) 705-5600. In countries

other than the USA, each distributor warrants the ORION product it sells.

The Following conditions and situations are NOT covered by this warranty:

Any product on which the serial number has been defaced, modified or removed

Damage or malfunction resulting from:

a. Accident, misuse, abuse, unauthorized modification or failure to follow the instructions provided with this product.

b. Repair by anyone NOT authorized by ORION.

c. Damage due to shipping (these claims must be presented to the freight carrier)

d. Removal or installation of this product.

e. Any failure that has NOT been caused by a defect in material or workmanship.

This warranty is in effect for the original purchaser only. ORION will pay for labor and material expense for covered items. ORION does

not cover removal or installation charges, payment of shipping charges to ORION, payment of OUT-OF-WARRANTY shipping charges,

or damage to other property caused by any defects in this product.

page 6

For all warranty and non-warranty service issues, please refer to your nearest Authorized ORION Dealer for assistance. If you require

additional information or assistance regarding service repair issues, please call 1-800-350-9726 or (480) 705-5600.

Exclusion

1. This warranty is in lieu of all other warranties expressed of implied

2. In no event will ORION be liable for any consequential damages resulting from the use of this product or

any defect of this product.

This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

page 7

SPECIFICATIONS

AMPLIFIERSECTION HCCA225R HCCA250R HCCA275R

Power output 4 ΩStereo (watts) 25watts 50watts 75watts

Power output 2 ΩStereo (watts)150 watts 100 watts 150 watts

Power output 1 ΩStereo (watts)1100 watts 200watts 300watts

Power output 0.5 ΩStereo (watts)1200watts 400 watts 600watts

Power output 4 ΩMono (watts)1100 watts 200watts 300watts

Power output 2 ΩMono (watts)1200 watts 400watts 600watts

Power output 1 ΩMono (watts)1400 watts 800watts 1200watts

Distortion all channels driven

(from 20Hz to 20kHz) <0.1% THD <0.1% THD <0.1% THD

Frequency Response 20Hz to 20 kHz ±0.25 dB 20Hz to 20 kHz ±0.25 dB 20Hz to 20 kHz ±0.25 dB

Linear Bandwidth 6Hz to 50 kHz ±3dB 6Hz to 50 kHz ±3dB 6Hz to 50 kHz ±3dB

Signal-to-noise ratio full bandwidth

@ rated outputpower > 100 dB > 100 dB > 100 dB

Damping factor @ output connector

full bandwidth >400 at output connector >400 at output connector >400 at output connector

Slew Rate > 30V/µs >30V/µs > 30V/µs

page 8

input sensitivity3200 mV to 5 Vrms 200 mV to 5 Vrms 200 mV to 5 Vrms

input impedance 47kΩ47kΩ47kΩ

fuse type (2) 20 AMP ATC (2) 30 AMP ATC (6) 30 AMP ATC

CROSSOVER

SECTION

low-pass crossover4Continuously Continuously Continuously

variable variable variable

low-pass frequency range 45Hz to 5kHz 45Hz to 5kHz 45Hz to 5kHz

high-pass crossover Continuously Continuously Continuously

variable variable variable

high-pass frequency range 10Hz to 1kHz, 10Hz to 1kHz, 10Hz to 1kHz,

100Hz to 10kHz 100Hz to 10kHz 100Hz to 10kHz

INTELLi Q boost range 0dB to 10dB 0dB to 10dB 0dB to 10dB

GENERAL

12" x 10.25" x 2.25" 18" x 10.25" x 2.25" 25" x 10.25" x 2.25"

(L x W x H) 305mm x 457mm x 635mm x

260mm x 57mm 260mm x 57mm 260mm x 57mm

(L x W x H) (L x W x H) (L x W x H)

page 9

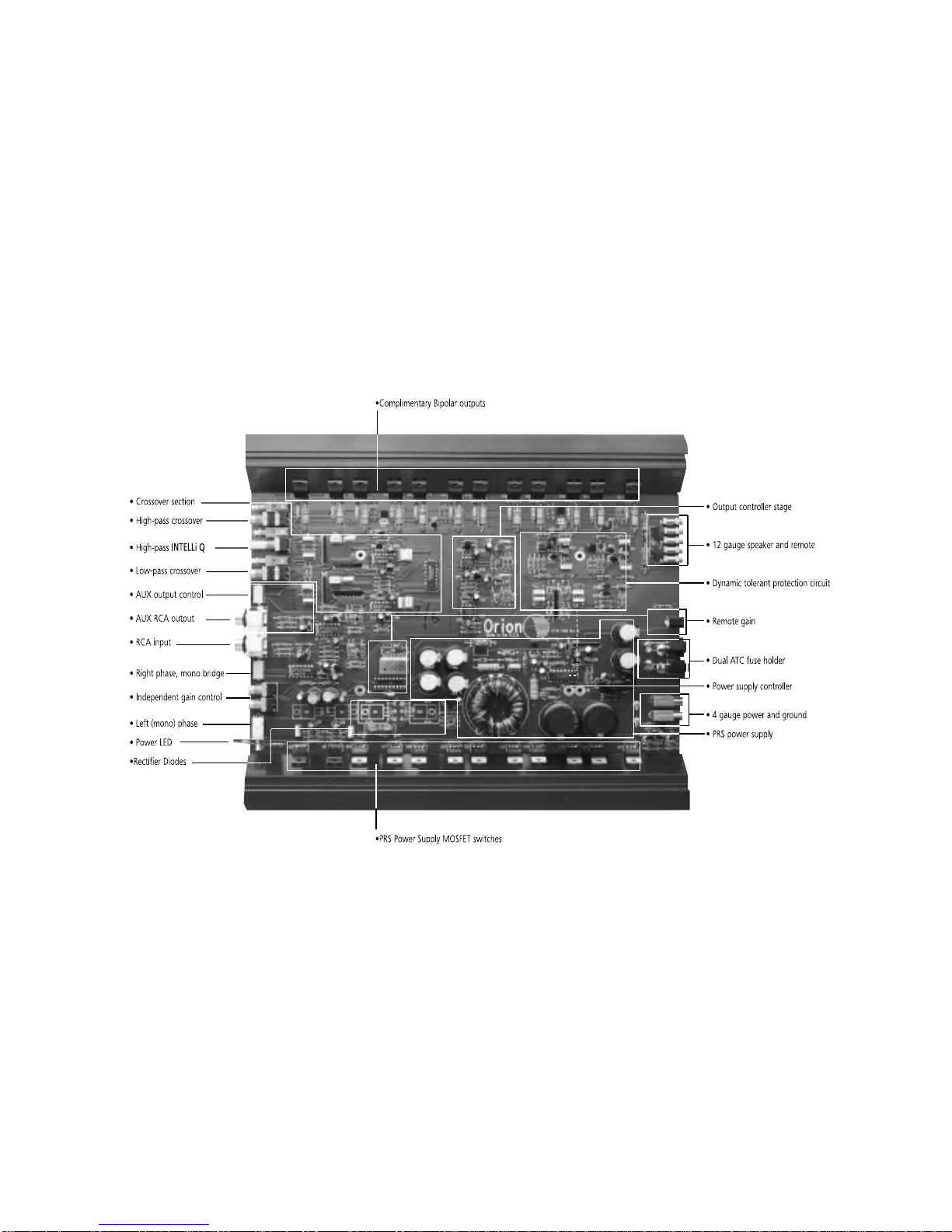

TECHNICAL DESIGN FEATURES
