Installation instructions
MAGNETIC DOWNLIGHT RANGE
ORL1009WH / ORL1009WH-NLH / ORL1009BL / ORL1009AW / ORL1009SG / ORL1009WHGG / ORL1009HS /ORLIP441009WH / ORLIP441009BL / ORLIP441009AW
/ ORLIP441009HS ORL1019WH/ ORL1019BL / ORL1019AW / ORL1019WHGG / ORL1019HS / ORLIP441019WH / ORLIP441019BL / ORLIP441019AW /
ORLIP441019HSORL1009SQWH / ORL1009SQBL / ORL1009SQAW / ORL1009SQWHGG / ORLIP441009SQWH / ORLIP441009SQBL / ORLIP441009SQAW
ORL1019SQWH / ORL1019SQBL / ORL1019SQAW / ORL1019SQWHGG / ORLIP441019SQWH / ORLIP441019SQBL / ORLIP441019SQAW / ORL-IP54-1019-WH-9016-NLH /
ORLIP541019BL / ORLIP541019AW / ORLIP541009WHGG / ORLIP541019HS / ORLIP541019WH / ORLIP541019SQBL / ORLIP541019SQAW
INSTALLATION - Orlight does not recommend cutting of holes prior to receipt of product in hand.
Please see reverse for full instructions.
45mm
4mm
89mm
CIRCULAR
CUT OUT : 78MM
LUMENSTAR
85mm
Allow +2mm for Cable Clearance Allow +2mm for Cable Clearance
CR-5
84mm
45mm
4mm
89mm
CIRCULAR
CUT OUT : 78MM
Allow +5mm for Cable Clearance
4mm
89mm
CIRCULAR
CUT OUT : 78MM
30° Tilt
6W
R9-99-3
74mm
8W
R9-99-2
84mm
13W
R9-99-1
112mm
45mm
Allow +5mm for Cable Clearance
4mm
89mm
CIRCULAR
CUT OUT : 78MM
30° Tilt
6W
R9-99-3
74mm
8W
R9-99-2
84mm
13W
R9-99-1
112mm
45mm
COMPATIBLE
240V
50W GU10 MR16
12V
100
3%
DIMMABLE
CIRCULAR
CUT-OUT
IP44
IP20 IP64 IP65 IP66 IP68
IP54
Rotate & SwivelPlease note: The above standards are dependent on the xture option selected from the range.
PLEASE OBSERVE MAXIMUM WATTAGES AS STATED ON FIXTURES.
www.orlight.com | 01923 851 890
Compatible Orlight dimmable lamps (may require mains converter) :
45mm
4mm
89mm
CIRCULAR
CUT OUT : 78MM
LUMENSTAR
85mm
CR-5
84mm
45mm
4mm
89mm
CIRCULAR
CUT OUT : 78MM
30° Tilt
CR-5
84mm
45mm
4mm
89mm
CIRCULAR
CUT OUT : 78MM
30° Tilt
ORL1009 ORL1019
5W CR-5 7W LUMENSTAR 7W MTG2PLUS 7W MTG2 R9-99
www.orlight.com | 01923 851 890
V 2.10MAG
We recommend that this product is installed by a competent person in accordance with the latest edition of the IET Wiring Regulations
BS 7671 “Requirements for Electrical Installations” and the Buildings Regulations, as may be applicable subject to the location and
country of the job or installation.
For more information and installation guidelines please refer to “Guide on Lighting Risks and Regulations” which can be downloaded
from the website:
http://media.orlight.com/media/downloads/Orlight_guide_on_lighting_risks.pdf
1. Hole cut out:
Orlight does not recommend cutting of holes prior to receipt of product in hand. Please refer to reverse or Orlight’s technical
support/website for recommended hole cut out.
2. Wiring:
Disconnect the mains supply before installation. Ensure that the unit is installed and maintained by a certified professional and that
installation conforms to any local building control standard applicable.
a. For low voltage installation:
Connect the mains supply to the Orlight transformer and 12v supply from the Orlight transformer to the terminal block provided. Insert
the lamp within the inner ring and connect to lamp holder. Attach the springs to the lamp holder thereby holding the lamp securely.
Insert inner ring into its outer ring counterpart, which will consequently be held in place magnetically. The fixture may be rotated and
tilted to direct light as required, depending on fixture type chosen.
b. Mains installation:
Connect the mains to the terminal block provided. Insert the lamp within the inner ring and connect to lamp holder. Attach the springs
to the lamp holder thereby holding the lamp securely. Insert inner ring into its outer ring counterpart, which will consequently be held
in place magnetically. The fixture may be rotated and tilted to direct light as required, depending on fixture type chosen.
3. Lamp replacement:
Please ensure to disconnect the mains supply prior to re-lamping.
Accessories:
Please ensure that any accessory such as firehoods used in conjunction with these products is approved by Orlight. Failure to do so will
void any product guarantee. Orlight will not be held responsible for any loss incurred be it direct or consequential.
Insulation:
Fitting requires a minimum recess depth and surrounding materials must be removed by 150mm from all outside edges of
the fitting. Insulation must not be laid over the top of the fitting or fire hood.
NOTE – Light fittings in general can become hot whilst in operation. It is advisable that they do not come into contact with
any flammable materials such as fabrics, furniture, soft furnishings or touched during/after operation.
* Please note, all information contained within this instruction manual is provided in good faith. We will not be held responsible for
any losses incurred as a result of any inaccuracies contained within this document.

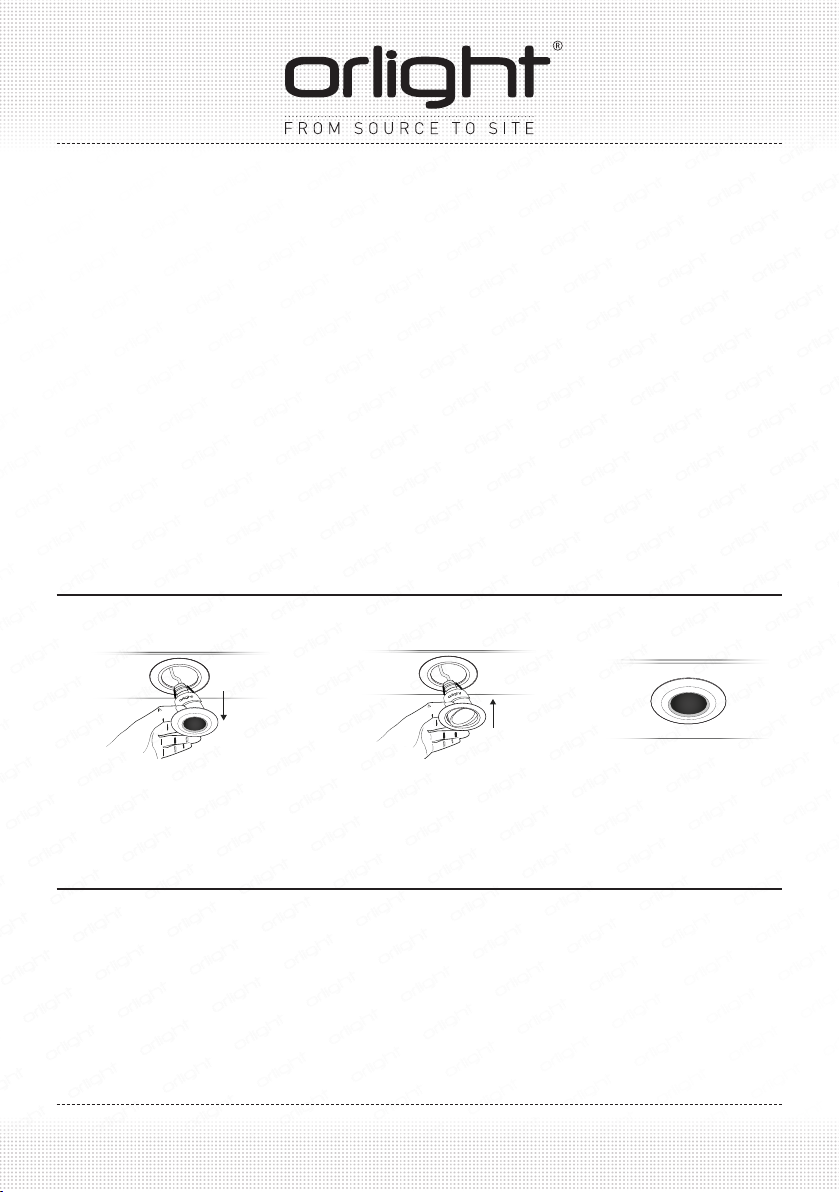

• Gently detach magnetic inner
fitting from downlight.
• Carefully remove old lamp
by twisting from lampholder
and dispose of appropriately
• Connect lamp to lamp
holder within the ceiling.
• Attach springs from lamp
fitting to lampholder for
support.
• Carefully refit the
magnetic inner to the
downlight.
