ORTAL SC 75 Bedienungsanleitung
ORTAL
SPACE CREATOR FIREPLACES:
SPECIFICATIONS & PRODUCT GUIDE
PAGE 2
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
1. NOTES
The appliance must be installed in accordance with the ORTAL AU/NZ Installation Manual.
The appliance must be properly connected to an approved chimney venting system. Refer to the specific appliance
installation guide to determine vent size and pathway requirements. In addition, adhere to the following pre-
installation guidelines:
• Use an approved DuraVent flue system as specified
• Consult the relevant authority to determine the need for a permit prior to starting the installation.
• It is the responsibility of the installer to ensure that this fireplace is installed in compliance with the
manufacturer’s instructions and all the applicable building codes. Contact your local distributor / dealer for correct
flue and flue termination information.
• Always used a licensed gas fitter / plumber to install the appliance
IMPORTANT:
THIS IS NOT AN INSTALLATION MANUAL. PLEASE
REFER TO THE DETAILED INSTALLATION MANUAL
DELIVERED WITH THE APPLIANCE.
PAGE 3
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
2. SPECIFICATIONS
MODEL BURNER
TYPE
INJECTORS NOMINAL GAS
CONSUMPTION
INLET
PRESSURE
MANIFOLD
PRESSURE
TURNDOWN
PRESSURE
FLUE SIZE
75 B45 Marked 650: with
7x0.950mm orifice
26MJ/h 1.13kPA 0.82kPA 0.23kPA 107/164mm
120 B100 Marked 1200: with
7x1.275mm orifice
37MJ/h 0.69kPA 0.73kPA 0.26kPA 125/205mm
150 B135 Marked 1200: with
7x1.275mm orifice
Marked 1400: with single
3.9mm orifice
55MJ/h 1.13kPA 0.61kPA 0.22kPA 125/205mm
200 B160 Marked 800: with
7x1.05mm orifice
Marked 1400: with single
3.8mm orifice
52MJ/h 1.13kPA 0.50kPA 0.22kPA 125/205mm
PAGE 4
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

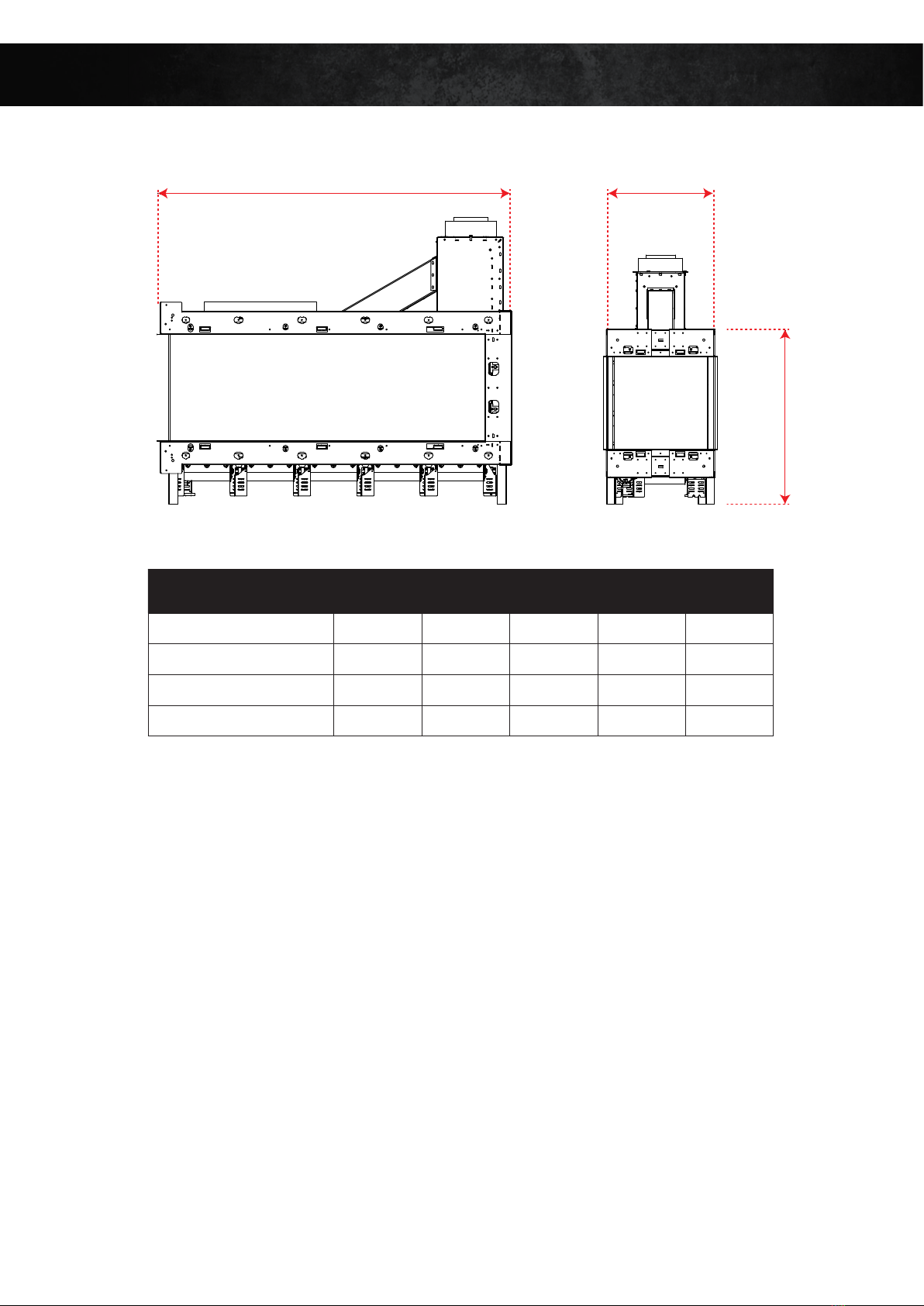

3. DIMENSIONS
MODEL
(all measurements in mm)
A
WIDTH
B
DEPTH
C
HEIGHT
GLASS SIZE
FRONT
GLASS SIZE
SIDE
75 910 518 778 802 x 424 518 x 424
120 1402 518 797 1295 x 424 517 x 424
150 1703 518 797 1597 x 424 517 x 424
200 2213 518 797 2035 x 424 517 x 424
Note: Minimum height off of the floor for all front facing Ortal fireplaces is 210mm.
Appliance legs must not be removed.
A B
C
PAGE 5
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
MODEL
(all measurements in mm) A B C D
SC 75 222 964 492 800
SC 120 254 1456 492 819
SC 150 254 1757 492 819
SC 200 254 2267 492 819
CLADDING FOR METAL STUDS
external cladding
The framing structure must be clad externally with non
combustible material and gaps sealed with a non-combustible fire
proof sealant. We recommend the fireplace to be in position and
flued prior to cladding.
OPTION 1: METAL STUDS FRAMING
The frame must be designed to carry the entire weight of the finished wall with no component being supported by the fireplace.
4. FRAMING & CLADDING
PAGE 6
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
MODEL
(all measurements in mm) A B C D E
SC 75 222 964 492 800 483
SC 120 254 1456 492 819 464
SC 150 254 1757 492 819 464
SC 200 254 2267 492 819 464
CLADDING FOR TIMBER STUDS WITH METAL SECTION
4. FRAMING & CLADDING
OPTION 2: TIMBER STUDS WITH METAL SECTION
The frame must be designed to carry the entire weight of the finished wall with no component being supported by the fireplace.
The framing structure must be clad externally with non
combustible material and gaps sealed with a non-combustible
fire proof sealant. We recommend the fireplace to be in position
and flued prior to framing/cladding.
We recommend using 16mm Gypsum fire rated plasterboard or its
equivalent for the enclosure of the fireplace chase.
external cladding
PAGE 7
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

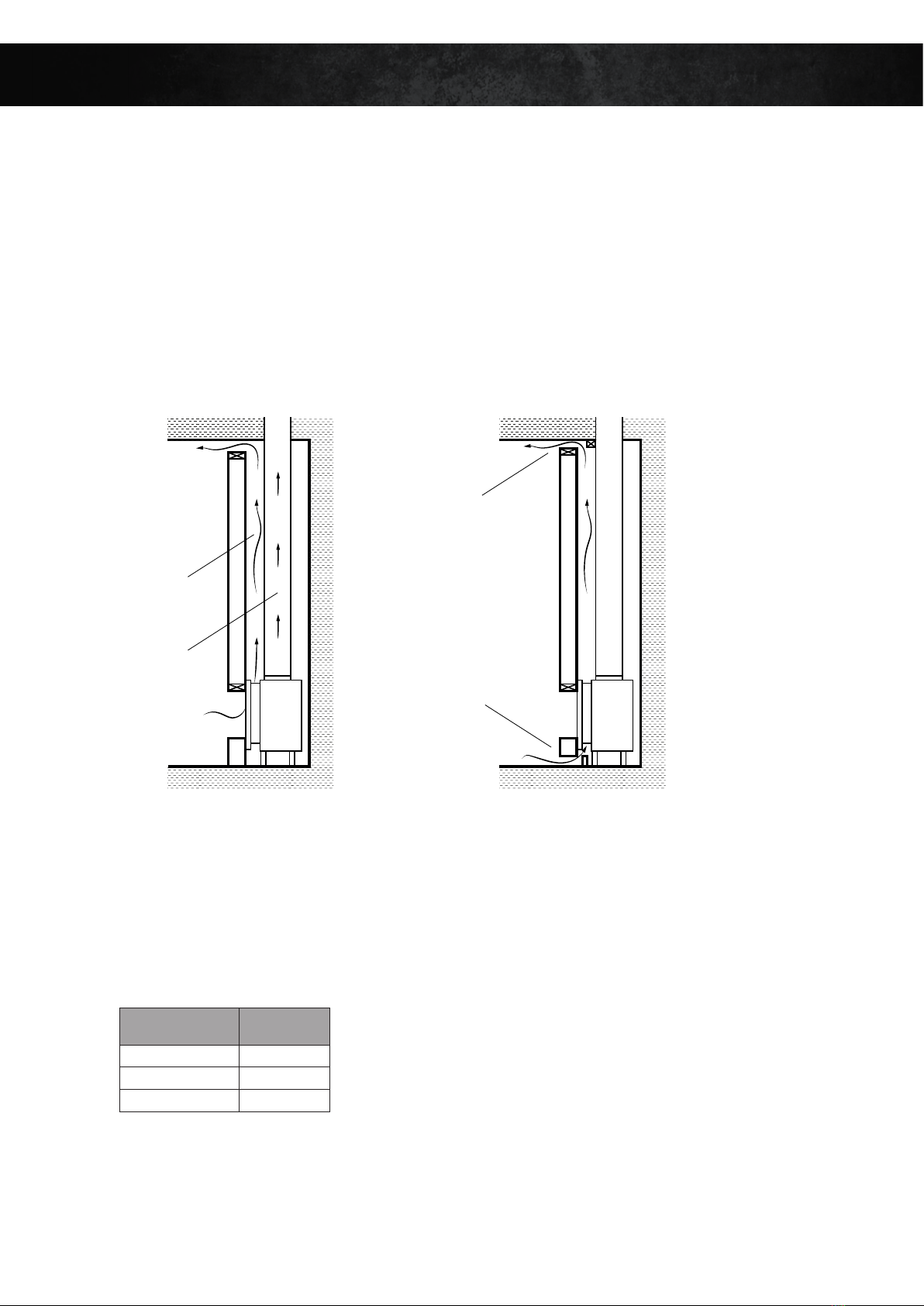

5. VENTING
VENTING (convection air intake)
For mesh units:
- No need to create a convection air intake as the appliance is designed to supply fresh
air though the viewing panel.
For double glass units:
- Convection air intake vents are required at the bottom of the cavity and can be placed
at the front, side or back of the cavity.
SCREEN HEAT BARRIER -
GAP HEAT RELEASE
DOUBLE GLASS HEAT BARRIER -
REVEAL HEAT RELEASE
AIR INTAKE AS
REVEAL/TOE KICK
DIRECT VENT
EXHAUST AND
AIR INTAKE
HOT AIR FLOW
HEAT RELEASE
AS REVEAL
VENTING (Convection air outlet)
A convection air outlet is required for all Ortal fireplaces. This allows for heat building up within the fireplace cavity to
be released back into the space, helping to keep the cavity walls cool. It must be located at the top of the fireplace cavity
and be placed at a maximum of 150mm below the cavity ceiling. The vent can be located on the front, sides or back of
the fireplace cavity, as long as it releases into an interior space and not outdoors.
These are minimum requirements and the surface can be greater if desired.
MODEL Heat release vent
(min surface)
60 to 130 0.08m2
150 to 200 0.13m2
250 0.16m2
PAGE 8
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
ACCESS
PANEL
FIRE
6. ACCESS PANEL
Access panels are recommended for all ORTAL fireplaces. They allow efficient and
comfortable access to the fireplace receiver and valves, which is required for servicing
purpose.
Access panels can designed and positionned to minimise their visual impact as long as
access to the valves and receiver is maintained. The size of the access panel may vary,
but in all cases must allow the fireplace technician to effectively conduct a services. We
recommend a minimum size of 200x200mm.
However, access panels are not the only option for servicing the fireplace operation
mechanisms. A technician may also service the fireplace controls by going through the
firebox. This procedure requires removing the glass panel(s), taking out the interior
media and lifting the grill, burner and bottom side (explosion valve) of the unit. The
technician would then return all these fireplace components when service is complete.
The servicing procedure will take longer than through an access panel.
Fireplace installers are advised to consult with their clients, project architects or interior
designers regarding the advantages and disadvantages of each service option.
PAGE 9
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
7. TV CLEARANCES
305mm MIN 305mm MIN
RECESSED INSTALLATION FLUSH INSTALLATION
PAGE 10
OBLICA | SPECIFICATIONS AND PRODUCT GUIDE
8. TESTING
THE ORTAL DECORATIVE ROOM SEALED GAS APPLIANCES HAVE BEEN
TESTED AND APPROVED BY AGA & IAPMO-R&T FOR USE WITH NATURAL
GAS (NG).
Australian Standard AS5263-0:2016 - Decorative Gas Log and Other Fuel Effect Appliances
Patent Pending for screen barrier glass bracket: USSN 60/040,074
