Ortur Laser Master 2 PRO S2 Bedienungsanleitung

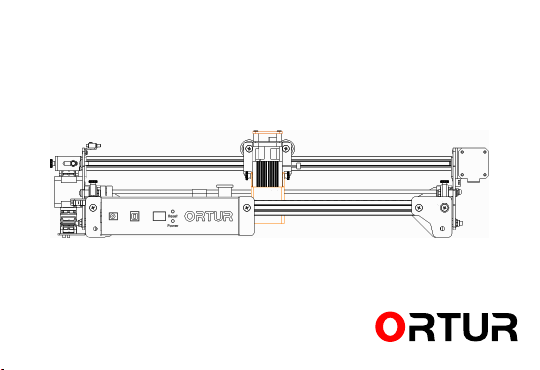

Assembly Manual

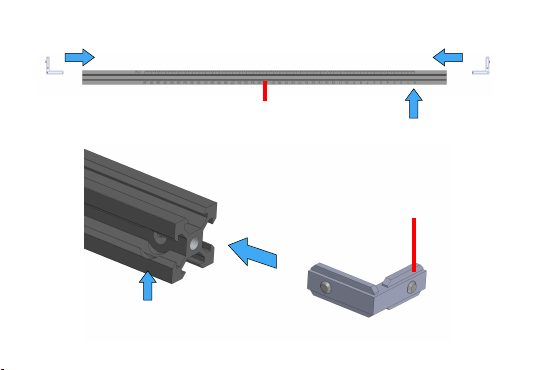

Y Aluminum Profile-540mm *1
Corner Connectors *2
Scale Mark 0
Pay attention to the notch direction!
1
Scale Mark 0
Scale Mark 0

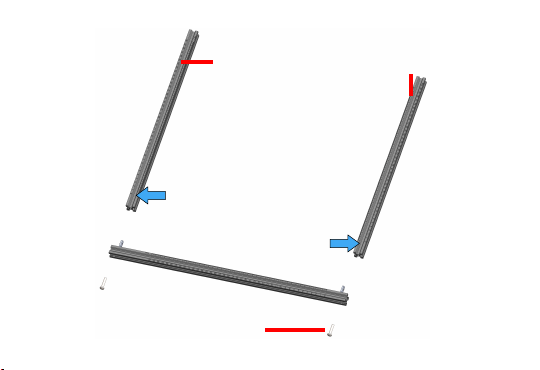

X Aluminum Profile-460mm *2
M5×25mm Screws *2
2
M5 Profile Nuts *4
Tighten with a 2.5mm Hexagon Wrench
3
Scale Mark 0

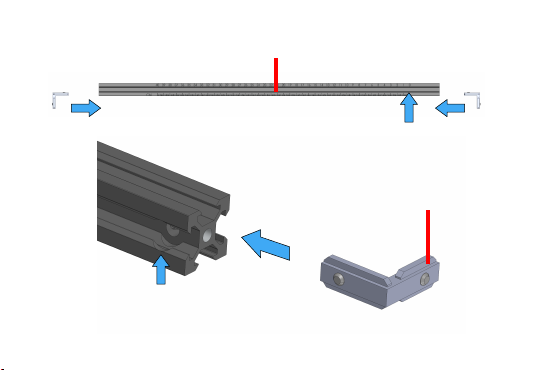

Corner Connectors *2
Pay attention to the
notch direction!
Y Aluminum Profile-540mm *1
4

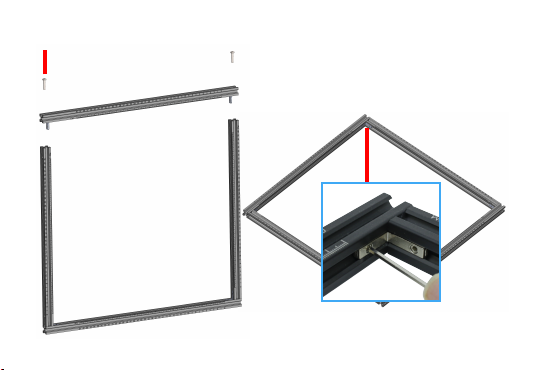

Tighten with a 2.5mm Hexagon Wrench
M5×25mm Screws *2
5

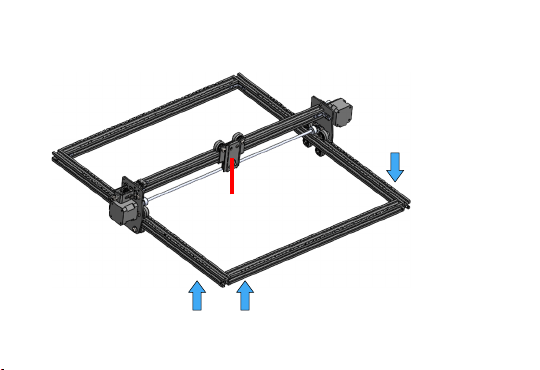

Put X-axis assembly onto the frame
X-axis Assembly *1
Scale Mark 0
Scale Mark 0
6
Base Anchors *2
M5×8mm Screws *4
M5 Spacers *2
Timing Belts *2
Scale Mark 0
7

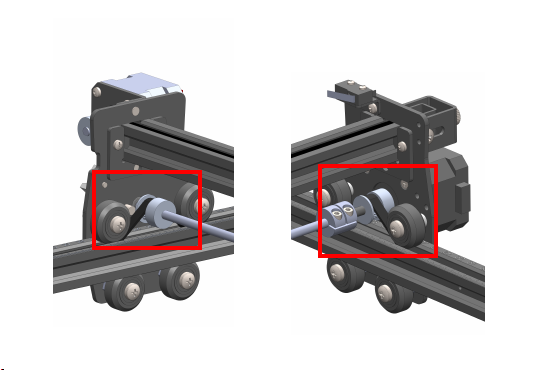

The timing belt needs to pass through the wheels
8

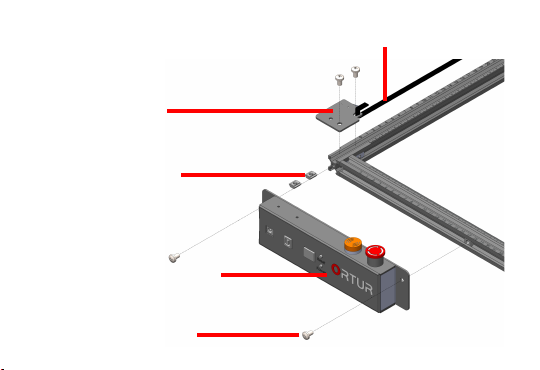

M5 Profile Nuts *2
Mainboard Assembly *1
Y Limit Switch *1
The timing belt must be tightened and then locked with screw!
M5×8mm Screws *4
9
