OSD Audio GLS8 Bedienungsanleitung
GLS8
IN-GROUND SUBWOOFER INSTALL GUIDE
GLS 8 INSTALL GUIDE
Tools Needed
Pre Installation
Speaker Wire
Step 1
Step 2
- Trench Spade/Shovel
- Wire Cutter
- Measuring Tape
- Direct Burial Cables
- Silicon Cable Connectors (Optional)
- Outdoor Volume Control (Optional)
Designate the general area where the subwoofer would be most ideal. The
subwoofer should be placed with in 20 feet of the general listening area for
optimum performance. (See Diagram1) The shape and nish would blend
particularly well in your landscape if it is placed near landscape lighting, water
fountain, open planter or swimming pool.
Measure the distance from the designated speaker location
to your stereo receiver. Try to minimize your distance without
compromising on your overall appeal and safety concern.
Once the route is determined, use your spade and trench
to dig the hole for the subwoofer and a wire route between
8”-12” deep once the trench route is completed, lay the cable
in the route. If using the PVC pipe, cut the pipe to length,
ensure all electrical connections are watertight with silicone
burial connectors. Once the cable layout is done, connect the
subwoofer & rell the trench & subwoofer hole.
(See Diagram 2)
- Where is the best place to install the speakers?
- Where will the speakers sound the best?
- Place the speakers in a location where they
will blend in best with their surroundings.
To determine the length and the gauge of speaker wire, you will
need to measure the distance between your receiver/amplier
and the speakers.
- Always buy more than you think you would need.
- Equal wire lengths should always be used to maintain an equal
balance in sound volume.
- Sound quality is lost when using thin wire gauge over a long
distance.
18 AWG minimum - for distances up to ….……………………. . 10 ft
16-2 AWG - from ……………………………………………. 10 to 50 ft
14-4 AWG - from …………………………………………… 50 to 100ft
12-2 AWG - from …………………………………………… 50 to 100ft

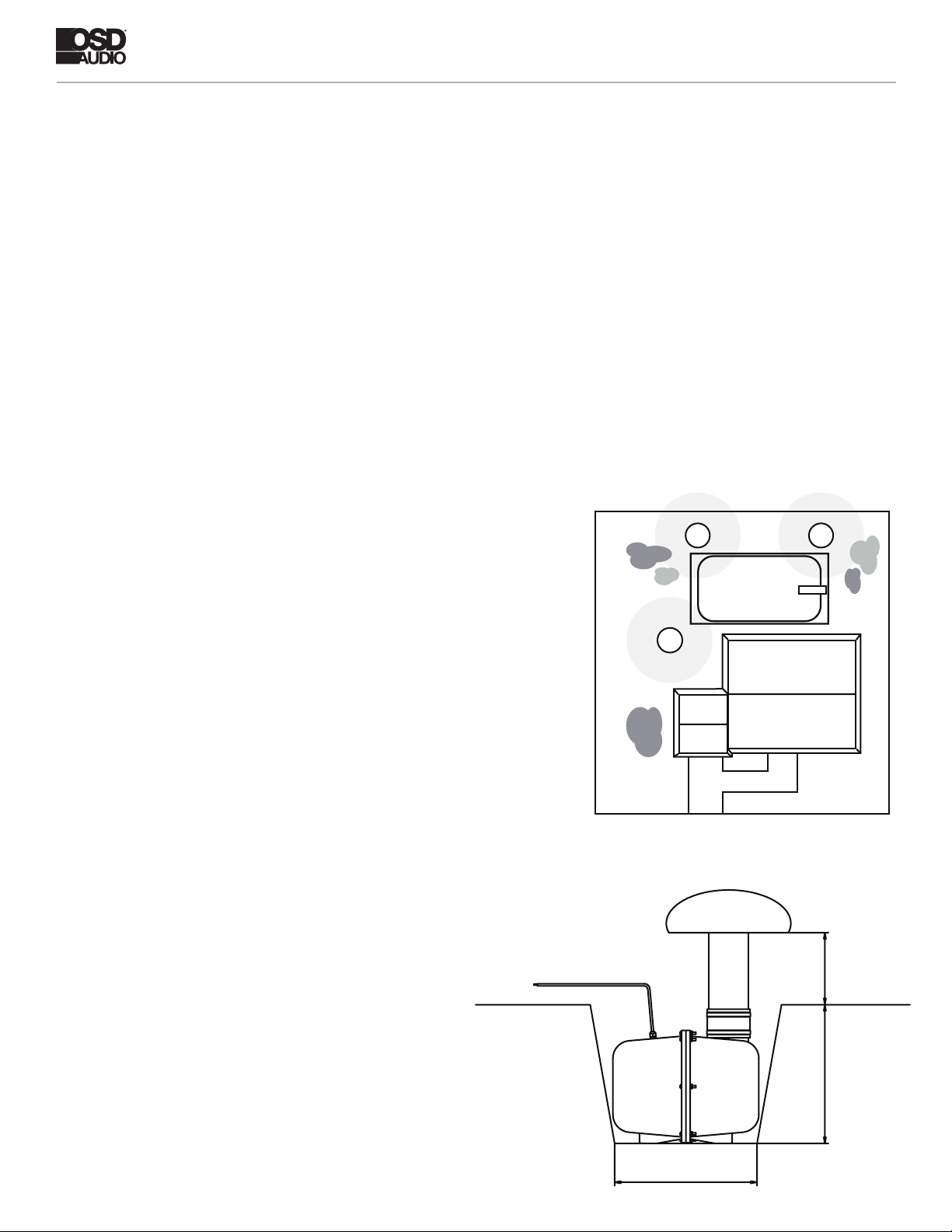

Diagram 2
Diagram 1
?
? ?
EARTH
17 inch
8-6 inch
15-17 inch

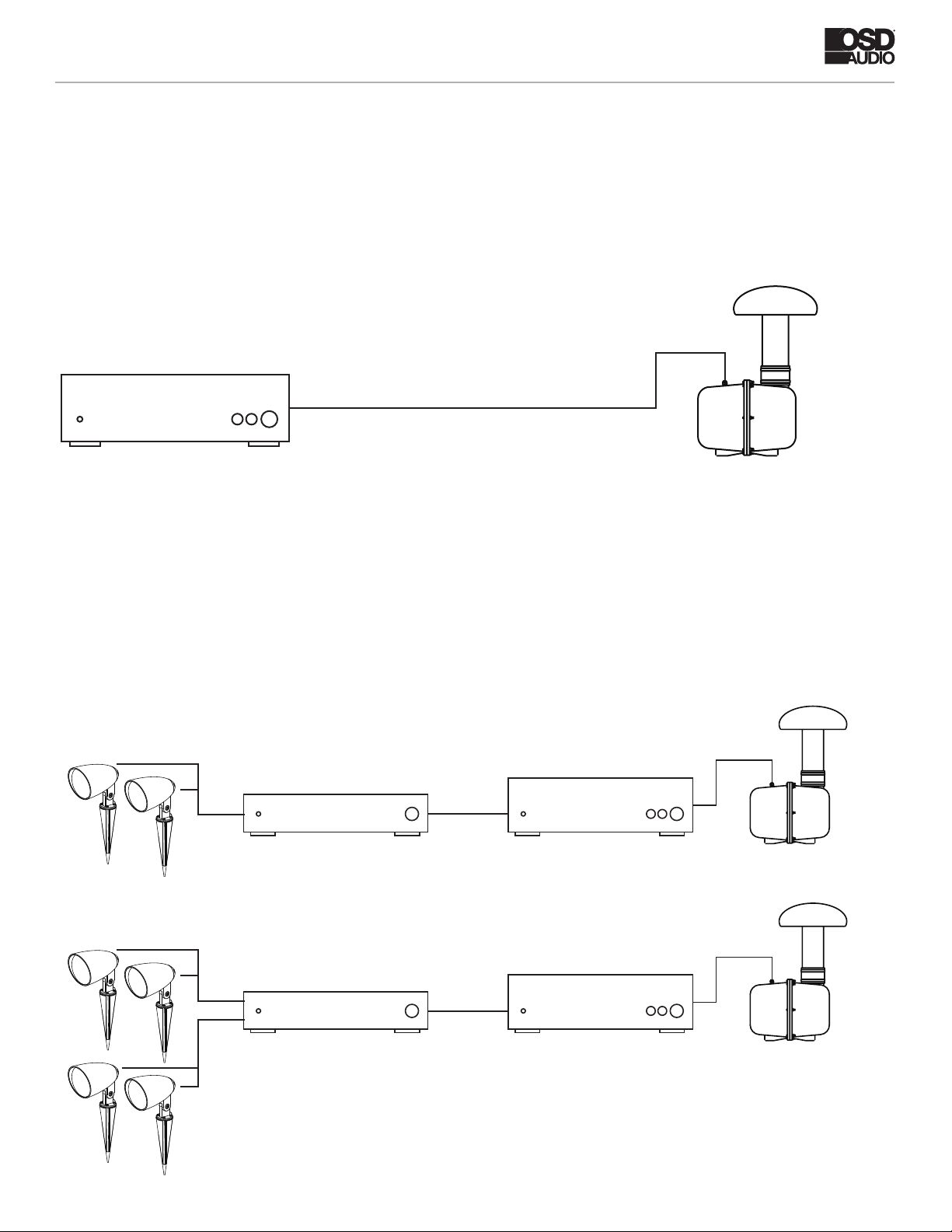

System Diagrams
Step 3
Connect to a Mono Subwoofer Amplier such as the OSD SMP250. Please note, the red lead indicates positive signal (+) and the
black indicates negative signal (-). Connecting the positive and negative leads incorrectly will cause it to be out of phase and will result
in weaker bass response. (See Diagram 3) Remove 2”- 3” of the outer layer of the speaker wire. Carefully strip ½” of the insulation
covering the speaker conductors within the outer layer and connect to the speaker outputs on the amplier.
For optimum performance combine the GLS8 with our LS2 landscape satellite speakers. Create an unobtrusive stealthy outdoor
sound system with the following system diagrams. Additional system congurations can be created for up to 8 pairs of speakers using
multichannel ampliers and or series parallel wiring.
Note: Please consult your electronics manual for Impedance and Power Rating before wiring a multi speaker system.
GLS 8 INSTALL GUIDE
SMP250 AMPLIFIER
SMP250 (Mono)
SMP250 (Mono)
AMP/RECEIVER
AMP/RECEIVER
Diagram 3
GLS 8 INSTALL GUIDE
Specications
Warranty Information
All OSD AUDIO outdoor speakers have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany
all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either
parts or labor
OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modications to the mounting may
be necessary and are not OSD AUDIO’s responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD
AUDIO. The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission. Accidental damage and shipping damage
are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not specically authorized in
writing by OSD Audio
OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD
AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or
serviced under existing OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO
shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be
made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at [email protected] for a
Returned Merchandise Authorization (RMA) number then the unit must be shipped to OSD AUDIO at the owner’s expense, along with a note explaining
the nature of service required. Be sure to pack the product(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from
damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have
been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and
maintenance.
GLS 8 Manual 7/17
OSD Audio | Brea, CA | osdaudio.com

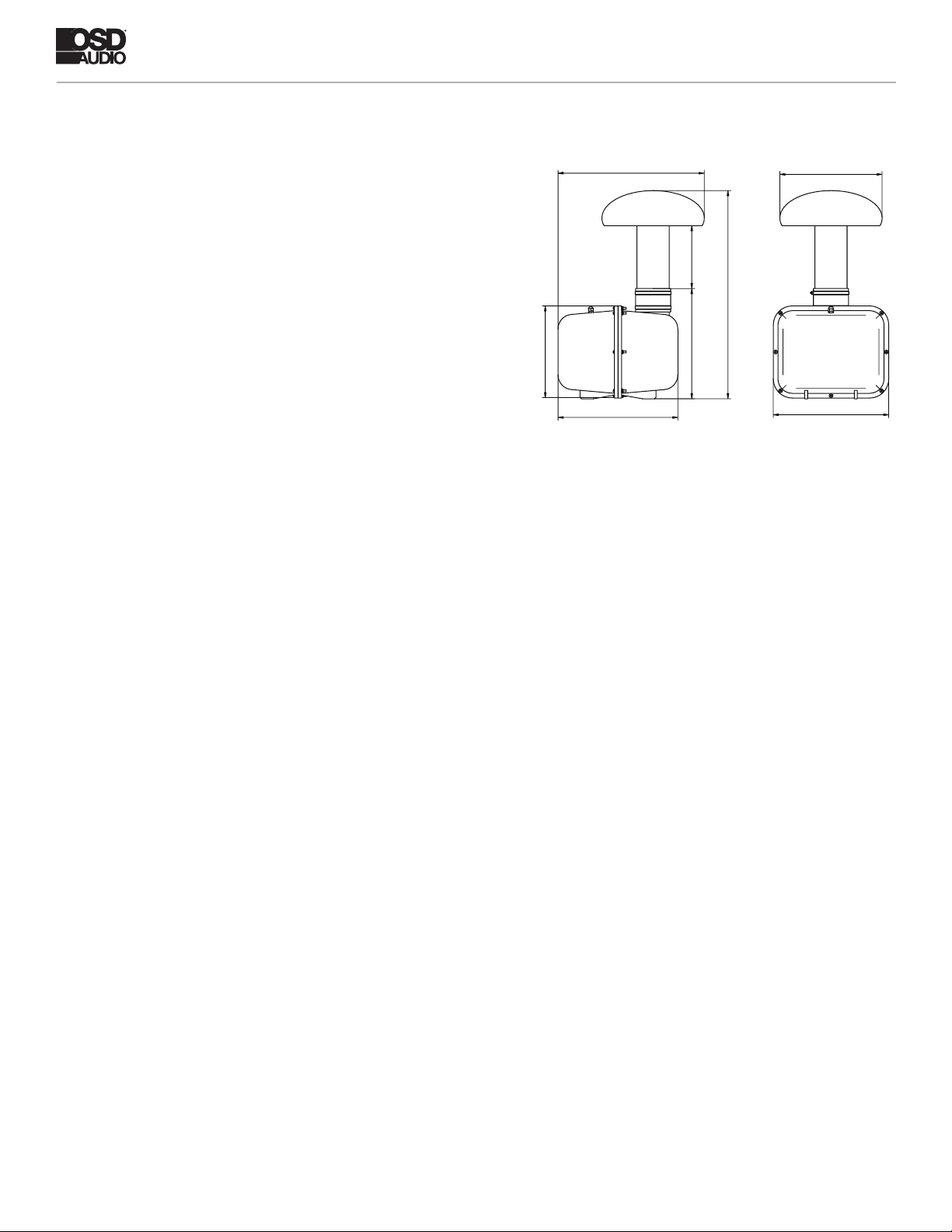

Woofer 8” Polypropylene Cone With Rubber Surround
Power 500 Watts Max
Freq Response 28 - 200Hz
Sensitivity 84 dB
Impedance 8 Ohm
Dimensions (HxWxD) 28.0” x 19.75” x 15.5” inch
Weight 32 lbs
16.0
12.4
14.9
28.0
8.5
15.5
13.7519.75
