DC20 Dongle 1 of 14
User’s manual
DC20
V1.0
DC20 Dongle 2 of 14

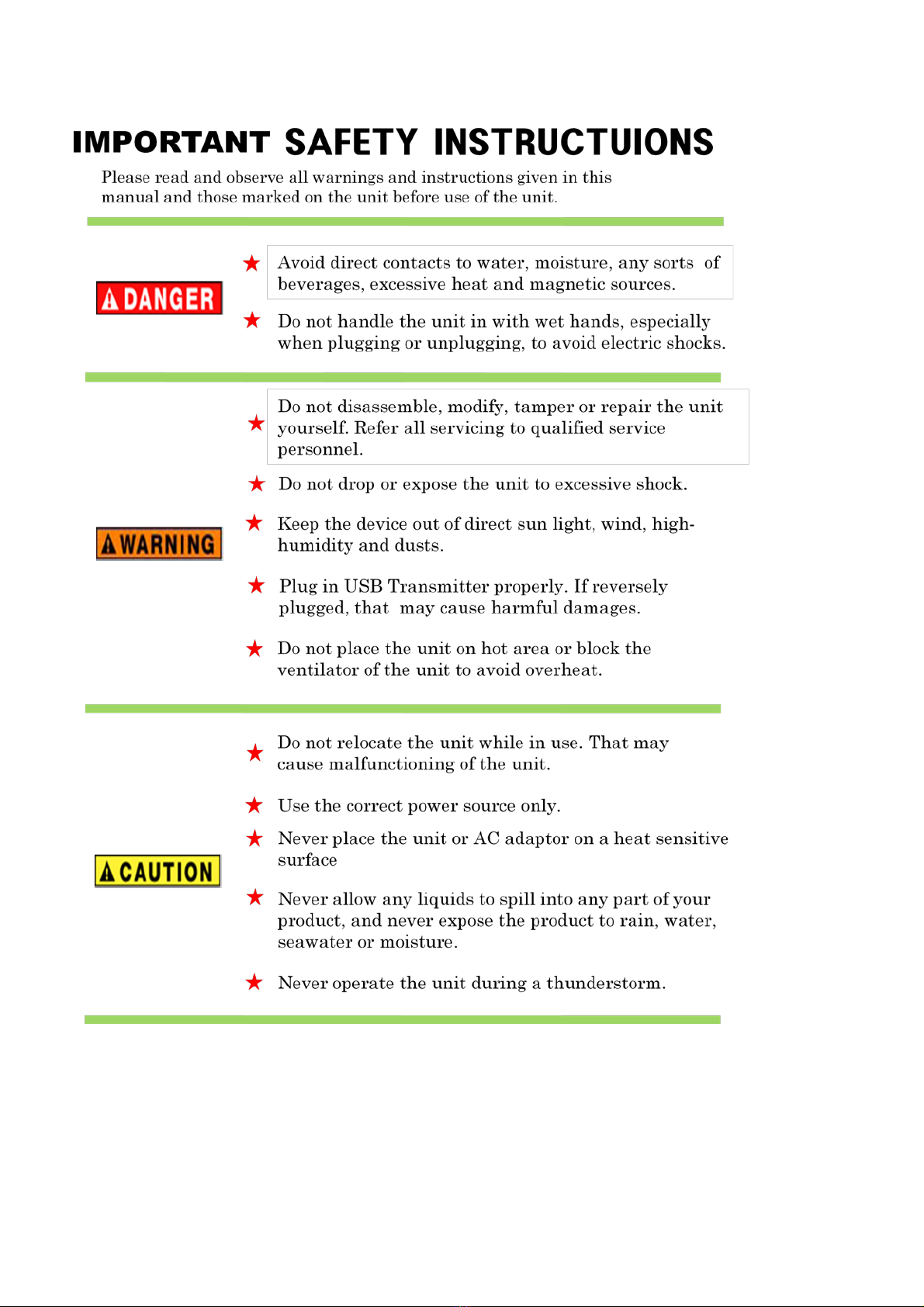

DC20 Dongle 3 of 14
FCC information
FCC notice "Declaration of Conformity Information"
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Notice "Equipment Authorization" Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device is authorized under Title 47 CFR 15.519 (the FCC Rules and Regulations).
The operation of this device is subject to the following restriction:
The changes or substitutions of the antennas which are furnished with the device is prohibited.
UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or
satellite is prohibited.
DC20 Dongle 4 of 14
IC Statement
This UWB RF apparatus complies with Canadian RSS-GEN.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
RF exposure
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna
or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
DC20 Dongle 5 of 14
EU Limitations
This device may not be installed into road or rail vehicles.
This product is sold to all CE countries.
BE GE CZ DK DE EE IE
EL ES FR HR IT CY LV
LT LU HU MT NL AT PL
PT RO SI SK FI SE UK
Declaration of conformity
We, DANBITECH CO.,LTD. of
120,Daeseong-ro 180beon-gil, Sangdang-gu, Cheongju-si, Chungcheongbuk-do, Republic of Korea
declare under our sole responsibility that our product.
DC20 Dongle 6 of 14
Contents
1. Package Components..............................................................................................................................................................7
2. Computer requirements .........................................................................................................................................................7
3. Summaries ....................................................................................................................................................................................8
3.1 Features..............................................................................................................................................................................8
3.2 Flexible use .......................................................................................................................................................................8
3.3 Application........................................................................................................................................................................8
3.4 Description........................................................................................................................................................................8
4. S/W installation ..........................................................................................................................................................................9
5. Connecting Wireless USB dongle to USB port ......................................................................................................... 11
6. Cautions...................................................................................................................................................................................... 13
7. DC20 specification .............................................................................................................................................................. 14
DC20 Dongle 7 of 14
1. Package Components
Wireless Dongle
2. Computer requirements
1.2 GHz or higher processor (Intel® Pentium®/Celeron® family, or AMD K6®/AMD
Athlon™/AMD Duron™ family, or compatible processor recommended. Intel® Core™ 2 Duo 2.0
GB or higher processor recommended for optimal video performance.)
512 MB memory or higher (1 GB memory or higher recommended)
USB 2.0 or USB 3.0 port
50 MB of available disk space
Microsoft® Windows® XP (32-bit edition) with SP2/SP3, or Microsoft® Windows Vista® (32-bit
or 64-bit editions) with SP1 or Microsoft® Windows 7, 8 ® (32-bit or 64-bit editions).
DC20 Dongle 8 of 14
3. Summaries
3.1 Features
Pre-tested, pre-certified UWB Radio Module
Removes the risk of RF layout and certifications (Quick TTM)
WiMedia Band Groups 1, 3, and 6
Single HW SKU for Worldwide use (FW programmable)
USB 2.0 Downstream Interface
WiMedia TFCs 1 - 10 in each band group (minimum of 10 channels anywhere in the world).
All WiMedia Data Rates: 53.3 to 480 Mbps
3.2 Flexible use
Can be used as either a Host or Device Radio
Supports Multiple FW options:
Wireless USB
- Host (HWA Firmware)
- Device (DWA Firmware)
Driverless type(NoWire™)
TCP/IP Firmware
3.3 Application
Host Side Radio: Notebooks, Tablets, HDTVs, Media Players, Set-Top-Boxes
Device Side Radio: Monitors, Projectors, Docking Stations, Hard Drives
3.4 Description
The DC20 UWB Radio Module is a pre-test radio module which can be used for both host and device
side applications. It supports both driver based solutions with Alereon’s Wireless USB Manager User
application for Microsoft operating systems or Alereon’s NoWire™ driverless firmware solutions for OS
independent Wireless USB or IP based WLP applications.
The DC20 is based upon Alereon AL5100 UWB Radio Transceiver and the Alereon AL6301
MAC/Baseband. It supports UWB/WiMedia Band Groups 1, 3 and 6 to provide 10 or more channels of
DC20 Dongle 9 of 14
operation in any country of the world. The card requires a single 3.3 volt power supply and provides a
standard USB 2.0 downstream interface to USB devices.
The DC20 is a versatile design that can support a variety of applications. There are several different
Firmware (FW) options that can be selected depending on the specific application and product feature set
requirements. For standard Wireless USB applications, the Host side radio but be programmed with HWA
Firmware while the Device side radio must contain DWA Firmware. A strapping resistor must also be
configured to determine either Host or Device operation (See Notes on Pin-out table below). Other driverless
Firmware options are available depending on specific downstream class types, operating systems and
protocol requirements for the specific application.
4. S/W installation
Put the CD to computer CD driver which is provided.
Click the installation program in the CD
Install Wireless USB driver. Click Install
DC20 Dongle 10 of 14
Click the finish and complete the wireless manager program.
Reboot the computer after finishing the installation.
