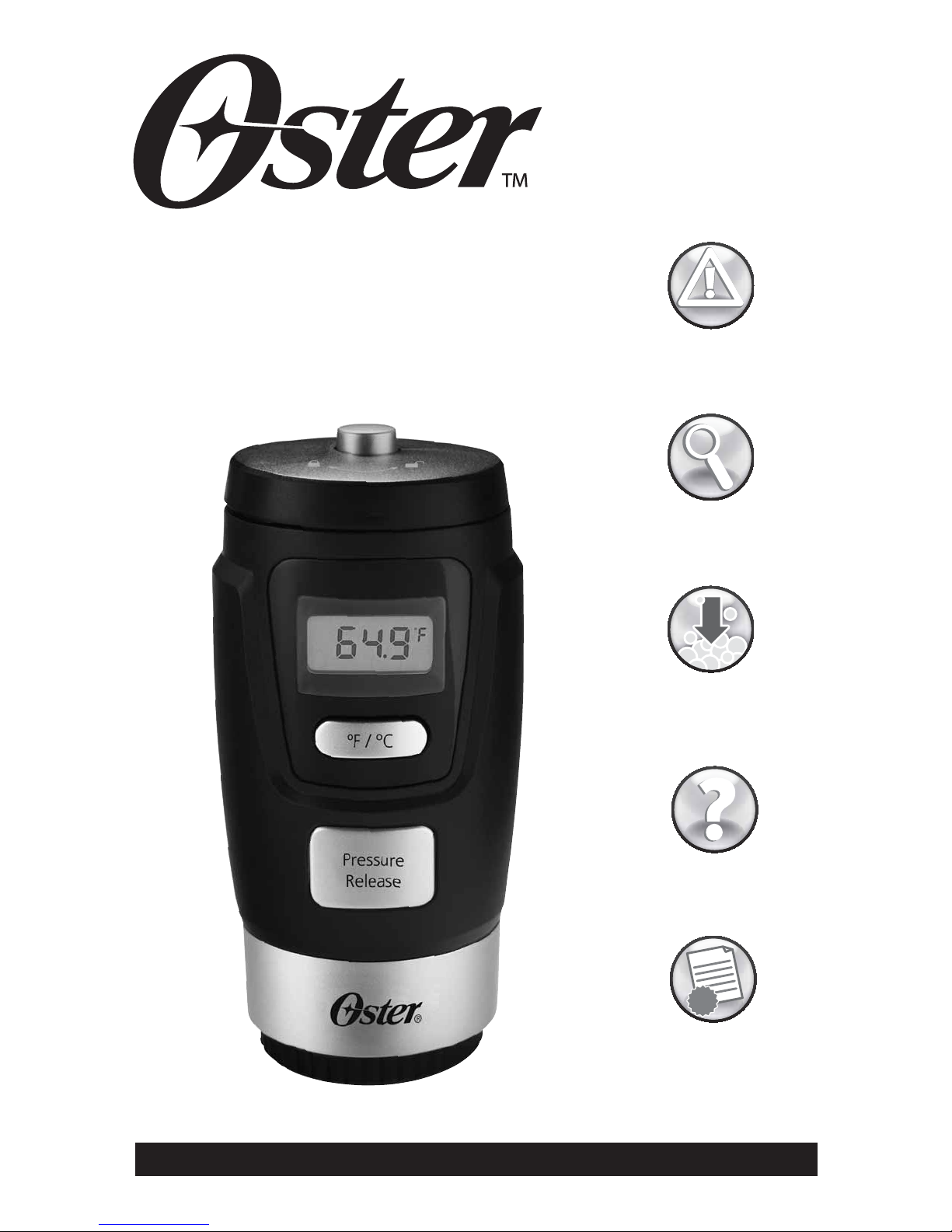

Oster Electronic Wine Vacuum Cork Bedienungsanleitung

WINE VACUUM CORK

CORCHO EVACUADOR PARA VINO

User Guide/ Guía del Usuario:

FPSTBW8100

www.oster.com

Safety

Seguridad

How to use

Cómo usar

Care & Cleaning

Cuidado y Limpieza

FAQs

Preguntas frecuentes

Warranty

Garantía

www.oster.com

IMPORTANT SAFEGUARDS

When using the Wine Vacuum Cork, basic safety precautions should always

be followed including the following:

1. READ ALL INSTRUCTIONS BEFORE USE

2. Do not operate WINE VACUUM CORK after the appliance malfunctions

or if it is dropped or damaged in any manner. Refer to warranty section.

3. To protect against risk of electrical shock, do not put the

WINE VACUUM CORK in water or other liquid.This may cause

personal injury and/or damage to the product.

4. To protect against ﬁre, do not operate the unit in the presence of

explosive and/or ﬂammable fumes.

5. Do not use the WINE VACUUM CORK for other than intended use.

6. For household indoor use only. Do not expose the

WINE VACUUM CORK to rain or other extreme conditions.

7. Do not attempt to disassemble the WINE VACUUM CORK. It has no

serviceable parts. Your WINE VACUUM CORK is guaranteed for one

year. In the event of a malfunction in this time please contact our

customer services department.

8. Use only AAA ALKALINE BATTERIES IN THE UNIT.

9. Make sure the battery cover is securely locked in place before operating.

10. Remove batteries from battery compartment if storing unit for

extended periods of time.

11. Maintain Appliance away from face and eyes.

www.oster.com 3

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

Thank you for purchasing the OSTER™

Wine Vacuum Cork. Before you use this product

for the ﬁrst time, please take a few moments to

read these instructions and keep it for reference.

Pay particular attention to the Safety Instructions

provided. Please review the product service and

warranty statements. To learn more about Oster™

products, please visit us at www.oster.com or

call us at 1-800-334-0759.

www.oster.com

LEARNING ABOUT YOUR

WINE VACUUM CORK

Battery Cover

Battery Compartment

Pressure Indicator

Display

Temperature Display Button

Pressure Release Button

Silicone Gasket

Temperature Gauge

Bottom Cap

www.oster.com 5

HOW TO:

Installing the Batteries

Before using your Wine Vacuum Cork for the ﬁrst time

install a fresh set of batteries in the battery compartment

as shown here:

1 Remove the battery cover by

twisting it counterclockwise

toward the unlock icon.

2 Insert 2 AAA alkaline batteries

into the battery compartment,

observing proper +/- polarities

3 Replace the battery cover by

twisting it clockwise toward

the lock icon until the cover

clicks into place.

4 Replace batteries when

required with only AAA

alkaline batteries.

5 Dispose old batteries per

local and national laws

and regulations.

www.oster.com

Operating the Wine Vacuum Cork

1 Remove bottom cap. Fully place the

wine vacuum cork on top of the neck

of an opened bottle of wine. Hold

the bottle of wine securely with

one hand and push the unit down

ﬁrmly and twist slightly to secure

the seal with the other hand. This

will activate the pump as shown in

ﬁgure 1. Repeat if necessary.

Note: It is not necessary to press

any buttons to activate the pump.

Once vacuum process starts, you

can release the vacuum cork.

Vacuum process has two stages.

Stage One

The automatic vacuum pump activates, evacuating excess

air from inside the wine bottle. The“o”icon will move across

the display while the motor is running as shown in ﬁgure 2.

The blue back light will remain on during this time.

ﬁgure 1

ﬁgure 2

www.oster.com 7

The pressure indicator on top of the unit will begin to sink

as the pressure in the bottle is reduced. Then a second

evacuation stage will automatically follow to extract the

air for a tighter seal.

Stage Two

During this stage the display will show the remaining

seconds counting down from 60 in increments of 1 second.

Once it reaches the last second and the display shows“1”,

the air pump will stop and the display will show the current

temperature of the wine inside in degrees Fahrenheit as

shown in ﬁgure 3.

The back light remains on for another 5 seconds.

The display will then completely shut oﬀ 60 seconds after

the motor stops.

Note: If the pressure in the bottle

does not reach the pre-set value in

the ﬁrst 60 seconds of air extraction,

the display will show “Err” as shown

in the ﬁg 4. If this happens please

check the following:

a Whether the Wine Vacuum Cork

is properly placed on top of the

neck of the bottle.

b Whether the silicone gasket ﬁts the opening of the bottle.

c Whether there are any external objects on the opening

or neck of the bottle.

ﬁgure 3

ﬁgure 4

www.oster.com

Note: Most vacuum seals lose their vacuum over time. With

our unique Two Stage process, the device senses this loss in

pressure and reactivates the 2nd stage automatically to

ensure a better vacuum seal.

Converting the Temperature from

Fahrenheit to Celsius

(The default temperature unit is Fahrenheit)

1 Press and hold the temperature display button for about

2 seconds in stand by mode to activate the display.

2 Next press and hold the temperature display button for

about 5 seconds. The display will then switch to show

the temperature in degrees Celsius. You can toggle from

F to C or C to F again by pressing and holding for

another 5 seconds.

The back light remains on for another 5 seconds during

this phase. The display will then completely shut oﬀ after

60 seconds.

Automatic Tilt Shut Oﬀ

Do not tilt the bottle while the

vacuum is in use. If the bottle is tilted

beyond 45 degrees, the automatic

tilt shutoﬀ feature stops the vacuum

process. This helps avoid spills. The

Display will show “––––“, asshown

in ﬁgure 5. The blue back light will

remain on for another 5 seconds

then turn oﬀ but the display will

continue to show “––––“.Ifthis happens

refer to the FAQ’s section for help.

ﬁgure 5

www.oster.com 9

Low battery warning

When the batteries are low the

display will show a low battery

warning as shown in ﬁgure 6.

The blue back light will remain on

for another 5 seconds then turn oﬀ

but the display will continue to

show“Lo”. If this happens refer to the

FAQ’s section for help

Releasing vacuum seal and removing the unit

from bottle

1 Press the pressure release button. Wait for the vacuum

to be released from the bottle (this will take a few seconds).

2 Hold bottle with one hand, then pull unit oﬀ with

the other.

3 Pour and enjoy.

Storing your wine with the

Wine Vacuum Cork attached

1 It is recommended to store your bottle in the upright

position for an optimal seal.

2 Bottles can be stored on their sides once they are vacuum

sealed, however the re-evacuation process will not occur

as the bottle has been tilted past the 45 degree angle.

Note: A bottle sealed with the unit may be stored in

the refrigerator however, cold temperatures may reduce

the battery performance. Do not operate the unit in

freezing temperatures.

ﬁgure 6

www.oster.com

CARE & CLEANING

The following suggestions will help you care for your Oster™

Wine Vacuum Cork.

1 Wipe Wine Vacuum Cork with a cloth to clean.

2 Do not immerse Wine Vacuum Cork in water.

3 Do not place Wine Vacuum Cork in the dishwasher.

FAQs

What do I do if the display reads “Err”?

This means the pressure inside the bottle has not reached

the preset value. If this happens please check the following:

a Whether the Wine Vacuum Cork is properly placed on

top of the neck of the bottle.

b Whether the silicone gasket ﬁts the opening of the

bottle.

c Whether there is any external objects on the opening

or neck of the bottle.

What do I do if the display reads “––––”?

This means the bottle was probably tilted more than

45 degrees during the evacuation process. Remove the

Wine Vacuum Cork from the bottle and start over

keeping the bottle upright.
