Otto Bock Blizzard Bedienungsanleitung

Blizzard

Service Manual

647G429_Blizzard_Titel_GB.indd 1 05.04.2007 12:26:46 Uhr

647G429_Blizzard_Titel_GB.indd 2 05.04.2007 12:26:46 Uhr

Service Manual for the Blizzard Wheelchair for Active Use

Table of Contents Page

1 Introduction ................................................................................................................... 2

1.1 Preface................................................................................................................. 2

1.2 Technical Support................................................................................................ 2

1.3 Symbol Legend .................................................................................................... 3

2 General Safety Instructions ..........................................................................................3

3 Required Tools and Maintenance Plan.......................................................................... 5

3.1 Required Tools ..................................................................................................... 5

3.2 Maintenance Plan ................................................................................................ 7

4 Settings/Replacement/Retrot................................................................................. 8

4.1 Component Group A: Frame ............................................................................... 8

4.2 Component Group B: Footrest .......................................................................... 12

4.3 Component Group C: Seat ................................................................................ 14

4.4 Component Group D: Back / Push Handles ..................................................... 15

4.5 Component Group E: Side Panels..................................................................... 18

4.6 Component Group F: Casters............................................................................ 21

4.7 Component Group G: Rear Wheels ................................................................... 23

4.8 Component Group H: Wheel Lock..................................................................... 28

5 Technical Data............................................................................................................. 32

647G429_Blizzard_Inhalt GB.indd 1 05.04.2007 12:35:11 Uhr

1 Introduction

1.1. Preface

Regular maintenance is important. It increases safety and prolongs the service life of the prod-

uct.

All Mobility products should be inspected and serviced once a year.

However, if the product is used frequently, or if it is used by growing children or patients with

changing clinical conditions, we recommend readjusting and servicing the product every 6

months.

Use only original spare parts for all service and maintenance.

The service and maintenance described in this manual should be performed by trained spe-

cialists only and not by the user.

This service and maintenance manual refers to the spare parts catalogs and instructions for

use manuals for the products described. For this reason, it is important to use these docu-

ments together.

Use the maintenance plan (check list) as a template for making copies. Retain completed main-

tenance plans and provide the customer with a copy.

Instructions for use Spare parts catalog

Blizzard 647G422=D/GB

1.2. Technical Support

The Otto Bock Team of your country will be pleased to answer your technical questions. Con-

tact addresses and telephone numbers are listed on the last page of this manual.

647G429_Blizzard_Inhalt GB.indd 2 05.04.2007 12:35:11 Uhr

1.3. Symbol Legend

Caution!

Warning of damages to persons.

Attention!

Warning of product damages.

Note!

Useful tips for the technician.

Read!

Please read the Instructions for Use first!

2 General Safety Instructions

Observe the following guidelines for maintenance or repair work:

Caution!

Use appropriate tools (refer to pages 5 & 6).

Caution!

Wear appropriate clothing, including gloves and safety glasses, if necessary.

Attention!

Secure the product to prevent it from tipping over or falling off the workbench.

Read!

Read the service and maintenance instructions before starting.

Read!

Familiarize yourself with the functions of the product. If you are not familiar with the prod-

uct, read the instructions for use manual before inspecting the product.

Attention!

If you do not have an instructions for use manual, you can order one from the manufacturer

(see the overview of all Otto Bock Branches "Otto Bock Worldwide").

Attention!

Alternatively, you can download documents from our home page at www.ottobock.de

or www.ottobock.com.

647G429_Blizzard_Inhalt GB.indd 3 05.04.2007 12:35:12 Uhr

Attention!

Clean or disinfect the product before starting inspection. See the instructions for use manual

for care instructions or specific product inspection information.

Attention!

Many of the screw fastenings use thread lock or nylock nuts. If you have to undo such

screw fastenings, replace the nut or screw with a new nut/screw with thread lock. If new

screws or nuts with thread lock are not available, use a medium-strength liquid thread lock

substance (such as Loctite 241 or Euro Lock A24.20).

647G429_Blizzard_Inhalt GB.indd 4 05.04.2007 12:35:12 Uhr

3 Required Tools and Maintenance Plan

3.1. Required Tools

The following list shows you the tools and auxiliaries required for the service.

Reversible ratchet handle wrench

and sockets, sizes 8 mm - 24 mm

Torque wrench,

measurement range 5 Nm to 50 Nm

Wrenches, sizes 8 mm - 24 mm*

Allen wrenches, sizes 3 mm - 6 mm* Phillips head screwdriver, size 2

Screwdrivers,

blade widths 2.5, 3.5, and 5.5 mm

Hammer, approx. 300 g

Plastic hammer Stanley knife with sickle hooked

blade and standard blade

* Contained in 481C08=ST010 Tool Set

Liquid thread lock "medium strength"Side cutting pliers Pop rivet gun for rivets up to ø 5 mm

647G429_Blizzard_Inhalt GB.indd 5 05.04.2007 12:35:18 Uhr

Workbench as well as a vise with

plastic jaws and rubber insert

Hand drill Tire mounting levers*,

inner tube repair kit*

647G429_Blizzard_Inhalt GB.indd 6 05.04.2007 12:35:19 Uhr

Maintenance Plan

for regular service

Blizzard

- Wheelchair for active use -

Customer:

Item Component (group) Inspection (check list)

Serial no.: 1.) Function / setting

(refer to 647G422 Instructions for Use)

2.)

Damages /

deformations

3.)

Screw connections

A Frame - Frame x x

Frame Accessories - Anti-tipper

- Transport wheels

- Crutch holder

- Tip-assist

- Frame pads

B Footrest - Flip-up mechanism

- Lower leg length setting

- Angle adjustment

C Seat - Seat upholstery

- Seat cushion

D Back / Push Handle - Back upholstery

- Back tubes

- Folding mechanism

- Push handles

E Side Panel - Height setting

- Slide-down mechanism

- Removability

F Caster - Tires (wear)

- Air pressure

- Caster journal angle

- Screw connection of the caster

journal bearing

- Running behavior of the wheels

- Threaded axles / quick-release

axles

- Swiveling of the wheel forks

G Rear Wheel - Tires (wear)

- Air pressure

- Running behavior of the wheels

- Spokes

- Push rings

- Quick-release axles

- Wheel camber

- Rear wheel attachment

Rear Wheel Accessories - Spoke protectors

- Wheelbase extension

x x

H Wheel Lock - Brake function

- Lever mechanism

Wheel Lock Accessories - Wheel lock lever extension x x

S Accessories - Lap belt x x

Do the settings of the wheel-

chair comply with the user's

requirements?

Maintenance performed by: on:

3.2. Maintenance Plan

647G429_Blizzard_Inhalt GB.indd 7 05.04.2007 12:35:19 Uhr

4 Settings / Replacement / Retrofit

4.1. - Frame

4.1.1.Retrot/ReplacementoftheAnti-tipper

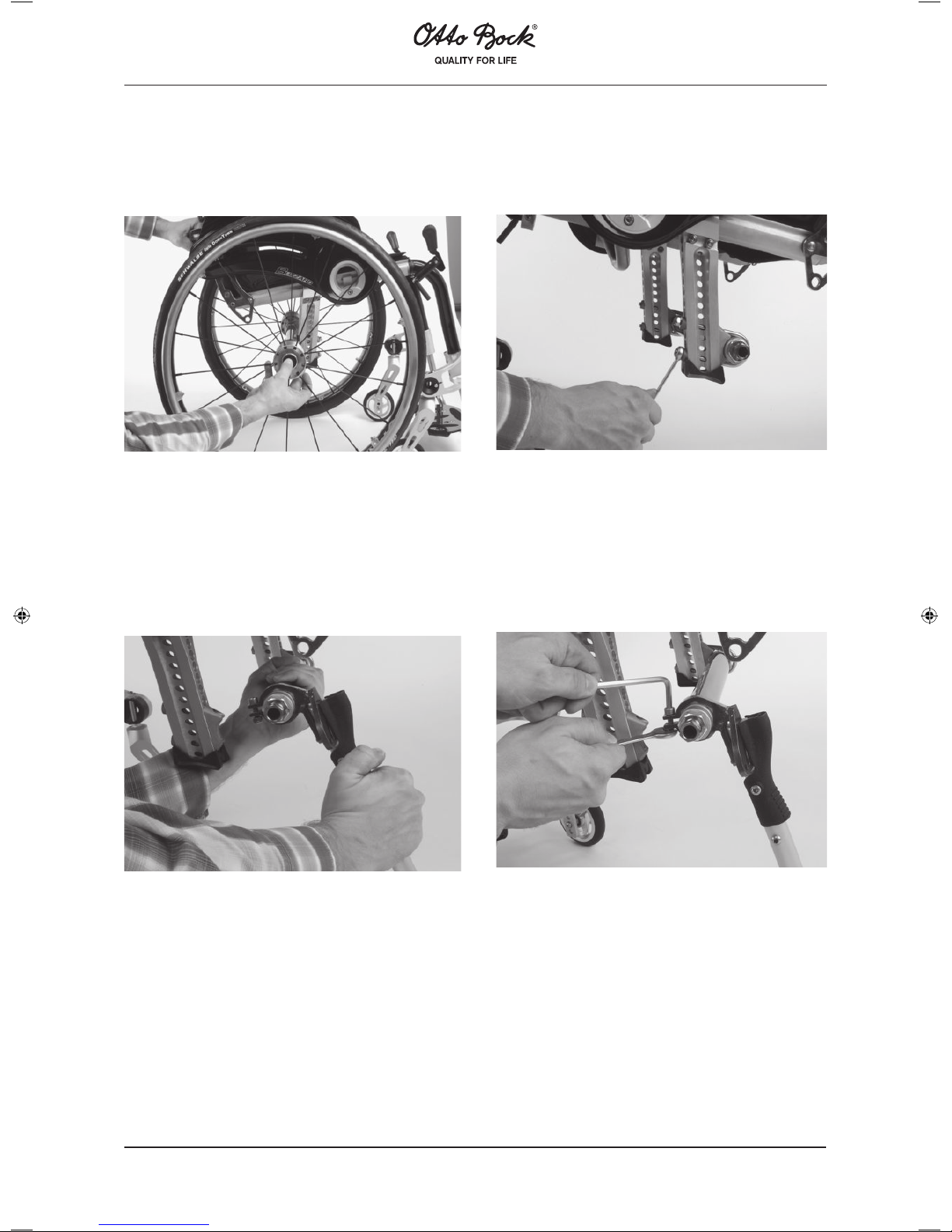

First remove the rear wheels by pressing the button of the quick-release axle with your

thumb and pulling off the wheel (Fig. 1). Fully loosen the two screws on the front of the

rear wheel attachment (Fig. 2) and remove them. Now pull the U-shaped section off to the

rear.

Slide the pre-assembled anti-tipper onto the rear wheel axle, which is now freely acces-

sible, past the rear wheel adapter, until the (hexagonal) attachment of the anti-tipper is

located on the hexagon of the axle (Fig. 3).

Fix the anti-tipper using the clamping screw (Fig. 4) and test the swing-away and locking

function.

Reinstall the rear wheel attachment and attach the wheels by repeating the steps described

above in the reverse sequence.

Figure 1 Figure 2

Figure 3 Figure 4

647G429_Blizzard_Inhalt GB.indd 8 05.04.2007 12:35:23 Uhr
