Ourten SP-005VD10-BNC16 Bedienungsanleitung
Shanghai Qunan Electronics Co., Ltd.
Product Description:
SP-005VD10-BNC16 is mainly used to 16-channel protection of video
and control equipments together such as PTZ cameras, video monitors,
etc. It is easy for installation and centralized management in projects.
Technical Parameter:
Signal Type
Video
Data
Working Voltage Un (V)
5
5
Limiting Voltage Up (V)
20
20
Normal Discharge Current In (kA)
5
Maximum Discharge Current Imax (kA)
10
Response Time (ns)
1
Insert Loss (dB)
≤0.2
Frequency band response (Hz)
10M×16 port
Terminal Type
BNC/screw terminal
Net Weight (kg)
1.5
Working Temperature
-40℃～+80℃
Working Humidity
＜95% Non-condensation
Dimension:
16-Channel Video/ Data Surge Protector
Model Number: SP-005VD10-BNC16
Shanghai Qunan Electronics Co., Ltd.

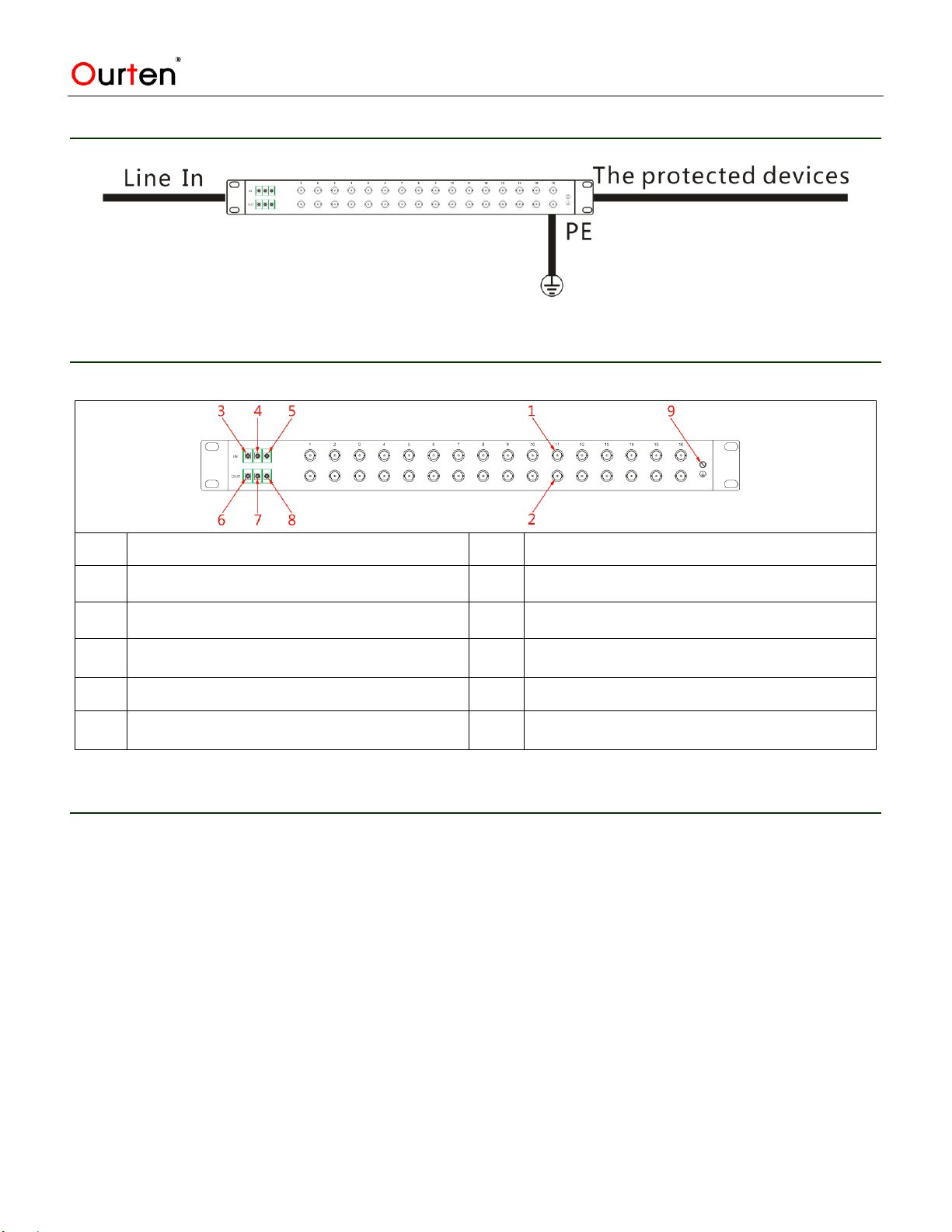

Installation Diagram:
Installation Instructions:
Use Tips:
1. This product is connected in series and should be installed in dry and dustproof environment.
2. Please select the products same as interface type of protected device.
3. IN is input terminal and OUT is the output terminal on surge protector. Input terminal connects outside line while
output terminal is connected to input of protected devices.
4. PE lines of surge protector must be reliable connection with the ground lead of lightning protection system. Ground
lead should be shortness, thickness and straightness (4 mm2 < our recommendation < 50 mm2).
5. During the period of use, surge protector should be inspected regularly. If any failure occurs, it should be repaired or
replaced in time to ensure the safety of the protected equipment.
6. If device fails, do not disassemble or repair it by yourself. Please contact us timely.
NO
Step
No
Step
1
Connect coax cable to IN (1)
6
Connect positive pole of data cable of the
protected device to + (6)
2
Connect the coax cable of protected device to
OUT (2)
7
Connect negative pole of the protected device
data cable to –(7)
3
Connect positive pole of data cable to +（3）
8
Connect the grounding cable of the protected
device data cable to GND（8）
4
Connect negative pole of data cable to -（4）
9
Connect ground lead (9) to the grounding device
5
Connect the grounding cable of data cable to
GND（5）
