Ovizee OV2411 Bedienungsanleitung
OV2411
HOME MONITOR
The features & specifications described in this user’s
guide may be subjected to modifications without prior notice.
User Manual
HOME MONITOR
Safety Instructions
P.1
- This product is not a toy. Do not allow children to play with it.
- Keep this user’s guide for future reference.
- Keep the cords out of reach of children.
- Test the home monitor before use. Become familiar with its functions and features.
- Do not place the baby unit or cables in the cot or within arm’s reach of the baby
(the unit should be at least 1 metre away).
- Do not cover the home monitor with a towel or blanket.
- Never use extension cords with AC adapters. Only use the ACadapters provided.
- Do not install the home monitor near a heat source.
- Only use the chargers and power adapters provided.
Do not use other chargers or power adapters as this may damage the device and batteries.
- Do not touch the charger or plug contacts with sharp or metal objects.
WARNING
This home monitor is compliant with all relevant standards regarding
Guide, safe to use. Therefore, always read the instructions in this User’s
Guide carefully before using the device.
OV2411
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions
HOME MONITOR
1.1 Overview of OV2411 Viewer
2
3
4
5
1
6
7
8
9
10
11
12
17
13
14
15
16
1
1. Up /Talk Key
2. Enter Key
3. Cam 1 Key
4. Cam 2 Key
5. Left Key /Volume Down
6. Signal LED
7. Display
9. Cam 3 Key
10. Cam 4 key
11. Right /Volume up
12. Down /Snapshot
13. SD Slot
14. String holder
15. Battery cover
16. Speaker
17. USB power plug
1.2 Keys
All ovizee handset operation are done with the following keys :
Power, Menu, Enter, Cam1, Cam2, Cam3, Cam4, Up, Down, Left, Right.
Press <Menu> to go to enter the main menu. The main menu consist of the pairing,
LCD contrast, brightness, video display timer, night-vision, voice trigger and snap-shot video
viewer selection. Press <Menu> again to quit.
P.2
OV2411
BABY MONITOR
1.3 Overview of Ovizee Camera
6
7
1
2
3
4
5
1. Power LED
2. Infrared LEDs
3. Light Sensor
4. Camera lens
5. Microphone
6. Speaker
Push the ON/OFF switch down to switch on the camera. The Power LED indicator will turn on.
There is no setup involved. Just plug-in power and it will start working. For additional camera,
pairing procedures must be done before usage, please refer 2.1 for details.
The camera unit comes with built-in light-sensor, IR-LED, Power LED,
microphone and speakers that work with Ovizee handset unit.
P.3
OV2411
HOME MONITOR
2.1 Camera unit power supply
1. Connect the small plug of the AC adaptor to the baby unit and the
other end to the mains socket (230V/50Hz).
NOTE
Only use the enclosed power adapter (5V DC / 1000mA).
2. Push down the power switch to switch on the baby unit. The power
LED will light up in green.
P.4
OV2411
HOME MONITOR
2.2 Vision unit battery installation
lithium battery
BL-5C
1. Insert the wire tab of the rechargeable battery pack into the contact
2. Close the battery compartment and tighten the screw in a clockwise
direction.
- It will take a few seconds to start up the unit.
The battery icon indicates that the battery pack is low and
needs to be recharged. The battery pack takes about 15 hours
to charge fully.
P.5
OV2411
HOME MONITOR
2.3 Vision unit power supply
IMPORTANT
Install the rechargeable battery pack before connecting the AC power
supply.
1. Connect the small plug of the AC adaptor to the parent unit and the
other end to the mains socket (230V/50Hz)
NOTE
Only use the enclosed power adapter (5V DC / 1000mA)..
2. The LCD screen illuminates and starts up automatically after a few
seconds.
3. Press and hold Enter to turn OFF the parent unit.
NOTE
Once the baby and parent units are switched on, the display on the parent
unit will show the video captured by the baby unit.
P.6
OV2411
HOME MONITOR
2.4 First time installation
done before normal operation (Note: Devices comes with Camera/Viewer
pair needs no pairing as they are already pre-paired in the factory).
Choose the zone for paring by pressing ZONE1 to ZONE4. Press <MENU>
to go to main menu, and then press <UP> and <DOWN> to select sub-menu
<PAIRING> to start the pairing action.
Press <ENTER> to start pairing function. At this moment, the wireless
device should also be entered into pairing state. This can be done by:
Depends on the camera type, either
(1) Power OFF and Power ON the device, or
(2) Press <Pairing> key if presented.
No further pairing is needed for subsequent use. Just switch on the
devicesin future and the camera and viewer units are already pair.
P.7
OV2411
HOME MONITOR

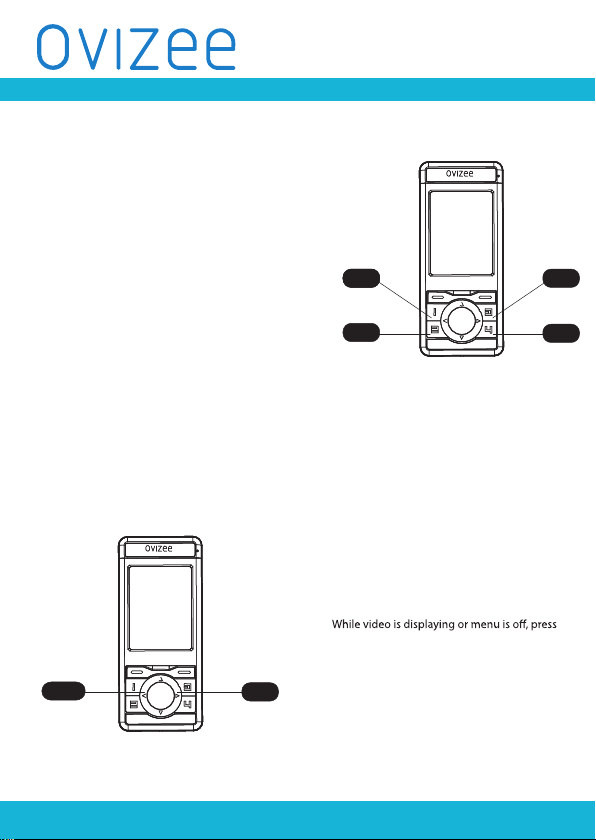

3.1 Select Camera (Zone)
3.2 Speaker Volume Control
press <ZONE1> to go to video zone 1,
press <ZONE2> to go to video zone 2,
press <ZONE3> to go to video zone 3,
press <ZONE4> to go to video zone 4.
The corresponding video and audio
will be activated.
Zone1
Zone3
Zone3
Zone4
Left
right
<LEFT> to decrease volume or press <RIGHT>
to increase. Continue pressing <LEFT>
will mute the speaker.
P.8
OV2411
HOME MONITOR
3.3 Talk function(Vision to Camera)
3.4 Snap-shot Function (Handheld to Camera )
Up/Talk
Down/Snap
Press <UP/TALK> to set two ways audio,
a“Talking”icon will be showed on the top of the display.
Hold this key to continue talking.
Release the key after speaking.
Press <Down/Snap shot> to take one photo on current display.
The photo will be stored on the Micro-SD card.
Note that a mini-SD card is needed ( not-supplied ) for this function.
P.9
OV2411
