OWI ICM6-730SET Bedienungsanleitung

ICM6-730SET

INSTALLATION GUIDEI

TABLE OF CONTENTS

Product Features...........................................................................1

Packing List .................................................................................1

Product Feature Identification......................................................2

Installation and Wiring ................................................................3

Step 1 - Cut the Hole……………………………………………3

Step 2 - Install Split Ring……………………………………….3

Step 3 - Expose the Input –Terminal……………………………5

Step 4 - Attach Wiring to Removable Locking Connector..........6

Step 5 - Plug Connector into Connector Socket……………….. 8

Step 6 - Connect a Secondary Support Line…………………… 9

Step 7 - Mount the Speaker into the Ceiling……………………9

Step 8 - Adjust Tap Selector…………………………………… 10

Step 9 - Insert the Grille…………………………………………11

Painting the Speaker ....................................................................12

Troubleshooting....................................................................... …13

Warranty ......................................................................................14

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 1

PRODUCT FEATURES

ICM6-730SET SPEAKER PRODUCT FEATURES

Thank you for purchasing your new OWI ICM6-730SET High Output Ceiling Speakers.

The ICM6-730SET ceiling speaker is a high output device, intended to meet the needs of

the professional sound contractor. Operational in both 70V and 100V formats, these

products will deliver high quality sound over a wide coverage area.

Your ICM6-730SET speaker comes complete with all the necessary mounting hardware,

and can be flush-mounted into any ceiling type, or alternatively it can be suspended in an

open ceiling situation. In addition, a paint cover cap is included which can be used to

cover the speaker when painting the bezel and grille to match any ceiling color.

Figure Quantity Part

A 2 Speaker system

B 4 Tile rails

C 2 Split-ring supports

D 2 Grille

E 1 Owner’s manual

F 4 Screws

G 2 Terminal connector

H 1 Warranty registration card

I 1 Cutout template

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 2

PRODUCT FEATURE IDENTIFICATION

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 3

INSTALLATION AND WIRING

The OWI ICM6-730SET speaker installation system has been designed so that the entire

installation can be done from beneath the ceiling. In some cases, with a suspended grid

ceiling, it may be easier to access from both the top and bottom of the ceiling tile during

the installation process. Typical installation hardware needed for either suspended

ceilings or sheetrock ceilings is included.

Cut out the hole using a circular cutter set to

the appropriate cutout size or by tracing the

cardboard cutout template included with

your speakers.

If the wiring had been pre-installed, pull the

wiring through the cutout hole.

All OWI ICM6-730SET speakers come packaged with two types of backing hardware:

1 Split Ring (a c-shaped backing plate) and

2 Tile Rails

Suspended Ceilings - Insert the split ring through the hole cut in the ceiling tile. Place

the split ring around the hole with the tabs located as shown in Figure 4. Insert the tile

rails through the hole cut in the ceiling tile. Snap the two rails into the two tabs in the

split ring and align the rails so that the ends extend OVER the T-channel grid on the side

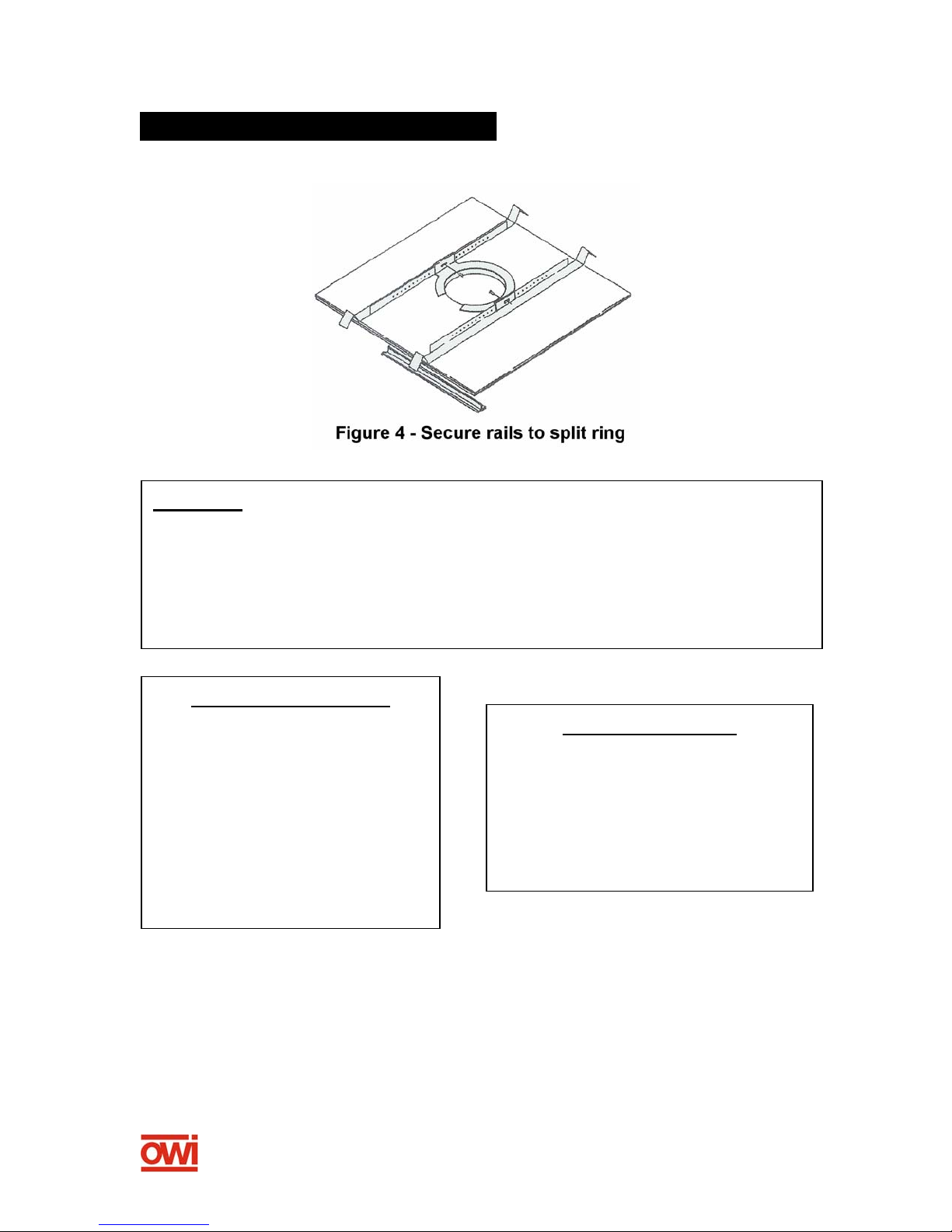

of the tile. Secure the rails onto the split ring tabs by inserting a screw through each tab

into the rail, as shown in Figure 4.

This can all be accomplished from below the ceiling tile if necessary.

SAFETY TIP: IMPORTANT TO USE ALL BRACKETS

ALL included support brackets -split ring and tile rails- MUST be used when installing

into suspended ceiling tiles. A support safety line must always be installed (see Step 6)

Step 1 – Cut the Hole

Step 2 – Install Split Ring and/or Tile Rail

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 4

INSTALLATION AND WIRING

Non-Suspended Ceiling Types -The split ring can be used by itself to reinforce the

ceiling material and to spread out the pressure from the speaker hold-down tabs. Insert

the split ring through the hole cut in the ceiling and place it on the back side of the hole

before inserting the speaker.

Tile Rails:The tile rails are designed to fit either standard 24-inch wide tiles or

600mm wide tiles. The tile rail pieces do NOT physically attach to the T-grid

struts. Instead, the inverted-V shape at the ends of the rails sit OVER the T-grid

strut. Normally, the rails are supported by the edge of the ceiling tile. In the

unlikely event that the tile comes out or falls apart, the ends of the support rails

are designed to catch onto the T-grid, providing secure support to hold the

loudspeaker assembly in place.

Vibration Reduction:

These loudspeakers can generate

substantial vibration, which can

cause buzzing of the ceiling

materials or structure. Depending

on the character of the ceiling tile

and structure, the installer might

need to place neoprene or other

dampening material under the tile

rails or the edges of the tiles to

eliminate rattles.

Cutout Placement:

The tile rails are pre-punched with

attachment holes along their length.

Placement is not limited to the center

of the tile as is the case with many

other tile rail support systems.

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 5

INSTALLATION AND WIRING

Remove the rear cover plate, complete with wire strain relief, by loosing the two screws

holding it in place, and sliding the plate off. Once the cover is removed, open the strain

relief fitting by loosening the horizontal screws.

Run the speaker wires through the strain relief opening. After passing about 4 to 6 inches

of wire through the fitting, tighten the screws on the strain relief to secure the fitting and

back plate to the speaker wire. DO NOT over tighten or you may damage the wire jacket,

a snug fit is all that is required.

Tightening onto flexible or hard conduit - The supplied fitting accommodates up to 3/8

inch (9.5mm) flexible conduit. Insert the conduit into the strain relief fitting. Using the

two horizontal screws that clamp the fitting together, clamp the conduit securely between

them. Be sure to leave at least 4 to 6 inches of cable beneath the strain relief fitting.

Step 3 – Expose the input-terminal on the rear of the speaker

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 6

INSTALLATION AND WIRING

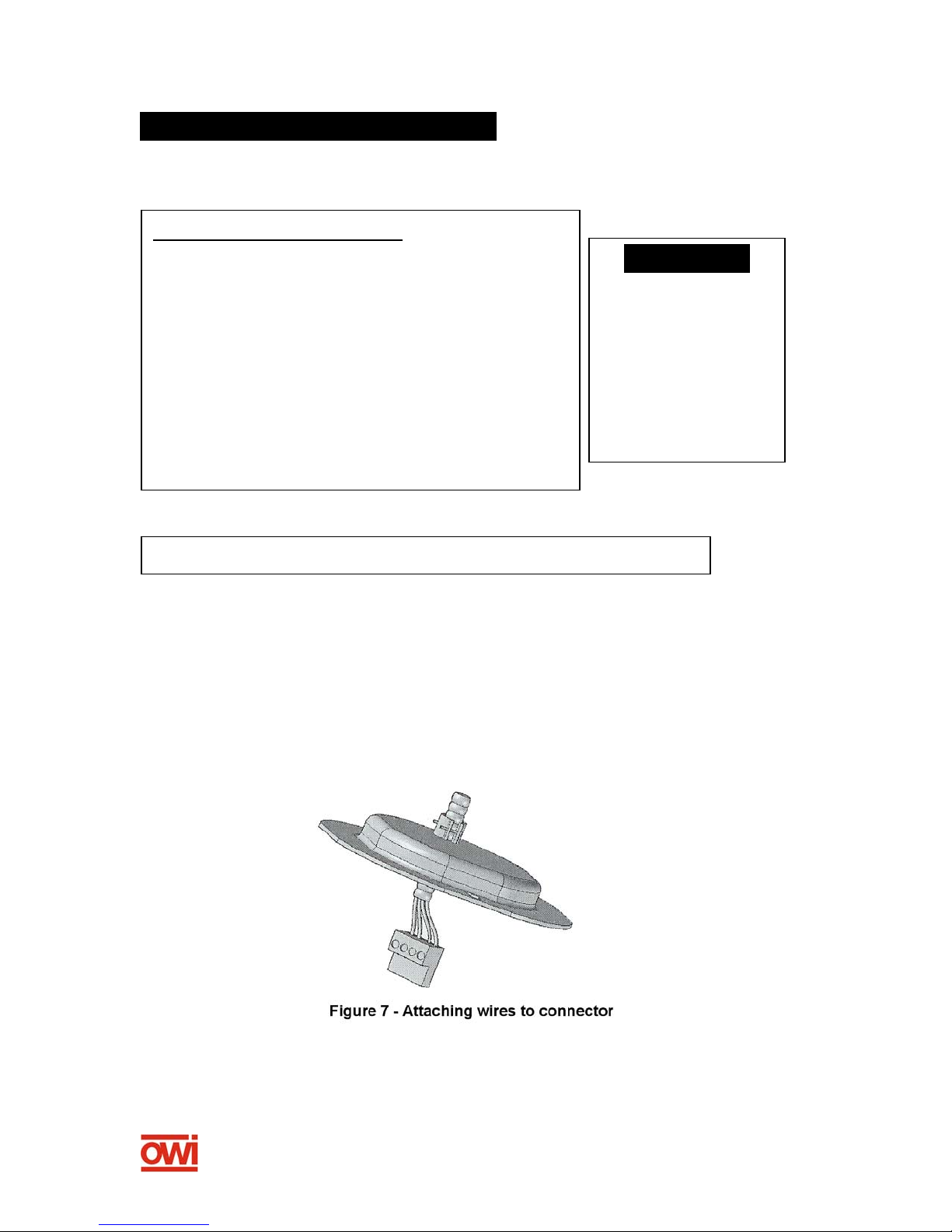

Connect the end of the wiring to the removable locking connector that is included with

the speaker by stripping the insulation back about 5mm, inserting the bare end of the wire

into the connector and screwing down the holddown screw until tight. Tighten any

unused screws to avoid vibration.

CAUTION:

ALWAYS USE THE

PROPER FITTING

IN ACCORDANCE

WITH YOUR

AREA'S BUILDING

CODES AND

REGULATIONS

Step 4 – Attach Wiring to the Removable Locking Connector

Using an Alternate Fitting – the existing strain

relief fitting accommodates many common fitting

requirements. Sometimes, alternate fittings are

required, such as for larger diameter conduit or to

meet specific code requirements.

In these cases, the existing fitting can be easily

replaced with a number of available off-the-shelf

fittings. Simply remove the existing fitting by

unscrewing the two hold-down screws, exposing a

7/8 inch (22mm) knockout hole. Then, install the

alternate fitting.

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 7

INSTALLATION AND WIRING

Guide to the Pins for Connection

The removable locking input connector contains 4 terminals. These are numbered on the

connector. The label located on the terminal cover plate lists the pin functions.

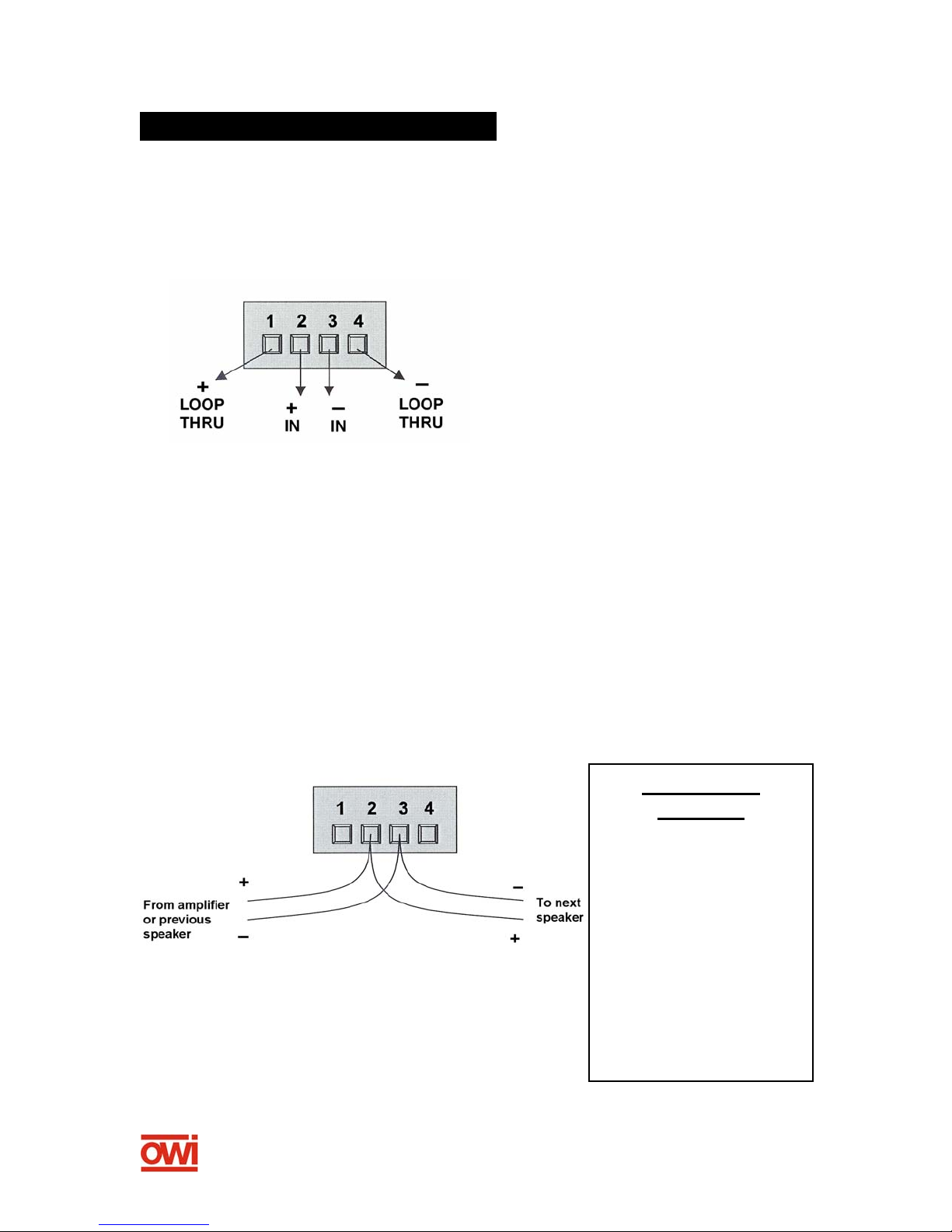

Figure 8 -Connector pins

Pins 2 & 3 are the "+" and "-" inputs to the speaker. Pins 2 & 3 are connected to pins 1 &

4 respectively (i.e. Pin 1 connects to Pin 2 and Pin 3 connects to Pin 4) inside the speaker.

Pins 1 & 4 are intended as loop-through connections to other loudspeakers. There are two

possible layouts for wiring a group of speakers. Choose whichever hookup pattern

accommodates your installation best.

Parallel Wiring:

Connect the wire pair of the subsequent speaker to pins 2 & 3 (in parallel with the input

wiring). In this hook-up scheme, no wires get connected to pins 1 & 4.

Figure 9 - Parallel Wiring

PARALLEL

WIRING

Whenever the connector

is pulled out of the

speaker for

troubleshooting,

subsequent speakers will

stay connected. It can be

useful during

troubleshooting to be

able to disconnect a

single speaker at a time.

OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE 8

INSTALLATION AND WIRING

Daisy-chain Wiring (Using Loop-Through Terminals - Pins 1 & 4):

To daisy-chain the wiring, connect the wire pair of the follow-on speaker to pins 1 and 4.

Figure 10 – Daisy-chain wiring

With all wiring to the connector completed, plug the connector into the socket in the

speaker's terminal cup. Remember to tighten any loose screws to eliminate any vibration.

Slip the input terminal cover back onto the rear of the speaker and tighten the two screws

that keep it in place.

Figure 11 - Plug connector into

connector socket

Step 5 – Plug connector into connector socket

DAISY CHAIN WIRING

By connecting the wire pair of

the subsequent speaker to pins 1

& 4, then all subsequent

speakers will be disconnected

when this speaker’s connector is

disconnected during

troubleshooting. This can be a

useful way to isolate problems

to a section of the distributed

line while leaving the wires

attached to the connector.
